OPERA: HEAVY DUTY JACKSHAFT OPERATOR
IMPORTANT: UPON COMPLETION OF OPERATOR INSTALLATION THIS MANUAL MUST BE GIVEN

1. PRODUCT APPLICATION

The model Opera-GH heavy-duty jackshaft operator is designed for use on commercial or industrial doors
of all types provided that the door has a shaft as basic driving element (doors with high lift, vertical lift, rolling
doors and grilles). All Opera-GH door operators are designed and constructed in accordance with UL325
Standard, and certified by CSA Laboratories.

2. DELIVERY OF OPERATOR

Upon delivery of your heavy-duty jackshaft operator Opera-GH, inspect the unit immediately for shipping
damage. Verify that you have received all the hardware parts mentioned in TABLE 1 and shown in Figure 1.
Other items may be present, such as radio controls or other types of optional equipment, if ordered. If any
item is missing or if there is evidence of damage, call the transport company first.
* Check to make sure that the available power supply to be connected to the operator is of the same voltage,
frequency, phase and amperage as indicated on the nameplate of the operator.

3. HARDWARE

TABLE 1 STANDARD PARTS LIST FOR OPERA JACKSHAFT OPERATOR
PART # QTY DESCRIPTION
1 1 Pocket wheel hand chain (2X door shaft less 4 ft. (1.2m)
2 1 3-button open/close/stop push-button station
3 1 #50 connecting link
#50 roller chain x 4'(1.2m) or x 5' when sprocket is 42 teeth or more
4 1
5 1
** Sprocket 50B
Sprocket 50B12 x 1,0 " c/w set screws for OPERATM output shaft
6 1
7 1 Square shaft key 1/4" x 1-1/2" L for OPERATM output shaft
8 1 Chain keeper for Opera-GH
9 4 3/8" x 1-1/4" bolts
10 4 3/8" washers
11 4 3/8" lock washers
12 4 3/8" nuts
** See SPECIFICATIONS, DOOR SPEED AND AVAILABLE DOOR ADJUSTMENT
5
TO THE END-USER.
x 
" c/w set screws for door shaft

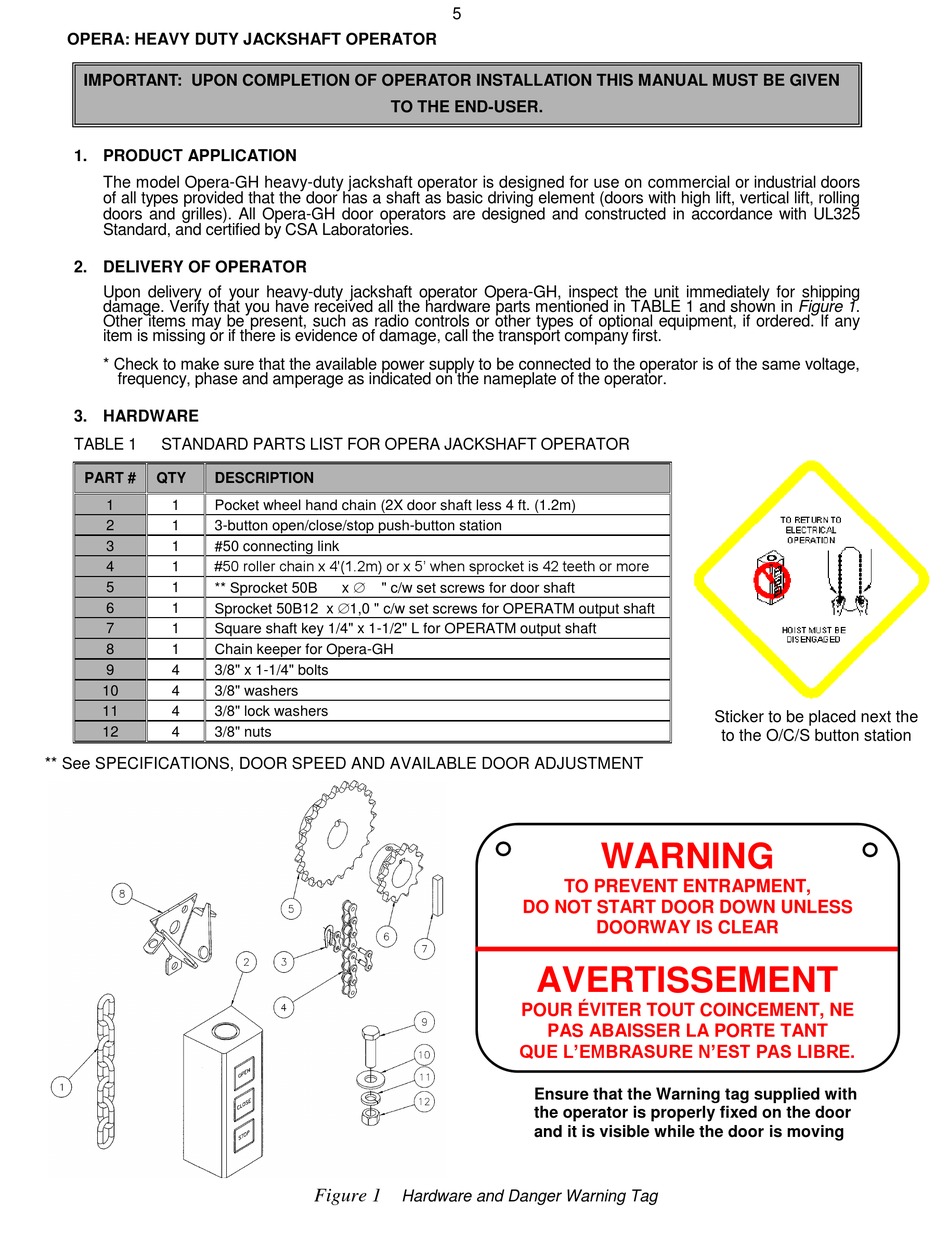

Figure 1
Hardware and Danger Warning Tag
WARNING
TO PREVENT ENTRAPMENT,
DO NOT START DOOR DOWN UNLESS
DOORWAY IS CLEAR
AVERTISSEMENT
POUR ÉVITER TOUT COINCEMENT, NE
PAS ABAISSER LA PORTE TANT
QUE L'EMBRASURE N'EST PAS LIBRE.
Ensure that the Warning tag supplied with
the operator is properly fixed on the door
and it is visible while the door is moving
Sticker to be placed next the
to the O/C/S button station
