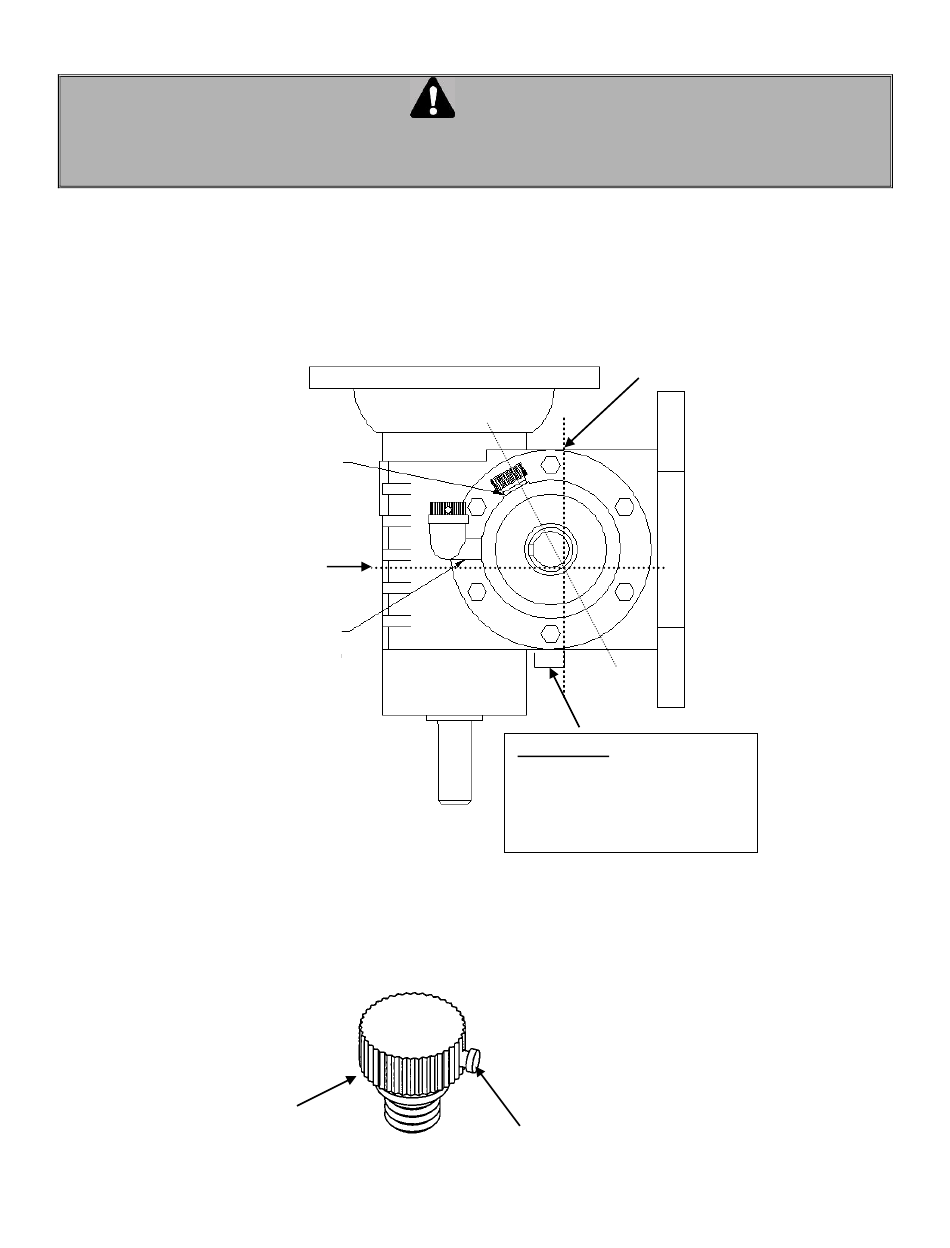

4.9 GEAR REDUCER BREATHER AND LUBRICANT
TO AVOID THE RISK OF HAVING HIGH PRESURE IN THE REDUCER (GEAR BOX) AN OIL BREATHER
SHOULD BE INSTALLED ON THE GEAR REDUCER. FAILURE TO INSTALL THE BREATHER MAY LEAD
TO OIL LEAKAGE FROM THE SEAL AND DAMAGE THE REDUCER.
All Gear Head operators are supplied with a Reducer Breather. However, the breather is not mounted at the factory
to avoid leakage during handling of the reducer. All reducers are built with an air-vent hole to receive the Reducer
Breather. To prevent oil leakage during shipping and installation, a metal bolt is placed on the air-vent hole.
GEAR
REDUCER
For reducer with vent
hole at 60° use cap
only as shown
Oil level when
operator is
installed
For reducer with vent
hole at 90° use metal
elbow + cap as shown
REDUCER AIR BREATHER
MOTOR
0°
Cap
15
WARNING
Oil level when
operator is on
horizontal position.
60°
DRAIN BOLT: is located on the
bottom of the reducer to drain the
used oil. It is advised to bring the
operator down while changing oil.
Drain bolt must be properly
tightened to avoid oil leakage.
Yellow Plug
(should be removed
after cap installation)
