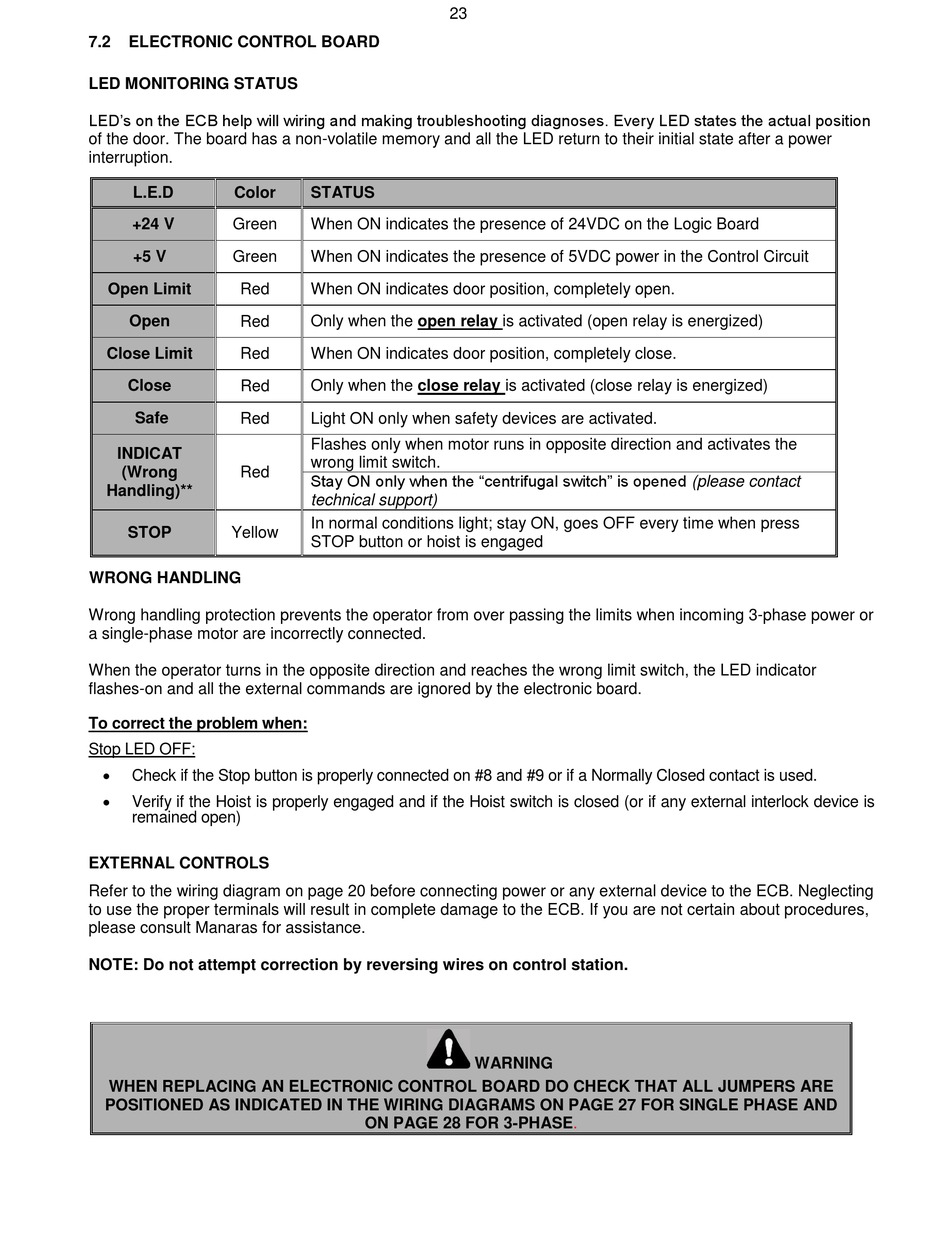

7.2 ELECTRONIC CONTROL BOARD
LED MONITORING STATUS
LED's on the ECB help will wiring and making troubleshooting diagnoses. Every LED states the actual position
of the door. The board has a non-volatile memory and all the LED return to their initial state after a power
interruption.
L.E.D Color
+24 V Green
+5 V Green
Open Limit Red
Open Red
Close Limit Red
Close Red
Safe Red
INDICAT
(Wrong Red
Handling)**
STOP Yellow
WRONG HANDLING
Wrong handling protection prevents the operator from over passing the limits when incoming 3-phase power or
a single-phase motor are incorrectly connected.
When the operator turns in the opposite direction and reaches the wrong limit switch, the LED indicator
flashes-on and all the external commands are ignored by the electronic board.
To correct the problem when:
Stop LED OFF:

Check if the Stop button is properly connected on #8 and #9 or if a Normally Closed contact is used.

Verify if the Hoist is properly engaged and if the Hoist switch is closed (or if any external interlock device is
remained open)
EXTERNAL CONTROLS
Refer to the wiring diagram on page 20 before connecting power or any external device to the ECB. Neglecting
to use the proper terminals will result in complete damage to the ECB. If you are not certain about procedures,
please consult Manaras for assistance.
NOTE: Do not attempt correction by reversing wires on control station.
WHEN REPLACING AN ELECTRONIC CONTROL BOARD DO CHECK THAT ALL JUMPERS ARE
POSITIONED AS INDICATED IN THE WIRING DIAGRAMS ON PAGE 27 FOR SINGLE PHASE AND
23
STATUS
When ON indicates the presence of 24VDC on the Logic Board
When ON indicates the presence of 5VDC power in the Control Circuit
When ON indicates door position, completely open.
Only when the open relay is activated (open relay is energized)
When ON indicates door position, completely close.
Only when the close relay is activated (close relay is energized)
Light ON only when safety devices are activated.
Flashes only when motor runs in opposite direction and activates the
wrong limit switch.
Stay ON only when the "centrifugal switch" is opened (please contact
technical support)
In normal conditions light; stay ON, goes OFF every time when press
STOP button or hoist is engaged
WARNING
ON PAGE 28 FOR 3-PHASE.
