LOW VOLTAGE (controls) AND HIGH VOLTAGE (power) WIRINGS.
Route the power line wires
either from right or from left
of the control box.
WARNING

Wall control(s) must be located so
that the door is within sight of the
user.

If momentary contact (B2 mode) is
used, an external reversing device
must be install.

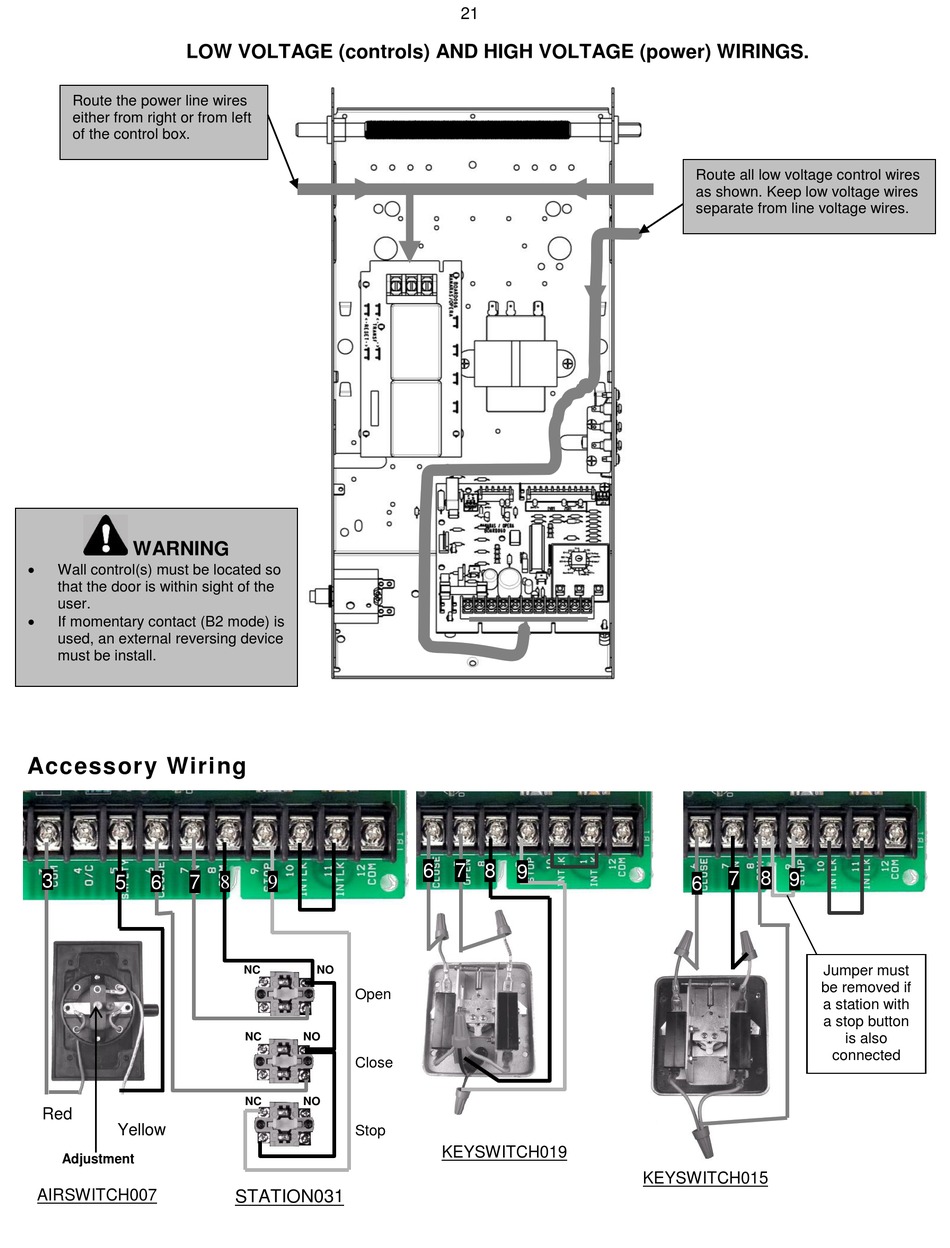

Accessory Wiring
3
5 6 7
3
6
6
Red
Yellow
Adjustment
AIRSWITCH007
8 9
8
NC NO
Open
NC NO
Close
NC NO
Stop
STATION031
21
6 7 8
9
6
KEYSWITCH019
Route all low voltage control wires
as shown. Keep low voltage wires
separate from line voltage wires.
7 8 9
6
be removed if
KEYSWITCH015
Jumper must
a station with
a stop button
is also
connected
