7.4

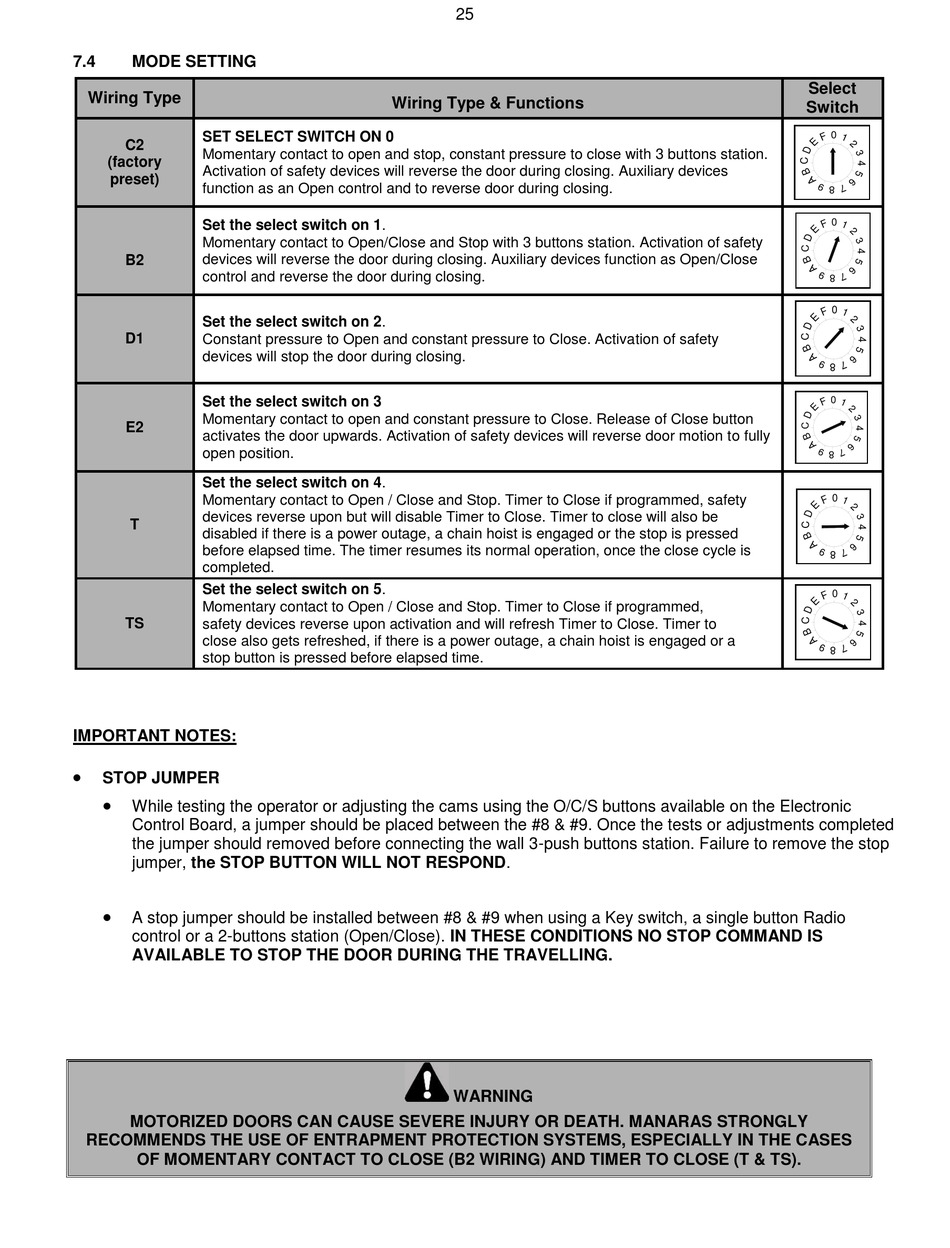

MODE SETTING

Wiring Type
SET SELECT SWITCH ON 0
C2
Momentary contact to open and stop, constant pressure to close with 3 buttons station.
(factory
Activation of safety devices will reverse the door during closing. Auxiliary devices
preset)
function as an Open control and to reverse door during closing.
Set the select switch on 1.
Momentary contact to Open/Close and Stop with 3 buttons station. Activation of safety
devices will reverse the door during closing. Auxiliary devices function as Open/Close
B2
control and reverse the door during closing.
Set the select switch on 2.
D1
Constant pressure to Open and constant pressure to Close. Activation of safety
devices will stop the door during closing.
Set the select switch on 3
Momentary contact to open and constant pressure to Close. Release of Close button
E2
activates the door upwards. Activation of safety devices will reverse door motion to fully
open position.
Set the select switch on 4.
Momentary contact to Open / Close and Stop. Timer to Close if programmed, safety
devices reverse upon but will disable Timer to Close. Timer to close will also be
T
disabled if there is a power outage, a chain hoist is engaged or the stop is pressed
before elapsed time. The timer resumes its normal operation, once the close cycle is
completed.
Set the select switch on 5.
Momentary contact to Open / Close and Stop. Timer to Close if programmed,
TS safety devices reverse upon activation and will refresh Timer to Close. Timer to
close also gets refreshed, if there is a power outage, a chain hoist is engaged or a
stop button is pressed before elapsed time.
IMPORTANT NOTES:

STOP JUMPER

While testing the operator or adjusting the cams using the O/C/S buttons available on the Electronic
Control Board, a jumper should be placed between the #8 & #9. Once the tests or adjustments completed
the jumper should removed before connecting the wall 3-push buttons station. Failure to remove the stop
jumper, the STOP BUTTON WILL NOT RESPOND.

A stop jumper should be installed between #8 & #9 when using a Key switch, a single button Radio
control or a 2-buttons station (Open/Close). IN THESE CONDITIONS NO STOP COMMAND IS
AVAILABLE TO STOP THE DOOR DURING THE TRAVELLING.
MOTORIZED DOORS CAN CAUSE SEVERE INJURY OR DEATH. MANARAS STRONGLY
RECOMMENDS THE USE OF ENTRAPMENT PROTECTION SYSTEMS, ESPECIALLY IN THE CASES
OF MOMENTARY CONTACT TO CLOSE (B2 WIRING) AND TIMER TO CLOSE (T & TS).
25
Wiring Type & Functions
WARNING
Select
Switch
