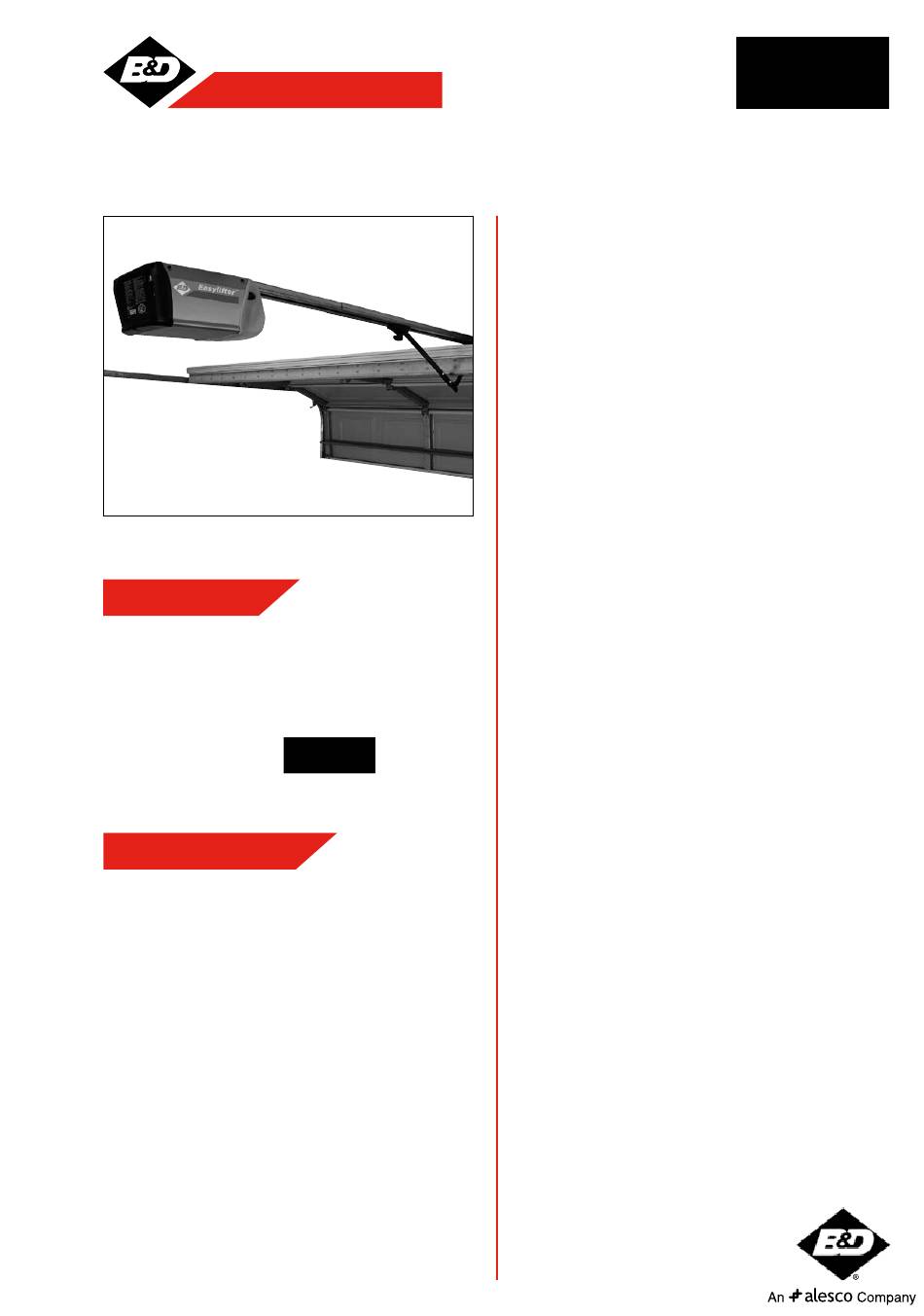

Easylifter
Sectional/tilt Door opener
Description:
B&D's Easylifter
®
sectional door opener is one of B&D's
openers designed for the retail market. This product is
only available in retail outlets specifically designed for DIY
orientated consumers.
4 Piece C Rail Version
Contains
062503
Specifications:
Motor Specifications
Horsepower
Rated Pull Force
Stand-by Power
Rating @ 230V
Motor
Type
Speed
Volts
Current
Drive Mechanism
Gears
™
PART NO.
062503
4 piece 2.3m C Rail/Chain kit
43hp
870N
5.5W
Permanent split capacitor
1500 rpm
230-240 Volts AC-50Hz only
2.0 amperes
16:1 worm gear reduction
Drive
Length of Travel
Travel Rate
Lamp
Door Linkage
Safety
Personal
Electronic
Electrical
Limit Device
Limit Adjustment
Start Circuit
Dimensions
Length (overall)
Headroom Required
Hanging Weight
Receiver
Operating Frequency
Transmitter Storage Capacity
Storage Capacity
Optional Accessories & Auxillary Inputs
Wireless Entry Keypad
Additional Remote Control transmitters
Safety Infra-Red Beam
Wall Mounted Transmitter Button
Warranty
Warranty (Years)
1 year manufacturer's warranty (parts only); or
2 years manufacturer's warranty if installed by a B&D
approved installer
Product Code
062503
Chain with one-piece trolley
on steel C Rail
2.3m
127mm per second
On when door starts, off
2
1
/
minutes after stop
2
Adjustable door arm. Pull
cord trolley release
Push button and stop.
Push button and automatic
reversal in down direction.
Push button and automatic
stop in up direction
Independent up and down
force adjustment screws
Motor overload protector and
low voltage push button wiring
Circuit actuated by limit nut
Screwdriver adjustment on
side panel
Low voltage push button circuit
323m
50mm
14.5kg
433.92MHz
8 transmitters + 1 dip switch
+ 1 keypad
Yes
Yes
Yes
Yes
Advertisement
Related Manuals for B&D Easylifter
Summary of Contents for B&D Easylifter
- Page 1 Easylifter ™ Product Code 062503 Sectional/tilt Door opener Drive Chain with one-piece trolley on steel C Rail Length of Travel 2.3m Travel Rate 127mm per second Lamp On when door starts, off minutes after stop Door Linkage Adjustable door arm. Pull cord trolley release Safety Personal Push button and stop. Push button and automatic reversal in down direction. Push button and automatic stop in up direction Electronic Independent up and down force adjustment screws Electrical Motor overload protector and Description: low voltage push button wiring Limit Device Circuit actuated by limit nut B&D’s Easylifter...
- Page 2 Easylifter ™ Product Code 062503 Sectional/tilt Door opener Features: Trouble shooting & maintenance: • Strong and reliable AC motor. • In-built automatic safety reverse system, stops then Care of Your Opener reverses when the door comes in contact with an When properly installed, opener will provide high object. performance with a minimum of maintenance. The • Courtesy light, on for 2 minutes. opener does not require additional lubrication. • Manual disengagement cord - pull to disengage the Limit and Force Adjustments: These adjustments must opener to manually open the door. be checked and properly set when opener is installed. Only a screwdriver is required to adjust the limits. • Automatic reset after a power failure.
- Page 3 Easylifter ™ Product Code 062503 Sectional/tilt Door opener 5. Door reverses for no apparent reason and opener Trouble shooting guide: light doesn't blink: • Is something obstructing the door? Pull manual 1. Opener doesn't operate from either door control or release handle. Operate door manually. If it is remote: unbalanced or binding, call for professional garage • Does the opener have electric power? Plug lamp into door service.
- Page 4 Easylifter ™ Product Code 062503 Sectional/tilt Door opener 10. Door opens but won't close: • Check the Safety Infra-red Beam (if you have installed this accessory). If the light is blinking, correct alignment. • If opener light does not blink and it is a new installation, check the down force. Repeat the safety reverse test after the adjustment is complete. 11. Opener light does not turn on: • Replace light bulb (40 Watts maximum). Replace burned out bulbs with rough service light bulbs. 12. Opener light does not turn off: • There may be a defective earth at the ceiling or wall receptacle. The unit must be earthed.
