STUDER INNOTEC
3.3.2 Protection
connections
The protection is available as an option (Order ref.
CFC-01) and avoid to do wrong hazardous
connection on the terminals 230Vac. It mounted
with strain relief clamps for the cable.

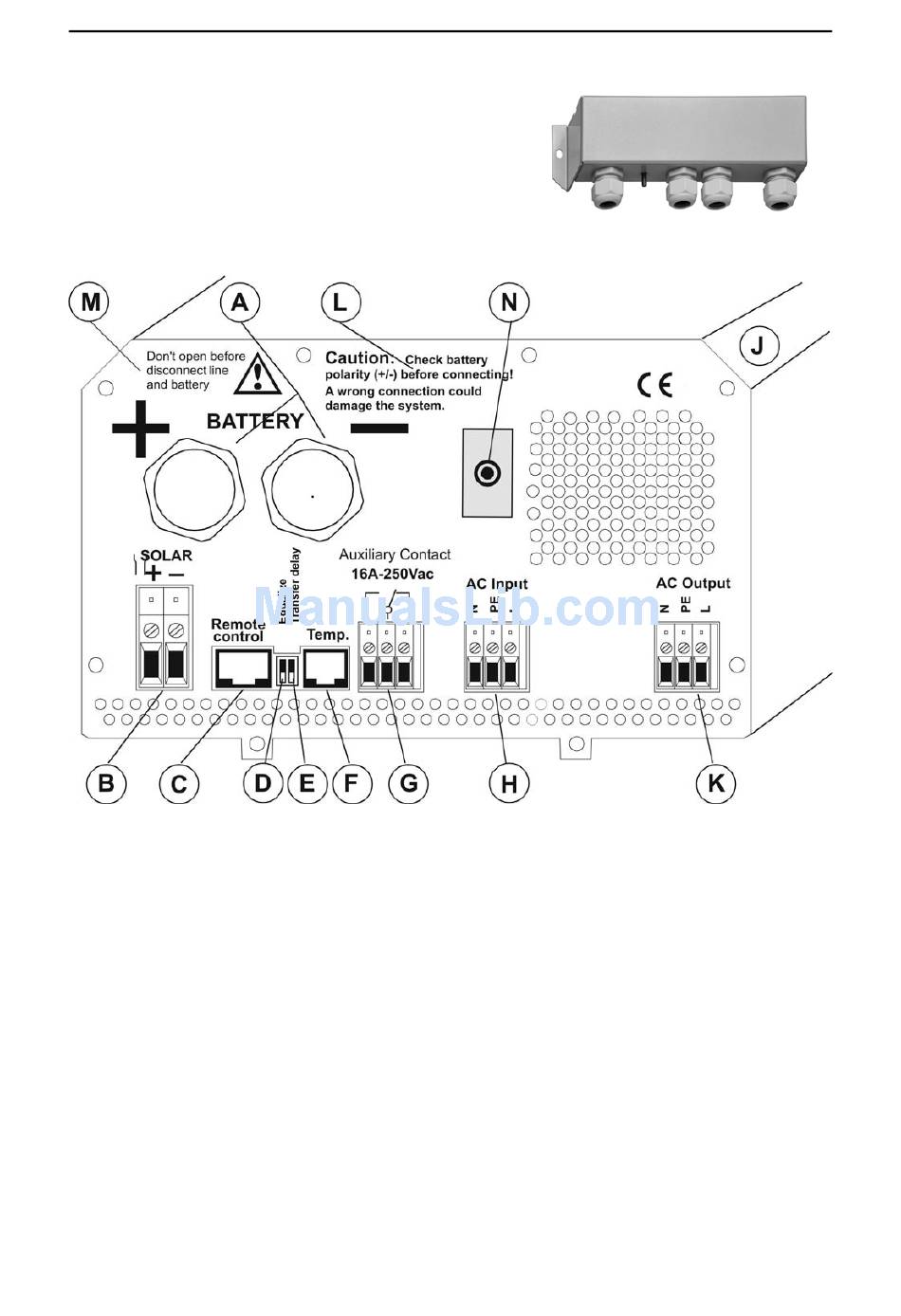

3.4

Connection Plan

A Battery +/-
B SOLAR +/-
C Remote contr.
D Equalize
E Transfer delay
F Temp.
G Aux. Contact
H AC Input
J ID Plate
K AC Output
L Caution...
M Don't...
N 16A Protection
cover of the
Battery cable (already installed)
Connection terminal for Solar modules
Connection terminal for Remote Control RCC-01
Slide switch for equalization of the Battery
Slide switch for Transfer Delay
Connection terminal for Temperature sensor CT-35
Connection terminal for Auxiliary Contact
Connection terminal for AC-input. Located directly
above this terminal is the automatic safety cut-out for
this terminal.
Identification plate with Technical data and Serial
number
Connection terminal for AC-output
Caution: Check Polarity (+/-) before connecting the
battery !
Do not open without disconnecting all terminals
16A Protection switch for the Transfer system
XP-COMPACT V5.4
terminals
XP-COMPACT
11/77
