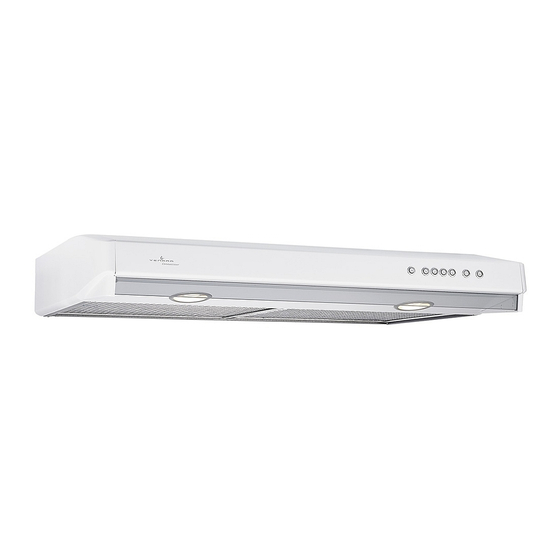

- Page 1 RANGE HOODS INSTALLATION INSTRUCTIONS — USE AND CARE INTENDED FOR DOMESTIC COOKING ONLY READ AND SAVE THESE INSTRUCTIONS INSTALLER: LEAVE THIS MANUAL WITH HOMEOWNER. HOMEOWNER: USE AND CARE INFORMATION ON PAGES 10 REGISTER YOUR PRODUCT ONLINE AT: www.venmar.ca 07020 rev. 07...
- Page 2 WARNING WARNING TO REDUCE THE RISK OF FIRE, ELECTRIC TO REDUCE THE RISK OF INJURY TO PERSONS SHOCK OR INJURY TO PERSONS, OBSERVE IN THE EVENT OF A RANGE TOP GREASE THE FOLLOWING: FIRE, OBSERVE THE FOLLOWING*: 1. Use this unit only in the manner intended by the 1.
-
Page 3: Table Of Contents
ABOUT THIS MANUAL Because of the large amount of models covered by this publication, the illustrations are typical ones. Some details of your unit may be slightly different of the ones shown. Please take note this manual uses the following symbols to emphasize particular information: WARNING Identifies an instruction which, if not followed, might cause serious personal injuries including possibility of death. -
Page 4: Install Ductwork
1. INSTALL DUCTWORK Plan where and how the ductwork will be installed. Install proper-sized ductwork, elbow(s) and roof or wall cap for the type of blower you are installing. If using 6” round ducts, use a transition. Use 2” metal foil duct tape to seal duct joints. Roof cap Roof cap 6”... -
Page 5: Prepare The Installation
3. PREPARE THE INSTALLATION WARNING When performing installation, servicing or cleaning the unit, it is recommended to wear safety glasses and gloves. NOTE: Before proceeding to the installation, check the contents of the box. If items are missing or damaged, contact the manufacturer. Make sure the following items are included: - Hood - Filters (2) -
Page 6: Prepare The Hood
4. PREPARE THE HOOD Remove both filters from hood. Disassemble the adapter/damper (A) from the hood. NOTE: The bottom panel (B) must be removed to access the adapter/damper. HO0055 Punch out the appropriate electrical knock-out hole. CAUTION Never use a hammer and a screwdriver to punch out the vertical or horizontal discharge knock-out, because this will damage the hood internal parts. -
Page 7: Install The Adapter/Damper
5. INSTALL THE ADAPTER/DAMPER NOTE: If this hood replaces another one, please note that the location of the air exhaust can vary from one manufacturer to another. ORIZONTAL DISCHARGE NEW INSTALLATION Fold down the adapter/damper foldable flange (C). This flange must be at 90° from the remaining flanges. -
Page 8: Install The Hood
6. INSTALL THE HOOD Run power cable to installation location. Place the hood at its location. Using a pen, mark the position of the screws (smaller part embossed keyholes). Remove the hood and install (4) 1/2” double thread screws at sides locations (A), leaving a 1/8”... -
Page 9: Reinstall Bottom Panel
8. REINSTALL BOTTOM PANEL Reinstall the bottom panel, using 5 screws for a single blower hood and 6 screws for a double blower hood, as shown below. INGLE BLOWER HOOD OUBLE BLOWER HOOD HO0066 HO0059 Then, reinstall filters. CAUTION Remove protective plastic film covering filters before reinstalling them (if need be). 9.
