INSTALLATION INSTRUCTIONS
HB0131

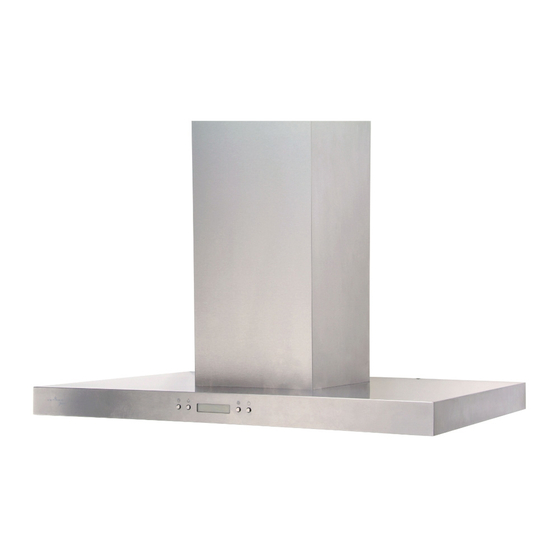

VJ70636SS ISLAND RANGE HOOD
INTENDED FOR DOMESTIC COOKING ONLY
!
!

READ AND SAVE THESE INSTRUCTIONS

INSTALLER: LEAVE THIS MANUAL WITH HOMEOWNER.
HOMEOWNER: USE AND CARE INFORMATION ON PAGES 8
9.
AND
Venmar Ventilation Inc., 550 Lemire Blvd., Drummondville QC J2C 7W9
1-800-567-3855
REGISTER YOUR PRODUCT ONLINE AT: www.bnv.ca
For additional information - visit www.venmar.ca
09084 rev. 06

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Jazz VJ70636SS and is the answer not in the manual?

Questions and answers

Summary of Contents for Venmar Jazz VJ70636SS

  • Page 1: Read And Save These Instructions

    READ AND SAVE THESE INSTRUCTIONS INSTALLER: LEAVE THIS MANUAL WITH HOMEOWNER. HOMEOWNER: USE AND CARE INFORMATION ON PAGES 8 Venmar Ventilation Inc., 550 Lemire Blvd., Drummondville QC J2C 7W9 1-800-567-3855 REGISTER YOUR PRODUCT ONLINE AT: www.bnv.ca For additional information - visit www.venmar.ca...
  • Page 2 WARNING WARNING TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR TO REDUCE THE RISK OF INJURY TO PERSONS IN THE INJURY TO PERSONS, OBSERVE THE FOLLOWING: EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING*: 1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the address 1.
  • Page 3: Table Of Contents

    To contact Venmar Ventilation Inc. Warranty Service call 1-800-567-3855 (in Canada). In order to qualify for a warranty claim, the owner of a Venmar Jazz range hood must have the model and serial number along with a proof of the original purchase date.
  • Page 4: Install Ductwork And Electrical Wiring

    1. INSTALL DUCTWORK AND ELECTRICAL WIRING WARNING When performing installation, servicing or cleaning the unit, it is recommended to wear safety glasses and gloves. 6” OUND Plan where and how the ductwork will be installed. A straight, short duct run will allow the hood to perform most efficiently. Long duct runs, elbows and transitions will reduce the performance of the hood.
  • Page 5: Install Ceiling Support

    4. INSTALL CEILING SUPPORT WARNING The ceiling must be able to hold at least 265 lb weight, and the thickness of the ceiling must be at least 1¼". Fig. 1 EILING JOISTS 1. Modify ceiling stucture at hood location. Install 2 x 4 cross framing between ceiling joists using dimensions shown (Fig.
  • Page 6: Install Hood

    6. INSTALL HOOD WARNING Be careful when installing the decorative flue and hood, they may have sharp edges. CAUTION DO NOT REMOVE the protective plastic film covering the decorative flue (upper and lower) and the hood yet. Fig. 4 (8) M4 1.
  • Page 7: I Nstall Hood

    6. INSTALL HOOD ( ’ CONT Fig. 7 OWER CABLE (8) M4 SCREWS (8) M4 & 7. Attach the hood assembly to the ceiling mouting plate using (8) M4 x 10 mm machine NUTS WASHERS screws, (8) M4 serrated flange nuts and (8) M4 washers (2 for each support leg) (Fig.
  • Page 8: Grease Filters

    7. GREASE FILTERS 1. To remove the grease filters, pull down on the metal latch tab and tilt each filter downward to remove. 2. To install the grease filters, align rear filter tabs with slots in the hood. Pull down the metal latch tab, push each filter into position and release. Make sure filters are securely engaged after installation.
  • Page 9: Operation

    9. OPERATION ( ’ CONT 1. TIME/DELAY (D OUBLE FUNCTION PUSH BUTTON : This button is used to set time when lighting and blower are not in use. Time is displayed in 24 hour cycle. To set time, press ETTING the push button (1) for 3 seconds.
  • Page 10: Replacement Parts

    Venmar Ventilation Inc. also recommends to contact a Venmar certified service depot for all HL0132 replacement parts and repairs. ART NO ESCRIPTION...
