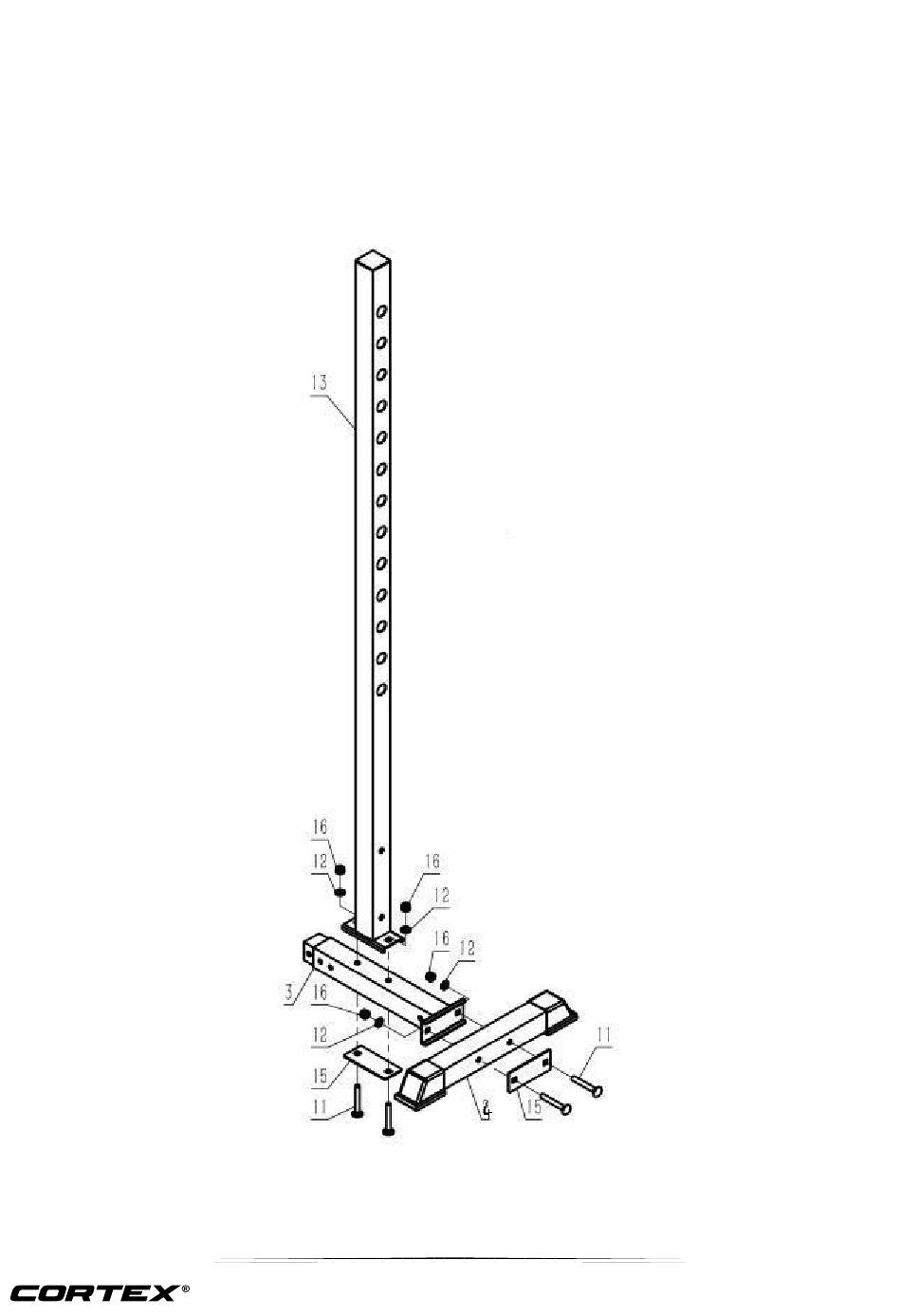

STEP 1
1. Secure the tube (#3) to the tube (#4) with one connector (#15), two carriage bolts M10x70 (#11), two
washers Φ10 (#12) and two M10 nuts (#16).
2. Attach the tube (#13) to the tube (#3), using carriage bolt M10x70 (#11), washer Φ10 (#12) and nut M10
(#16).
