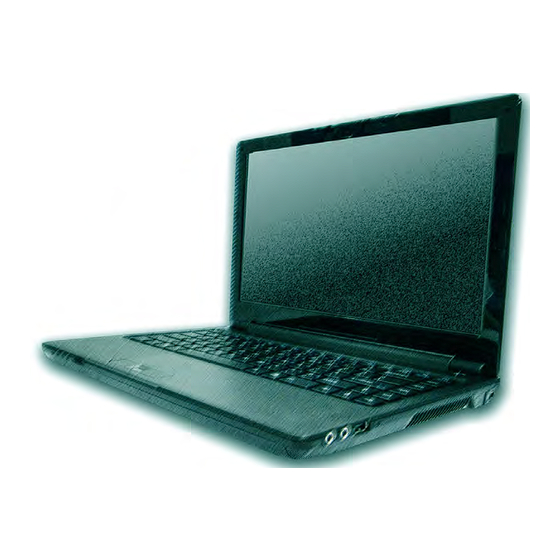

Clevo W130HU Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

W130HU/ W130HV

Advertisement

Table of Contents
loading

Related Manuals for Clevo W130HU

Summary of Contents for Clevo W130HU

  • Page 1 W130HU/ W130HV...
  • Page 3 Preface Notebook Computer W130HU/ W130HV Service Manual...
  • Page 4 Preface Notice The company reserves the right to revise this publication or to change its contents without notice. Information contained herein is for reference only and does not constitute a commitment on the part of the manufacturer or any subsequent ven- dor.
  • Page 5 This manual is intended for service personnel who have completed sufficient training to undertake the maintenance and inspection of personal computers. It is organized to allow you to look up basic information for servicing and/or upgrading components of the W130HU/ W130HV series notebook PC.
  • Page 6 Preface IMPORTANT SAFETY INSTRUCTIONS Follow basic safety precautions, including those listed below, to reduce the risk of fire, electric shock and injury to per- sons when using any electrical equipment: 1. Do not use this product near water, for example near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool.
  • Page 7 Preface Instructions for Care and Operation The notebook computer is quite rugged, but it can be damaged. To prevent this, follow these suggestions: Don’t drop it, or expose it to shock. If the computer falls, the case and the components could be damaged. Do not expose the computer Do not place it on an unstable Do not place anything heavy...
  • Page 8 Preface Avoid interference. Keep the computer away from high capacity transformers, electric motors, and other strong mag- netic fields. These can hinder proper performance and damage your data. Take care when using peripheral devices. Use only approved brands of Unplug the power cord before peripherals.
  • Page 9 Preface Battery Precautions • Only use batteries designed for this computer. The wrong battery type may explode, leak or damage the computer. • Do not continue to use a battery that has been dropped, or that appears damaged (e.g. bent or twisted) in any way. Even if the computer continues to work with a damaged battery in place, it may cause circuit damage, which may possibly result in fire.

  • Page 10: System Startup

    Preface Related Documents You may also need to consult the following manual for additional information: User’s Manual on CD/DVD This describes the notebook PC’s features and the procedures for operating the computer and its ROM-based setup pro- gram. It also describes the installation and operation of the utility programs provided with the notebook PC. System Startup 1.

  • Page 11: What To Do If You Spill Liquid On The Computer

    Preface What to do if you Spill Liquid on the Computer The keyboard incorporates a drainage system that minimizes the chances of liquid spillages on the keyboard penetrating the inside components of the computer. Liquid spilled on the computer is drained towards the right side of the computer. There is no guarantee that all water can be prevented from entering the computer, and damage resulting from spillages is not covered in the warranty.
  • Page 12 Preface...

  • Page 13: Table Of Contents

    Preface Contents ....................1-VIII Top ....................A-3 System Startup ................1-VIII Bottom ................... A-4 What to do if you Spill Liquid on the Computer ......1-IX HDD ....................A-5 Introduction ..........1-1 LCD ....................A-6 Schematic Diagrams......... B-1 Overview ..................1-1 Specifications ..................1-2 System Block Diagram ..............B-2 External Locator - Top View with LCD Panel Open ......1-4 Processor 1/7 ...................B-3...
  • Page 14 Preface TI TUSB7320 USB3.0 ..............B-27 KBC-ITE IT8518 ................. B-28 LED, MDC ................... B-29 AUDIO CODEC ALC269Q ............B-30 POWER CON, FAN, TP, CLICK CON ........B-31 DOCKING CONNECTOR, USB Charger ........B-32 COM PORT, ESATA+USB ............B-33 CARD READER JMC261C ............B-34 LAN (INTEL LAN82579) ............

  • Page 15: Introduction

    Chapter 1: Introduction Overview This manual covers the information you need to service or upgrade the W130HU/ W130HV series notebook computer. Information about operating the computer (e.g. getting started, and the Setup utility) is in the User’s Manual. Information about dri-vers (e.g. VGA & audio) is also found in the User’s Manual. The manual is shipped with the computer.

  • Page 16: Specifications

    Introduction Specifications Processor Options Core Logic W130HU: W130HU: Intel® Core™ i7 Processor Intel® HM65 Chipset  i7-2640M (2.80GHz), i7-2620M (2.70GHz) W130HV: 4MB L3 Cache, 32nm, DDR3-1333MHz, TDP 35W Intel® QM67 Chipset Latest Specification Information Intel® Core™ i5 Processor i5-2540M (2.60GHz), i5-2520M (2.50GHz), ...
  • Page 17 Operating: 20% - 80% Non-Operating: 10% - 90% WLAN/ Bluetooth Half Mini-Card Modules: Power W130HU: (Factory Option) Intel® Centrino® Advanced-N 6230 Wire- Full Range AC/DC Adapter less LAN (802.11a/g/n) + Bluetooth 3.0 AC Input: 100 - 240V, 50 - 60Hz (Factory Option) Intel®...

  • Page 18: External Locator - Top View With Lcd Panel Open

    Introduction External Locator - Top View with LCD Panel Open Figure 1 Top View 1. PC Camera (Optional) 2. LCD 3. Power Button 4. Keyboard 5. Built-In Microphone 6. Touchpad & Buttons 7. Fingerprint Reader 8. LED Status Indicators 1 - 4 External Locator - Top View with LCD Panel Open...

  • Page 19: External Locator - Front & Right Side Views

    Introduction External Locator - Front & Right Side Views Figure 2 Front View 1. LED Power Indicator 2. WLAN Switch FRONT VIEW Figure 3 Right Side View 1. Microphone-In RIGHT SIDE VIEW Jack 2. Headphone-Out Jack 3. USB 2.0 Port 4.

  • Page 20: External Locator - Left Side & Rear View

    Introduction External Locator - Left Side & Rear View Figure 4 Left Side View 1. DC-In Jack 2. External Monitor Port LEFT SIDE VIEW 3. RJ-45 LAN Jack 4. e-SATA Port/USB 2.0 Combo Port 5. HDMI-Out Port 6. 2 * USB 3.0 Ports 7.

  • Page 21: External Locator - Bottom View

    Introduction External Locator - Bottom View Figure 6 Bottom View 1. Battery 2. Docking Port 3. Vent 4. Component Bay Cover 5. Drainage Outlet 6. Speakers  Overheating To prevent your com- puter from overhea- ting, make sure no- thing blocks any vent while the computer is in use.

  • Page 22: Mainboard Overview - Top (Key Parts)

    Introduction Mainboard Overview - Top (Key Parts) Figure 7 Mainboard Top Key Parts 1. PI3L720ZHE 2. TUSB7320 3. ITE IT870SE 4. SIMLOCK 1 - 8 Mainboard Overview - Top (Key Parts)

  • Page 23: Mainboard Overview - Bottom (Key Parts)

    Introduction Mainboard Overview - Bottom (Key Parts) Figure 8 Mainboard Bottom Key Parts 1. CPU Socket (no CPU installed) 2. ALC269Q 3. ITE IT8518E 4. Memory Slots DDR3 SO-DIMM 5. Platform Controller 6. INTEL LAN 82579 7. JMC261 8. CMOS Battery 9.

  • Page 24: Mainboard Overview - Top (Connectors)

    Introduction Mainboard Overview - Top (Connectors) Figure 9 Mainboard Top Connectors 1. e-SATA Port/USB 2.0 Combo Port 2. HDMI-Out Port 3. USB Port 3.0 4. Audio Board Connector 5. Keyboard Cable Connector 1 - 10 Mainboard Overview - Top (Connectors)

  • Page 25: Mainboard Overview - Bottom (Connectors)

    Introduction Mainboard Overview - Bottom (Connectors) Figure 10 Mainboard Bottom Connectors 1. Swith Cable Connector 2. Fan Cable Connector 3. CCD Cable Connector 4. HDD Connector 5. TouchPad Cable Connector 6. Microphone Cable Connector 7. Multi-in-1 Card Reader 8. Speaker Cable Connector 9.
  • Page 26 Introduction 1 - 12...

  • Page 27: Disassembly

    Chapter 2: Disassembly Overview This chapter provides step-by-step instructions for disassembling the W130HU/ W130HV series notebook’s parts and subsystems. When it comes to reassembly, reverse the procedures (unless otherwise indicated). We suggest you completely review any procedure before you take the computer apart.

  • Page 28: Maintenance Tools

    Disassembly NOTE: All disassembly procedures assume that the system is turned OFF, and disconnected from any power supply (the battery is removed too). Maintenance Tools The following tools are recommended when working on the notebook PC: • M3 Philips-head screwdriver •...

  • Page 29: Maintenance Precautions

    Disassembly Maintenance Precautions  The following precautions are a reminder. To avoid personal injury or damage to the computer while performing a re- moval and/or replacement job, take the following precautions: Power Safety Warning 1. Don't drop it. Perform your repairs and/or upgrades on a stable surface. If the computer falls, the case and other Before you undertake components could be damaged.

  • Page 30: Disassembly Steps

    Disassembly Disassembly Steps The following table lists the disassembly steps, and on which page to find the related information. PLEASE PERFORM THE DISASSEMBLY STEPS IN THE ORDER INDICATED. To remove the Battery: 1. Remove the battery page 2 - 5 To remove the HDD: 1.

  • Page 31: Removing The Battery

    Disassembly Removing the Battery Figure 1 Battery Removal 1. Turn the computer off, and turn it over. 2. Slide the latch in the direction of the arrow (Figure 1a a. Slide the latch and hold it 3. Slide the latch in the direction of the arrow, and hold it in place (Figure 1a in place.

  • Page 32: Removing And Installing The Hard Disk Drive

    Disassembly Removing and Installing the Hard Disk Drive Figure 2 HDD Assembly Hdd Removal Procedure Removal The hard disk drive can be taken out to accommodate other 2.5" serial (SATA) hard disk drives with a height of 9.5mm (h). Follow your operating system’s installation instructions, and install all necessary drivers and utilities (as outlined in a.
  • Page 33 Disassembly 5. Raise the plastic tab Figure 3 6. Slide the hard disk assembly in the direction of arrow until you can see the (gold colored) HDD connector HDD Assembly 7. When the connector can be viewed, lift the assembly up in the direction of arrow remove the HDD assembly Removal (cont’d.) from the bay.
  • Page 34 Disassembly Reinserting the HDD Figure 4 1. To reinsert the HDD assembly hold it carefully at the four corners between your thumb and forefinger and Insert HDD Installation the HDD directly down into the bay vertically (Figure 1a 2. Press and slide the HDD assembly at the area illustrated (do not press on the center area - see sidebar) the a.

  • Page 35: Removing The System Memory (Ram)

    Disassembly Removing the System Memory (RAM) Figure 5 RAM Module The computer has two memory sockets for 204 pin Small Outline Dual In-line Memory Modules (SO-DIMM) supporting Removal DDRIII (DDR3) Up to 1333 MHz. The main memory can be expanded up to 8GB. The SO-DIMM modules supported are 1024MB and 2048MB DDRIII Modules.

  • Page 36: Removing And Installing A Processor

    Disassembly Removing and Installing a Processor Figure 6 Processor Removal Processor Removal Procedure 1. Turn off the computer, turn it over, and remove the battery (page 2 - 5) and the component bay cover (page 2 - a. The CPU heat sink will 2.
  • Page 37 Disassembly 5. Turn the release latch towards the unlock symbol to release the CPU (Figure 7d). Figure 7 6. Carefully (it may be hot) lift the CPU up and out of the socket (Figure 7e). Processor Removal 7. Reverse the process to install a new CPU. (cont’d) 8.
  • Page 38 Disassembly Processor Installation Procedure Figure 8 Processor 1. Insert the CPU (Figure 8a), pay careful attention to the pin alignment, it will fit only one way (DO NOT FORCE Installation IT!), and turn the release latch towards the lock symbol (Figure 8b).

  • Page 39: Removing The 3.75G Module

    Disassembly Removing the 3.75G Module Figure 9 3G Module Removal 1. Turn off the computer, turn it over, and remove the battery (page 2 - 5) and the component bay cover (page 2 - 2. The 3.75G module will be visible at point on the mainboard (Figure 9a).

  • Page 40: Removing The Wireless Lan Module

    Disassembly Removing the Wireless LAN Module Figure 10 Wireless LAN 1. Turn off the computer, turn it over, and remove the battery (page 2 - 5) and the component bay cover (page 2 - Module Removal 2. The Wireless LAN module will be visible at point on the mainboard (Figure 10a).

  • Page 41: Removing The Keyboard

    Disassembly Removing the Keyboard Figure 11 Keyboard Removal 1. Turn off the computer remove the battery (page 2 - 5), and the component bay cover (page 2 - 2. Remove screws from the bottom of the computer. a. Remove screws from the bottom of the computer.
  • Page 42 Disassembly 2 - 16...

  • Page 43: Part Lists

    Appendix A:Part Lists This appendix breaks down the W130HU/ W130HV series notebook’s construction into a series of illustrations. The component part numbers are indicated in the tables opposite the drawings. Note: This section indicates the manufacturer’s part numbers. Your organization may use a different system, so be sure to cross-check any relevant documentation.

  • Page 44: Part List Illustration Location

    Part List Illustration Location The following table indicates where to find the appropriate part list illustration. Table A - 1 Part List Illustration Part W130HH/ W130HV Location page A - 3 page A - 4 Bottom page A - 5 page A - 6 A - 2...

  • Page 45: Top

    Figure A - 1 Top A - 3...

  • Page 46: Bottom

    Bottom Figure A - 2 Bottom (長騰) A - 4 Bottom...

  • Page 47: Hdd

    Figure A - 3 HDD A - 5...

  • Page 48: Lcd

    Figure A - 4 A - 6 LCD...

  • Page 49: Schematic Diagrams

    Schematic Diagrams Appendix B: Schematic Diagrams This appendix has circuit diagrams of the W130HU/ W130HV notebook’s PCB’s. The following table indicates where to find the appropriate schematic diagram. Diagram - Page Diagram - Page Diagram - Page Table B - 1...

  • Page 50: System Block Diagram

    Schematic Diagrams System Block Diagram 5 in 1 CLICK BOARD Huron River System Block Diagram VDD3,VDD5 6-71-W1302-D02 AUDIO BOARD 5V,3V,5VS,3VS,1.5VS, USB Charger+HP+MIC+SPK 1.5VS_CPU 6-71-W1308-D02 Memory Termination Sandy Bridge POWER SWITCH BOARD 800/1067 MHz 1.5V,0.75VS(VTT_MEM) POWER SWITCH DDR3 / 1.5V 1.8VS 37.5*37.5 mm 6-71-W130S-D02 DDRIII...

  • Page 51: Processor 1/7

    Schematic Diagrams Processor 1/7 Sandy Bridge Processor 1/7 ( DMI,PEG,FDI ) 1.05VS_VTT U 23A 20 mil PEG_COMP R107 24.9_1%_04 PEG_ICOMPI PEG_ICOMPO H 22 DMI_TXN 0 DMI_RX#[0] PEG_RCOMPO DMI_TXN 1 DMI_RX#[1] DMI_TXN 2 DMI_RX#[2] DMI_TXN 3 DMI_RX#[3] PEG_RX#[0] PEG_RX#[1] DMI_TXP0 DMI_RX[0] PEG_RX#[2] DMI_TXP1 DMI_RX[1]...

  • Page 52: Processor 2/7

    Schematic Diagrams Processor 2/7 Processor Pullups/Pull downs 1.05VS_VTT Sandy Bridge Processor 2/7 H_PROCHOT# 62_04 PU/PD for JTAG signals 1.05VS_VTT H_CPUPWRGD_R R332 10K_04 ( CLK,MISC,JTAG ) R322 51_04 XDP_TMS C289 *0.1u_10V_X7R_04 R320 51_04 XDP_TDI_R R321 *51_04 XDP_PREQ# XDP_TDO_R R323 51_04 XDP_TCLK R324 51_04 U23B...

  • Page 53: Processor 3/7

    Schematic Diagrams Processor 3/7 Sandy Bridge Processor 3/7 ( DDR3 ) U23C U23D M_A_DQ[63:0] SA_CLK[0] M_A_CLK_DDR0 9 M_B_DQ[63:0] SB_CLK[0] M_B_CLK_DDR0 10 M_A_CLK_DDR#0 9 M_B_CLK_DDR#0 10 SA_CLK#[0] SB_CLK#[0] M_A_DQ0 M_B_DQ0 M_A_CKE0 9 M_B_CKE0 10 SA_DQ[0] SA_CKE[0] SB_DQ[0] SB_CKE[0] M_A_DQ1 M_B_DQ1 SA_DQ[1] SB_DQ[1] M_A_DQ2 M_B_DQ2...

  • Page 54: Processor 4/7

    Schematic Diagrams Processor 4/7 Sandy Bridge Processor 4/7 POWER U23F VCORE PROCESSOR UNCORE POWER 1.05VS_VTT AG35 8.5A PROCESSOR CORE POWER VC C1 AG34 AH 13 VC C2 VCCIO1 AG33 AH 10 VC C3 VCCIO2 AG32 AG10 C158 C334 C 366 ICCMAX Maximum Processor SV 48 VC C4...

  • Page 55: Processor 5/7

    Schematic Diagrams Processor 5/7 Sandy Bridge Processor 5/7 ( GRAPHICS POWER ) POWER 1.5V U23G VGFX_CORE R311 All VAXG = 33A AT24 AK35 VAXG1 VAXG_SENSE VCC_GT_SENSE 41 AT23 AK34 1K_1%_04 VAXG2 VSSAXG_SENSE VSS_GT_SENSE 41 AT21 C116 *AO3402L VAXG3 AT20 V_SM_VREF V_SM_VREF_CNT VAXG4 22u_6.3V_X5R_08...

  • Page 56: Processor 6/7

    Schematic Diagrams Processor 6/7 Sandy Bridge Processor 6/7 ( GND ) U23H U23I AT35 AJ22 VSS1 VSS81 AT32 AJ19 VSS2 VSS82 AT29 AJ16 VSS3 VSS83 VSS161 VSS234 AT27 AJ13 VSS4 VSS84 VSS162 VSS235 AT25 AJ10 VSS5 VSS85 VSS163 VSS236 AT22 VSS6 VSS86 VSS164...

  • Page 57: Processor 7/7

    Schematic Diagrams Processor 7/7 Sandy Bridge Processor 7/7 ( RESERVED ) CFG Straps for Processor U23E PEG Static Lane Reversal - CFG2 is for the 16x CFG2 1:(Default) Normal Operation; Lane # RSVD28 definition matches socket pin map definition AK28 RSVD29 CFG0 CFG[0]...

  • Page 58: Ddr3 So-Dimm_0

    Schematic Diagrams DDR3 SO-DIMM_0 SO-DIMM A CHANGE TO STANDARD C511 *10p_50V_NPO_04 M_A_CLK_DDR0 M_A_CLK_DDR#0 JDIMM2A M_A_A[15:0] M_A_DQ[63:0] 4 C512 *10p_50V_NPO_04 M_A_A0 M_A_DQ0 JDIMM2B M_A_CLK_DDR1 M_A_CLK_DDR#1 M_A_A1 M_A_DQ1 M_A_A2 M_A_DQ2 M_A_A3 M_A_DQ3 1.5V M_A_A4 M_A_DQ4 M_A_A5 M_A_DQ5 VDD1 VSS16 M_A_A6 M_A_DQ6 VDD2 VSS17 M_A_A7 M_A_DQ7...

  • Page 59: Ddr3 So-Dimm_1

    Schematic Diagrams DDR3 SO-DIMM_1 SO-DIMM B CHANGE TO STANDARD JDIMM1A M_B_B[15:0] M_B_DQ[63:0] 4 C514 *10p_50V_NPO_04 M_B_B0 M_B_DQ0 JDIMM1B M_B_CLK_DDR0 M_B_CLK_DDR#0 M_B_B1 M_B_DQ1 1.5V M_B_B2 M_B_DQ2 M_B_B3 M_B_DQ3 C513 *10p_50V_NPO_04 M_B_CLK_DDR1 M_B_CLK_DDR#1 M_B_B4 M_B_DQ4 M_B_B5 M_B_DQ5 VDD1 VSS16 M_B_B6 M_B_DQ6 VDD2 VSS17 M_B_B7 M_B_DQ7...

  • Page 60: Lvds, Inverter

    Schematic Diagrams LVDS, INVERTER PANEL CONNECTOR LED PANEL (LVDS Dual Channel). PJ27 R303 R304 VLED OPEN_2A 0.2_06 0.2_06 R299 R300 0.2_06 0.2_06 *P2003EVG 3.3VS_LCD 3.3V *220_06 *0.22u_50V_Y5V_06 0.1u_16V_Y 5V_04 C268 PLVDD *10K_04 2.2K_04 R301 *1M_04 LVDD_EN# *MTDN7002ZHS6R J_LCD3 2.2K_04 R302 *100K_04 NB_ENAVDD *MTDN7002ZHS6R...

  • Page 61: Hdmi

    Schematic Diagrams HDMI HDMI PORT 3.3VS CLOSE TO 1M_04 MTN7002ZHS3 PORTC_HPD HDMI_H PD-C 5VS_H DMI For ESD PORTC_HPD TMD S_D ATA2#-I 3.3VS C319 0.1u_10V_X7R _04 HD MIB_D0BN C325 0.1u_10V_X7R _04 TMD S_D ATA2-I HD MIB_D0BP C308 0.1u_10V_X7R _04 TMD S_D ATA1#-I MTDN7002ZHS6R HD MIB_D1BN TMD S_D ATA1-I...

  • Page 62: Crt

    Schematic Diagrams 3.3VS 5VS_CRT RB751S-40C2 CRT PORT 2.2K_8P4R_04 3.3VS R263 2.2K_04 Q20A R264 2.2K_04 MTDN7002Z HS6R NB_DAC_DDCADATA NB_DAC_DDCADATA DDCDATA DDC_IN1 DDC_OUT1 Q20B MTDN7002Z HS6R NB_DAC_DDCACLK DDCLK DDC_IN2 DDC_OUT2 NB_DAC_DDCACLK NB_DAC_HSYNC CRT_HSY NC HSY NC R262 33_04 SYNC_IN1 SYNC_OUT1 FUNCTION OUTPUT DK_EN NB_DAC_VSY NC CRT_VSY NC...

  • Page 63: Cougar Point

    Schematic Diagrams Cougar Point M 1/9 RTCVCC CougarPoint - M 20mil 20mil BAT54CS3 3.3VS VDD3 C341 1u_6.3V_X5R_06 C340 (HDA,JTAG,SATA) RTC_VBAT_1 SATA_LED# 18p_50V_NPO_04 R374 *10K_04 R345 SERIRQ R177 10K_04 R342 20K_1%_04 RTC CLEAR GPIO21 R168 10K_04 1K_04 R351 U25A C333 JOPEN1 MC-306_32.768KHz 10M_04 RTC_X1...

  • Page 64: Cougar Point

    Schematic Diagrams Cougar Point M 2/9 VDD3 CougarPoint - M (PCI-E,SMBUS,CLK) IGLAN_CLKREQ# R144 10K_04 2.2K_8P4R_04 SMB_CLK SMB_DATA U25B SML0_DATA SML0_CLK PCIE_RXN1 BG34 PERN1 PCIE_RXP1 BJ34 BT_SBD# BT_SBD# 23 PERP1 SMBALERT# / GPIO11 PCIE_TXN1 AV32 SMC_CPU_THERM R119 2.2K_04 AU32 PETN1 PCIE_TXP1 SMB_CLK SMD_CPU_THERM R115...

  • Page 65: Cougar Point M 3/9

    Schematic Diagrams Cougar Point M 3/9 CougarPoint -M (DMI,FDI,GPIO) VDD3 AC_PRESENT R343 10K_04 U25C PCIE_WAKE# R113 10K_04 BC24 BJ14 PM_SLP_LAN# R120 *10K_04 DMI_RXN0 DMI0RXN FDI_RXN0 FDI_TXN0 2 BE20 AY14 DMI_RXN1 DMI1RXN FDI_RXN1 FDI_TXN1 2 BG18 BE14 SWI# R360 10K_04 DMI_RXN2 FDI_TXN2 2 DMI2RXN FDI_RXN2...

  • Page 66: Cougar Point M 4/9

    Schematic Diagrams Cougar Point M 4/9 CougarPoint -M (LVDS,DDI,CRT) 3.3VS U25D AP43 BLON L_BKLTEN SDVO_TVCLKINN AP45 RN12 11,27 NB_ENAVDD L_VDD_EN SDVO_TVCLKINP 2.2K_8P4R_04 AM42 DK_DVI_DDCB_CLK L_BKLTCTL SDVO_STALLN AM40 DK_DVI_DDCB_DAT SDVO_STALLP Ver:1.0 HDMI_CTRLCLK P_DDC_CLK L_DDC_CLK AP39 HDMI_CTRLDATA pull up 2.2K P_DDC_DATA L_DDC_DATA SDVO_INTN AP40 SDVO_INTP...

  • Page 67: Cougar Point M 5/9

    Schematic Diagrams Cougar Point M 5/9 Boot BIOS Strap BBS_BIT1 BBS_BIT0 Boot BIOS Location CougarPoint -M (PCI,USB,NVRAM) Reserved (NAND) U25E AY 7 FOR LAYOUT SWAP RSVD1 BG26 RSVD2 3.3VS RN 8 RSVD3 BJ26 10K_8P4R_04 RSVD4 BH 25 INT_PIRQD# BJ16 AT10 D_GPU_PWR_EN# RSVD5 BBS_BIT1...

  • Page 68: Cougar Point M 6/9

    Schematic Diagrams Cougar Point M 6/9 BIOS_REC R169 10K_04 3.3VS CougarPoint - M (GPIO,VSS_NCTF,RSVD) R167 *0_04 BIOS RECOVERY U25F DISABLE----R349 NO STUFF (DEFAULT) ENABLE-----R349 STUFF S_GPIO SATA_ODD_PWRGT BMBUSY# / GPIO0 TACH4 / GPIO68 SMI# PCH_GPIO57 R355 1.5K_04 SMI# TACH1 / GPIO1 TACH5 / GPIO69 DGPU_HPD_INTR# GPIO70...

  • Page 69: Cougar Point M 7/9

    Schematic Diagrams Cougar Point M 7/9 CougarPoint -M (POWER) 3.3VS POWER 1.05VS VCCA_DAC_3.3VS U25G All VCCORE = 1.3A HCB1005KF-121T20 HCB1005KF-121T20 AA23 VCCCORE[1] VCCADAC AC23 C355 VCCCORE[2] C225 C205 C201 C191 AD21 C351 C352 C354 C369 AD23 VCCCORE[3] 0.01u_16V_X7R_04 0.1u_10V_X5R_04 10u_6.3V_X5R_06 0.1u_10V_X5R_04 22u_6.3V_X5R_08 10u_6.3V_X5R_06...

  • Page 70: Cougar Point M 8/9

    Schematic Diagrams Cougar Point M 8/9 CougarPoint - M (POWER) CougarPoint power supply range Voltage Rail Voltage S0 Iccmax Current (A) 1.05VS_VCCA_CLK V_CPU_IO 1.05 1 (mA) *HCB1005KF-121T20 Voltage 1.05VS V5REF 1 (mA) V5REF_Sus 1 (mA) 1.00V 1.05V 1.10V POWER U25J VDD3 Vcc3_3 0.266...

  • Page 71: Cougar Point M 9/9

    Schematic Diagrams Cougar Point M 9/9 CougarPoint -M (GND) U25I U25H VSS[159] VSS[259] VSS[0] AY 42 VSS[160] VSS[260] AY 46 AA17 AK38 VSS[161] VSS[261] VSS[1] VSS[80] VSS[162] VSS[262] VSS[2] VSS[81] AK42 VSS[163] VSS[263] VSS[3] VSS[82] AA33 AK46 VSS[164] VSS[264] VSS[4] VSS[83] AA34 VSS[165]...

  • Page 72: New Card, Mini Pcie

    Schematic Diagrams NEW CARD, MINI PCIE 3.3VS NEW CARD(Port 3) C250 *0.1u_16V_Y 5V_04 BUF_PLT_RST# 0323-J change 3.3VS?3.3V 3.3V J_NEW1 C238 0.1u_16V_Y5V_04 NC_RST# MC74VHC1G08DFT2G NC_PERST# AUXIN PERST# PERST# C239 0.1u_16V_Y5V_04 20 mil NC_3.3V 3.3VS AUXOUT +3.3VAUX 6-01-74108-Q61 C251 0.1u_16V_Y5V_04 40 mil C240 0.1u_16V_Y5V_04 3.3VIN...

  • Page 73: Ccd, 3G

    Schematic Diagrams CCD, 3G MINI CARD 3G(Port 6) 3G_3.3V J_3G1 60mils WAKE# 3.3VAUX_0 COEX1 1.5V_0 UIM_PWR COEX2 UIM_PWR UIM_DATA C292 UIM_DATA UIM_CLK C280 CLKREQ# UIM_CLK 3G POWER UIM_RST 0.1u_16V_Y5V_04 REFCLK- UIM_RESET UIM_VPP 0.1u_16V_Y 5V_04 220u_6.3V_6.3*6.3*4.2 R308 *0_06 REFCLK+ UIM_VPP GND0 GND1 GND5 3.3V...

  • Page 74: Tpm, Sata Hdd

    Schematic Diagrams TPM, SATA HDD 3.3VS TPM 1.2 R491 *20mil_04 Asserted before entering S3 C436 C256 C430 C258 LPC reset timing: 0.1u_16V_Y5V_04 0.1u_16V_Y5V_04 0.1u_16V_Y 5V_04 1u_16V_X5R_06 LPCPD# inactive to LRST# inactive 32~96us 14,27,32 LPC_AD0 LAD0 VDD1 14,27,32 LPC_AD1 LAD1 VDD2 14,27,32 LPC_AD2 LAD2...

  • Page 75: Ti Tusb7320 Usb3.0

    Schematic Diagrams TI TUSB7320 USB3.0 3.3V_USB3 3.3V_USB3 1.1V HCB1608KF-121T25 C303 C133 C311 C314 C312 C132 C316 C313 C297 C299 1.1V 3.3V_USB3 3.3V_USB3 3.3V_USB3 *0.1u_16V_Y 5V_04 C119 C131 C126 C108 C100 C106 C294 C315 C296 C298 2-WIRE *2.7K_04 *2.7K_04 GSCL GSDA 1.1V 3.3V_USB3 S ERIAL E EP ROM...

  • Page 76: Kbc-Ite It8518

    Schematic Diagrams KBC-ITE IT8518 KBC_AVDD VDD3 VDD3 HCB1005KF-121T20 MODEL_ID VDD3 VDD3 SMC_BAT C487 C450 C429 C440 C484 R463 2.2K_04 V1.0 W240HU C458 C462 C467 SMD_BAT R458 2.2K_04 0.1u_16V_Y5V_04 10u_10V_Y 5V_08 0.1u_16V_Y 5V_04 0.1u_16V_Y 5V_04 0.1u_16V_Y 5V_04 R444 W250HUQ 0.1u_16V_Y 5V_04 *0.1u_16V_Y 5V_04 *0.1u_16V_Y5V_04 W270HUQ...

  • Page 77: Led, Mdc

    Schematic Diagrams LED, MDC MJ_MDC1 20 MIL 1.5V R237 *0_04 3.3V J_MDC1 R236 *0_04 3.3V RESERVED 10mil HDA_SDO_MDC Azalia_SDO RESERVED MDC_3.3V *28mil_06 3.3V Main/aux HDA_SYNC_MDC Azalia_SY NC HDA_SDIN1_R R419 *33_04 C111D111 C111D111 C111D111 C111D111 HDA_SDIN1 Azalia_SDI ? ? ? ? ? ? HDA_RST#_MDC HDA_BITCLK_MDC 14 Azalia_RST#...

  • Page 78: Audio Codec Alc269Q

    Schematic Diagrams AUDIO CODEC ALC269Q CODEC (ALC269 & VT1802P) PVDD1_2 R411 Layout note: *15mil_short_06 GND and AUDG space is 1.5V 3.3VS_AUD 60mils ~ 100mils C417 R431 *0_04 C249 R430 0_04 269Q_DVDD 0.1u_16V_Y5V_04 10u_6.3V_X5R_06 C437 C433 10u_6.3V_X5R_06 0.1u_16V_Y 5V_04 AZ_RST# For 3.3V VT1802P ? ? ? PD# Control...

  • Page 79: Power Con, Fan, Tp, Click Con

    Schematic Diagrams POWER CON, FAN, TP, CLICK CON FAN CONTROL CLICK B'd CONN FON# R295 *0_04 AX995B(SOT23-6) & APE8872 Dual-Layout 3.3VS 3.3V FON# 5VS_FAN VOUT R467 R470 CPU_FAN VSET J_TP3 HCB1005KF-121T20 C445 0.1u_16V_Y5V_04 *28mil_06 *0_06 AX995SA TP_CLK TP_CLK 2nd Source PN:APE8874 TP_DATA HCB1005KF-121T20...

  • Page 80: Docking Connector, Usb Charger

    Schematic Diagrams DOCKING CONNECTOR, USB Charger USB Charger components J_DOCK1 VDD5 USBVCC_CH VDD5 R216 R217 pin2,8,143,144 DOCKING? ? ? *0_04 0_04 C235 10u_10V_Y 5V_08 100 mil 100 mil DK_SENSE DK_LAN_MDIO0+ DK_LAN_MDIO0+ DK_USB_PN12 18 0309-J DK_LAN_MDIO0- USB_PN9 USB_PN9_R DK_LAN_MDIO0- DK_USB_PP12 18 USB_PN9 DM_O DM_IN...

  • Page 81: Com Port, Esata+Usb

    Schematic Diagrams COM PORT, ESATA+USB Docking COM PORT NEAR OSC1 *0_04 CLK_48M_COM 15 3.3V OSC1 3.3V AVCC DSO751SV_48MHz C520 0.1u_16V_Y 5V_04 3.3V AVCC HCB1005KF-121T20 AVCC VSTBY CLKIN DCD# AVSS DCD# DCD# / GPIO21 / CIR1TX AVSS AVSS DSR# CLKRUN# 100_1%_04 DSR# DSR# / GPIO22 / CIR1RX CLKRUN# / GPIO20...

  • Page 82: Card Reader Jmc261C

    Schematic Diagrams CARD READER JMC261C JMC261C Switching Regulator VCC_CARD close to PIN33 3.3VS VDD3 SDXC_POWER DVDD 3.3V_LAN_C VDD3 C477 C478 C456 C463 (>20mil) 0.1u_16V_Y5V_04 2.2u_6.3V_X5R_06 REGLX DVDD R454 10K_04 R427 *0_06 *1u_16V_Y 5V_04 *1u_16V_Y5V_04 (>20mil) 3.3VS *SWF2520CF-4R7M-M C468 C453 R453 *4.7K_04 SD_CD# R465...

  • Page 83: Lan (Intel Lan82579

    Schematic Diagrams LAN (INTEL LAN82579) *WCM2012F2S-SHORT J_RJ_1 NB_LAN_MDIP0 LMX1+ DLMX1+ GND1 TD4+ MX4+ shield 3.3V_M NB_LAN_MDIN0 LMX1- DLMX1- GND2 *WCM2012F2S-SHORT TD4- MX4- shield NB_LAN_MDIP1 LMX2+ DLMX2+ MX3+ TD3+ NB_LAN_MDIN1 LMX2- DLMX2- TD3- MX3- NB_LAN_MDIP2 LMX3+ DLMX3+ TD2+ MX2+ * 0_04 NB_LAN_MDIN2 LMX3- *WCM2012F2S-SHORT...

  • Page 84: Intel Lan82579Lm

    Schematic Diagrams INTEL LAN82579LM 3.3V_M 1.05V_LAN_M C502 C503 C507 C611 0.1u_16V_Y5V_04 0.1u_16V_Y 5V_04 0.1u_10V_X5R_04 10u_6.3V_X5R_06 VDD3 R532 10K_04 LAN_MDIP0 IGLAN_CLKREQ# CLK_REQ_N MDI_PLUS0 LAN_MDIP0 34 LAN_MDIN0 18,23,26,27,32,33 BUF_PLT_RST# LAN_MDIN0 34 PE_RST_N MDI_MINUS0 LAN_MDIP1 CLK_PCIE_IGLAN PE_CLKP MDI_PLUS1 LAN_MDIP1 34 LAN_MDIN1 CLK_PCIE_IGLAN# PE_CLKN MDI_MINUS1 LAN_MDIN1 34 C500...

  • Page 85: 5Vs, 3Vs, 1.5Vs Cpu

    Schematic Diagrams 5VS, 3VS, 1.5VS CPU VIN1 VDD5 VDD5 PC165 PC155 PC145 DD_ON "L" TO PR137 PR132 0.1u_50V_Y5V_06 0.1u_50V_Y5V_06 0.1u_50V_Y5V_06 "H" FROM EC 10K_04 100K_04 1.05V_M VIN1 R471 *100K_04 DD_ON DD_ON# SUSB DD_ON# 32,37 SUSB 3,37,39 R401 100K_04 DD_ON_LATCH USB_CHARGE_EN 27,31,38 SYS15V NM OS PR188...

  • Page 86: Power 1.5V/0.75V,1.8Vs

    Schematic Diagrams Power 1.5V/0.75V,1.8VS PC121 PC25 PC122 PC34 PC120 G5616 /UP6163 RB0540S2 MDU2657 1.5V VTT_MEM VDDQ PC68 10u_10V_Y 5V_08 PC23 0.1u_10V_X7R_04 VLDOIN VBST PJ16 PR15 VTT_MEM DRVH VDDQ 1.5V 3.3_06 *OPEN_2A 1.0UH_10*10*4.5 VTTGND 0_06 *OPEN_12A 10u_10V_Y 5V_08 10u_10V_Y 5V_08 *10u_10V_Y 5V_08 VTTSNS DRVL PC24...

  • Page 87: Vdd3, Vdd5

    Schematic Diagrams VDD3, VDD5 VREF PR177 *0_04 PR178 0_04 MP? ? ? ? UPI PC154 1u_10V_Y 5V_06 PR182 PR179 EN_3V EN_5V PC112 100K_04 100K_04 PC159 1000p_50V_X7R_04 1000p_50V_X7R_04 PU10 VREG3 PC176 PC171 PC160 PR186 *10K_04 4.7u_25V_X5R_08 4.7u_25V_X5R_08 VDD3 SY S5V VDD5 LDO3 1u_10V_Y 5V_06 PQ44...

  • Page 88: Power 1.05V Lan M

    Schematic Diagrams POWER 1.05V LAN M VDD5 VDD3 PJ25 PR124 PD21 100K_04 RB0540S2 *6mil PR123 8.2K_1%_04 PJ26 R543 0_04 16,36 PM_SLP_LAN# R544 *0_04 uP6127 PQ41 /G5413 ME4894-G *6mil 1.05V_LAN_M PC101 PQ20 *0.1u_16V_Y5V_04 PC102 3,36,37 SUSB *MTN7002ZHS3 0.1u_16V_Y5V_04 1.05V_LAN_M V1.05 PJ19 PR125 10K_04 1.0UH_10*10*4.5...

  • Page 89: Power 0.85Vs

    Schematic Diagrams POWER 0.85VS 3.3V PC86 0.022u_16V_X7R_04 PR100 10K_04 0.9V 0.8V 0.725V 0.675V 0.85VS_PWRGD 16 VCCSA_VID0 PR103 VCCSA_VID1 0_04 PR116 PR108 9.31K_1%_04 9.31K_1%_04 PR117 PR109 PR106 FOR EMI 100_04 RB0540S2 12K_1%_04 10K_1%_04 PR118 PR110 10K_1%_04 10K_1%_04 Sheet 40 of 48 PQ36A PD1503Y VS PR119...

  • Page 90: Power V-Core 1

    Schematic Diagrams Power V-CORE 1 CSCOMP DROOP VR1_CSREF PR71 1.21K_1%_04 PC58 1000p_50V_X7R_04 PC37 CSCOMPA DROOPA CSNA 1.05VS_VTT PR38 10_04 PR58 1.21K_1%_04 PC52 1000p_50V_X7R_04 VCORE_1 PR42 680p_50V_X7R_04 PR43 1.21K_1%_04 B~4350 24.9K_1%_04 PUT COLSE PR24 PR23 PR22 TO VCORE PC35 *75_04 6-07-56214-3A0 6-13-12431-28B 130_1%_04 5600p_50V_X7R_04...
  • Page 91 Schematic Diagrams Power V-CORE 2 VCORE_2 PC133 PC73 PC74 PC75 PR80 PC63 PQ28 PQ12 2.2_06 MDU2657 *MDU2657 0.22u_10V_X7R_06 NCP5911 VREG_SW1_HG PR79 0_06 0.36UH_12.9*14*3.8 VREG_SW1_OUT VCORE VR1_PWM1 VCORE PQ29 PQ13 PQ30 PR78 MDU2654 *MDU2654 MDU2654 PC70 DRON 2K_1%_04 VREG_SW1_LG *1000p_X7R_06 5V S PD11 PR84 *15mil_06...

  • Page 92: Charge, Dc In

    Schematic Diagrams CHARGE, DC IN # ? Adapter ? ? 120W(? ),? ? ? ? ? ? ? ? 2PCS MOSFET,180W~220W : 3PCS , 300W: 4PCS , 360W: 5PCS PR161 0_04 PR162 CHARGER *470K_04 PQ25 V_BAT MEP4435Q8 PC198 PC197 0.01u_50V_X7R_04 0.01u_50V_X7R_04 ? ? JBATTA1 J_DC-JACK1...

  • Page 93: Click Board/ Fg

    Schematic Diagrams CLICK BOARD/ FG T+5VS It is strongly recommended that the TESD_GND has T3.3V a dedicated connection to the system chassis or RIGHT LIFT cable shield. 7/12 TJ_TPB2 TR15 87151-1207G TJ_TPB1 *32mil_short TCSW2 TCSW1 T3.3V T3.3V TS-A97AW-1-S100 TS-A97AW-1-S100 CTPBUTTON_R CTPBUTTON_R CTPBUTTON_L TGTP_CLK...

  • Page 94: Audio Board/ Usb, Hp, Mic

    Schematic Diagrams AUDIO BOARD/ USB, HP, MIC USB PORT AUSBVCC_CH AUSBVCC_CH_R HCB1608KF-121T25 80 mil EMI Require AJ_SPKR1 *FCM1608K-121T06_short 220u_6.3V_6.3*6.3*4.2 *22u_6.3V_X5R_08 0.1u_16V_Y5V_04 ASPKOUTR+ ASPKOUTR+_R 85204-02001 85204-02R AJ_USB1 AGND *1u_16V_X5R_06 *180p_50V_NPO_04 AUSB_PN9 AUSB_PN9_R J_SPK1 DATA_L AUSB_PP9 AUSB_PP9_R ASPKOUTR- ASPKOUTR-_R AGND DATA_H GND3 GND3 GND4 *WCM2012F2S-SHORT...

  • Page 95: Power Switch

    Schematic Diagrams POWER SWITCH POWER SW & LED & HOT KEY ? ? ? ? ? ? S_3.3VS POWER S_3.3V LID SWITCH IC SWITCH *BAV99 RECTIFIER S_3.3V 220_04 6-53-3050B-042 100K_04 20mil POWER BUTTON SPWR_SW1 S_LID_SW# STS-A87SNU SM_BTN# 0.1u_16V_Y5V_04 SMGND PT3661G-BB *100p_50V_NPO_04 0.1u_10V_X7R_04 PSW1~8...

  • Page 96: Debug Board

    Schematic Diagrams DEBUG BOARD T o t a l : 3 1 C o m p o n e n t . 80 PORT DEBUG RD111 DCN1A DEBUGVDD DEBUGVDD 1WAKE# 3RSVD1 5RSVD2 7CLKREQ# 9GND1 11REFCLK- 13REFCLK+ *0.1u_16V_Y5V_04 *0.1u_16V_Y5V_04 *10u_6.3V_X5R_06 *10u_6.3V_X5R_06 *10u_6.3V_X5R_06 *10u_6.3V_X5R_06 *0.1u_16V_Y 5V_04...

  • Page 97: Power Sequence

    Schematic Diagrams Power Sequence W130HU POWER ON SEQUENCE DD_ON 1.029ms 1.719ms 3.3V 3.3V_M RSMRST# ACPRESENT 172.65ms(DD_ON) PWR_BTN# 138.475ms SLP_LAN# 189.63ms (DD_ON to SLP_A#) SLP_A# 190.48ms (DD_ON to SUSC#) SUSC# 636.25us 1.5V(1.5VS_CPU) 2.01ms DDR1.5V_PWRGD Sheet 48 of 48 191.45ms (DD_ON to SUSB#) 35.862us (SUSC# to SUSB#)
  • Page 98 Schematic Diagrams B - 50...

  • Page 99: Updating The Flash Rom Bios

    Download the BIOS computer model. 1. Go to www.clevo.com.tw and point to E-Services and click E-Channel. Note that BIOS versions 2. Use your user ID and password to access the appropriate download area (BIOS), and download the latest BIOS files...

  • Page 100: Use The Flash Tools To Update The Bios

    BIOS Update Use the flash tools to update the BIOS 1. Make sure you are not loading any memory management programs such as HIMEM by holding the F8 key as you see the message “Starting MS-DOS”. You will then be prompted to give “Y” or “N” responses to the programs being loaded by DOS.
