Elation FUZE PROFILE CW User Manual page 12

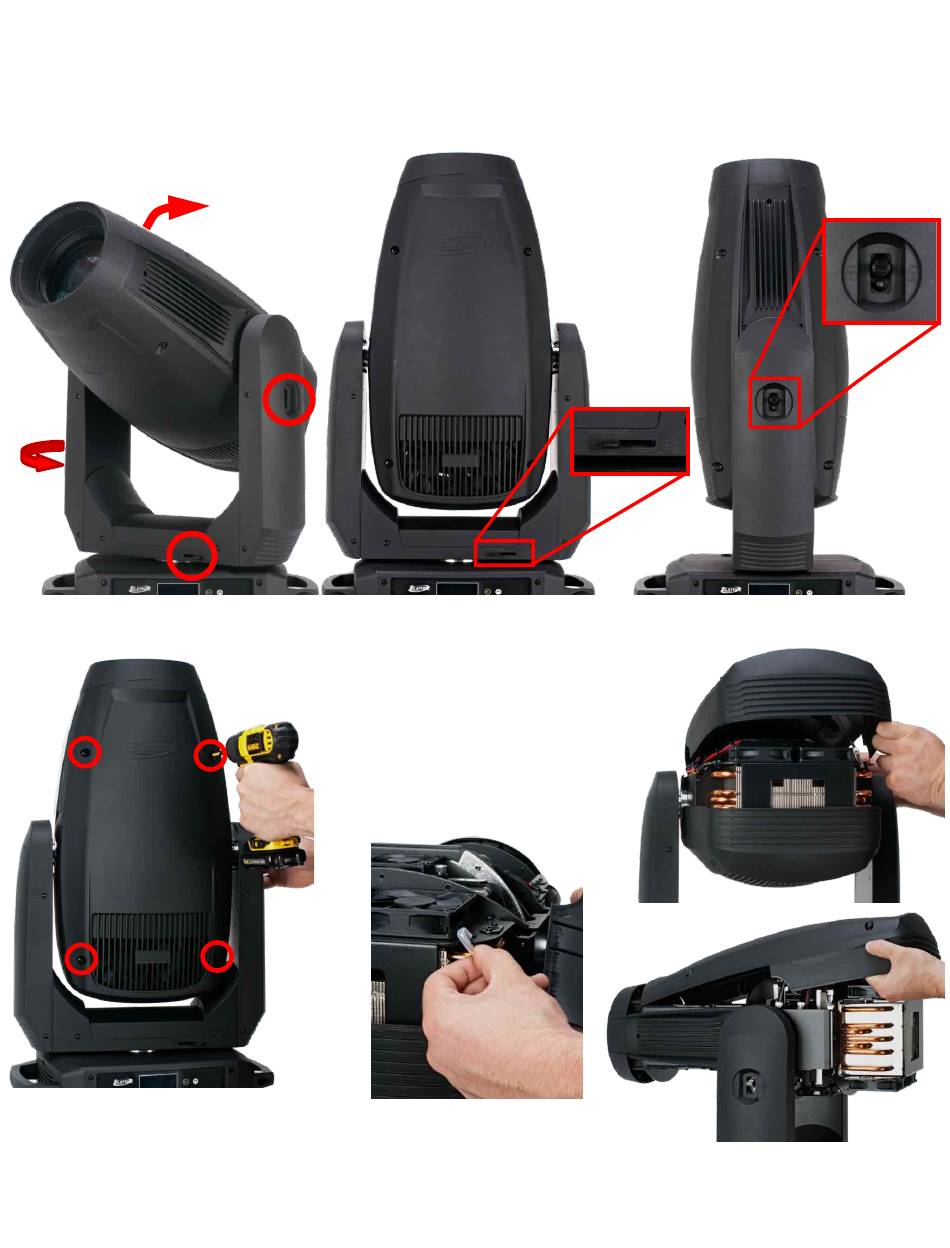

1. Before removing covers, place fixture on a stable flat surface in an INDOOR DUST FREE location. Ensure moving
head is locked into a neutral upright position with both PAN and TILT locks engaged.
2. Unfasten and remove the front and
back panels; each are secured with (4x)
¼-turn Phillips-head screws. (These
screws are integrally installed in both
panels and cannot be removed.) With
the panel screws unfastened, unclip
their safety cables to remove them
completely from the fixture.
12
Pan Lock
Tilt Lock
