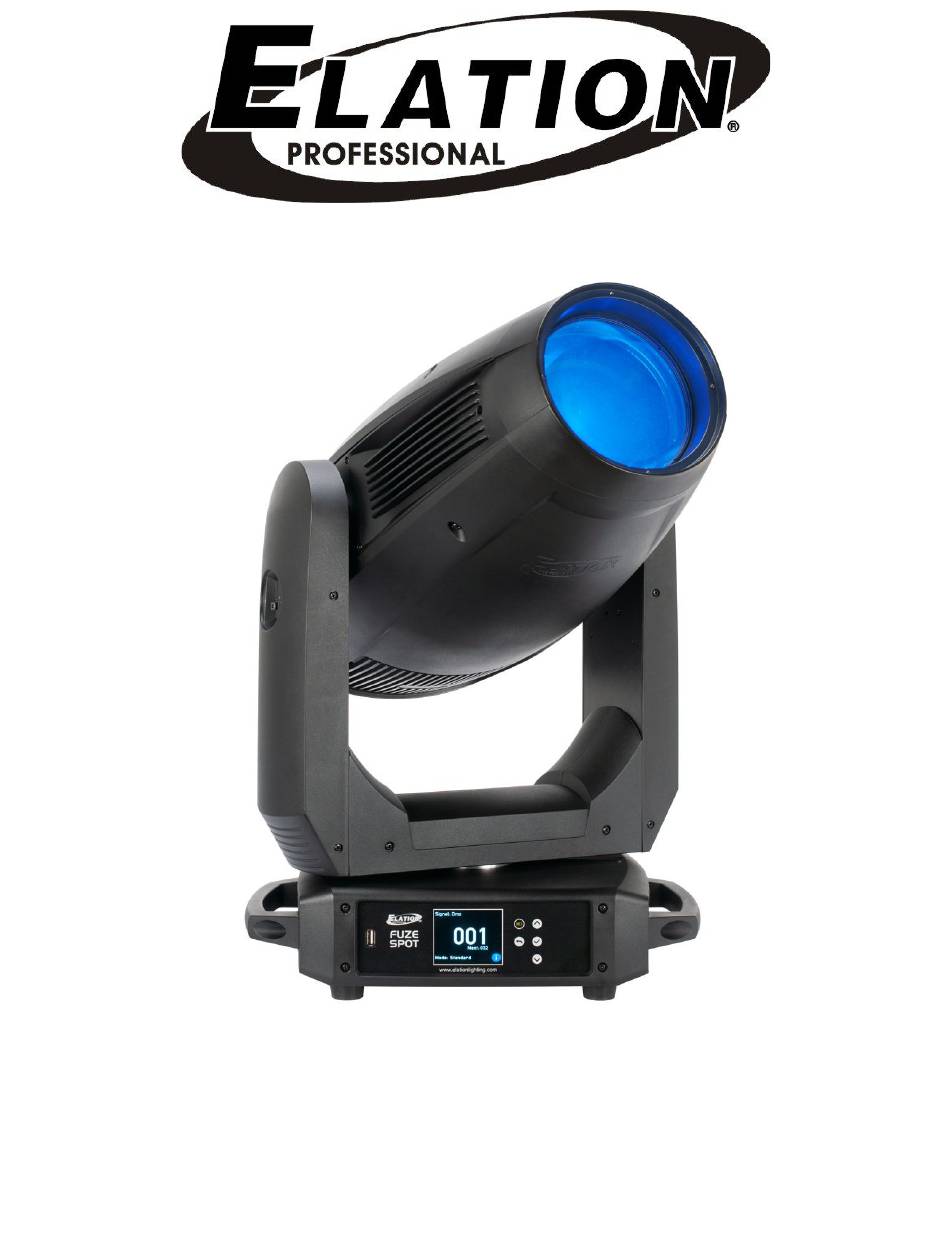

  • Page 1 FUZE SPOT™ user manual...
  • Page 2 Elation Professional B.V . | Junostraat 2 | 6468 EW Kerkrade, The Netherlands +31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu Elation Professional Mexico | AV Santa Ana 30 | Parque Industrial Lerma, Lerma, Mexico 52000 +52 (728) 282-7070 DOCUMENT VERSION Due to additional product features and/or enhancements, an updated version of this document may be available online.
  • Page 3: Table Of Contents

    C O N T E N T S General Information Limited Warranty (USA Only) Safety Guidelines Maintenance Guidelines Overview Colors Gobos and Animation Wheels Custom Gobos Gobo Replacement Snoot Installation Installation System Menu Color LED Programming Guidelines DMX Traits Remote Device Management (RDM) Color Temperature Table Virtual Gel Swatch Book Table Error Codes...
  • Page 4: General Information

    Snoot Omega Brackets (x2) Twist Locking Power Connector (x1) CUSTOMER SUPPORT Contact ELATION Service for any product related service and support needs. Also visit with questions, comments, or suggestions. forums.elationlighting.com ELATION SERVICE USA - Monday - Friday 8:00am to 4:30pm PST 323-582-3322 | Fax 323-832-9142 | support@elationlighting.com...
  • Page 5: Limited Warranty (Usa Only)

    B. For warranty service, send the product only to the Elation Professional factory. All shipping charges must be pre-paid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, Elation Professional will pay return shipping charges only to a designated point within the United States.
  • Page 6: Safety Guidelines

    This fixture is a sophisticated piece of electronic equipment. To guarantee a smooth operation, it is important to follow all instructions and guidelines in this manual. Elation Professional is not responsible for injury and/or damages resulting from the misuse of this fixture due to the disregard of the information printed in this manual.
  • Page 7 S A F E T Y G U I D E L I N E S DO NOT TOUCH the fixture housing during operation. Turn OFF the power and allow approximately 15 minutes for the fixture to cool down before serving. DO NOT shake fixture, avoid brute force when installing and/or operating fixture.
  • Page 8: Maintenance Guidelines

    Regular inspections are recommended to insure proper function and extended life. There are no user serviceable parts inside this fixture, please refer all other service issues to an authorized Elation service technician. Should you need any spare parts, please order genuine parts from your local Elation dealer.
  • Page 9: Overview

    OVERVIEW...
  • Page 10: Colors

    COLORS Colors Color Temperature Green Shift Cyan Magenta Full Minus Green to Neutral Yellow 2400K – 8500K Neutral White Green Blue Mint Neutral to Full Plus Green Amber Virtual Gel Swatch Book Colors Pale Yellow Pink Sky Blue Straw Medium Pink Pale Navy Blue Gold Tint Dark Pink...
  • Page 11: Gobos And Animation Wheels

    GOBOS AND ANIMATION WHEELS INTERCHANGEABLE-ROTATING GLASS GOBO WHEEL 1 INTERCHANGEABLE-ROTATING GLASS GOBO WHEEL 2 ANIMATION WHEEL...
  • Page 12: Custom Gobos

    GOBO MAX I.D. THICKNESS Ø 29.9 mm GOBO MAX O.D. Ø 30.0 mm GOBO HOLDER FUZE SPOT ROTATING GLASS GOBOS - WHEELS 1 & 2 Gobo O.D. (Max. Outer Diameter) ф29.9mm Gobo I.D. (Max. Image Diameter) ф25.0mm Gobo Holder Diameter ф30.0mm Gobo Thickness ф...
  • Page 13 GOBGOBO REPLACEMENT Tilt Lock Pan Lock 1. Before removing covers, place fixture on a stable flat surface in an INDOOR DUST FREE location. Ensure moving head is locked into a neutral upright position with both PAN and TILT locks engaged. 2.
  • Page 14: Gobo Replacement

    GOBO REPLACEMENT 3. The Control Module impedes the removal of the GOBO Wheel Module and will need to be removed to access the GOBO Wheel Module. The Control Module is secured to the fixture frame rail with (2x) slotted thumb screws. 4.
  • Page 15 GOBO REPLACEMENT 6. Impeding the removal of the Control Module is the lens housing of the Lens Module, which is set within the lens aperture. Lift the Lens Module to clear the lens housing from the lens aperture in the Control Module. With the Lens Module lifted, carefully grip the Control Module and slide it out and away to clear the mounting rails.
  • Page 16 GOBO REPLACEMENT 9. Carefully grip the GOBO Wheel module and slide it out and away to clear the mounting rails, and then carefully place the module on a stable flat surface in an INDOOR DUST FREE location. 10. REPLACING A ROTATING GOBO Locate the specific Rotating GOBO to replace. Carefully grip the GOBO Holder using your index finger and gently lift it slightly, and then with your fingers pull it out and away until it fully clears the GOBO Wheel.
  • Page 17: Snoot Installation

    SNOOT INSTALLATION 4-Ø3.5mm [Ø0.14in] Ø148mm [Ø5.83in] snoot Ø136mm [Ø5.35in] 1. PLACE FIXTURE ON THE STABLE FLAT SURFACE AND LET COOL FOR 15MINS. 2. Align Snoot onto front lens so 4 screw holes on snoot match 4 screw holes on lens. 3.
  • Page 18: Installation

    INSTALLATION FLAMMABLE MATERIAL WARNING Keep fixture minimum 5.0 feet (1.5m) away from flammable materials and/or pyrotechnics. ELECTRICAL CONNECTIONS A qualified electrician should be used for all electrical connections and/or installations. USE CAUTION WHEN POWER LINKING OTHER MODEL FIXTURES AS THE POWER CONSUMPTION OF OTHER MODEL FIXTURES MAY EXCEED THE MAX POWER OUTPUT ON THIS FIXTURE.
  • Page 19 INSTALLATION OMEGA BRACKETS INSTALLATION Insert the Omega Brackets into the matching holes on the bottom of the fixture. Secure the Omega Brackets to the fixture by turning each quick-lock fastener ¼ turn clockwise; making sure the fastener is completely locked. Omega Brackets can be installed into the fixture base as illustrated below.
  • Page 20 INSTALLATION RIGGING Overhead rigging requires extensive experience, including among others calculating working load limits, installation material being used, and periodic safety inspection of all installation material and the fixture. If you lack these qualifications, do not attempt the installation yourself. Improper installation can result in bodily injury. FALLING FIXTURES CAN CAUSE SEVERE INJURY OR SERIOUS EQUIPMENT DAMAGE! FOR THIS REASON, FIXTURES SHOULD BE INSTALLED AND INSPECTED ONLY BY QUALIFIED PERSONNEL.
  • Page 21 LEDs. This issue is not specific only to ELATION lighting fixtures, it is a common issue with lighting fixtures from all manufacturers. Although there is no true way to fully prevent this issue from happening, the guidelines below can prevent any potential damage from occurring if followed.
  • Page 22: System Menu

    (050), and select UPDATE SOFTWARE. A copy of the latest software can be obtained by contacting Elation Support. AN ELATION C-LOADER II CAN ALSO BE USED TO UPDATE THE FIXTURE TO THE LATEST SOFTWARE. To order this device, please contact Elation Support for further details.
  • Page 23 SYSTEM MENU Supports Software Versions: ≥ 1.0.10 DMX Address A001 ~ AXXX DMX Settings DMX Channel Mode Standard, Extend No DMX Status Hold Last, Blackout, Internal Programs Primary ON / OFF Secondary ON / OFF ON / OFF Pan Invert ON / OFF Tilt Invert ON / OFF...
  • Page 24 SYSTEM MENU Tilt Green Blue Mint Amber CTO Red CTO Green CTO Blue CTO Mint CTO Amber 1. CTO Red… Gobo1 Amber GoboRot1-1 are CTO color GoboRot1-2 calibration. GoboRot1-3 GoboRot1-4 2. GoboRot1- GoboRot1-5 1 to 1-6 & GoboRot1-6 GoboRot2-1 Focus GoboRot1-1 to 2-6 are for Focus GoboRot1-2 individual...
  • Page 25 SYSTEM MENU Manual Control 000-255 Pan Fine 000-255 Tilt 000-255 Tilt Fine 000-255 000-255 Color 000-255 Control 000-255 Internal Programs Program 0 Speed 000-255 Fade 000-255 Program 1 Speed 000-255 Fade 000-255 Program 2 Speed 000-255 Fade 000-255 Program 3 Speed 000-255 Fade...
  • Page 26: Color Led Programming Guidelines

    COLOR LED PROGRAMMING GUIDELINES The fixture utilizes an advanced additive LED light engine that contains Red, Green, Blue, Mint and Amber LED which when combined, provides a brilliant high CRI White. Using a 5-color LED engine allows the fixture to have a wide color gamut which offers robust saturated colors as well as a wide range of pastel and theatrical colors.
  • Page 27: Dmx Traits

    DMX TRAITS Supports Software Versions: ≥ 1.0.10 Features subject to change without any prior written notice. MODE / CHANNEL VALUE FUNCTION DEFAULT SNAP Standard Extended Extended PAN Movement 8bit 0-255 Pan Movement Pan Fine 16bit 0-255 Fine Control of Pan Movement TILT Movement 8bit 0-255 Tilt Movement...
  • Page 28 MODE / CHANNEL FUNCTION DEFAULT SNAP VALUE Standard Extended Standard Extended Extended Color Temperature Control 0-23 Disabled 24-85 2400K to 8500K (100K Steps) 86-255 8500K Color Wheel Open Virtual Gel Swatch Book 1-60 (See Table Page 35) 61-179 No Function Color Scroll 180-201 CW Rotation Fast to Slow 202-207 Stop...
  • Page 29 MODE / CHANNEL VALUE FUNCTION DEFAULT SNAP Standard Extended Extended Gobo Wheel 1 Gobo Index/Rotation 0-127 Gobo Indexing 128-189 Gobo Scroll CW Fast to Slow 190-193 No Rotation 194-255 Gobo Scroll CCW Slow to Fast Gobo Wheel 1 Gobo Fine Index 0-255 Fine Indexing Gobo Wheel 2...
  • Page 30 MODE / CHANNEL VALUE FUNCTION DEFAULT SNAP Standard Extended Extended Prism, Prism/Gobo Macros 0-63 Open 64-95 Prism 96-127 Idle 128-135 Prism/Gobo Macro1 136-143 Prism/Gobo Macro2 144-151 Prism/Gobo Macro3 152-159 Prism/Gobo Macro4 160-167 Prism/Gobo Macro5 168-175 Prism/Gobo Macro6 176-183 Prism/Gobo Macro7 184-191 Prism/Gobo Macro8 192-199 Prism/Gobo Macro9 200-207 Prism/Gobo Macro10...
  • Page 31 MODE / CHANNEL VALUE FUNCTION DEFAULT SNAP Standard Extended Extended Dimmer 0-255 Intensity 0 → 100% Dimmer Fine 0-255 Dimmer Fine Adjustment Dim Modes 0-20 Standard 21-40 Stage 41-60 61-80 Architectural 81-100 Theatre 101-120 Stage 2 Dimmer Delay Time 0.0s 0.1s 0.2s 0.3s...
  • Page 32 MODE / CHANNEL VALUE FUNCTION DEFAULT SNAP Standard Extended Extended Animation Index Rotation 0-127 Animation Indexing Animation Rotation CW Fast to 128-189 Slow 190-193 No Rotation Animation Rotation CCW Slow to 194-255 Fast Pan / Tilt and Color Speed 0-225 Max to Min Speed 226-235 Blackout by Movement 236-245 Blackout by All Wheel Changing...
  • Page 33 MODE / CHANNEL VALUE FUNCTION DEFAULT SNAP Standard Extended Extended Refresh Rate (Hz) 1080 1090 1100 1110 1120 1130 1140 1150 1160 1170 1180 1190 1200 1210 1220 1230 1240 1250 1260 1270 1280 1290 1300 1310 1320 1330 1340 1350 1360 1370...
  • Page 34 MODE / CHANNEL VALUE FUNCTION DEFAULT SNAP Standard Extended CMY Extended Refresh Rate (Hz) 2500 4000 5000 6000 10,000 15,000 20,000 25,000 169-200 Idle 201-210 Dimmer Curve Linear (default) 211-220 Dimmer Curve Square 221-230 Dimmer Curve Inverse Square 231-240 Dimmer Curve S-Curve Internal Program 1 (Scene 1-8) Internal Program 2...
  • Page 35: Remote Device Management (Rdm)

    Temperature Sensors. Device Model ID Model RDM Code Personality ID Decimal/Hexdecimal Standard(1) Extend(2) FUZE SPOT 0×22A6 0002 CMY Standard (3) CMY Extend (4) FIXTURE RDM INFORMATION: Please be aware that not all RDM devices support all RDM features, and therefore it is important to check beforehand to ensure that the equipment that you are considering includes all the features that you require.
  • Page 36: Color Temperature Table

    COLOR TEMPERATURE TABLE VALUE COLOR TEMP (K) VALUE COLOR TEMP (K) 2400 5500 2500 5600 2600 5700 2700 5800 2800 5900 2900 6000 3000 6100 3100 6200 3200 6300 3300 6400 3400 6500 3500 6600 3600 6700 3700 6800 3800 6900 3900 7000...
  • Page 37: Virtual Gel Swatch Book Table

    VIRTUAL GEL SWATCH BOOK VALUE FILTER# COLOR VALUE FILTER# COLOR Pale Yellow Mauve Straw Medium Purple Gold Tint Lavender Spring Yellow Palace Blue Medium Yellow Dark Blue Yellow Medium Blue Deep Amber Deep Blue Deep Straw Daylight Blue Loving Amber Slate Blue Gold Amber Light Blue...
  • Page 38: Error Codes

    ERROR CODES Error Codes subject to change without notice. ERROR CODES DESCRIPTION Movement is not located in the default position after the reset. PAN Er These messages will appear after a fixture reset if the magnetic-indexing circuit malfunctions (sensor failed, or magnet is missing) or there is a motor failure (defective motor or a defective motor IC drive on the main PCB).
  • Page 39: Specifications

    SPECIFICATIONS SOURCE 305W 6,500K RGBMA LED Engine 30,000 Hour Average LED Life* *Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming. PHOTOMETRIC DATA 10,100 Total Lumen Output CRI 92 Zoom Range 7°...
  • Page 40: Dimensional Drawings

    DIMENSIONAL DRAWINGS Drawings not to scale. Specifications and improvements in the design of this unit and this manual are subject to change without notice.
  • Page 41 DIMENSIONAL DRAWINGS – SNOOT ATTACHED Drawing not to scale. Specifications and improvements in the design of this unit and this manual are subject to change without notice.
  • Page 42: Optional Accessories | Fcc Statement

    OPTIONAL ACCESSORIES ORDER CODE ITEM TRIGGER CLAMP Heavy Duty Wrap Around Hook Style Clamp SIP126 5 ft. (1.5m) IP65 Twist Lock Power Link Cable AC5PDMX5PRO 5 ft. (1.5m) 5pin PRO DMX Cable Additional Cable Lengths Available FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
