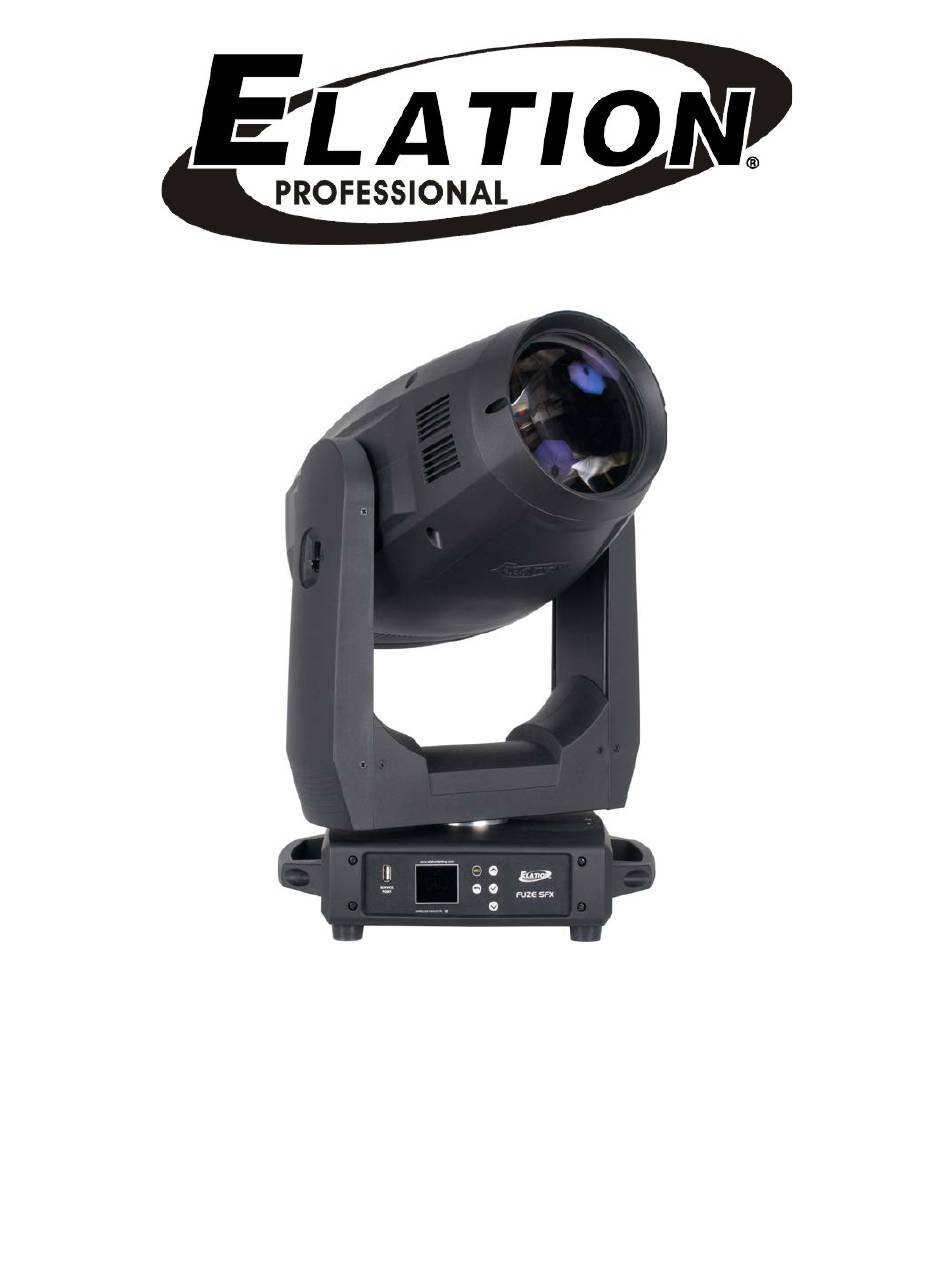

  • Page 1 FUZE SFX user manual...
  • Page 2 +31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu Elation Professional Mexico | AV Santa Ana 30 | Parque Industrial Lerma, Lerma, Mexico 52000 +52 (728) 282-7070 D O C U M E N T V E R S I O N...

  • Page 3: Table Of Contents

    C O N T E N T S General Information Warranty Returns (USA Only) Safety Guidelines Maintenance Guidelines Fixture Overview Color Wheel Gobo Wheels Custom Gobos Gobo Installation Installation Guidelines System Menu DMX Channel Functions and Values Color Combination Table Error Codes Specifications Dimensional Drawings...

  • Page 4: General Information

    Fixture (x1) Omega Brackets (x2) Locking Power Cable (X1) CUSTOMER SUPPORT Contact ELATION Service for any product related service and support needs. Also visit forums.elationlighting.com with questions, comments or suggestions. ELATION SERVICE USA - Monday - Friday 8:00am to 4:30pm PST 323-582-3322 | Fax 323-832-9142 | support@elationlighting.com...

  • Page 5: Warranty Returns (Usa Only)

    (double-box and foam) that provides ample product protection for ground and/or air freight transit, and must be shipped freight pre-paid and insured to ELATION in Los Angeles, CA or an ELATION Authorized Service Center. The RMA number must be clearly written on the outside of the return box, and a brief description of the problem and the RMA number must be documented and included in the box.

  • Page 6: Safety Guidelines

    This fixture is a sophisticated piece of electronic equipment. To guarantee a smooth operation, it is important to follow all instructions and guidelines in this manual. Elation Professional is not responsible for injury and/or damages resulting from the misuse of this fixture due to the disregard of the information printed in this manual.
  • Page 7 S A F E T Y G U I D E L I N E S DO NOT TOUCH the fixture housing during operation. Turn OFF the power and allow approximately 15 minutes for the fixture to cool down before servicing. DO NOT shake fixture, and avoid brute force when installing and/or operating fixture.

  • Page 8: Maintenance Guidelines

    Regular inspections are recommended to ensure proper function and extended life. There are no user serviceable parts inside this fixture. Please refer all other service issues to an authorized Elation service technician. Should you need any spare parts, please order genuine parts from an authorized Elation dealer.

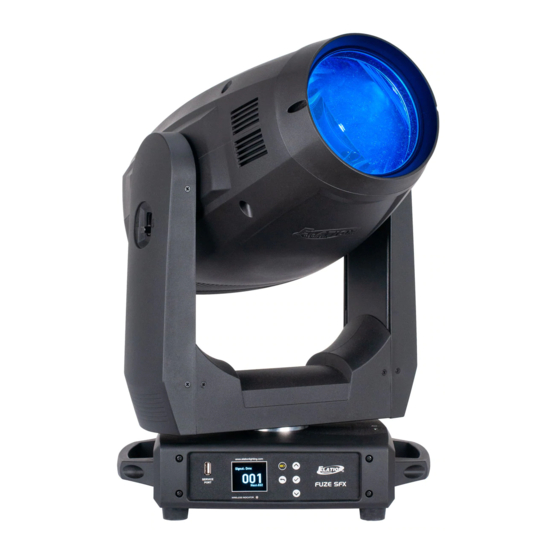

  • Page 9: Fixture Overview

    F I X T U R E O V E R V I E W ALWAYS ATTACH A SAFETY CABLE WHENEVER INSTALLING THIS DEVICE IN A SUSPENDED ENVIRONMENT TO ENSURE THE FIXTURE WILL NOT DROP IF THE CLAMP FAILS.

  • Page 10: Color Wheel

    C O L O R W H E E L Warm ell Medium Medium Blue Slot Number Color Warm Yellow Medium Green Orange Pink Medium Blue...

  • Page 11: Gobo Wheels

    G O B O W H E E L S...

  • Page 12: Custom Gobos

    Extended testing of custom gobo designs is highly recommended prior to use. Contact ELATION SERVICE for further information. ELATION SERVICE USA - Monday - Friday 8:00am to 4:30pm PST 323-582-3322 | Fax 323-832-9142 | support@elationlighting.com...

  • Page 13: Gobo Installation

    G O B O I N S T A L L A T I O N 1. Place the fixture on a stable flat surface in a DUST-FREE, INDOOR location, and ensure that the unit has been disconnected from power and given at least 15 minutes to cool down after powering down.
  • Page 14 G O B O I N S T A L L A T I O N 3. Optional. This step may be performed to help improve access to the gobo wheel module. On the prism module, find the 4-pin connector (denoted by the yellow box, above right) in the that is located behind the left-most electric motor, just beside the thumb screw on the left hand side of the prism module.
  • Page 15 G O B O I N S T A L L A T I O N 5. On the gobo wheel module, locate the circuit board on the left hand side of the gobo wheel module, directly above the static gobo wheel. On this circuit board, find the 3- pin connector and the 4-pin connector (denoted by the yellow boxes, above right) located just behind a bank of three (3) capacitors, and disconnect both of these connectors.
  • Page 16 G O B O I N S T A L L A T I O N 7. Locate the rotating gobo that will be replaced. Grip the edges of the geared gobo holder and gently lift (pictured at left) until the gobo holder clears the surface of the gobo wheel.

  • Page 17: Installation Guidelines

    I N S T A L L A T I O N G U I D E L I N E S FLAMMABLE MATERIAL WARNING Keep fixture minimum 5.0 feet (1.5m) away from flammable materials and/or pyrotechnics. ELECTRICAL CONNECTIONS A qualified electrician should be used for all electrical connections and/or installations. USE CAUTION WHEN POWER LINKING OTHER MODEL FIXTURES AS THE POWER CONSUMPTION OF OTHER MODEL FIXTURES MAY EXCEED THE MAX POWER OUTPUT ON THIS FIXTURE.
  • Page 18 I N S T A L L A T I O N G U I D E L I N E S OMEGA BRACKETS INSTALLATION Insert the Omega Brackets into the matching holes on the bottom of the fixture. Secure the Omega Brackets to the fixture by turning each quick-lock fastener ¼...
  • Page 19 LEDs. This issue is not specific to ELATION lighting fixtures; rather, it is a common issue with lighting fixtures from all manufacturers. Although there is no true way to fully prevent this issue from occurring, the guidelines below can help minimize the risk of potential damage if followed.

  • Page 20: System Menu

    S Y S T E M M E N U The fixture includes an easy to navigate system menu. The LCD touch panel display located on the front of the fixture (see image below), provides access to the main system menu and is where all necessary system adjustments are made to the fixture.
  • Page 21 S Y S T E M M E N U Note: Default settings are shown in bold. ELATION FUZE SFX SYSTEM MENU Supports Software Versions: > 1.06 DMX Address A001 ~ A512 Hold Last DMX SETTINGS No DMX Status Blackout...
  • Page 22 Auto High Fan Settings Studio Mute Standard Stage Dim Modes Architecture Theatre Stage 2 Dim Speed 0 s – 10 s Linear PERSONALITY Square Dim Curves (continued from prev Inverse Square page) S-Curve 900Hz – 1500Hz (default 1200Hz) 1500 Hz 2500 Hz 4000 Hz LED Refresh Rate...
  • Page 23 No / Yes Reset All Motors Pan / Tilt Reset No / Yes Color Reset No / Yes Reset Motors Gobo Reset No / Yes Focus Reset No / Yes No / Yes Other Reset Screen Saver Delay 1 min – 10 min (default 1 min) Display Screen Lock...
  • Page 24 Prism 1 Rot. Prism 2 Prism 2 Rot. Calibration (continued Service Focus PERSONALITY from prev page) (Password: 050) Zoom (continued from prev (continued from page) Iris prev page) Frost USB Update On / Off No / Yes Factory Reset Pan, Pan Fine, Tilt, Tilt Fine, Cyan, Cyan Fine, Magenta, Magenta Fine, Yellow, Yellow Fine, CMC Mix Mode, Color Wheel, Rotate Gobo, Gobo MANUAL CONTROL Index, Gobo Index Fine, Fixed Gobo Wheel, SFX, Prism 1 Rot., Prism 2...
  • Page 25 Current LEDs Max Resettable Fixture Temps Max Not Resettable Reset LED Temp Base Temp Fan 1 LED Fan RPM Fan 2 Fan Info (RPM) Fan 1 Base Fan RPM Fan 2 DMX Values Pan, Pan Fine, Tilt… Product IDs RDM UID Error 1 –...
  • Page 26 Head Fan 2 Base Fan 1 Fixture Errors Error Logs INFORMATION (continued from prev Base Fan 2 (continued from (continued from prev page) Head Temp prev page) page) Base Temp No / Yes Reset Error Log Software Version 1.06...

  • Page 27: Dmx Channel Functions And Values

    D M X C H A N N E L F U N C T I O N S A N D V A L U E S FUZE SFX DMX Channel Values / Functions (31 DMX Channels) Supports Software Versions: > 1.06 Features subject to change without any prior written notice.
  • Page 28 CHANNEL VALUE FUNCTION DEFAULT SNAP HOLD Color Wheel 000 – 005 Open 006 – 010 White/Red Split 011 – 015 016 – 020 Red/Yellow Split 021 – 025 Yellow 026 – 030 Yellow/Green Split 031 – 035 Green 036 – 040 Green/Orange Split 041 –...
  • Page 29 CHANNEL VALUE FUNCTION DEFAULT SNAP HOLD Rotating Gobo 000 – 005 Open 006 – 012 Rotating Gobo 1 013 – 019 Rotating Gobo 2 020 – 026 Rotating Gobo 3 027 – 033 Rotating Gobo 4 034 – 040 Rotating Gobo 5 041 –...
  • Page 30 CHANNEL VALUE FUNCTION DEFAULT SNAP HOLD Fixed Gobo 000 - 005 Open 006 – 014 Fixed Gobo 1 015 – 023 Fixed Gobo 2 024 – 032 Fixed Gobo 3 033 – 041 Fixed Gobo 4 042 – 050 Fixed Gobo 5 051 –...
  • Page 31 CHANNEL VALUE FUNCTION DEFAULT SNAP HOLD Prism 2 Index / Rotation 000 – 127 Prism Indexing Clockwise Prism Rotation, Fast to 128 – 189 Slow 190 – 193 No Rotation Counter-Clockwise Prism 194 – 255 Rotation, Slow to Fast Continuous Focus Adjustment, 000 –...
  • Page 32 CHANNEL VALUE FUNCTION DEFAULT SNAP HOLD Dimmer Configuration Dim Modes 000 – 020 Standard 021 – 040 Stage 041 – 060 061 – 080 Architectural 081 – 100 Theatre 101 – 120 Stage 2 Dimmer Delay Time 0.0s 0.1s 0.2s 0.3s 0.4s 0.5s...
  • Page 33 CHANNEL VALUE FUNCTION DEFAULT SNAP HOLD Control 000 – 009 Color Change Snap 010 – 019 Color Change to Any Position Color & Gobo Change to Any 020 – 029 Position 030 – 034 Color Correct Gobo Disabled 035 – 039 Color Correct Gobo Enabled 040 –...
  • Page 34 CHANNEL VALUE FUNCTION DEFAULT SNAP HOLD Refresh Rate (continued) 1200 Hz 1210 Hz 1220 Hz 1230 Hz 1240 Hz 1250 Hz 1260 Hz 1270 Hz 1280 Hz 1290 Hz 1300 Hz 1310 Hz 1320 Hz 1330 Hz 1340 Hz 1350 Hz 1360 Hz 1370 Hz 1380 Hz...

  • Page 35: Color Combination Table

    C O L O R C O M B I N A T I O N T A B L E COLOR COMBINATIONS COMBINATION IMAGE CYAN MAGENTA YELLOW COLOR WHEEL 50% split 50% split Open 100% 50% split Open 50% split 100% Open 33% split...

  • Page 36: Error Codes

    E R R O R C O D E S Error Codes subject to change without notice. ERROR CODES DESCRIPTION Movement is not located in the default position after the reset. PAN Er These messages will appear after a fixture reset if the magnetic- indexing circuit malfunctions (sensor failed, or magnet is missing) or there is a motor failure (defective motor or a defective motor IC drive on the main PCB).

  • Page 37: Specifications

    S P E C I F I C A T I O N S SOURCE 300W 6,600K Bright White LED Engine 20,000 Hour Average LED Life* *Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

  • Page 38: Dimensional Drawings

    D I M E N S I O N A L D R A W I N G S Dimensional Drawings not to scale. Specifications and improvements in the design of this unit and this manual are subject to change without notice.

  • Page 39: Fcc Statement

    F C C S T A T E M E N T This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 40 SKU: FUZ406 1237000223 UPC: 810008260852...
