FUZE PFX
user manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the FUZE PFX and is the answer not in the manual?

Questions and answers

Related Manuals for Elation FUZE PFX

Summary of Contents for Elation FUZE PFX

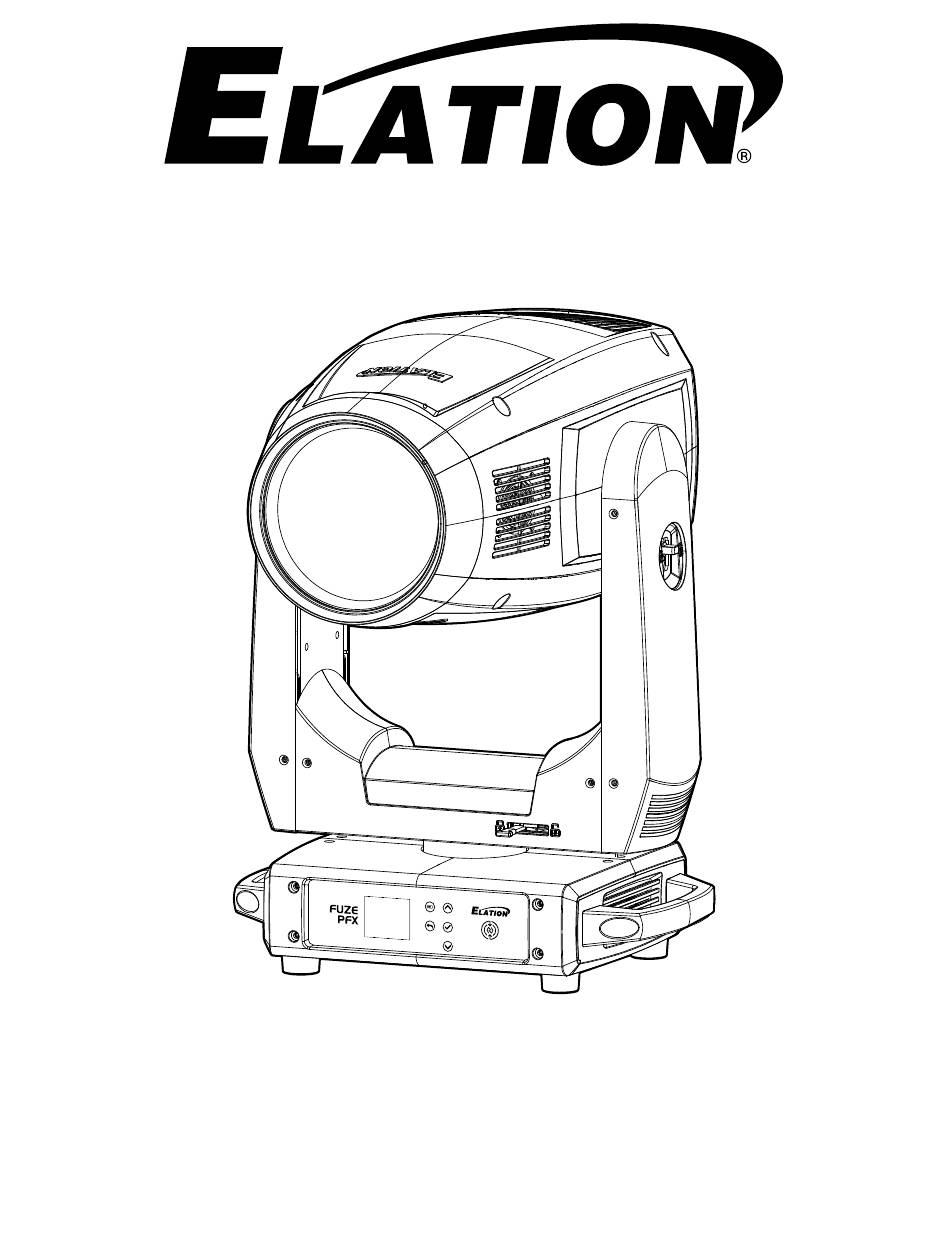

  • Page 1 FUZE PFX user manual...

  • Page 2: Document Version

    +31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu info@elationlighting.eu Elation Professional Mexico | AV Santa Ana 30 | Parque Industrial Lerma, Lerma, Mexico 52000 +52 (728) 282-7070 DOCUMENT VERSION Due to additional product features and/or enhancements, an updated version of this document may be available online.

  • Page 3: Table Of Contents

    C O N T E N T S General Information Warranty Returns (USA Only) Safety Guidelines Overview Colors and Gobos Custom Gobos Gobo Installation Installation Guidelines System Menu Dimmer Mode DMX Traits Refresh Rate Remote Device Management (RDM) Maintenance Guidelines Error Codes Specifications Dimensional Drawings...

  • Page 4: Box Contents

    IP65 Locking Power Cable (X1) Safety Cable CUSTOMER SUPPORT Contact ELATION Service for any product related service and support needs. Also visit forums.elationlighting.com with questions, comments or suggestions. ELATION SERVICE USA - Monday - Friday 8:00am to 4:30pm PST 323-582-3322 | support@elationlighting.com ELATION SERVICE EUROPE - Monday - Friday 08:30 to 17:00 CET +31 45 546 85 63 | support@elationlighting.eu...

  • Page 5: L I M I T E D Wa R R A N T Y ( U S A O N Ly )

    B. For warranty service, send the product only to the Elation Professional factory. All shipping charges must be pre-paid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, Elation Professional will pay return shipping charges only to a designated point within the United States.

  • Page 6: Safety Guidelines

    This fixture is a sophisticated piece of electronic equipment. To guarantee a smooth operation, it is important to follow all instructions and guidelines in this manual. Elation Professional is not responsible for injury and/or damages resulting from the misuse of this fixture due to the disregard of the information printed in this manual.
  • Page 7 S A F E T Y G U I D E L I N E S DO NOT TOUCH the fixture housing during operation. DO NOT shake fixture and avoid brute force when installing and/or operating fixture. DO NOT operate fixture if the power cord is frayed, crimped, damaged and/or if any of the power cord connectors are damaged or do not fit into the fixture securely with ease.

  • Page 8: Overview

    O V E R V I E W Battery Indicator LCD Display Up Button Enter Button Back Button Down Button NFC Access Point Tilt Lock Pan Lock Safety Cable Mounting Point NET OUT POW ER 40V 4A MAX: 100-2 POW ER V 50/60 FUSE : AC10 0-240...

  • Page 9: Colors And Gobos

    C O LO R S A N D G O B O S ROTATING GOBO WHEEL POS 1 POS 2 POS 3 POS 4 POS 5 POS 6 POS 7 FIXED GOBO WHEEL POS 1 POS 2 POS 3 POS 4 POS 5 POS 6 POS 7...

  • Page 10: Custom Gobos

    Extended testing of custom gobo designs is highly recom- mended prior to use. Contact ELATION SERVICE for further information. ELATION SERVICE USA - Monday - Friday 8:00am to 4:30pm PST 323-582-3322 | support@elationlighting.com...

  • Page 11: Gobo Installation

    G O B O I N S TA L L AT I O N Place the fixture on a firm flat surface. Locate the (4x) screws securing the panel on the Pan Lock side of the moving head and remove them. Pan Lock Locate the Fan Ducting, remove the 2x screws that secure it to the internal housing frame..
  • Page 12 G O B O I N S TA L L AT I O N Carefully remove the Gobo Module and set it on a clean surface. Locate the specific Rotating Gobo to replace. Carefully grip the Gobo using your thumb and index finger, gently lift it slightly, and then pull it out and away until it fully clears the Gobo Wheel.

  • Page 13: Installation Guidelines

    I N S TA L L AT I O N G U I D E L I N E S FLAMMABLE MATERIAL WARNING Keep fixture minimum 5.0 feet (1.5m) away from flammable materials and/or pyrotechnics. ELECTRICAL CONNECTIONS A qualified electrician should be used for all electrical connections and/or installations.

  • Page 14: Safety Cable

    I N S TA L L AT I O N G U I D E L I N E S OMEGA BRACKETS INSTALLATION Insert the Omega Brackets into the matching holes on the bottom of the fixture. Secure the Omega Brackets to the fixture by turning each quick-lock fastener ¼ turn clockwise; making sure the fastener is completely locked.
  • Page 15 I N S TA L L AT I O N G U I D E L I N E S RIGGING The Fuze PFX is fully operational in (3) different mounting positions, hanging upside-down, mounted sideways on trussing, or set on a flat level surface. Overhead rigging requires extensive experience, including among others calculating working load limits, installation material being used, and periodic safety inspection of all installation.material and the fixture.
  • Page 16 LEDs. This issue is not specific to ELATION lighting fixtures; it is a common issue with lighting fixtures from all manufacturers. Although there is no true way to fully prevent this issue from happening, the guidelines below can prevent any potential damage from occurring if followed.

  • Page 17: System Menu

    ICON button for 3 seconds. The LCD Menu Control Display will shut OFF automatically about 1 minute from the last button press. Note: An Elation C-Loader II can be used to update fixture software. Contact Elation Service for more information @ 323-582-3322 | support@elationlighting.com...
  • Page 18 S YS T E M M E N U MAIN MENU SUB MENU OPTIONS / VALUES (Default Settings in BOLD) DMX Address 001 - 512 DMX Mode Standard, Extended Hold Last, Fade to Black No DMX Status Hibernation Off, 1-99M (Default = 15 Min) DMX / Art-Net / sACN / Aria In- Select Signal DMX Out / DMX In - Aria Out...

  • Page 19: Dimmer Mode

    D I M M E R M O D E DIMMER DIMMER 100% 100% Time (ms) 0 Sec Rise Time Down Time Time (ms) 0 Sec Rise Time Down Time 0 sec Fade Time 1 sec Fade Time 0 sec Fade Time 1 sec Fade Time Dimming Curve Dimming Curve...

  • Page 20: Dmx Traits

    D MX TR AI TS Features subject to change without notice MODE/CHANNEL VALUE FUNCTION SNAP DEFAULT STANDARD EXTENDED 0-255 Left → Right Pan Fine 0-255 Fine Position Tilt 0-255 Forward → Backward Tilt Fine 0-255 Fine Position Cyan 0-255 0 → 100% 0-170 0 →...
  • Page 21 D MX TR AI TS MODE/CHANNEL VALUE FUNCTION SNAP DEFAULT STANDARD EXTENDED Color Open 1-11 Open/Color1 12-22 Color 1 23-33 Color 1/2 34-44 Color 2 45-55 Color 2/3 56-66 Color 3 67-77 Color 3/4 78-88 Color 4 89-99 Color 4/5 100-110 Color 5 111-121 Color 5/6 122-132 Color 6...
  • Page 22 D MX TR AI TS MODE/CHANNEL VALUE FUNCTION SNAP DEFAULT STANDARD EXTENDED Fixed Gobo Wheel Open 10-17 Gobo 1 18-25 Gobo 2 26-33 Gobo 3 34-41 Gobo 4 42-49 Gobo 5 50-57 Gobo 6 58-65 Gobo 7 66-73 Gobo 8 74-81 Gobo 9 82-89...
  • Page 23 D MX TR AI TS MODE/CHANNEL VALUE FUNCTION SNAP DEFAULT STANDARD EXTENDED Focus 0-255 Infinity → Near Focus Fine 0-255 Fine Adjustment Zoom 0-255 Narrow → Wide Zoom Fine 0-255 Fine Adjustment Strobe 0-31 Closed 32-63 Open 64-95 Strobe effect slow to fast 96-127 Open 128-159 Pulse Effect 160-191 Open...
  • Page 24 D M X T R AITS MODE/CHANNEL VALUE FUNCTION SNAP DEFAULT STANDARD EXTENDED Iris 0-191 Open → Closed 192-223 Pulse opening fast to slow 224-255 Pulse closing slow to fast Iris Fine 0 – 255 Fine Adjustment Frost (Light) 0 – 255 Open →...
  • Page 25 D M X T R AI TS MODE/CHANNEL VALUE FUNCTION SNAP DEFAULT STANDARD EXTENDED Control 0-19 Wheel Snap 20-39 Wheel Fade Fan Mode 40-44 Mute 45-49 Studio 50-59 60-69 High 70-79 Auto Reset 80-84 85-87 Pan / Tilt 88-90 Color 91-93 Gobo 94-96...

  • Page 26: Refresh Rate

    R E F R ES H R AT E DMX VALUE REFRESH RATE (HZ) DMX VALUE REFRESH RATE (HZ) 1250 1260 1270 1280 1290 1300 1310 1320 1330 1340 1000 1350 1010 1360 1020 1370 1030 1380 1040 1390 1050 1400 1060 1410...

  • Page 27: Remote Device Management (Rdm)

    R E M O T E D E V I C E M A N A G E M E N T ( R D M ) NOTE: In order for RDM to work properly, RDM enabled equipment must be used throughout the entire system, including DMX data splitters and wireless systems.

  • Page 28: Maintenance Guidelines

    Regular inspections are recommended to insure proper function and extended life. There are no user serviceable parts inside this fixture, please refer all other service issues to an authorized Elation service technician. Should you need any spare parts, please order genuine parts from your local Elation dealer.

  • Page 29: Error Codes

    E R R O R C O D E S Error Codes subject to change without notice ERROR CODES DESCRIPTION Movement is not located in the default position after the reset. These messages will appear after a fixture reset if the magnetic-indexing circuit malfunctions (sensor failed, or magnet is missing) or there is a motor failure (defective motor or a defective motor IC drive on the main PCB).

  • Page 30: Specifications

    S P E C I F I C AT I O N S SOURCE SIZE / WEIGHT 400W 6,600K Bright White LED Engine Length: 14.3” (362mm) 20,000 Hour Average LED Life* Width: 9.2” (233mm) Vertical Height: 25.14” (637mm) *Test lab conditions. May vary depending on several factors Weight: 50 lbs.

  • Page 31: Dimensional Drawings

    D I M E N S I O N S *Drawings not to scale. Specifications and improvements in the design of this unit and this manual are subject to change without notice. 22.8in. [578mm] Ø20.8in. [Ø527mm] 2in. [51mm] 18in. [457mm] 9.2in.

  • Page 32: Optional Accessories | Fcc Statement

    O P T I O N A L A C C E S S O R I E S ORDER CODE ITEM TRIGGER CLAMP Heavy Duty Wrap Around Hook Style Clamp SIP126 5 ft. (1.5m) IP65 Twist Lock Power Link Cable TOU027 5 ft.
