Connecting Accessories - Nortek Security & Control Mighty Mule MM372W Installation Manual

1
2
Automatic Gate Lock (FM143)
Mighty Mule
Push Button Control
Mighty Mule Keypad

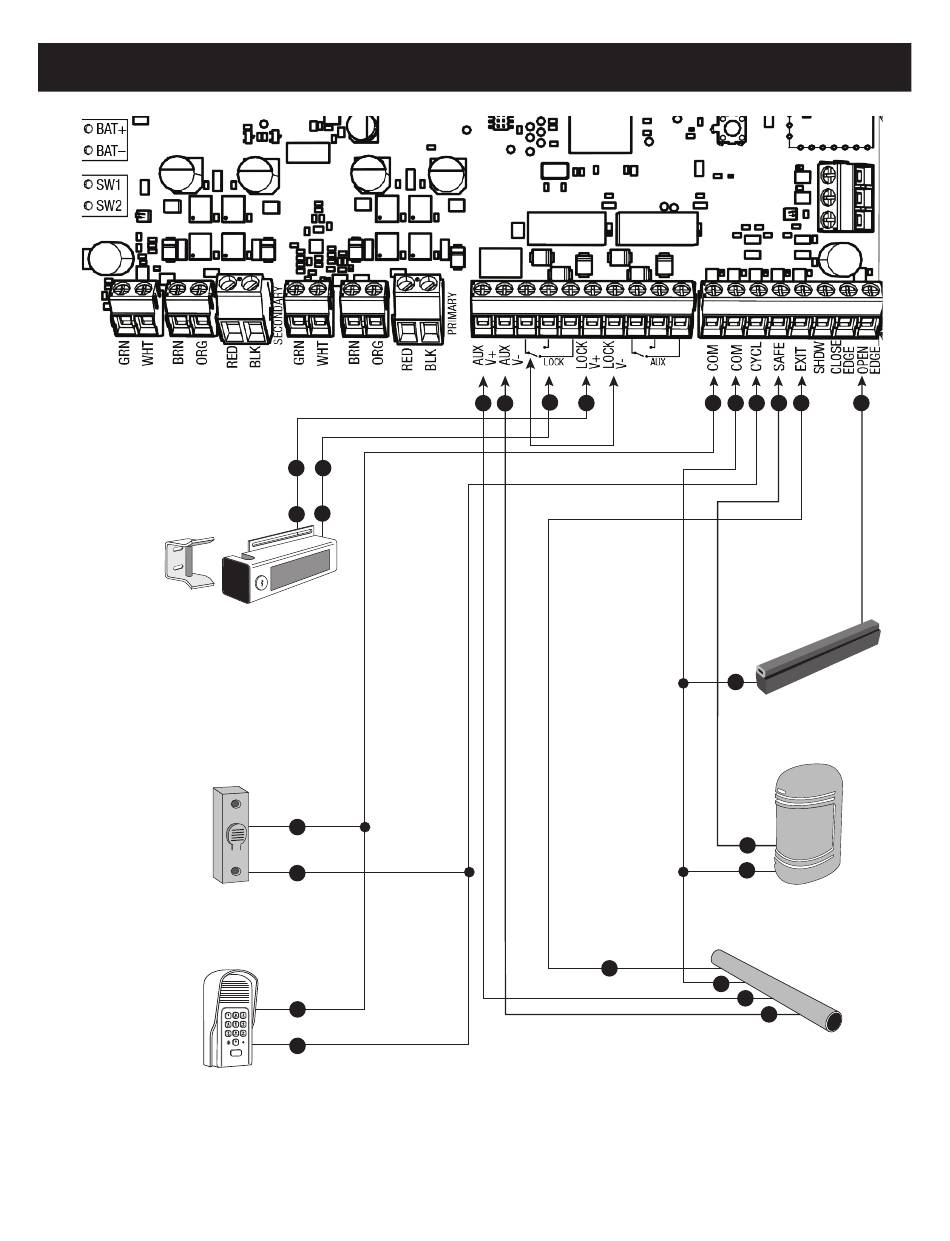

NOTE: Connections are for typical applications.
For additional connection options not illustrated
here refer to the accessory manual for details.
For FM130/FM130-SW and FM136, see Appendix A in this manual.

CONNECTING ACCESSORIES

10
9
-
+
3
6
3
6
-
+
10 9
Blue
5
Black
MM371W / MM372W Installation Instructions
3 8 6 4 5 7
8
Edge Sensor
4
8
Photo Beams
8
Red
+
Yellow
-
Shield
Mighty Mule
Vehicle Sensor
Refer to Vehicle Sensor
manual for additional
information if needed.
25
