1. Introduction

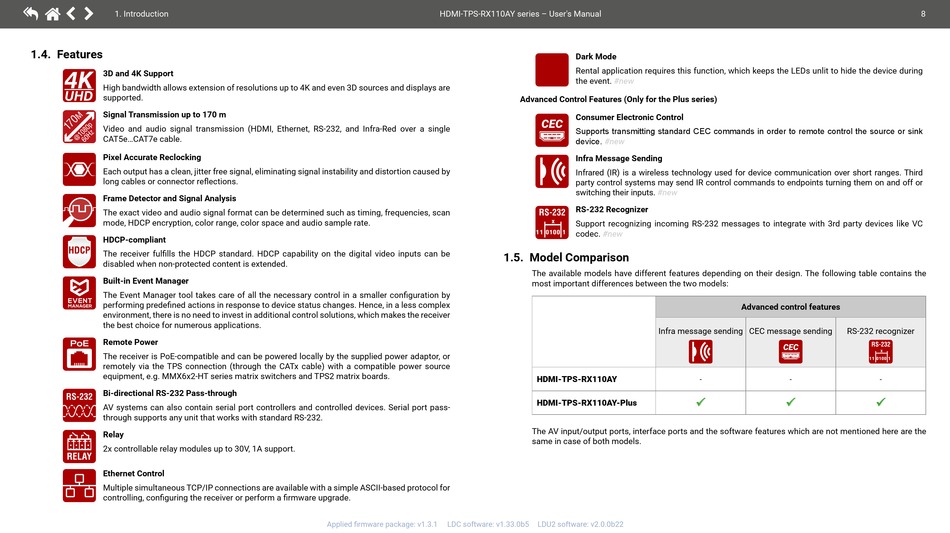

1.4. Ieatures
3D and 4K Support
High bandwidth allows extension of resolutions up to 4C and even 3D sources and displays are
supported.
Signal Transmission up to 170 m
Video and audio signal transmission (HDMI, Ethernet, RS-232, and Infra-Red over a single
CAT5e...CAT7e cable.
Pixel Accurate Reclocking
Each output has a clean, jitter free signal, eliminating signal instability and distortion caused by
long cables or connector reflections.
Irame Detector and Signal Analysis
The exact video and audio signal format can be determined such as timing, frequencies, scan
mode, HDCP encryption, color range, color space and audio sample rate.
HDCP-compliant
The receiver fulfills the HDCI standard. HDCI capability on the digital video inputs can be
disabled when non-protected content is extended.
Built-in Event Manager
The Dvent Manager tool takes care of all the necessary control in a smaller configuration by
performing predefined actions in response to device status changes. Hence, in a less complex
environment, there is no need to invest in additional control solutions, which makes the receiver
the best choice for numerous applications.
Remote Power
The receiver is PoE-compatible and can be powered locally by the supplied power adaptor, or
remotely via the TPS connection (through the CATx cable) with a compatible power source
equipment, e.g. MMX6x2-HT series matrix switchers and TPS2 matrix boards.
Bi-directional RS-232 Pass-through
RS-232
AV systems can also contain serial port controllers and controlled devices. Serial port pass-
through supports any unit that works with standard RS-232.
Relay
2x controllable relay modules up to 30V, 1A support.
RELAY
Ethernet Control
Multiple simultaneous TCI/
I connections are available with a simple APSC

-based protocol for
controlling, configuring the receiver or perform a firmware upgrade.
HDM
-TIPS-TX110AY series – User's Manual
1.5. Model Comparison
Applied firmware package: v1.3.1 LDC software: v1.33.0b5
Dark Mode
Rental application requires this function, which keeps the LEDs unlit to hide the device during
the event. #new
Advanced Control Ieatures (Inly for the Plus series)
Consumer Electronic Control
CEC
Supports transmitting standard CEC commands in order to remote control the source or sink
device. #new
Infra Message Sending
Infrared (IR) is a wireless technology used for device communication over short ranges. Third
party control systems may send IR control commands to endpoints turning them on and off or
switching their inputs. #new
RS-232 Recognizer
RS-232
x Support recognizing incoming RS-232 messages to integrate with 3rd party devices like VC
codec. #new
11 0100 1
The available models have different features depending on their design. The following table contains the
most important differences between the two models:
Infra message sending CEC message sending
HDMI-TPS-RX110AY -
HDMI-TPS-RX110AY-Plus 
The AV input/output ports, interface ports and the software features which are not mentioned here are the
same in case of both models.
LDU2 software: v2.0.0b22
8
Advanced control features
RS-232 recognizer
RS-232
CEC
x
11 0100 1
- -
 
