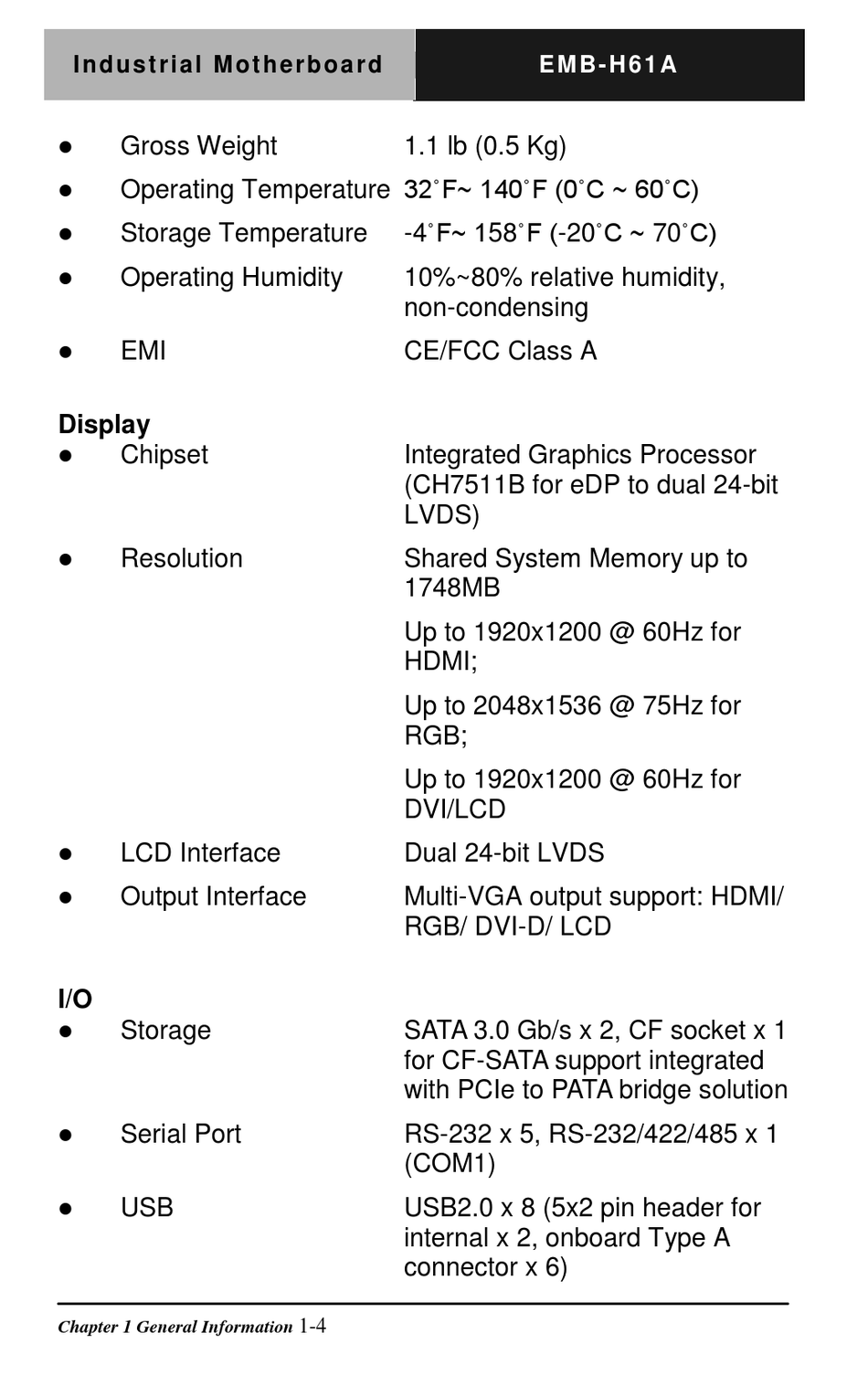

I n d u s t r i a l M o t h e r b o a r d
 Gross Weight
Operating Temperature 32˚F~ 140˚F (0˚C ~ 60˚C)


Storage Temperature
 Operating Humidity
 EMI
Display

Chipset
 Resolution
 LCD Interface

Output Interface
I/O
 Storage
 Serial Port
 USB
Chapter 1 General Information
1.1 lb (0.5 Kg)
-4˚F~ 158˚F (-20˚C ~ 70˚C)
10%~80% relative humidity,
non-condensing
CE/FCC Class A
Integrated Graphics Processor
(CH7511B for eDP to dual 24-bit
LVDS)
Shared System Memory up to
1748MB
Up to 1920x1200 @ 60Hz for
HDMI;
Up to 2048x1536 @ 75Hz for
RGB;
Up to 1920x1200 @ 60Hz for
DVI/LCD
Dual 24-bit LVDS
Multi-VGA output support: HDMI/
RGB/ DVI-D/ LCD
SATA 3.0 Gb/s x 2, CF socket x 1
for CF-SATA support integrated
with PCIe to PATA bridge solution
RS-232 x 5, RS-232/422/485 x 1
(COM1)
USB2.0 x 8 (5x2 pin header for
internal x 2, onboard Type A
connector x 6)
1-4
E M B - H 6 1 A
