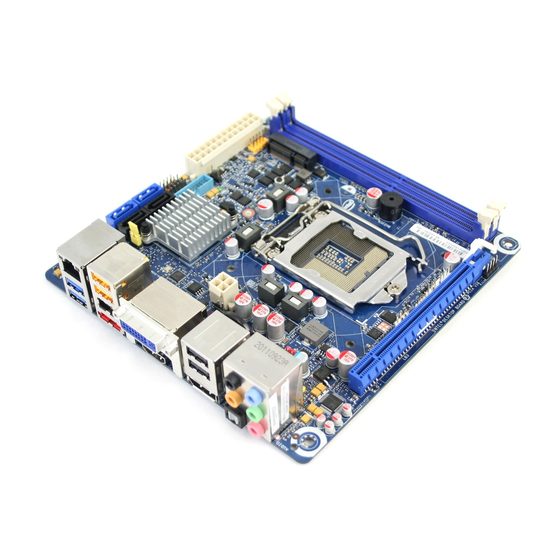

Intel® Desktop Board
DH77DF
Technical Product Specification
April 2012
Part Number: G54939-001
The Intel Desktop Board DH77DF may contain design defects or errors known as errata that may cause the product to deviate from published specifications.
Current characterized errata are documented in the Intel Desktop Board DH77DF Specification Update.
Advertisement
Table of Contents
Related Manuals for Intel DH77DF
Summary of Contents for Intel DH77DF
- Page 1 Part Number: G54939-001 The Intel Desktop Board DH77DF may contain design defects or errors known as errata that may cause the product to deviate from published specifications. Current characterized errata are documented in the Intel Desktop Board DH77DF Specification Update.
-
Page 2: Revision History
“undefined.” Intel reserves these for future definition and shall have no responsibility whatsoever for conflicts or incompatibilities arising from future changes to them. Intel desktop boards may contain design defects or errors known as errata, which may cause the product to deviate from published specifications. Current characterized errata are available on request. - Page 3 Board Identification Information Basic Desktop Board DH77DF Identification Information AA Revision BIOS Revision Notes G40293 KCH7710H.86A.0069 Notes: The AA number is found on a small label on the component side of the board. The H77 processor used on this AA revision consists of the following component:...
- Page 4 Intel Desktop Board DH77DF Technical Product Specification...
-
Page 5: Intended Audience
Intended Audience The TPS is intended to provide detailed, technical information about Intel Desktop Board DH77DF and its components to the vendors, system integrators, and other engineers and technicians who need this level of information. It is specifically not intended for general audiences. - Page 6 Intel Desktop Board DH77DF Technical Product Specification Other Common Notation Used after a signal name to identify an active-low signal (such as USBP0#) Gigabyte (1,073,741,824 bytes) GB/s Gigabytes per second Gb/s Gigabits per second Kilobyte (1024 bytes) Kilobit (1024 bits)
-
Page 7: Table Of Contents
1.3 Processor ..................17 1.3.1 Graphics Subsystem ............. 18 1.4 System Memory ................20 1.4.1 Memory Configurations ............21 ® 1.5 Intel H77 Express Chipset ............... 23 1.5.1 Direct Media Interface (DMI) ..........23 1.5.2 Display Interfaces ..............23 1.5.3 ... - Page 8 Intel Desktop Board DH77DF Technical Product Specification 2.3 Jumper Block .................. 59 2.4 Mechanical Considerations ..............61 2.4.1 Form Factor ................. 61 2.5 Electrical Considerations ..............62 2.5.1 Power Supply Considerations ..........62 2.5.2 Power Supervisor ..............63 2.5.3 Fan Header Current Capability ..........63 ...
- Page 9 15. Component-side Connectors and Headers Shown in Figure 11 ....48 16. Components Shown in Figure 2 ............49 17. Front Panel Audio Header for Intel HD Audio ........50 18. Front Panel Audio Header for AC ’97 Audio .......... 50 ...
- Page 10 Intel Desktop Board DH77DF Technical Product Specification 19. Front Panel USB 2.0 Headers ............50 20. Front Panel USB 3.0 Connector ............51 21. SATA Connectors ................51 22. S/PDIF Header ................51 23. Chassis Intrusion Header ..............52 24. Processor and System (4-Pin) Fan Headers ........52 ...
-
Page 11: Product Description
Audio ALC898 audio codec including: ― Front panel audio header with support for Intel HD Audio and AC ’97 Audio ― Five analog audio jacks on the back panel ― Onboard S/PDIF out header and back panel optical S/PDIF out connector •... - Page 12 ― Two front panel ports are implemented through one internal header (black) ― Two ports are implemented in the PCI Express Full-/Half–Mini Card slot • Six Serial ATA (SATA) ports: ― Two SATA 6.0 Gb/s interfaces through the Intel H77 Express Chipset with Intel ®...
-
Page 13: Board Layout (Top)
Product Description 1.1.2 Board Layout (Top) Figure 1 shows the location of the major components on the top-side of the Intel Desktop Board DH77DF. Figure 1. Major Board Components... -
Page 14: Components Shown In Figure 1
Intel Desktop Board DH77DF Technical Product Specification Table 2 lists the components identified in Figure 1. Table 2. Components Shown in Figure 1 Item/callout from Figure 1 Description Back panel connectors Battery Intel H77 Express Chipset BIOS configuration jumper block IEEE 1394a front panel header (blue) SATA 3.0 Gb/s connectors (black) -
Page 15: Board Layout (Bottom)
Product Description 1.1.3 Board Layout (Bottom) Figure 2 shows the location of the major components on the bottom-side of the board. Figure 2. Major Board Components (Bottom) Table 3. Components Shown in Figure 2 Item/callout from Figure 2 Description Low Pin Count (LPC) Debug connector... -
Page 16: Block Diagram
Intel Desktop Board DH77DF Technical Product Specification 1.1.4 Block Diagram Figure 3 is a block diagram of the major functional areas of the board. Figure 3. Block Diagram... -
Page 17: Online Support
95 W Thermal Design Power (TDP). The processors listed below are only supported when falling within the wattage requirements of Intel Desktop Board DH77DF. See the Intel web site listed below for the most up-to-date list of supported processors. -
Page 18: Graphics Subsystem
Intel Desktop Board DH77DF Technical Product Specification 1.3.1 Graphics Subsystem The board supports graphics through either the processor Intel HD Graphics or a PCI Express x16 add-in graphics card. 1.3.1.1 Processor Graphics ® The board supports integrated graphics through the Intel Flexible Display Interface ®... -
Page 19: Pci Express X16 Graphics
Product Description 1.3.1.2 PCI Express x16 Graphics generation Intel Core processor family processors support PCI Express 3.0, 2.x, and 1.x and 2 generation Intel Core processor family processors support PCI Express 2.x and 1.x: • PCI Express 3.0 with a raw bit rate of 8.0 GT/s results in an effective bandwidth of 1 GB/s each direction per lane. -
Page 20: System Memory
Intel Desktop Board DH77DF Technical Product Specification System Memory The board has two DIMM sockets and supports the following memory features: • 1.5 V DDR3 SDRAM DIMMs with gold plated contacts, with the option to raise the voltage to support higher performance DDR3 SDRAM DIMMs. -
Page 21: Memory Configurations
Product Description 1.4.1 Memory Configurations The 3 generation Intel Core processor family and 2 generation Intel Core processor family processors support the following types of memory organization: • Dual channel (Interleaved) mode. This mode offers the highest throughput for real world applications. Dual channel mode is enabled when the installed memory capacities of both DIMM channels are equal. -
Page 22: Memory Channel And Dimm Configuration
Intel Desktop Board DH77DF Technical Product Specification Figure 4 illustrates the memory channel and DIMM configuration. Figure 4. Memory Channel and DIMM Configuration... -
Page 23: Intel ® H77 Express Chipset
PCH. The display data from the frame buffer is processed in the display engine of the processor and sent to the PCH over the Intel FDI where it is transcoded as per the display protocol and driven to the display monitor. -
Page 24: Dvi Port Status Conditions
Intel Desktop Board DH77DF Technical Product Specification 1.5.2.3 Digital Visual Interface (DVI-I) The DVI-I port supports both digital and analog DVI displays. The maximum supported resolution is 1900 x 1200 (WUXGA). The DVI port is compliant with the DVI 1.0 specification. DVI analog output can also be converted to VGA using a DVI- VGA converter. -
Page 25: Displayport Status Conditions
Product Description 1.5.2.5 DisplayPort* DisplayPort is a digital communication interface that utilizes differential signaling to achieve a high bandwidth bus interface designed to support connections between PCs and monitors, projectors, and TV displays. DisplayPort is suitable for display connections between consumer electronics devices such as high definition optical disc players, set top boxes, and TV displays. -
Page 26: Usb
(LS) traffic on the bus. The board supports up to four USB 3.0 ports and ten USB 2.0 ports. The Intel H77 Express Chipset provides the USB controller for the 2.0/3.0 ports. The port arrangement is as follows: •... -
Page 27: Sata Interfaces
The board provides six SATA connectors, through the PCH, which support one device each: ® • Two SATA 6.0 Gb/s interfaces through the Intel H77 Express Chipset with Intel Rapid Storage Technology RAID support (blue) • Two internal Serial ATA (SATA) 3.0 Gb/s interfaces through the Intel H77 Express Chipset with Intel Rapid Storage Technology RAID support (black) •... -
Page 28: Sata Raid
NOTE In order to use supported RAID and Intel Smart Response Technology features, you must first enable RAID in the BIOS. Also, during Microsoft Windows XP installation, you must press F6 to install the RAID drivers. See your Microsoft Windows XP documentation for more information about installing drivers during installation. -
Page 29: Real-Time Clock Subsystem
The emitter header consists of two output ports which the PC can use to emulate “learned” infrared commands in order to control external electronic hardware. Customers are required to buy or create their own interface modules to connect to Intel Desktop Boards for this feature to work. -
Page 30: Audio Subsystem
Intel Desktop Board DH77DF Technical Product Specification Audio Subsystem The board supports Intel HD Audio via the Realtek ALC898 audio codec. The audio subsystem supports the following features: • Advanced jack sense for the back panel audio jacks that enables the audio codec to recognize the device that is connected to an audio port. -
Page 31: Audio Subsystem Components
• Realtek ALC898 audio codec • Front panel audio header that supports Intel HD audio and AC ’97 audio (a 2 x 5- pin header that provides mic in and line out signals for front panel audio connectors) (yellow) •... -
Page 32: Lan Subsystem
LAN software and drivers http://downloadcenter.intel.com ® 1.9.1 Intel 82579V Gigabit Ethernet Controller The Intel 82579V Gigabit Ethernet Controller supports the following features: • 10/100/1000 BASE-T IEEE 802.3 compliant • Energy Efficient Ethernet (EEE) IEEE802.3az support (Low Power Idle [LPI] mode) •... -
Page 33: Lan Subsystem Software
Product Description 1.9.2 LAN Subsystem Software LAN software and drivers are available from Intel’s World Wide Web site. For information about Refer to Obtaining LAN software and drivers http://downloadcenter.intel.com 1.9.3 RJ-45 LAN Connector with Integrated LEDs Two LEDs are built into the RJ-45 LAN connector (shown in Figure 6). -
Page 34: 1.10 Hardware Management Subsystem
Intel Desktop Board DH77DF Technical Product Specification 1.10 Hardware Management Subsystem The hardware management features enable the board to be compatible with the Wired for Management (WfM) specification. The board has several hardware management features, including the following: • Thermal and voltage monitoring •... -
Page 35: Thermal Monitoring
Thermal Monitoring Figure 7 shows the locations of the thermal sensors and fan headers. Item Description Thermal diode, located on the Intel H77 PCH Thermal diode, located on the processor die Processor fan header System fan header Figure 7. Thermal Sensors and Fan Headers... -
Page 36: 1.11 Power Management
Intel Desktop Board DH77DF Technical Product Specification 1.11 Power Management Power management is implemented at several levels, including: • Software support through Advanced Configuration and Power Interface (ACPI) • Hardware support: ⎯ Power connector ⎯ Fan headers ⎯ LAN wake capabilities ⎯... -
Page 37: Power States And Targeted System Power
Product Description 1.11.1.1 System States and Power States Under ACPI, the operating system directs all system and device power state transitions. The operating system puts devices in and out of low-power states based on user preferences and knowledge of how devices are being used by applications. Devices that are not being used can be turned off. -
Page 38: Hardware Support
Intel Desktop Board DH77DF Technical Product Specification 1.11.1.2 Wake-up Devices and Events Table 13 lists the devices or specific events that can wake the computer from specific states. Table 13. Wake-up Devices and Events These devices/events can wake up the computer…... -
Page 39: Power Connector
Product Description NOTE The use of Wake from USB from an ACPI state requires an operating system that provides full ACPI support. 1.11.2.1 Power Connector ATX12V-compliant power supplies can turn off the system power through system control. When an ACPI-enabled system receives the correct command, the power supply removes all non-standby voltages. -
Page 40: Lan Wake Capabilities
Intel Desktop Board DH77DF Technical Product Specification 1.11.2.3 LAN Wake Capabilities CAUTION For LAN wake capabilities, the +5 V standby line for the power supply must be capable of providing adequate +5 V standby current. Failure to provide adequate standby current when implementing LAN wake capabilities can damage the power supply. -
Page 41: Wake From Usb
Product Description 1.11.2.5 Wake from USB USB bus activity wakes the computer from an ACPI S3 state. NOTE Wake from USB requires the use of a USB peripheral that supports Wake from USB. 1.11.2.6 WAKE# Signal Wake-up Support When the WAKE# signal on the PCI Express bus is asserted, the computer wakes from an ACPI S3, S4, or S5 state. -
Page 42: Location Of The Standby Power Led
Intel Desktop Board DH77DF Technical Product Specification Figure 8. Location of the Standby Power LED... -
Page 43: Technical Reference
Technical Reference Memory Resources 2.1.1 Addressable Memory The board utilizes 16 GB of addressable system memory. Typically the address space that is allocated for add-in cards, PCI Express configuration space, BIOS (SPI Flash device), and chipset overhead resides above the top of DRAM (total system memory). On a system that has 16 GB of system memory installed, it is not possible to use all of the installed memory due to system address space being allocated for other system critical functions. -
Page 44: Detailed System Memory Address Map
Intel Desktop Board DH77DF Technical Product Specification Figure 9. Detailed System Memory Address Map... -
Page 45: Memory Map
Technical Reference 2.1.2 Memory Map Table 14 lists the system memory map. Table 14. System Memory Map Address Range (decimal) Address Range (hex) Size Description 1024 K - 16777216 K 100000 – 400000000 16382 MB Extended memory 960 K - 1024 K F0000 - FFFFF 64 KB Runtime BIOS... -
Page 46: Back Panel Connectors
Intel Desktop Board DH77DF Technical Product Specification 2.2.1 Back Panel Connectors Figure 10 shows the location of the back panel connectors for the board. Item Description LAN port USB 3.0 ports USB 2.0 high current charging ports IEEE 1394a connector... -
Page 47: Component-Side Connectors And Headers (Top)
Technical Reference 2.2.2 Component-side Connectors and Headers (Top) Figure 11 shows the locations of the connectors and headers on the top-side of the board. Figure 11. Component-side Connectors and Headers... -
Page 48: Component-Side Connectors And Headers Shown In Figure 11
Intel Desktop Board DH77DF Technical Product Specification Table 15 lists the component-side connectors and headers identified in Figure 11. Table 15. Component-side Connectors and Headers Shown in Figure 11 Item/callout f rom Figure 11 Description IEEE 1394a front panel header (blue) SATA 3.0 Gb/s connectors (black) -
Page 49: Component-Side Connectors And Headers (Bottom)
Technical Reference 2.2.3 Component-side Connectors and Headers (Bottom) Figure 2 shows the location of the connectors and headers on the bottom-side of the board. Figure 12. Major Board Components (Bottom) Table 16. Components Shown in Figure 2 Item/callout from Figure 2 Description Low Pin Count (LPC) Debug connector... -
Page 50: Front Panel Audio Header For Intel Hd Audio
Intel Desktop Board DH77DF Technical Product Specification 2.2.3.1 Signal Tables for the Connectors and Headers Table 17. Front Panel Audio Header for Intel HD Audio Signal Name Signal Name [Port 1] Left channel Ground [Port 1] Right channel PRESENCE# (Dongle present) -
Page 51: Front Panel Usb 3.0 Connector
Technical Reference Table 20. Front Panel USB 3.0 Connector Signal Name Description Vbus Power IntA_P1_SSRX− USB3 ICC Port1 SuperSpeed Rx− IntA_P1_SSRX+ USB3 ICC Port1 SuperSpeed Rx+ Ground IntA_P1_SSTX− USB3 ICC Port1 SuperSpeed Tx− IntA_P1_SSTX+ USB3 ICC Port1 SuperSpeed Tx+ Ground IntA_P1_D−... -
Page 52: Chassis Intrusion Header
Intel Desktop Board DH77DF Technical Product Specification Table 23. Chassis Intrusion Header Signal Name Intruder# Ground Table 24. Processor and System (4-Pin) Fan Headers Signal Name (Note) Ground +12 V FAN_TACH FAN_CONTROL Note: These fan headers use Pulse Width Modulation control for fan speed. -
Page 53: Pci Express Full-/Half-Mini Card Connector
Technical Reference Table 27. PCI Express Full-/Half-Mini Card Connector Signal Name Additional Signal Name WAKE# +3.3 V aux Reserved Reserved 1.5 V CLKREQ# Reserved Reserved REFCLK- Reserved REFCLK+ Reserved Reserved Reserved Reserved Reserved PERST# PERn0 +3.3 V aux PERp0 +1.5 V SMB_CLK PETn0 SMB_DATA... -
Page 54: Lpc Debug Connector
Intel Desktop Board DH77DF Technical Product Specification Table 27. PCI Express Full-/Half-Mini Card Connector (continued) Signal Name Additional Signal Name +3.3 V aux (mSATA) 3.3 V +3.3 V aux (mSATA) 3.3 V LED_WWAN# Reserved NC (mSATA indicator) LED_WLAN# Reserved (mSATA) Vendor... -
Page 55: Processor Core Power Connector
Main power – a 2 x 12 connector. This connector is compatible with 2 x 10 connectors previously used on Intel Desktop boards. The board supports the use of ATX12V power supplies with either 2 x 10 or 2 x 12 main power cables. When using a power supply with a 2 x 10 main power cable, attach that cable to the main power connector, leaving pins 11, 12, 23, and 24 unconnected. -
Page 56: Connection Diagram For Front Panel Header
Intel Desktop Board DH77DF Technical Product Specification 2.2.3.4 Front Panel Header This section describes the functions of the front panel header. Table 32 lists the signal names of the front panel header. Figure 13 is a connection diagram for the front panel header. -
Page 57: 2.2.3.5 Alternate Front Panel Power/Sleep Led Header
Technical Reference 2.2.3.4.2 Reset Switch Header Pins 5 and 7 can be connected to a momentary single pole, single throw (SPST) type switch that is normally open. When the switch is closed, the board resets and runs the POST. 2.2.3.4.3 Power/Sleep LED Header Pins 2 and 4 can be connected to a one- or two-color LED. -
Page 58: Connection Diagram For Front Panel Usb 2.0 Headers
Intel Desktop Board DH77DF Technical Product Specification 2.2.3.6 Front Panel USB 2.0 Headers Figure 14 is a connection diagram for the front panel USB 2.0 headers. NOTE • The +5 V DC power on the USB headers is fused. •... -
Page 59: Jumper Block
Technical Reference Jumper Block CAUTION Do not move the jumper with the power on. Always turn off the power and unplug the power cord from the computer before changing a jumper setting. Otherwise, the board could be damaged. Figure 15 shows the location of the jumper block. The 3-pin jumper block determines the BIOS Setup program’s mode. -
Page 60: Bios Setup Configuration Jumper Settings
Intel Desktop Board DH77DF Technical Product Specification Table 36. BIOS Setup Configuration Jumper Settings Function/Mode Jumper Setting Configuration Normal The BIOS uses current configuration information and passwords for booting. Configure After the POST runs, Setup runs automatically. The maintenance menu is displayed. -
Page 61: Mechanical Considerations
Technical Reference Mechanical Considerations 2.4.1 Form Factor The board is designed to fit into an Mini-ITX form-factor chassis. Figure 16 illustrates the mechanical form factor for the board. Dimensions are given in inches [millimeters]. The outer dimensions are 6.7 inches by 6.7 inches [170.18 millimeters by 170.18 millimeters]. -
Page 62: Electrical Considerations
Intel Desktop Board DH77DF Technical Product Specification Electrical Considerations 2.5.1 Power Supply Considerations CAUTION The +5 V standby line from the power supply must be capable of providing adequate +5 V standby current. Failure to do so can damage the power supply. The total amount of standby current required depends on the wake devices supported and manufacturing options. -
Page 63: Power Supervisor
Technical Reference 2.5.2 Power Supervisor This board supports a version of the Power Supervisor feature which adds protection to the 5 VSB power rail by limiting potential electrical overstress events to a non- destructive level. 2.5.3 Fan Header Current Capability CAUTION The processor fan must be connected to the processor fan header, not to a chassis fan header. -
Page 64: Thermal Considerations
Failure to ensure appropriate airflow may result in reduced performance of both the processor and/or voltage regulator or, in some instances, damage to the board. For a list of chassis that have been tested with Intel desktop boards please refer to the following website: http://www3.intel.com/cd/channel/reseller/asmo-na/eng/tech_reference/53211.htm... -
Page 65: Localized High Temperature Zones
Technical Reference Item Description Intel H77 Express Chipset Processor voltage regulator area Processor Figure 17. Localized High Temperature Zones... -
Page 66: Thermal Considerations For Components
Intel Desktop Board DH77DF Technical Product Specification Table 40 provides maximum case temperatures for the components that are sensitive to thermal changes. The operating temperature, current load, or operating frequency could affect case temperatures. Maximum case temperatures are important when considering proper airflow to cool the board. -
Page 67: Reliability
Issue 2; Method I Case 3 50% electrical stress, 55 ºC ambient. The MTBF prediction is used to estimate repair rates and spare parts requirements. The MTBF data is calculated from predicted data at 55 ºC. The MTBF for the Intel Desktop Board DH77DF is 268,341 hours. - Page 68 Intel Desktop Board DH77DF Technical Product Specification...
-
Page 69: Overview Of Bios Features
Overview of BIOS Features Introduction The board uses an Intel BIOS that is stored in the Serial Peripheral Interface Flash Memory (SPI Flash) and can be updated using a disk-based program. The SPI Flash contains the BIOS Setup program, POST, the PCI auto-configuration utility, LAN EEPROM information, and Plug and Play support. -
Page 70: Bios Flash Memory Organization
Intel Desktop Board DH77DF Technical Product Specification Table 43 lists the BIOS Setup program menu features. Table 43. BIOS Setup Program Menu Bar Configura- Maintenance Main tion Performance Security Power Boot Exit Clears Displays Configures Configures Sets Configures Selects Saves or... -
Page 71: System Management Bios (Smbios)
6. After the operating system loads the USB drivers, all legacy and non-legacy USB devices are recognized by the operating system, and Legacy USB support from the BIOS is no longer used. ® 7. Additional USB legacy feature options can be access by using Intel Integrator Toolkit. -
Page 72: Bios Updates
Intel Desktop Board DH77DF Technical Product Specification To install an operating system that supports USB, verify that Legacy USB support in the BIOS Setup program is set to Enabled and follow the operating system’s installation instructions. BIOS Updates The BIOS can be updated using either of the following utilities, which are available on the Intel World Wide Web site: ®... -
Page 73: Custom Splash Screen
The Intel Integrator’s Toolkit that is available from Intel can be used to create a custom splash screen. NOTE If you add a custom splash screen, it will share space with the Intel branded logo. Refer to For information about Intel Integrator Toolkit http://developer.intel.com/design/motherbd/software/itk/... -
Page 74: Boot Options
Intel Desktop Board DH77DF Technical Product Specification Boot Options In the BIOS Setup program, the user can choose to boot from a hard drive, optical drive, removable drive, or the network. The default setting is for the optical drive to be the first boot device, the hard drive second, removable drive third, and the network fourth. -
Page 75: Adjusting Boot Speed
It is possible to optimize the boot process to the point where the system boots so quickly that the Intel logo screen (or a custom logo splash screen) will not be seen. Monitors and hard disk drives with minimum initialization times can also contribute to a boot time that might be so fast that necessary logo screens and POST messages cannot be seen. -
Page 76: 3.10 Bios Security Features
Intel Desktop Board DH77DF Technical Product Specification 3.10 BIOS Security Features The BIOS includes security features that restrict access to the BIOS Setup program and who can boot the computer. A supervisor password and a user password can be set for the BIOS Setup program and for booting the computer, with the following restrictions: •... -
Page 77: 3.11 Bios Performance Features
3.11 BIOS Performance Features The BIOS includes the following options to provide custom performance enhancements when using 3 generation Intel Core processor family and 2 generation Intel Core processor family processors in an LGA1155 socket. • Processor Maximum Non-Turbo Ratio (processor multiplier can only be adjusted down) •... - Page 78 Intel Desktop Board DH77DF Technical Product Specification...
-
Page 79: Error Messages And Beep Codes
Error Messages and Beep Codes Speaker The board-mounted speaker provides audible error code (beep code) information during POST. For information about Refer to The location of the onboard speaker Figure 1, page 13 BIOS Beep Codes Whenever a recoverable error occurs during POST, the BIOS causes the board’s speaker to beep an error message describing the problem (see Table 48). -
Page 80: Front-Panel Power Led Blink Codes
Intel Desktop Board DH77DF Technical Product Specification Front-panel Power LED Blink Codes Whenever a recoverable error occurs during POST, the BIOS causes the board’s front panel power LED to blink an error message describing the problem (see Table 49). Table 49. Front-panel Power LED Blink Codes... -
Page 81: Port 80H Post Codes
Error Messages and Beep Codes Port 80h POST Codes During the POST, the BIOS generates diagnostic progress codes (POST codes) to I/O port 80h. If the POST fails, execution stops and the last POST code generated is left at port 80h. This code is useful for determining the point where an error occurred. Displaying the POST codes requires a POST card that can interface with the Low Pin Count (LPC) Debug connector. - Page 82 Intel Desktop Board DH77DF Technical Product Specification Table 52. Port 80h POST Codes Port 80 Code Progress Code Enumeration ACPI S States 0x00,0x01,0x02,0x03,0x04,0x05 Entering S0, S2, S3, S4, or S5 state 0x10,0x20,0x30,0x40,0x50 Resuming from S2, S3, S4, S5 Security Phase (SEC)
- Page 83 Error Messages and Beep Codes Table 52. Port 80h POST Codes (continued) Port 80 Code Progress Code Enumeration PEI after MRC 0x2A Start to Program MTRR Settings 0x2B Done Programming MTRR Settings PEIMs/Recovery 0x31 Crisis Recovery has initiated 0x33 Loading recovery capsule 0x34 Start recovery capsule/ valid capsule is found CPU Initialization...
- Page 84 Intel Desktop Board DH77DF Technical Product Specification Table 52. Port 80h POST Codes (continued) Port 80 Code Progress Code Enumeration 0x60 BDS driver entry point initialize 0x61 BDS service routine entry point (can be called multiple times) 0x62 BDS Step2...
- Page 85 Error Messages and Beep Codes Table 52. Port 80h POST Codes (continued) Port 80 Code Progress Code Enumeration Removable Media 0xB8 Resetting removable media 0xB9 Disabling removable media 0xBA Detecting presence of a removable media (IDE, CDROM detection etc.) 0xBB Enabling/configuring a removable media DXE Core 0xE4...
- Page 86 Intel Desktop Board DH77DF Technical Product Specification Table 53. Typical Port 80h POST Sequence POST Code Description Initializing a chipset component Reading SPD from memory DIMMs Detecting presence of memory DIMMs Configuring memory Testing memory Loading recovery capsule Entered DXE phase...
-
Page 87: Regulatory Compliance And Battery Disposal Information
Electromagnetic Compatibility (EMC) standards • Product certification markings 5.1.1 Safety Standards Intel Desktop Board DH77DF complies with the safety standards stated in Table 54 when correctly installed in a compatible host system. Table 54. Safety Standards Standard Title CSA/UL 60950-1 Information Technology Equipment –... -
Page 88: European Union Declaration Of Conformity Statement
European Union Declaration of Conformity Statement ® We, Intel Corporation, declare under our sole responsibility that the product Intel Desktop Board DH77DF is in conformity with all applicable essential requirements necessary for CE marking, following the provisions of the European Council Directive 2004/108/EC (EMC Directive), 2006/95/EC (Low Voltage Directive), and 2002/95/EC (ROHS Directive). -
Page 89: Product Ecology Statements
当的重复使用处理。 请参考http://www.intel.com/intel/other/ehs/product_ecology 了解此计划的详情，包括涉及产品之范围、回收地点、运送指导、条款和条件等。 Deutsch Als Teil von Intels Engagement für den Umweltschutz hat das Unternehmen das Intel Produkt-Recyclingprogramm implementiert, das Einzelhandelskunden von Intel Markenprodukten ermöglicht, gebrauchte Produkte an ausgewählte Standorte für ordnungsgemäßes Recycling zurückzugeben. Details zu diesem Programm, einschließlich der darin eingeschlossenen Produkte, verfügbaren Standorte, Versandanweisungen, Bedingungen usw., finden Sie auf der... - Page 90 Français Dans le cadre de son engagement pour la protection de l'environnement, Intel a mis en œuvre le programme Intel Product Recycling Program (Programme de recyclage des produits Intel) pour permettre aux consommateurs de produits Intel de recycler les produits usés en les retournant à...
- Page 91 Regulatory Compliance and Battery Disposal Information Russian В качестве части своих обязательств к окружающей среде, в Intel создана программа утилизации продукции Intel (Product Recycling Program) для предоставления конечным пользователям марок продукции Intel возможности возврата используемой продукции в специализированные пункты для должной...
-
Page 92: China Rohs
The China Ministry of Information Industry (MII) stipulates that a material Self Declaration Table (SDT) must be included in a product’s user documentation. The SDT for Intel Desktop Board DH77DF is shown in Figure 18. Figure 18. Intel Desktop Board DH77DF China RoHS Material... -
Page 93: Emc Regulations
Regulatory Compliance and Battery Disposal Information 5.1.5 EMC Regulations Intel Desktop Board DH77DF complies with the EMC regulations stated in Table 55 when correctly installed in a compatible host system. Table 55. EMC Regulations Regulation Title FCC 47 CFR Part 15,... - Page 94 • Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications to the equipment not expressly approved by Intel Corporation could void the user’s authority to operate the equipment. Tested to comply with FCC standards for home or office use.
-
Page 95: Energy Star* 5.0, E-Standby, And Erp Compliance
ENERGY STAR requirements. Intel has worked directly with these two governmental agencies in the definition of new requirements. Intel Desktop Board DH77DF meets the following program requirements in an adequate system configuration, including appropriate selection of an efficient power supply: •... -
Page 96: Regulatory Compliance Marks (Board Level)
Intel Desktop Board DH77DF Technical Product Specification 5.1.7 Regulatory Compliance Marks (Board Level) Intel Desktop Board DH77DF has the regulatory compliance marks shown in Table 56. Table 56. Regulatory Compliance Marks Description Mark UL joint US/Canada Recognized Component mark. Includes adjacent UL file number for Intel Desktop Boards: E210882. -
Page 97: Battery Disposal Information
Regulatory Compliance and Battery Disposal Information Battery Disposal Information CAUTION Risk of explosion if the battery is replaced with an incorrect type. Batteries should be recycled where possible. Disposal of used batteries must be in accordance with local environmental regulations. PRÉCAUTION Risque d'explosion si la pile usagée est remplacée par une pile de type incorrect. - Page 98 Intel Desktop Board DH77DF Technical Product Specification PRECAUCIÓN Existe peligro de explosión si la pila no se cambia de forma adecuada. Utilice solamente pilas iguales o del mismo tipo que las recomendadas por el fabricante del equipo. Para deshacerse de las pilas usadas, siga igualmente las instrucciones del fabricante.
- Page 99 Regulatory Compliance and Battery Disposal Information AWAS Risiko letupan wujud jika bateri digantikan dengan jenis yang tidak betul. Bateri sepatutnya dikitar semula jika boleh. Pelupusan bateri terpakai mestilah mematuhi peraturan alam sekitar tempatan. OSTRZEŻENIE Istnieje niebezpieczeństwo wybuchu w przypadku zastosowania niewłaściwego typu baterii.
- Page 100 Intel Desktop Board DH77DF Technical Product Specification 小心 如果更換的電池類型不正確，可能會有爆炸的危險。請盡可能將電池送至回收處。請依照當地的環保 規範來處理使用過的電池。 주의 배터리를 잘못된 종류로 교체할 경우 폭발 위험이 있습니다. 가능한 경우 배터리는 재활용해야 하며, 수명이 다한 배터리를 폐기할 때는 각 지역의 환경법을 따라야 합니다. THẬN TRỌNG Có nguy cơ xảy ra nổ nếu thay pin không đúng loại. Pin cần được tái chế nếu có thể...
- Page 101 Regulatory Compliance and Battery Disposal Information...
