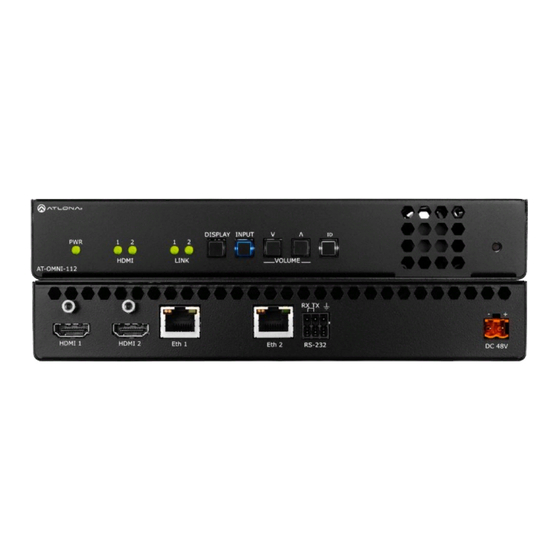

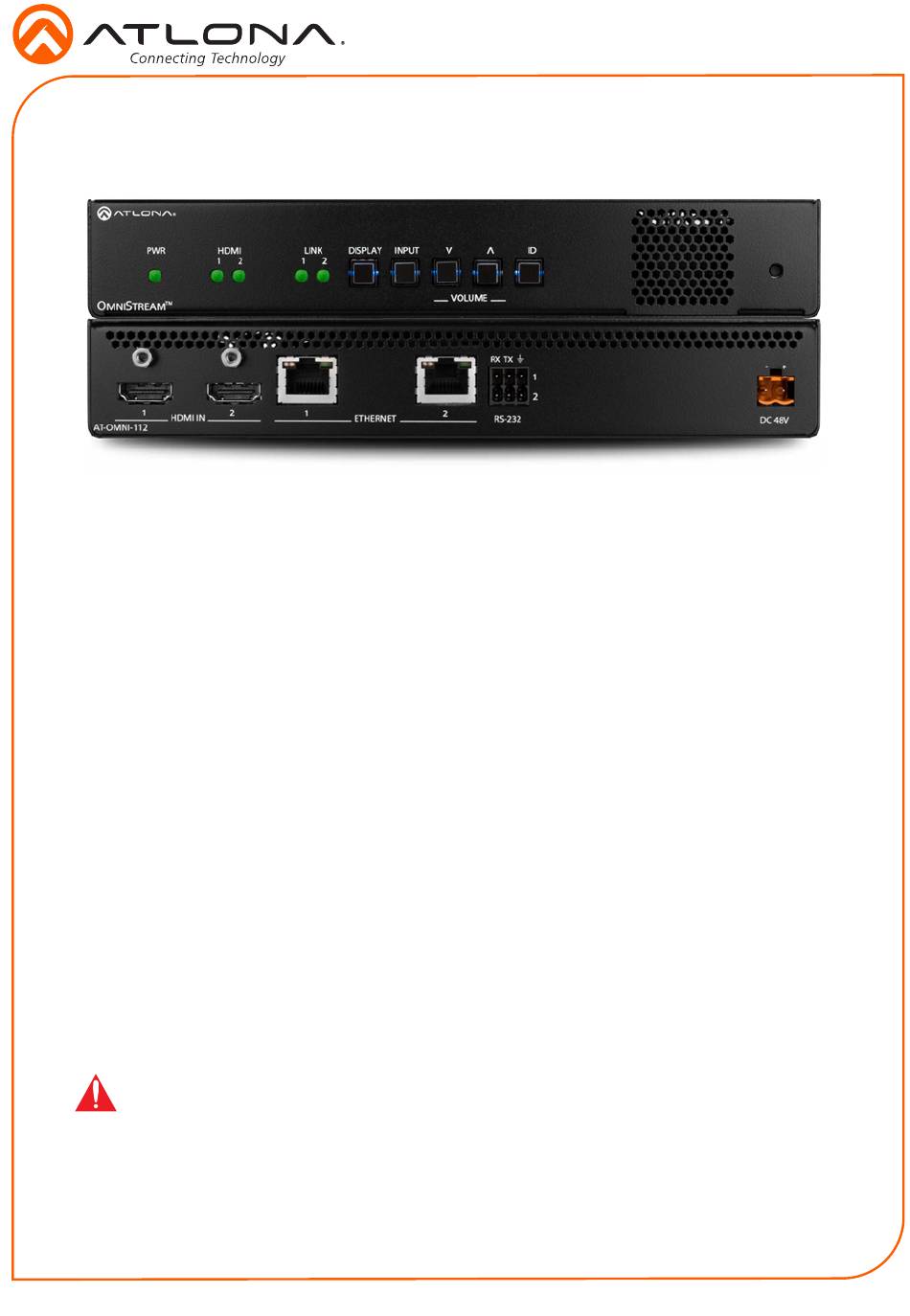

OmniStream 112 Dual-Channel Networked AV Encoder
AT-OMNI-112
The Atlona OmniStream™ 112 (AT-OMNI-112) is a networked AV encoder with two independent
channels of encoding for two HDMI 2.0 sources up to 4K @ 60 Hz and HDR (High Dynamic
Range), plus embedded audio and RS-232 or IR control pass-through. It is part of the
OmniStream Series, designed for high performance, flexible distribution of AV over standard
off-the-shelf Gigabit Ethernet switches in commercial audio visual applications. The OmniStream
112 is HDCP 2.2 compliant and ideal for the latest Ultra High-Definition and HDR sources. It
features advanced high-quality VC-2 visually lossless video compression technology with user
selectable video-quality optimization engines designed for computer-generated imaging, or
motion video content. The Atlona OmniStream™ 112 achieves extremely low, sub-frame latency
when paired with OmniStream Decoders. This dual-channel encoder is housed in a half-width
rack with front-to-back air flow enclosure, and is ideal for high-density, compact installation in a
centralized equipment location.
Package Contents
1 x AT-OMNI-112
1 x Push spring connector, 6-pin
1 x Wall/table mounting brackets
4 x Rubber feet
1 x Installation Guide
IMPORTANT: Visit http://www.atlona.com/product/AT-OMNI-112 for the latest
firmware updates and User Manual.
1
Installation Guide
AT-OMNI-112
Advertisement
Table of Contents
Related Manuals for Atlona OmniStream 112
Summary of Contents for Atlona OmniStream 112
- Page 1 OmniStream 112 Dual-Channel Networked AV Encoder AT-OMNI-112 The Atlona OmniStream™ 112 (AT-OMNI-112) is a networked AV encoder with two independent channels of encoding for two HDMI 2.0 sources up to 4K @ 60 Hz and HDR (High Dynamic Range), plus embedded audio and RS-232 or IR control pass-through. It is part of the OmniStream Series, designed for high performance, flexible distribution of AV over standard off-the-shelf Gigabit Ethernet switches in commercial audio visual applications.
-
Page 2: Operating Notes
Installation Guide AT-OMNI-112 Operating Notes • Atlona recommends using the Atlona Management System (AMS) which provides discovery, management, and configuration assistance. AMS is a free application that can be downloaded from the Atlona web site at http://atlona.com/product/at-sw-ams/. • This product includes a built-in web interface, which can be used to manage and configure this device. - Page 3 Installation Guide AT-OMNI-112 Panel Descriptions HDMI LINK DISPLAY INPUT INPUT HDMI LINK DISPLAY VOLUME TREAM VOLUME TREAM RX TX RX TX HDMI IN ETHERNET RS-232 DC 48V HDMI IN ETHERNET RS-232 DC 48V AT-OMNI-112 AT-OMNI-112 REBOOT This LED indicator is green when the unit Press this button, using a small, pointed is powered.
-
Page 4: Mounting Instructions
Installation Guide AT-OMNI-112 Mounting Instructions The AT-OMNI-112 encoder includes two Repeat steps 1 through 4 to attach the mounting brackets and four mounting screws, second mounting bracket to the opposite which can be used to attach the unit to any flat side of the unit. -
Page 5: Installation
The AT-OMNI-112 is powered by PoE (Power over Ethernet), when connected to a PoE-capable switch. If a PoE-switch is not used, then the optional 48 V power supply (Atlona part no. AT-PS- 48083-C) can be purchased, separately. Insert the positive and negative leads, from the power supply, into the terminals of the 2-pin captive screw connector block, as shown. - Page 6 Installation Guide AT-OMNI-112 RS-232 The AT-OMNI-112 provides transport of RS-232 protocol over IP which allows communication between a control system and an RS-232 device. This step is optional. Use wire strippers to remove a portion of the cable jacket. Remove at least 3/16” (5 mm) from the insulation of the RX, TX, and GND wires. Insert the TX, RX, and GND wires into correct terminal on the included push spring connector, following the wiring diagram below.
- Page 7 Installation Guide AT-OMNI-112 Configuration Launch a web browser and enter the IP address of AMS, in the address bar. Enter the required login credentials. Click the Login button. The AMS Dashboard will be displayed. Click the icon, in the upper-left corner of the AMS Dashboard. Click Devices from the fly-out menu.
-
Page 8: Connection Diagram
N ET H ER IT AL D IG D IO N EN M PO D IO VI D R IA R IA C TO OmniStream 112 RE SE Encoder 48 V -2 3 E th E th DVD Player Laptop... -
Page 9: Troubleshooting
Check the Ethernet cable for possible damage or loose connections. • Connect the optional 48V DC power supply (available from atlona.com) to the encoder. When using an external power supply, the PWR indicator will be red. LINK indicator is red. •... - Page 10 Installation Guide AT-OMNI-112 Notes...
- Page 11 Installation Guide AT-OMNI-112 Notes...
- Page 12 • © 2018 Atlona Inc. All rights reserved. “Atlona” and the Atlona logo are registered trademarks of Atlona Inc. All other brand names and trademarks or registered trademarks are the property of their respective owners. Pricing, specifications and availability subject to change without notice. Actual products, product images, and...
