7. Remove the fan canister from the drive tray
in place, and then pulling the fan canister toward you.
1.
8. Use the fan canister handle to pull the fan canister out of the drive tray.
9. Slide the replacement fan canister all the way into the drive tray until the tab on the fan canister latches.
10. Check the Fan Power LED and Fan Service Action Required LED on the new fan canister
11. Based on the LED status, perform one of these actions:
The Fan Power LED is on and the Fan Service Action Required LED is off – Go to step 13.
The Fan Power LED is off or the Fan Service Action Required LED is on – Check that the fan canister is
installed correctly. Reinstall the fan canister. Go to step 12.
12. Did this action correct the problem?
Yes – Go to step 13.
No – If the problem has not been resolved, contact your Technical Support representative.
13. Check the status of all of the trays in the storage array.
14. Does any component have a Needs Attention status?
Yes – Click the Recovery Guru toolbar button in the Array Management Window, and complete the recovery
procedure. If the problem has not been resolved, contact your Technical Support representative.
No – Go to step 15.
(Figure 2

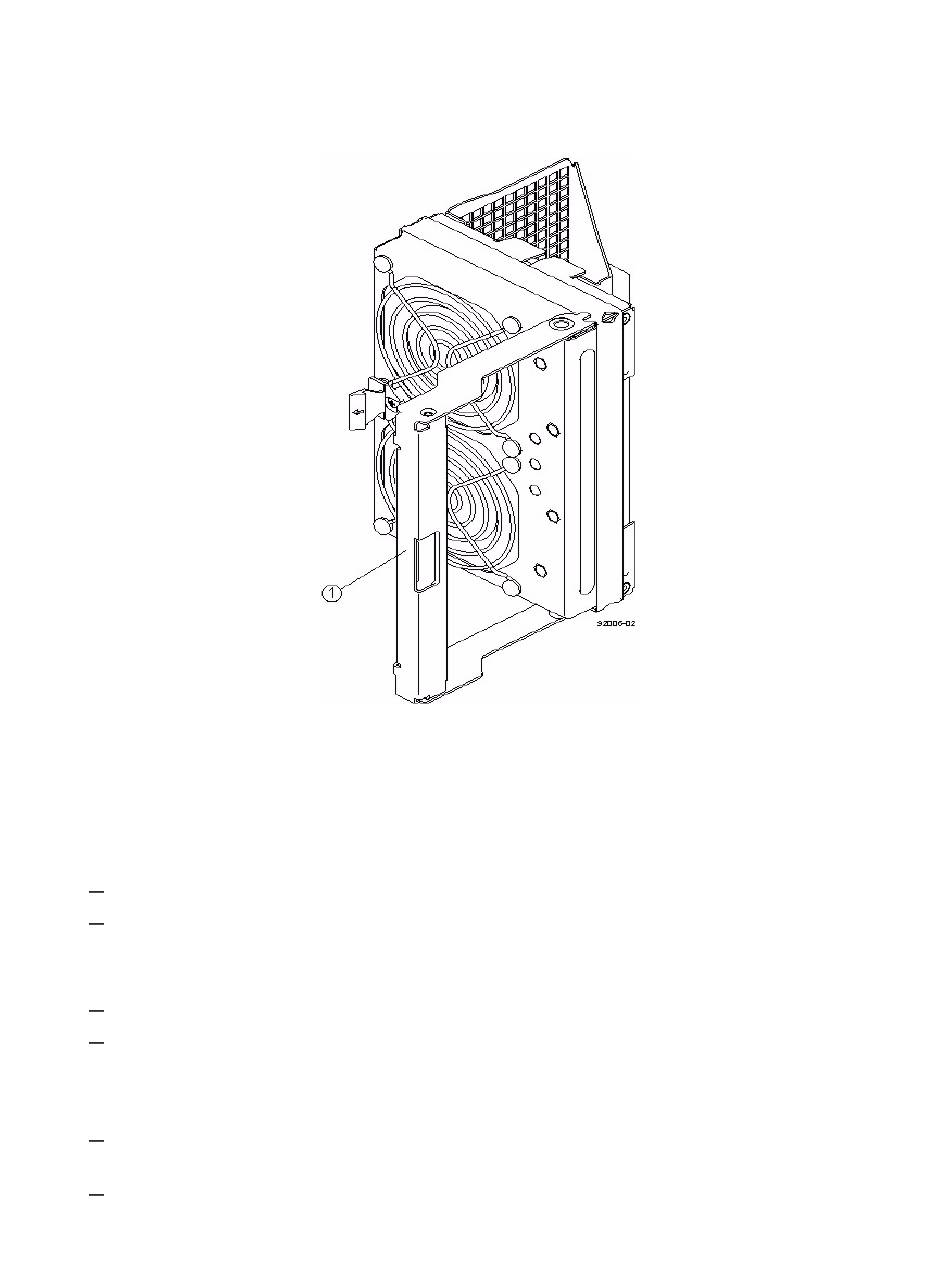

Figure 2 Removing a Fan Canister
Fan Canister Handle
on page 3) by pressing on the tab holding the fan canister handle
(Figure 1 on page 2).
