[left|right] is the identifier of the fan canister you want to replace. Valid values are left or right. Be sure
to type the square brackets around the value.
4. Put on antistatic protection.
5. Unpack the new fan canister.
a. Set the new fan canister on a flat, static-free surface near the drive tray.
b. Save all packing materials in case you need to return the fan canister.
6. Check the Fan Service Action Required LED to locate the failed fan canister
If a fault is detected, the amber Fan Service Action Required LED is on. If you can safely remove the fan canister, the
blue Fan Service Action Allowed LED is on.
2

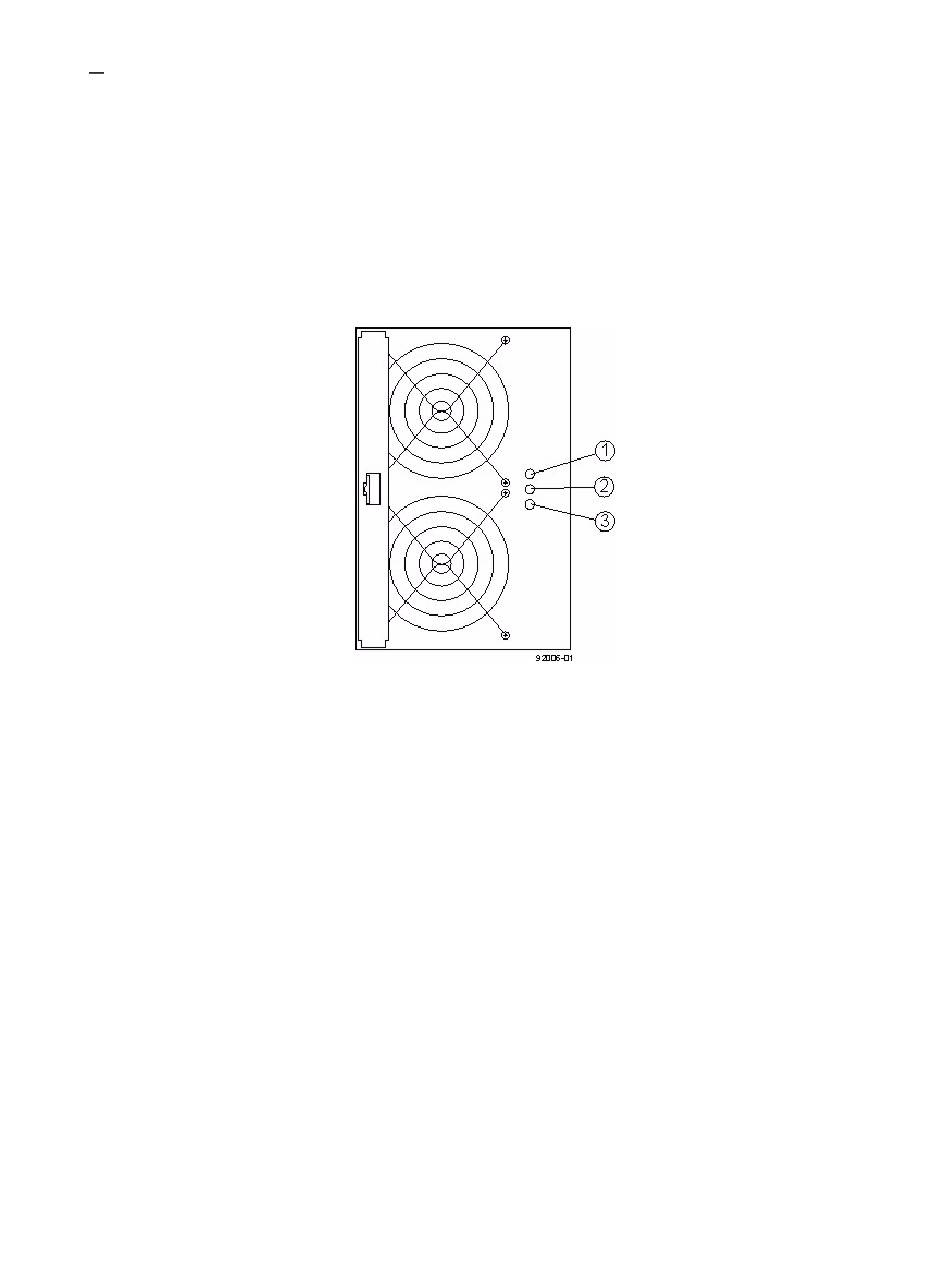

Figure 1 LEDs on a Fan Canister
1. Fan Power LED (Green)
2. Fan Service Action Required LED (Amber)
3. Fan Service Action Allowed LED
( )
Blue
NetApp® E-Series Storage Systems: Replacing a Fan Canister in the DE6600 Drive Tray
(Figure
1).
