Replacing a Failed Fan Canister in the E5660 Controller-Drive
Tray
To access this product, go to the NetApp® Support Site at
Before you replace the fan canister in the E5660 controller-drive tray, gather antistatic protection and a replacement
fan canister.
ATTENTION Possible equipment damage due to overheating – If you perform this procedure with the power
turned on, you must complete it within 15 minutes to prevent the possibility of overheating the equipment.
You can determine whether you have a failed fan canister in two ways:
The Recovery Guru directs you to replace a failed fan canister.
You locate the failed fan canister by checking the Fan Service Action Required LED.
ATTENTION Possible hardware damage – To prevent electrostatic discharge damage to the tray, use proper
antistatic protection when handling tray components.

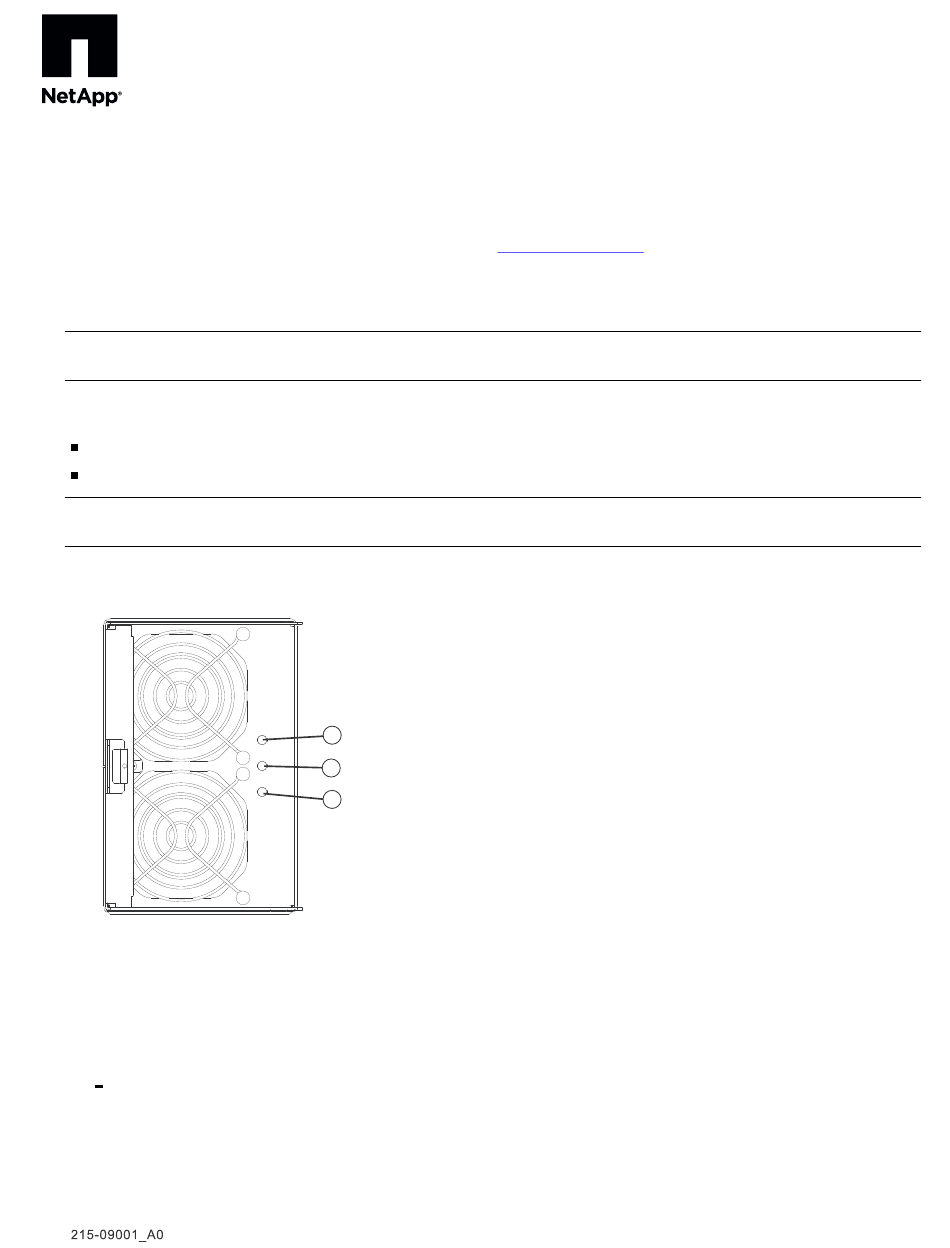

Figure 1. LEDs on a Fan Canister
1. Fan Power LED (Green)
2. Fan Service Action Required LED (Amber)
3. Fan Service Action Allowed LED (Blue)
1. Gather support data about your storage array by using one of these methods:.
Use the storage management software to collect and save a support bundle of your storage array. From the
Array Management Window toolbar, select Monitor > Health > Collect Support Data Manually. Then name
and specify a location on your system where you want to save the support bundle.
1
2
3
92006-01
