7. Remove the fan canister from the drive tray by pressing on the tab holding the fan canister in place, and then
pulling the fan canister toward you.

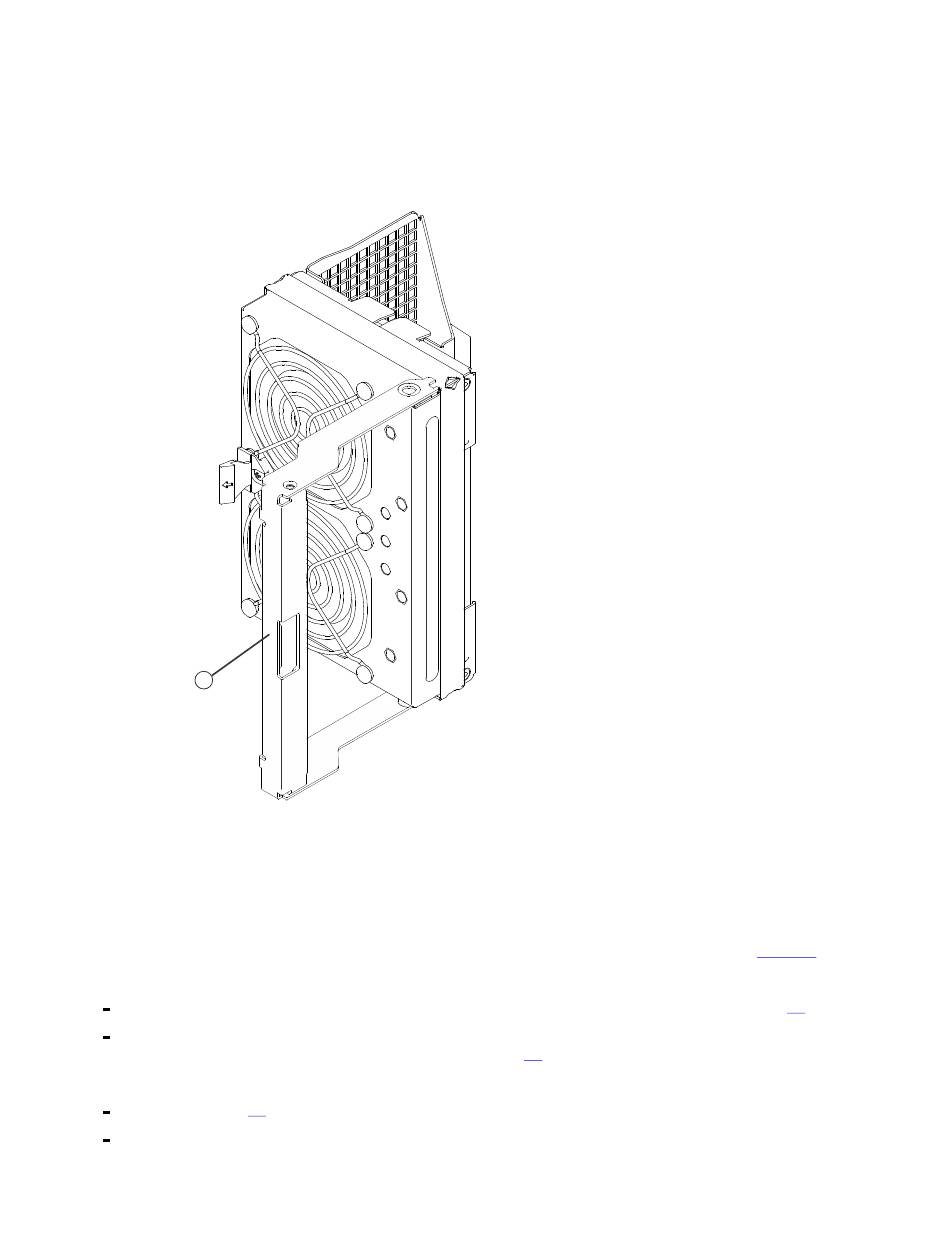

Figure 2. Removing a Fan Canister
1
1. Fan Canister Handle
8. Use the fan canister handle to pull the fan canister out of the controller-drive tray.
9. Slide the replacement fan canister all the way into the controller-drive tray, and then move the fan canister so that
the tab on the fan canister latches.
10. Check the Fan Power LED and Fan Service Action Required LED on the new fan canister,
11. Based on the LED status, perform one of these actions:
The Fan Power LED is on, and the Fan Service Action Required LED is off – Go to step 13.
The Fan Power LED is off, or the Fan Service Action Required LED is on – Check that the fan canister is
installed correctly. Reinstall the fan canister. Go to step 12.
12. Did this action correct the problem?
Yes– Go to step 13.
No – If the problem has not been resolved, contact your Technical Support Representative.
13. Check the status of all of the trays in the storage array.
92006-02
Replacing a Failed Fan Canister in the E5660 Controller-Drive Tray - 3
(Figure 1).
