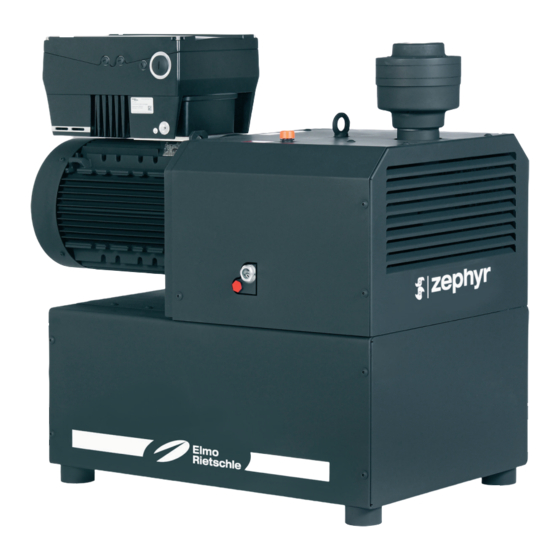

- Page 1 Edition: 1.0 · 10.2017 · BA 886-70-FU-EN Original Operating Instructions C-VLR 401 | 501 VSD Vacuum pump C-Serie C-Series Klaue Claw...
-
Page 2: Table Of Contents
Re-commissioning ............www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH... - Page 3 Technical Data ............. . www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH...
-
Page 4: Foreword
Operating instructions for frequency converter 610.00260.40.00 Abbreviations Fig. Figure C-VLR Vacuum pump Suction capacity mbar (abs.) Final vacuum, operating vacuum Corrosion protective coating Variable Speed Drive Directives, standards, laws See Conformity Declaration www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH... -
Page 5: Symbols And Meaning
EN ISO 3744. Copyright Passing on or copying this document, using and providing information on its contents are prohibited unless expressly permitted. Contraventions will lead to claims for damages. www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH... -
Page 6: Safety
This applies for example to: • Symbols for connections • Data and motor data plate • Instruction and warning plates The operator is responsible for observing local regu- lations. www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH... -
Page 7: Designated Use
• using the machine in areas with ionising radia- tion • modifications to the machine, default settings of the frequency converter and accessories www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH... -
Page 8: Personal Qualifications And Training
Risks arising from electrical energy must be eliminated. • The machine must not be in touch with inflam- mable substances. Danger of fire by hot surfaces, discharge of pumped media or cooling air www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH... -
Page 9: Safety Instructions For Installing, Commissioning And Maintenance
Operation by insufficiently qualified staff • Using spare parts that have not been approved by Gardner Denver Schopfheim GmbH • Unauthorised modifications to the machine or the accessories supplied by Gardner Denver Schopfheim GmbH www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH... -
Page 10: Transport, Storage And Disposal
(Fig. 1/3) on the transport shackle (Fig. 1/2) firmly. b) The machine must be suspended on the eye- bolt and the transport shackle using the lifting device. Fig. 1 Lifting and transporting Eyebolt Transport shackle Fixing screw www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH... -
Page 11: Storage
Parts subject to wear and tear (marked as such in the spare parts list) are special waste and must be disposed of in accordance with the national and local waste laws. www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH... -
Page 12: Set Up And Operation
Data plate frequency converter Non-return valve Direction of rotation arrow Cooling air inlet Drive motor Cooling air outlet hot surfaces > 70 ° C Oil filling point Frequency converter Oil sight glass www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH... -
Page 13: Data Plate
Speed range Data matrix barcode Motor output Item no. Motor output Following information are encrypted in the barcode: • Material number (MA) • Production order (PR) • Serial number (SC) www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH... -
Page 14: Description
If it is installed in the open air the unit must be protected from environmental influences, (e.g. by a protective roof). www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH... -
Page 15: Installation
It is possible to install the machine on a firm base without anchoring. When installing on a sub- structure we recommend fixing with flexible buffers. www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH... -
Page 16: Connecting Pipes
Fill the lubricating oil (for suitable types see “Maintenance”) for the gear wheels and oil fill- ing point (Fig. 2/H) up to the middle of the sight glasses (Fig. 2/I). b) Close the oil filling point. www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH... -
Page 17: Connecting The Drive
• Input voltage 3 AC 400 V -15 % bis 480V + 10 % • Input frequency 47 bis 63 Hz ± 0% • Suitable network configurations TN / TT www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH... -
Page 18: Commissioning And Decommissioning
When spending a long time in the vicinity of the running machine use ear protectors to avoid permanent damage to your hearing. NOTICE Wait until the machine stops The machine must only be switched on again after it stops. www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH... -
Page 19: Checking The Rotation Direction
Version “XD”: Drain the condensate periodically and depending on the application from the silencer (Fig. 2/B Do not perform at operating temperature! www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH... -
Page 20: Decommissioning/ Storing
Section 3.2.1, Page 11 Re-commissioning a) Check the condition of the machine (cleanliness, cabling etc.). For installation see Section 5 Page 14 For commissioning see Section 6.1 Page 17 www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH... -
Page 21: Maintenance And Repair
Changing the oil 7.2.1 depending on how dirty the Clean intake air filter 7.2.2 discharged medium is. at least once a year Check for coupling wear 7.2.3 — Integrated frequency converter 7.2.4 www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH... -
Page 22: Changing The Oil
Designation as per DIN 51502: CLP HC 150. We recommend the following oil brand: GEAR- LUBE 150 or equivalent oils by other manufacturers (also see oil recommendation plate (Fig. 5/M)). www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH... -
Page 23: Air Filtering
Therefore, when cleaning with compressed air always wear goggles and a dust mask. Fig. 7 Blowing out the mesh filter Mesh filter Compressed air www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH... -
Page 24: Coupling
NOTICE Frequent starting up and high ambient tem- perature The service life of the sprocket (Fig. 8/k) is reduced. Re-assemble in reverse order. www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH... -
Page 25: Integrated Frequency Converter
The declaration of harmlessness is part of the supplier‘s documentation. b) After a repair or re-commissioning, the actions listed under „Installation“ and „Commissioning“ must be carried out as for initial commissioning. Fig. 9 Clearance certificate 7025.003.17 www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH... -
Page 26: Spare Parts
Only use original spare parts or parts approved by the manufacturer. The use of other parts may lead to malfunctions and invalidate liability or the gua- rantee for any consequences arising. Fig. 11 Web site http://www.service-er.de www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH... -
Page 27: Malfunctions: Causes And Elimination
Deposits on the rotary piston Clean the working space and Elmo Rietschle an abnormal noise the rotary piston Service Please contact Elmo Rietschle Service for other malfunctions or those that cannot be eliminated. www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH... -
Page 28: Technical Data
¦ Product Documents ¦ C-Series ¦ D ata Sheets, Manuals and Service Documents ¦ V acuum Pumps C-VLR ¦ Data Sheets NOTICE Subject to technical changes. Fig. 12 Data sheet (example) www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH... - Page 29 Technical Data www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH...
- Page 30 Gardner Denver Schopfheim GmbH Johann-Sutter-Straße 6+8 79650 Schopfheim · Germany Phone +49 7622 392-0 +49 7622 392-300 Elmo Rietschle is a brand of Gardner Denver‘s Industrial Products Division and part of Blower Operations.
