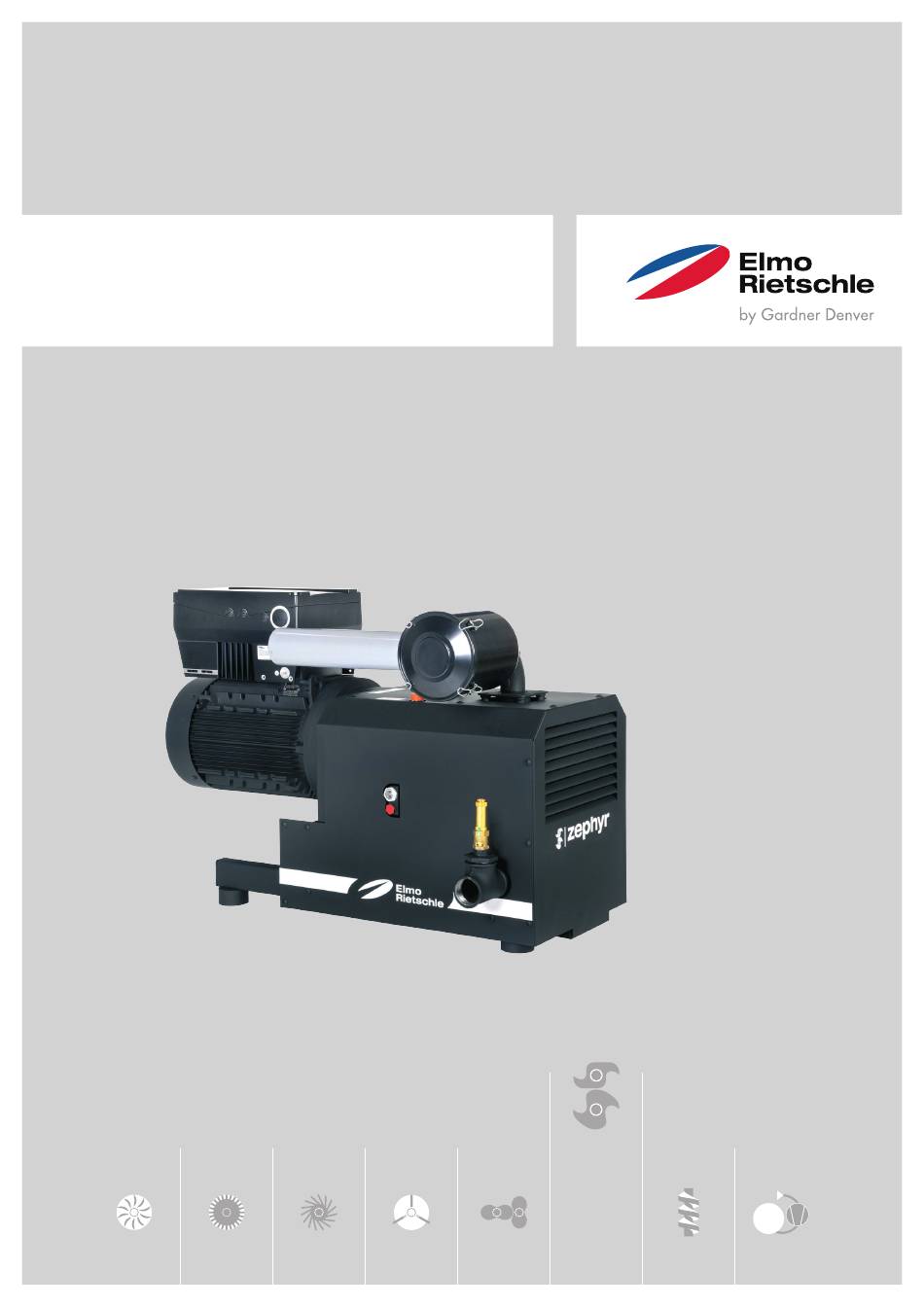

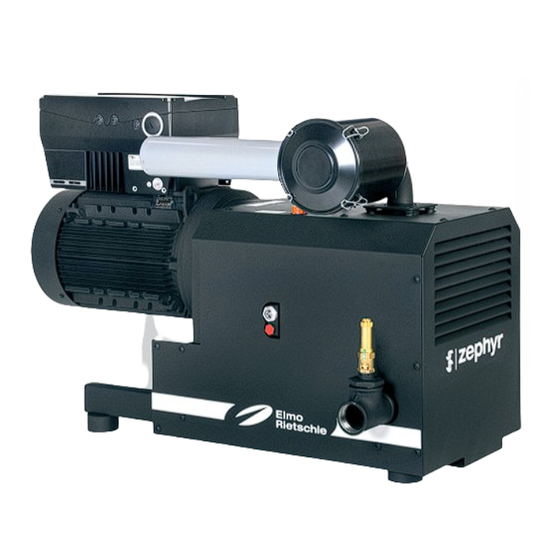

- Page 1 Edition: 1.0 · 10.2017 · BA 887-70-FU-EN Original Operating Instructions C-DLR 301 VSD Compressor C-Serie C-Series Klaue Claw...
-
Page 2: Table Of Contents
Re-commissioning ............www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH... - Page 3 Technical Data ............. . www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH...
-
Page 4: Foreword
EU Directive 2011/65/EU (RoHS II) — Operating Instructions Operating instructions for frequency converter 610.00260.40.00 Abbreviations Fig. Figure C-DLR Compressor Capacity, volume flow Overpressure Variable Speed Drive Directives, standards, laws See Conformity Declaration www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH... -
Page 5: Symbols And Meaning
EN ISO 3744. Copyright Passing on or copying this document, using and providing information on its contents are prohibited unless expressly permitted. Contraventions will lead to claims for damages. www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH... -
Page 6: Safety
This applies for example to: • Symbols for connections • Data and motor data plate • Instruction and warning plates The operator is responsible for observing local regu- lations. www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH... -
Page 7: Designated Use
• using the machine in areas with ionising radia- tion • modifications to the machine, default settings of the frequency converter and accessories www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH... -
Page 8: Personal Qualifications And Training
Risks arising from electrical energy must be eliminated. • The machine must not be in touch with inflam- mable substances. Danger of fire by hot surfaces, discharge of pumped media or cooling air www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH... -
Page 9: Safety Instructions For Installing, Commissioning And Maintenance
Operation by insufficiently qualified staff • Using spare parts that have not been approved by Gardner Denver Schopfheim GmbH • Unauthorised modifications to the machine or the accessories supplied by Gardner Denver Schopfheim GmbH www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH... -
Page 10: Transport, Storage And Disposal
(Fig. 1/3) on the transport shackle (Fig. 1/2) firmly. b) The machine must be suspended on the eye- bolt and the transport shackle using the lifting device. Fig. 1 Lifting and transporting Eyebolt Transport shackle Fixing screw www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH... -
Page 11: Storage
Parts subject to wear and tear (marked as such in the spare parts list) are special waste and must be disposed of in accordance with the national and local waste laws. www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH... -
Page 12: Set Up And Operation
Drive motor Cooling air outlet hot surfaces > 70 ° C Oil filling point Suction filter Oil sight glass Frequency converter Oil discharge point with magnet Intake silencer Oil recommendation plate www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH... -
Page 13: Data Plate
Speed range Data matrix barcode Motor output Item no. Motor output Following information are encrypted in the barcode: • Material number (MA) • Production order (PR) • Serial number (SC) www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH... -
Page 14: Description
If it is installed in the open air the unit must be protected from environmental influences, (e.g. by a protective roof). www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH... -
Page 15: Installation
It is possible to install the machine on a firm base without anchoring. When installing on a sub- structure we recommend fixing with flexible buffers. www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH... -
Page 16: Connecting Pipes
(see data plate) the machine may be damaged. The safety valve is a part that is subject to wear and must be replaced after 10,000 hours or after no more than 2 years www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH... -
Page 17: Filling With Lubricating Oil
• Input voltage 3 AC 400 V -15 % bis 480V + 10 % • Input frequency 47 bis 63 Hz ± 0% • Suitable network configurations TN / TT www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH... -
Page 18: Commissioning And Decommissioning
When spending a long time in the vicinity of the running machine use ear protectors to avoid permanent damage to your hearing. NOTICE Wait until the machine stops The machine must only be switched on again after it stops. www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH... -
Page 19: Checking The Rotation Direction
Section 3.2.1, Page 11 Re-commissioning a) Check the condition of the machine (cleanliness, cabling etc.). For installation see Section 5 Page 15 For commissioning see Section 6.1 Page 18 www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH... -
Page 20: Maintenance And Repair
Changing the oil monthly/ every 6 months Clean or replace filter cartridge 7.2.2 depending on how dirty the Clean the micro filter discharged medium is — Integrated frequency converter 7.2.3 www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH... -
Page 21: Changing The Oil
Designation as per DIN 51502: CLP HC 150. We recommend the following oil brand: GEAR- LUBE 150 or equivalent oils by other manufacturers (also see oil recommendation plate (Fig. 5/M)). www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH... -
Page 22: Air Filtering
Therefore, when cleaning with compressed air always wear goggles and a dust mask. Fig. 7 Purging filter cartridge Filter cartridge Compressed air www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH... -
Page 23: Integrated Frequency Converter
The declaration of harmlessness is part of the supplier‘s documentation. b) After a repair or re-commissioning, the actions listed under „Installation“ and „Commissioning“ must be carried out as for initial commissioning. Fig. 8 Clearance certificate 7025.003.17 www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH... -
Page 24: Spare Parts
Only use original spare parts or parts approved by the manufacturer. The use of other parts may lead to malfunctions and invalidate liability or the gua- rantee for any consequences arising. Fig. 10 Web site http://www.service-er.de www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH... -
Page 25: Malfunctions: Causes And Elimination
Service The safety valve is vibrating Replace the valve Section 7.4 Please contact Elmo Rietschle Service for other malfunctions or those that cannot be eliminated. www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH... -
Page 26: Technical Data
¦ Downloads ¦ Product Documents ¦ C-Series ¦ D ata Sheets, Manuals and Service Documents ¦ C ompressors C-DLR ¦ Data Sheets NOTICE Subject to technical changes. Fig. 11 Data sheet (example) www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH... - Page 27 Technical Data www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH...
- Page 28 Gardner Denver Schopfheim GmbH Johann-Sutter-Straße 6+8 79650 Schopfheim · Germany Tel. +49 7622 392-0 Fax +49 7622 392-300 Elmo Rietschle is a brand of Gardner Denver‘s Industrial Products Division and part of Blower Operations.
