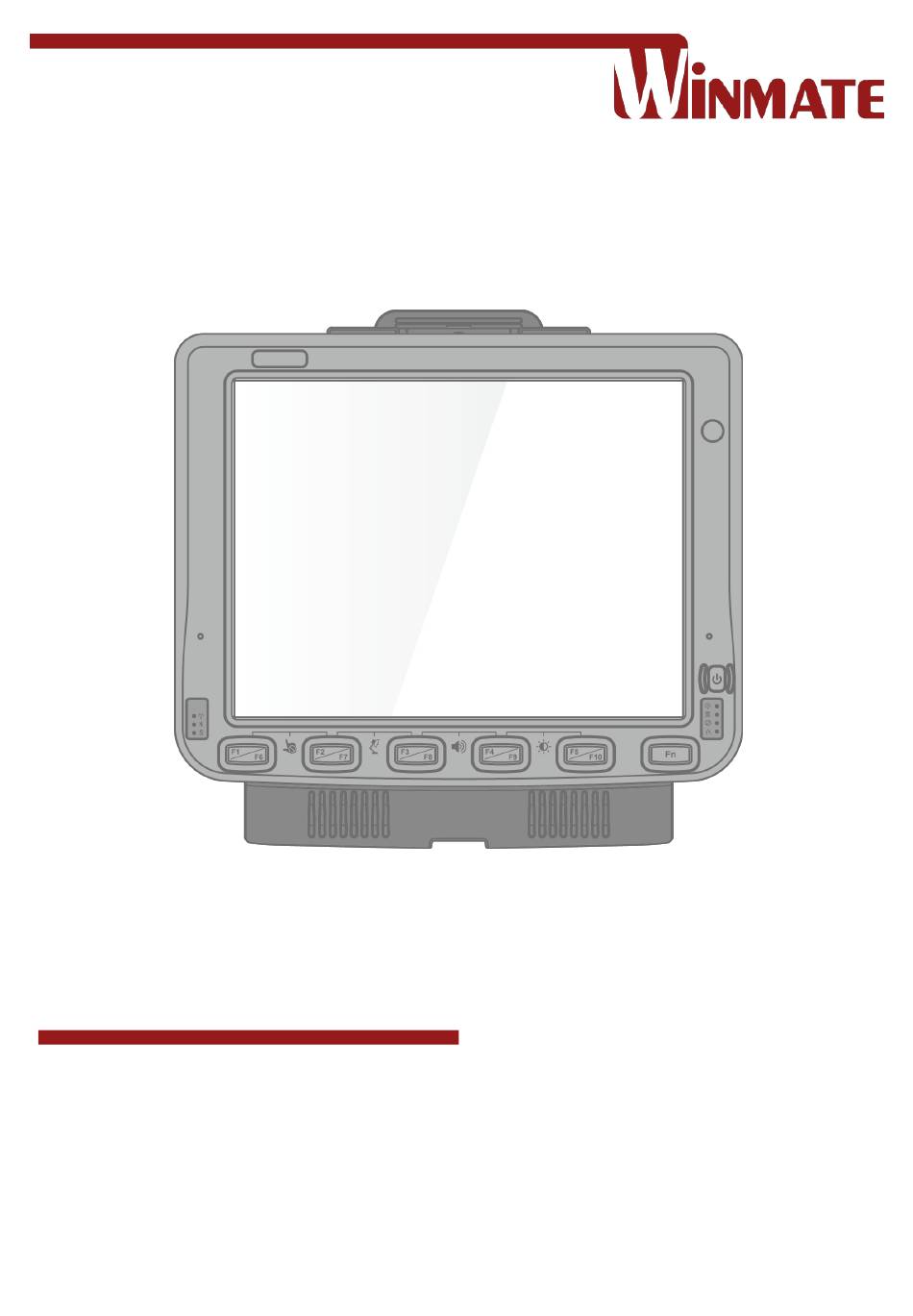

Vehicle Mounted Computer
Qualcomm Snapdragon 820 Quad core, 2.2 GHz
Android 8.1
FM10Q
Quick Start Guide
Version 1.1
Document Part No. 9152111I102W
Please read these instructions carefully before using this product, and save this manual for future use.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FM10Q and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Winmate FM10Q

Summary of Contents for Winmate FM10Q

  • Page 1 Vehicle Mounted Computer Qualcomm Snapdragon 820 Quad core, 2.2 GHz Android 8.1 FM10Q Quick Start Guide Version 1.1 Document Part No. 9152111I102W Please read these instructions carefully before using this product, and save this manual for future use.

  • Page 2: Table Of Contents

    10.4" Vehicle Mount Computer FM10Q Quick Start Guide Table of Contents PREFACE UNPACKING TANDARD ACKAGE ONTENT PTIONAL CCESSORIES COMPONENTS INTEGRATED KEYPAD FUNCTION BUTTONS DOCKING AND UNDOCKING THE DEVICE POWER CABLE INSTALLATION IRING THE OWER ABLE ONNECTING THE OWER ABLE FOR...

  • Page 3: Preface

    Warranty Winmate Inc. warrants that each of its products is free from material and workmanship defect for a period of one year starting from the invoice date. If the customer discovers a defect, Winmate Inc. will, at its option, repair or replace the defective product at no charge to the customer, provided it is returned during the warranty period, with transportation charges prepaid.
  • Page 4 10.4" Vehicle Mount Computer FM10Q Quick Start Guide Advisory Conventions Four types of advisories are used throughout the user manual to provide helpful information or to alert you to the potential for hardware damage or personal injury. These are Notes, Important, Cautions, and Warnings. The following is an example of each type of advisory.
  • Page 5 Preface CE Notice (European Union) This device has been tested and found to conform to the limits set for a Class B product. • EN 55022 — “Limits and Methods of Measurement of Radio Interference Characteristics of Information Technology Equipment” •...
  • Page 6 10.4" Vehicle Mount Computer FM10Q Quick Start Guide Read Me First Follow and adhere to all warnings and instructions in this manual. For your safety, please read all safety and operating instructions before using the product. Keep this manual for future reference.
  • Page 7 Preface Informations de sécurité (FR) Suivez et respectez tous les avertissements et instructions figurant sur l’écran. Pour votre sécurité, s’il vous plaît lire toutes les consignes de sécurité et de fonctionnement avant d’utiliser le device. Gardez ce manuel pour référence future. Lire avec attention toutes les recommandations et precautions d’emploi avant d’utiliser ce produit.
  • Page 8 IMPORTANT: The battery is consumable part. Therefore, it is recommended to replace the battery pack every two years with a new one recommended by Winmate. Contact our Service Center or sales representatives for more information on replacing the battery pack.

  • Page 9: Unpacking

    Before using this device, make sure that all the items listed below are present in your package:   Dock + Latch 5 m Power Cable with    Computer FM10Q 0.3 m USB Cable Cable Clamp Kit Locking Key Fuse Kit Varies by product Part No. 98D000A0000A Part No. 98K000A0006O Part No.

  • Page 10: Components

    10.4" Vehicle Mount Computer FM10Q Quick Start Guide Components Front View Item Description 10.4” Touch Screen Acts as one of the inputs for the device Power Button Press and hold the button for 3 second to turn on the device...
  • Page 11 Components Rear View with Vehicle Dock Item Description VESA Mount Hole VESA 75, 100, and RAM Mount Release Latch Press to release the device and the docking Kensington Lock Connect to a security lock, protecting your device from being stolen Set the switch to on (I) to provide the supply power to the device and Power switch it will automatically connect to the ignition system of the vehicle...
  • Page 12 10.4" Vehicle Mount Computer FM10Q Quick Start Guide Side View with Vehicle Dock Item Description COM1 and COM2 Connects a peripheral device such as a printer or scanner with serial port Connects USB peripheral devices such as USB Flash drive, mouse, USB 2.0 x 2...

  • Page 13: Integrated Keypad

    *Sign plus “+” means that you have to press both function keys at the same time. Function Buttons Winmate® FM10Q Vehicle Mounted Computer comes with preinstalled APP called Winmate® Key Mapping (WKM) which let users to assign functions of function keys F1 ~ F10.
  • Page 14 10.4" Vehicle Mount Computer FM10Q Quick Start Guide Function Key Description F1 + F2 Touch Keypad Lock/ Unlock F2 + F3 Lamp On/Off F3 + F4 Volume adjustment F4 + F5 Brightness adjustment (Panel +Keypad) Long press F5 Camera In Application Selector window of the F1 click NEW to open the drop-down menu of function keys. In this example, we have selected to set up functions for F1 function key.

  • Page 15: Docking And Undocking The Device

    Docking and Undocking the Device Docking and Undocking the Device Perform the following to dock the device: 1. Align the golden connector and guide pin holes on the device with the golden connector and guide pins on the docking station 2.

  • Page 16: Power Cable Installation

    10.4" Vehicle Mount Computer FM10Q Quick Start Guide Power Cable Installation a. Wiring the Power Cable WARNING!/ AVERTISSEMENT! This procedure requires a trained service personnel only, improper installation can cause serious damage to the vehicle or the device. Cette procédure nécessite un personnel de maintenance qualifié uniquement, une mauvaise installation peut causer des dommages importants au véhicule ou le dispositif.

  • Page 17: Connecting The Power For Installation On The Vehicle

    Power Cable Installation c. Connecting the Power for Installation on the Vehicle WARNING!/ AVERTISSEMENT! This power cable should only be used on the 24, 36, or 48 Volt forklifts. Note that, this power cable cannot work for 12 Volt forklifts. Ce câble d'alimentation ne doit être utilisé...

  • Page 18: Power Cable Routing

    Power Cable Routing There are many cables available for the FM10Q including power cable, CAN Bus cable, or USB cable. To secure these cables, there are five cable clamps secured the FM10 vehicle dock to prevent the cable strain.

  • Page 19: Power On Behavior

    NOTE: • The FM10Q has to be docked in a powered vehicle docking station or UPS battery has to have a sufficient charge to power the device. • If no external power available and the UPS battery do not have enough charge, pressing the...

  • Page 20: Standby And Wakeup Behavior

    By default, the FM10Q turns off if the user turns off the device through the system or presses the power button for 8 seconds with a critical shut down. The FM10Q will also be off when there is no connection to a power source or the UPS battery is depleted.

  • Page 21: Ignition Control

    External / Vehicle Remote Antenna Installation The FM10Q vehicle dock is equipped with SMA Connector for additional external antenna (Wi-Fi or optional WWAN), to install the antenna please perform the following: 1. Remove the rubber cap on the SMA connector before installing the antenna.

  • Page 22: Canbus Cable Installation Reference

    Wi-Fi and WWAN Antenna Installation 4. Attach plastic fixing bracket to fix the position of each antenna. CANBus Cable Installation Reference After connecting the CAN Bus cable to the FM10Q, please open software utility to check settings. COM1 COM2 COM3*...

  • Page 23: Screen Blanking

    Screen Blanking Screen Blanking Winmate® FM10Q has screen blanking function. Once activated, it will lock the screen display to prevent or restrict the use of the in-vehicle computer. This application allows setting the threshold to perform preset actions while device is moving. When enabled Blanking function reduces visual, cognitive, and physical distractions by limiting device functionality while the vehicle is in motion.

  • Page 24: Defroster (If Equipped)

    10.4" Vehicle Mount Computer FM10Q Quick Start Guide Defroster (If Equipped) Notice that defroster is an optional feature and may not be presented in your device. The defroster is always disable when the device is operating from UPS Warning battery power 1.
  • Page 25 Defroster (If Equipped) When the Defroster is OFF, a heater indicator in the lower right corner of the device will Turn off Example: In this example “10 deg. C” is selected as Defroster trip off point meaning that the Defroster will be deactivated when the temperature reaches 10 deg.

  • Page 26: Ram Mount Installation

    10.4" Vehicle Mount Computer FM10Q Quick Start Guide RAM Mount Installation The docking of this device is designed to be mounted to RAM Mount solutions, which provides various mount types to fit any industrial use or vehicle. Mounting Kit 1 – No Drill Solution...

  • Page 27: Mounting Kit 2 - Drill Solution

    RAM Mount Installation Mounting Kit 2 – Drill Solution Part Number: 98K000A0006P Winmate Part RAM Mount Part Component Description Number Number RAM round base 3.68” Round Base with 2.25” mounts - on the 9B000000008R RAM-D-202U Ball forklift A1-1 Screw 91351110112N - SUS304 M8 x 40mm Screw Arm for 2.25”...

  • Page 28: Mounting Kit 3 - Keyboard Mounting Installation

    10.4" Vehicle Mount Computer FM10Q Quick Start Guide Step 4 Attach the device to RAM arm. 4.1 Insert the RAM arm over the ball on the vehicle RAM mount (shown here). 4.2 Insert the ball on the dock into the RAM arm and tighten the knob.

  • Page 29: Keyboard Assembly

    RAM Mount Installation Keyboard Assembly This part shows the steps to install the keyboard. 1. Fasten all four screws on the RAM mount ball on the back of the keyboard. 2. Fasten the keyboard adapter on the other end of the RAM mount ball. 3.

  • Page 30: Appendix

    10.4" Vehicle Mount Computer FM10Q Quick Start Guide Appendix Appendix A: Product Specifications Model Name FM10Q System Specifications Processor Qualcomm Snapdragon 820 Quad core, 2.2 GHz System Memory 4GB LPDDR3 Storage 32GB eMMC, additional storage with SD card slot Operating System Android 8.1...

  • Page 31: Appendix B: Order Information

    CE, FCC, UL60950-1, EN60950-1, PTCRB, FCC (Electromagnetic Certification Emissions), IC (ICES-003) Compliant with EN 61000-4-2, enhanced ESD to ±12kV direct & ±15kV Appendix B: Order Information The FM10Q Vehicle Mount Computer available in the following configurations: Model Number Specifications FM10Q Standard...
  • Page 32 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 24158, Taiwan, R.O.C www.winmate.com Copyright © Winmate Inc. All rights reserved.
