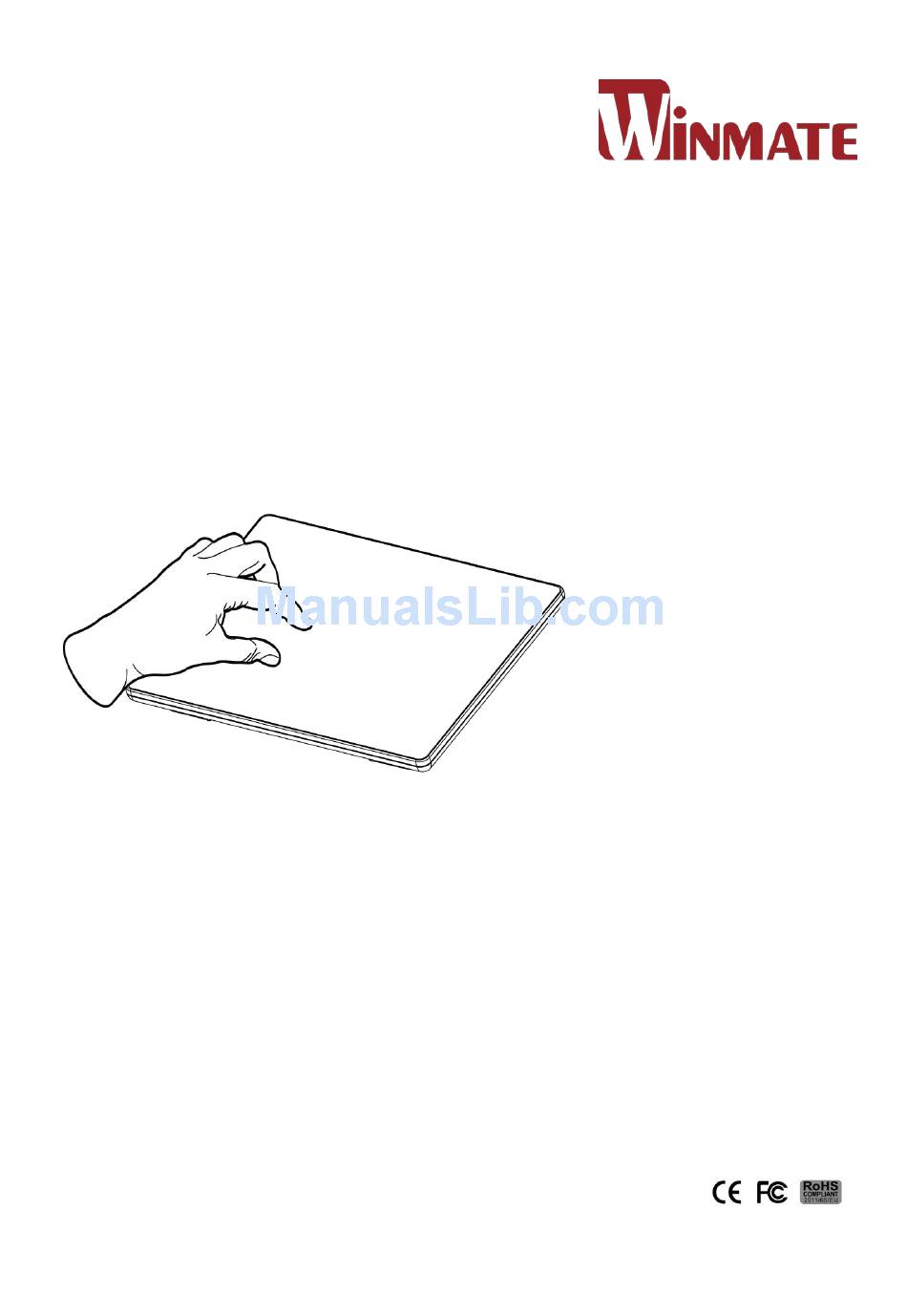

- Page 1 15” Multi-Touch Chassis HMI Intel® Celeron® Bay Trail-M N2930 1.83GHz R15IB3S-PTC3 User Guide V1.0 Document part number: 91521110101T Please read these instructions carefully before using this product, and save this manual for future use...
-
Page 2: Table Of Contents
USER GUIDE CONTENTS Contents Preface - 3 - Chapter 1: Introduction - 7 - 1.1 Features - 7 - 1.2 Package Contents - 8 - 1.3 Description of Parts - 9 - Chapter 2: Installation - 10 - 2.1 Wiring Requirements - 10 - 2.2 VESA Mounting - 11 -... -
Page 3: Preface
USER GUIDE PREFACE Preface FCC Statement This device complies with part 15 FCC rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received including interference that may cause undesired operation. - Page 4 USER GUIDE PREFACE legislations and harmonized standards. Product also complies with the Council directions. Copyright Notice No part of this document may be reproduced, copied, translated, or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the prior written permission of the original manufacturer.
- Page 5 According to the European Union issued Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS 2.0). Winmate Inc.’s guaranty is able to meet the current regulations and customer requirements in respect of the application of cadium, lead, mercury, hexavalent chromium, PBBs, PBDEs in its product.
- Page 6 USER GUIDE PREFACE Safety Information WARNING! / AVERTISSEMENT! Always completely disconnect the power cord from your chassis whenever you work with the hardware. Do not make connections while the power is on. Sensitive electronic components can be damaged by sudden power surges. Only experienced electronics personnel should open the PC chassis.
-
Page 7: Chapter 1: Introduction
CHAPTER 1 INTRODUCTION Chapter 1: Introduction The R15IB3S-PTC3 is a 15-ich flat HMI with chassis front surface industrial design. HMI runs on powerful, yet low power consuming Intel® Celeron® N2930 processor. Display features 1024 x 768 screen resolution, maximum colors of 16.2 million pixels and projected capacitive touch. Multiple I/O interface includes USB 3.0 and USB 2.0, two LAN ports, one of each supports... -
Page 8: Package Contents
USER GUIDE CHAPTER 1 INTRODUCTION 1.2 Package Contents Carefully remove the box and unpack your device. Please check if all the items listed below are inside your package. If any of these items are missing or damaged contact us immediately. Standard factory shipment list: Quick Start Guide Driver CD... -
Page 9: Description Of Parts
USER GUIDE CHAPTER 1 INTRODUCTION 1.3 Description of Parts R15IB3S-PTC3 Unit: mm Dimensions:352.50 x 276.70 x 45 Connectors № № Description Description ① ⑤ RJ-45 (LAN) RJ-45 (LAN/PoE) ② USB 3.0, USB 2.0 ⑥ 1 Watt Speaker ③ ⑦ RS-232/422/485 (DB9) Power &... -
Page 10: Chapter 2: Installation
USER GUIDE CHAPTER 2 INSTALLATION Chapter 2: Installation 2.1 Wiring Requirements The following common safety precautions should be observed before installing any electronic device: Strive to use separate, non-intersecting paths to route power and networking wires. If power wiring and device wiring paths must cross make sure the wires are perpendicular at the intersection point. -
Page 11: Vesa Mounting
M4 x 5 Mounting Instruction Use Philips M4x5 screws to fix the desk stand to VESA holes on the back cover of the device. *The picture is for demonstration purposes only. VESA Mounting accessories are not supplied by Winmate. - 11 -... -
Page 12: Turning On
USER GUIDE CHAPTER 2 INSTALLATION 2.3 Turning On Follow the following steps to turn on your device: 1. Connect AC adapter to DC jack connector of the HMI. 2. Connect the power cord to AC adapter. 3. Plug the power cord to the AC outlet. 4. -
Page 13: Connecting Peripherals
USER GUIDE CHAPTER 2 INSTALLATION 2.4 Connecting Peripherals This section lists HMI connectors and pin assignment. 2.4.1 Power Connector DC power source input is a DC-in power jack connector that accepts 12V DC power input. Pin № Pin № Name Name DC_IN Minimum Voltage 11.4V... -
Page 14: Serial Port Connector
USER GUIDE CHAPTER 2 INSTALLATION 2.4.3 Serial Port Connector Use COM1 serial port connector to connect your HMI to external devices such as mouse, modem or printer. You can configure serial port settings via jumpers located on the motherboard. Pin № RS232 RS422 RS485... -
Page 15: Speaker
USER GUIDE CHAPTER 2 INSTALLATION 2.5 Speaker Speaker is located on the rear side of the HMI. Electrical Specifications Rated impedance 6±15% ohms@2KHz, 1 Vrms input Power Rating 0.67 W Short Term Max Power 1.3W Acoustical Specifications Sound Pressure Level 75±3dB/40cm@1kHz - 15 -... -
Page 16: Chapter 3: Operating The Device
USER GUIDE CHAPTER 3 OPERATING THE DEVICE Chapter 3: Operating the Device 3.1 Introduction Your HMI supports several versions of Windows OS: Windows 10 IoT Windows Embedded 8.1 Industry Pro Windows Embedded 7 Standard IMPORTANT: The device is shipped with the OS System according to your order. Contact us if you have any questions regarding OS settings. -
Page 17: How To Enable Watchdog
USER GUIDE CHAPTER 3 OPERATING THE DEVICE 3.2 How to Enable Watchdog To enable Watchdog, you need to download Winmate Watchdog utility. Find more information on Watchdog in “Watchdog Guide” that you can download from Winmate Download Center. To enable watchdog in Watchdog AP follow the instructions below: 1. - Page 18 USER GUIDE CHAPTER 3 OPERATING THE DEVICE 3. In Watchdog utility window set countdown time and periodically feed time, or disable watchdog. Example: Every 10 min watchdog will monitor the system, in case any error occurs the system will restart automatically when the countdown time reaches 0.
-
Page 19: Using Recovery Wizard To Restore Computer
USER GUIDE CHAPTER 3 OPERATING THE DEVICE 3.3 Using Recovery Wizard to Restore Computer Note: Before starting the recovery process, make sure to backup all user data. The data will be lost after the recovery process. To enable quick one-key recovery procedure: 1. -
Page 20: Chapter 4: Bios Setup
USER GUIDE CHAPTER 4 BIOS SETUP Chapter 4: BIOS Setup BIOS Setup Utility is a program for configuration basic Input / Output system settings of the computer for optimum use. This chapter provides information on how to use BIOS setup, its functions and menu. 4.1 How and When to Use BIOS Setup To enter the BIOS setup, you need to connect an external USB keyboard, external monitor and press Del key when the prompt appears on the screen... - Page 21 USER GUIDE CHAPTER 4 BIOS SETUP The following Keys can be used after entering the BIOS Setup. Function General Help Previous Values Optimized Defaults Save & Exit Exit Change Opt. Enter Select or execute command Cursor ↑ Moves to the previous item Cursor ↓...
-
Page 22: Bios Functions
USER GUIDE CHAPTER 4 BIOS SETUP 4.2 BIOS Functions 4.2.1 Main Menu The Main menu displays the basic information about yoursystem including BIOS version, processor RC version, system language, time, and date. When you enter BIOS setup, the first menu that appears on the screen is the main menu.It contains the system information including BIOS version, processor RC version, system language, time, and date. -
Page 23: Advanced Settings
USER GUIDE CHAPTER 4 BIOS SETUP 4.2.2 Advanced Settings Select the Advanced Tab from the setup menu to enter the advanced BIOS setup screen. You can select any of the items on the left frame of the screen to go to the sub menu for the item, such as CPU Configuration. You can use the <Arrow>... - Page 24 USER GUIDE CHAPTER 4 BIOS SETUP 4.2.2.1 Super I/O Configuration Serial Port 1 Configuration Serial Port This item enables or disables Serial Port (COM). Options: Enabled (Default) / Disabled Change Settings This item allows you to select an optimal setting for Super IO device. Options: Auto (Default) / IO=3F8h;...
- Page 25 USER GUIDE CHAPTER 4 BIOS SETUP 4.2.2.2 Hardware Monitor - 25 -...
- Page 26 USER GUIDE CHAPTER 4 BIOS SETUP 4.2.2.3 CPU Configuration Active Processor Cores This item sets number of cores to enable in each processor package Options: All (Default) / 1 Limit CPUID Maximum When the computer is booted up, the operating system executes the CPUID instruction to identify the processor and its capabilities.
- Page 27 USER GUIDE CHAPTER 4 BIOS SETUP Adjacent Cache Line Prefetch The processor has a hardware adjacent cache line prefetch mechanism that automatically fetches an extra 64-byte cache line whenever the processor requests for a 64-byte cache line. This reduces cache latency by making the next cache line immediately available if the processor requires it as well.
- Page 28 USER GUIDE CHAPTER 4 BIOS SETUP 4.2.2.4 PPM Configuration EIST This item enables or disables Intel SpeedSteps. Options: Enabled (Default) / Disabled CPU C state Report This item enables or disables CPU C state report to OS. Options: Enabled (Default) / Disabled Enhanced C state This item enables or disables Enhanced CPU C state Options: Enabled (Default) / Disabled...
- Page 29 USER GUIDE CHAPTER 4 BIOS SETUP 4.2.2.5 SATA Configuration Serial-ATA (SATA) This item enables/disables Serial ATA Device. Options: Enabled (Default) / Disabled SATA ODD Port This item selects SATA ODD Port Options: No ODD (Default) / Port0 ODD / Port1 ODD SATA Mode This item determines how SATA controller(s) operate.
- Page 30 USER GUIDE CHAPTER 4 BIOS SETUP 4.2.2.6 Network Stack Configuration Network Stack This item enables or disables UEFI network stack Options: Disabled (Default) / Enabled Note: The following items appear only when you set the Network Stack function to [Enabled] IPv4 PXE Support This item enables or disables IPv4 PXE Boot Support.
- Page 31 USER GUIDE CHAPTER 4 BIOS SETUP 4.2.2.7 CSM Configuration CSM Support This item enables or disables CSM Support Options: Disabled (Default) / Enabled Note: The following items appear only when you set the CSM Support to [Enabled] GateA20 Active Upon Request – FA20 can be disabled using BIOS services. Always – do not allow disabling GA20;...
- Page 32 USER GUIDE CHAPTER 4 BIOS SETUP Options: Legacy only (Default) / UEFI and Legacy / UEFI only Network This option controls the execution of UEFI and Legacy PXE OpROM Options: Legacy only (Default) / Do not launch / UEFI only / Legacy first / UEFI first Storage This option controls the execution of UEFI and Legacy Storage OpROM...
- Page 33 USER GUIDE CHAPTER 4 BIOS SETUP Legacy USB Support This item determines if the BIOS should provide legacy support for USB devices like the keyboard, mouse, and USB drive. This is a useful feature when using such USB devices with operating systems that do not natively support USB (e.g.
-
Page 34: Chipset Menu
USER GUIDE CHAPTER 4 BIOS SETUP 4.2.3 Chipset Menu This section describes configuring the PCI bus system. PCI, or Personal Computer Interconnect, is a system which allows I/O devices to operate at speeds nearing the speed of the CPU itself uses when communicating with its own special components. - Page 35 USER GUIDE CHAPTER 4 BIOS SETUP 4.2.3.1 North Bridge Intel IGD Configuration Integrated Graphics Device Enable: Enable Integrated Graphics Device (IGD) when selected as the Primary Video Apaptor. Disable: Always disable IGD. Options: Enabled (Default) / Disabled IGD Turbo Enable Enable: Enable IGD Turbo Enable.
- Page 36 USER GUIDE CHAPTER 4 BIOS SETUP This item enables or disables Vcc Vnn Config for power state2 Options: Disabled (Default) / Enabled RC6 (Render Standby) This item enables or disables render standby support. Options: Enabled (Default) / Disabled LCD Control Boot Display Device This item allows you to select the display device.
- Page 37 USER GUIDE CHAPTER 4 BIOS SETUP Azalia HDMI Codec This item enables or disables internal HDMI codec for Azalia. Options: Enabled (Default) / Disabled HDMI Port B/C This item enables or disables HDMI Port B/C. Options: Enabled (Default) / Disabled Audio AMP output This item selects Audio AMP output dB value.
-
Page 38: Security Menu
USER GUIDE CHAPTER 4 BIOS SETUP 4.2.4 Security Menu This section allows to configure and improve system, and set up some system features according to your preferences. Administrator Password This item sets Administrator Password. User Password This item sets User Password. Secure Boot Secure Boot can be enabled if 1. - Page 39 USER GUIDE CHAPTER 4 BIOS SETUP Key Management Enroll All Factory Default Keys It allows you to immediately load/clear the default Security Boot keys, Platform key (PK), Key-exchange Key (KEK), Signature database (db), and Revoked Signatures (dbx). The Platform Key (PK) state will change from Unloaded mode to Loaded mode.
- Page 40 USER GUIDE CHAPTER 4 BIOS SETUP 4.2.5 Boot Menu Setup Prompt Timeout This item sets number of seconds to wait for setup activation key. Options: 2 (Default) Bootup NumLock State This item selects the keyboard NumLock state. Options: On (Default) / Off Full Screen Logo Display This item allows you to enable/disable Full Screen Logo Show function.
- Page 41 USER GUIDE CHAPTER 4 BIOS SETUP 4.2.6 Exit Menu This menu allows you to load the optimal default settings, and save or discard the changes to the BIOS items. Discard Changes and Exit Abandon all changes made during the current session and exit setup. Save Changes and Reset Reset the system after saving the changes.
-
Page 42: Appendix A: Product Specifications
USER GUIDE APPENDIX Appendix A: Product Specifications Model Name R15IB3S-PTC3 15” TFT Size/Type Resolution 1024 x 768 Brightness Contrast Ratio 700:1 (typ.) Display Viewing Angle ~80~80 (H); ~80~80 (V) Max Colors 16.2M Front Side Glass Yes (Optional) Touch Projected Capacitive Touch (Default) Processor Intel®... - Page 43 USER GUIDE APPENDIX Operating 0°C to 40°C Temperature Storage -10°C to 50°C Environment Temperature Considerations Humidity 30%~90% (non-condensing) CE, FCC Class A, UL, RoHS Directive Certification 2011/65/EU - 43 -...
-
Page 44: Appendix B: Cleaning The Lcd Monitor
Don not use water or oil directly on the display screen. If droplets are allowed to drop on the screen, permanent staining or discoloration may occur. Appendix C: Technical Support Winmate provides the following Drivers, SDK and Update Guide: Item Driver Description Utility... - Page 45 NOTES ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________...
- Page 46 NOTES ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________...
- Page 48 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 24158, Taiwan, R.O.C Tel: 886-2-8511-0288 Fax: 886-2-8511-0211 Email: sales@winmate.com.tw Official website: www.winmate.com...
