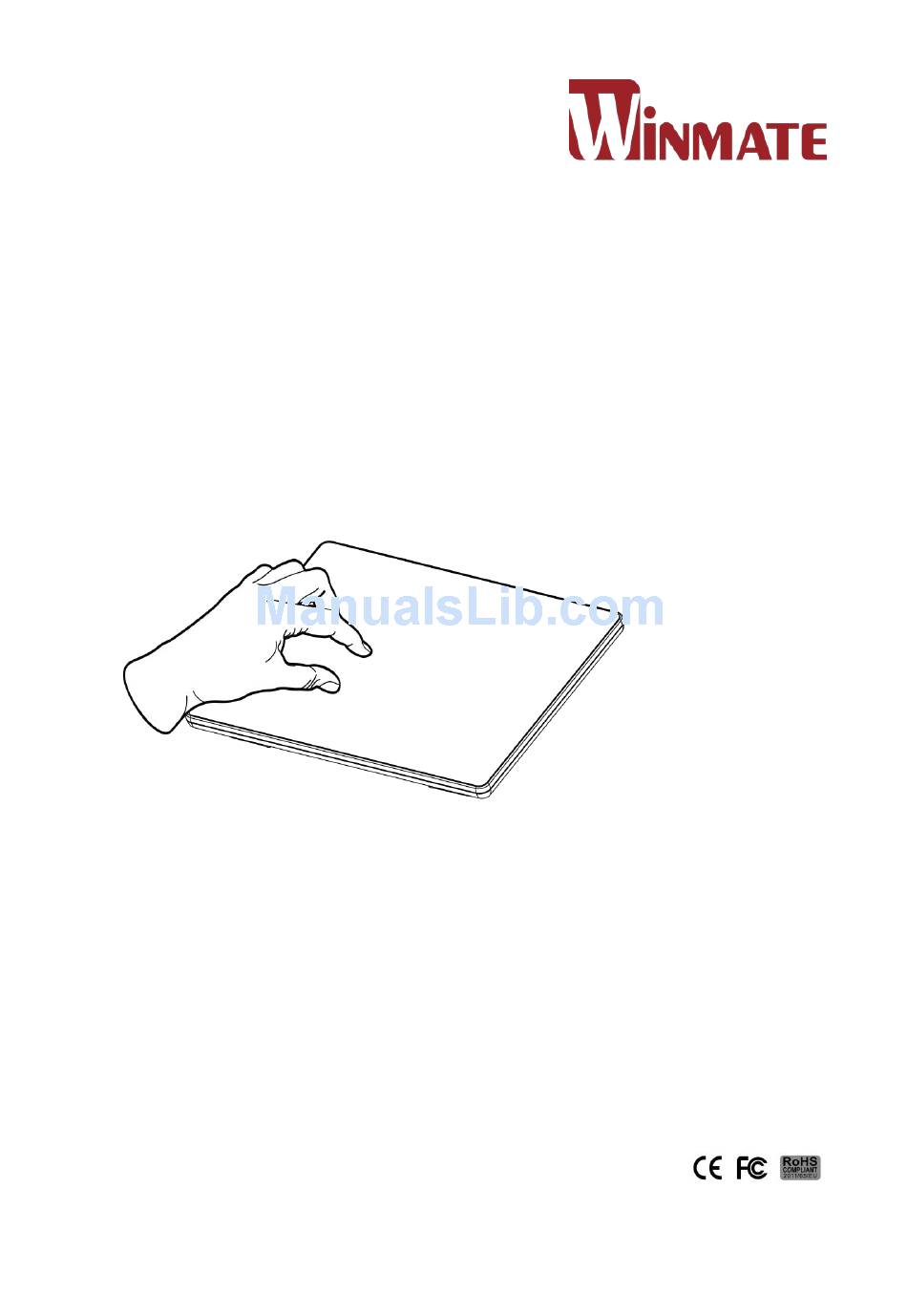

- Page 1 15” Multi-Touch Chassis HMI Freescale® Cortex A9 i.MX6 Dual Core 1GHz (Optional Quad Core) R15FA3S-PTC3 Quick Start Guide V1.0 Document Part Number: 91521110101W Android 6.0 Please read these instructions carefully before using this product, and save this manual for future use...
-
Page 2: Table Of Contents
- 21 - 3.5.1 Configuring Ethernet Settings - 22 - 3.5.2 Configuring Ethernet - 23 - 3.6 Winmate® Home Manager (WHM) - 24 - 3.6.1 How to Lock Applications - 24 - 3.6.2 How to Unlock Applications - 27 - 3.6.3 How to Change Password... - Page 3 FCC Statement This device complies with part 15 FCC rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received including interference that may cause undesired operation.
- Page 4 Disclaimer Winmate Inc. reserve the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. We assume no responsibility or liability for...
- Page 5 Advisory Conventions Four types of advisories are used throughout the user manual to provide helpful information or to alert you to the potential for hardware damage or personal injury. These are Notes, Important, Cautions, and Warnings. The following is an example of each type of advisory.
- Page 6 Safety Information WARNING! / AVERTISSEMENT! Always completely disconnect the power cord from your chassis whenever you work with the hardware. Do not make connections while the power is on. Sensitive electronic components can be damaged by sudden power surges. Only experienced electronics personnel should open the PC chassis.
-
Page 7: Introduction
1 Introduction 1.1 Unpacking Check and identify the supplied accessories Quick Start Guide Driver CD (Hardcopy) Varies by product FA30-210: 91521110101W specifications 9171111I103L AC Adapter Terminal Block 2 pin Power Cord (12V/ 50W) to DC jack 922D050W12VA Varies by country 94J602G020K0 - 7 -... -
Page 8: Description Of Parts
1.2 Description of Parts R15FA3S-PTC3 Unit: mm Dimensions:352.50 x 276.70 x 45 Connectors № № Description Description RJ-45 (LAN) 12V DC in ① ⑥ *Optional PoE IEEE 802.3at (2-Pin Phoenix type) (25W) Console Port (Mini USB) for ② ⑦ USB 2.0... -
Page 9: Installation
2 Installation 2.1 Turning On Follow the following steps to turn on your device: 1. Connect one side of 2-pin terminal block to DC jack connector to the HMI. Connect the other side to the AC adapter. 2. Connect the power cord to AC adapter. 3. -
Page 10: Connecting Peripherals
2.2 Connecting Peripherals 2.2.1 Power Input Connector The DC power source input of the HMI is a 2 pin terminal block connector that supports 12V DC power input. Minimum Voltage 11.4V Maximum Voltage 12.6V Maximum Current 4.2A Voltage 2.2.2 Serial Port Connector The HMI has one serial port connector to connect your device to external devices such as mouse, modem or printer. -
Page 11: Ethernet Connector
2.2.3 Ethernet Connector The HMI supports one RJ45 10/100/1000 Mbps Ethernet interface for connecting to the internet. Pin № Pin № Signal Signal Name Name TX1+ TX1- TX2+ TX2- TX3+ TX3- TX4+ TX4- IMPORTANT: Power Device (PD): follows IEEE 802.3at (25 Watt) 2.2.4 USB 2.0 Connector Use USB A Type (USB 2.0) connector to connect your device to other USB 2.0 compatible devices. -
Page 12: Usb Otg Connector
2.2.5 USB OTG Connector Use USB OTG connector to connect the HMI to other USB On-The- Go compliant devices such as flash drives, digital cameras, mice or keyboards. Use USB OTG cable to install software on the HMI device. Signal Signal №... -
Page 13: Speaker
2.3 Speaker Speaker is located on the rear side of the display. Electrical Specifications Rated impedance 6±15% ohms@2KHz, 1 Vrms input Power Rating 0.67 W Short Term Max Power 1.3W Acoustical Specifications Sound Pressure Level 75±3dB/40cm@1kHz - 13 -... -
Page 14: Getting Started
3 Getting Started The R15FA3S-PTC3 runs on Android 6.0 OS (Default). 3.1 Home Screen Your device runs on Android 6.0 Operation System (Default). Navigation Buttons - 14 -... - Page 15 Back Opens the previous screen you were working in, even if it was in a different app. Once you back up to the Home screen, you can’t go back any further. Home Returns to the Home screen. To get suggestions based on the screen you’re currently viewing, touch &...
-
Page 16: Quick Settings
3.2 Quick Settings You can open your device’s Settings app from the All Apps screen or from Quick Settings. For example, to change notification sounds, and volume go to Settings > Device > Sound to change the volume. Use Quick Settings to easily change frequently used settings, like turning on Wi-Fi. - Page 17 Open the main Settings menu by touching Settings at the top right. - 17 -...
-
Page 18: Configuring Serial Port Settings
3.3 Configuring Serial Port Settings Serial COM Port can be configured for RS-232, RS-422 or RS-485. Winmate provide COM port settings application for Android OS. To configure serial port settings: 1. Settings > Accessibility. 2. Accessibility > System: Comport-Setting. - 18 -... - Page 19 3. Comport-Setting > Comport 1/ Comport 2/ Comport 3 * Select Comport 1/ Comport 2/ Comport 3 that you want to configure. 4. Comport 1 > RS232/RS422/RS485 * Configure Comport 1 settings - 19 -...
-
Page 20: Brightness Adjustment
3.4 Brightness Adjustment You can adjust the screen brightness in Android settings. Pull down from the top of the screen to get the notifications area. You can also access display settings in the settings menu. To adjust the brightness of the screen: 1. -
Page 21: Ethernet
3.5 Ethernet 1. Connect Ethernet Cable to the HMI. 2. Touch All APPS icon, and the open Ethernet application. 3. Ethernet APP main menu appears - 21 -... -
Page 22: Configuring Ethernet Settings
3.5.1 Configuring Ethernet Settings Go to All Apps > Ethernet > Configure Ethernet *Ethernet OFF is set by default. Swipe Ethernet ON to activate Ethernet connection. Connection Type Setting Description DHCP The device automatically capture IP-address from the router Static IP Allows to manually set up IP-address, DNS, Network and Gateway - 22 -... -
Page 23: Configuring Ethernet
3.5.2 Configuring Ethernet To check Ethernet settings: Go to All Apps > Ethernet > Check Ethernet Ethernet settings menu appears on the top right side of the desktop. - 23 -... -
Page 24: Winmate® Home Manager (Whm)
3.6 Winmate® Home Manager (WHM) Winmate® HMI running on Android OS comes with preinstalled APP named Winmate® Home Manager (WHM) which let the device manager to lock the launcher then the user can only use one application assigned by the device manager. - Page 25 Menu Description Set which app you want to run up automatically Home Manager after booting Password Set the WHM password (Default password is “0000”). Manager About Displays information about Home Manager 2. Go to “Application Selector”, and choose the app which you want to run up automatically after booting.
- Page 26 3. Go back to “Home Selector” and press “Clear and Reset Default Home”. 4. Select “Restrict Home” and “Always”, and then restart the computer to enable these settings. The system will automatically start the application which you selected and lock it. Any time user presses home key or back key; the system will go back to the same application which you have selected.
-
Page 27: How To Unlock Applications
3.6.2 How to Unlock Applications Follow the instruction below to reset Home Manager. 1. If you want to reset the home manager, pull down the left side to open the status bar and open HomeManager. 2. System will request the password to login. Touch OK. - 27 -... -
Page 28: How To Change Password
Default password is “0000”. 3. Restart the system and you will go back to the normal Launcher. 3.6.3 How to Change Password To change the password: 1. Go to Password Manager and set your own password for this APP. 2. The default password is “0000”. Enter a new password in New Password field, and then tap Change Password. -
Page 29: Appendix A: Product Specifications
Appendix A: Product Specifications Model Name R15FA3S-PTC3 15” TFT Size/Type Resolution 1024 x 768 Brightness Contrast Ratio 700:1 (typ.) Display Viewing Angle ~80~80 (H); ~80~80 (V) Max Colors 16.2M Front Side Glass Yes (Optional) Touch Projected Capacitive Touch (Default) Freescale® Cortex A9 i.MX6 Dual Core... - Page 30 NOTES _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________...
- Page 31 NOTES _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________...
- Page 32 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 24158, Taiwan, R.O.C Tel: 886-2-8511-0288 Fax: 886-2-8511-0211 Email: sales@winmate.com.tw Official website: www.winmate.com...
