Assa Abloy EMTEK Installation Manual

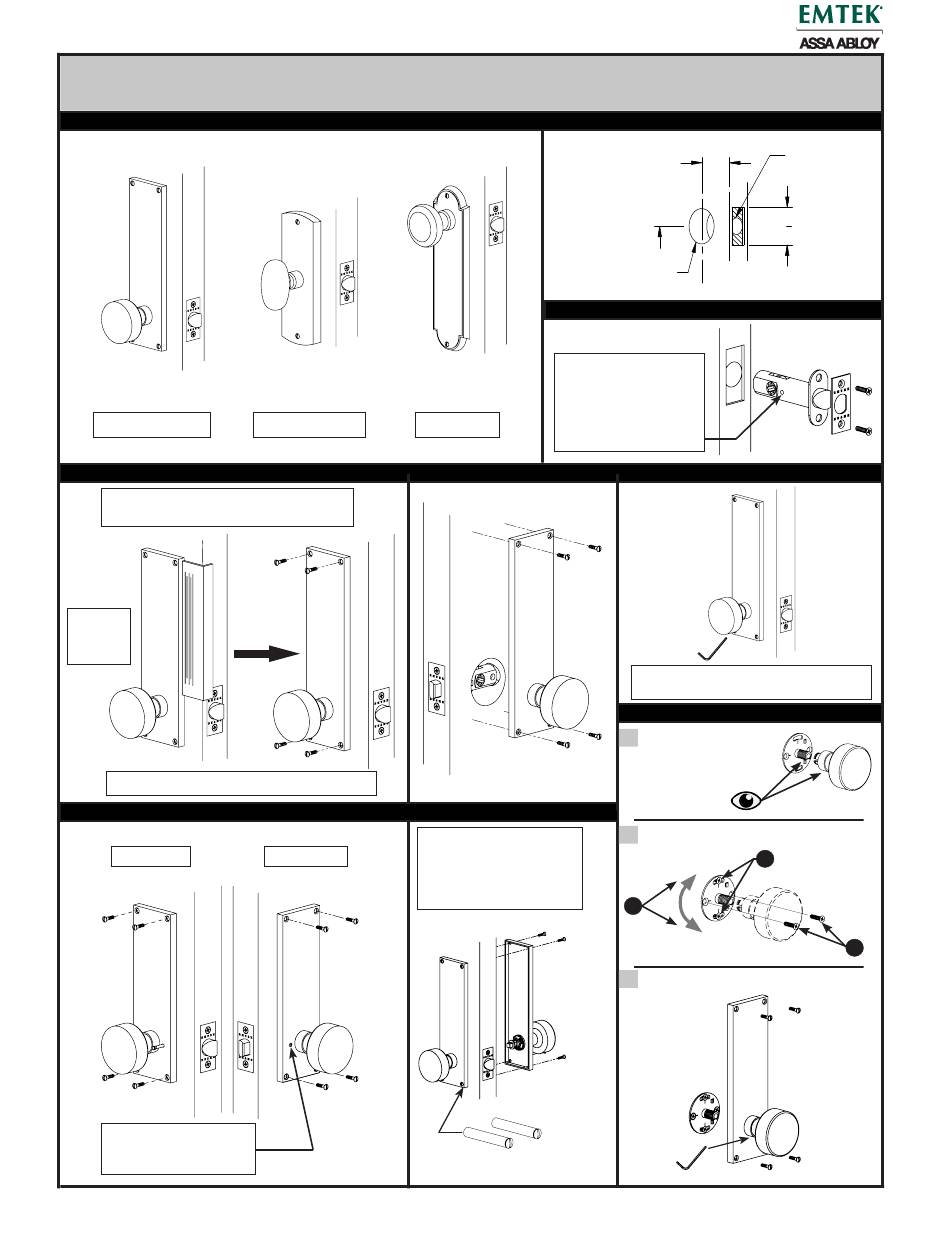

Installation Guide - Non-Keyed plates: Knob
IMPORTANT!: Knob location on the sideplate (Top, middle, bottom) varies depending on style.
1. Determine knob location & plate orientation
BOTTOM
4. Mount Inside Trim Plate
Prior to drilling holes, align side plate
using Edge Guide (provided).
Edge
Guide
Provided
Plates and knobs vary depending on style
Privacy Function
Inside
Make sure the release
hole lines up with the
privacy pin.
Determine proper orientation BEFORE drilling holes.
MIDDLE
5. Mount Outside Trim Plate
Optional Thru Bolts
Outside
may be used on hollow
doors instead of wood
screws (also provided).
2. Door Prep
3. Install latch
For Privacy function:
Threaded hole for the
privacy pin must face
the interior side of the
TOP
Thru bolts (provided)
IN4-NKEYPLTSKNB REV. 19A
2-3/8"
1" Dia.
or
Edge Bores
2-3/4"
2 1 4 "
2-1/8" Dia.
Bores
door.
6. Tighten Knob
After lock has been installed tighten
set screw with Allen Wrench.
Dummy plate
1
Align Mounting
plate (sideplate not
shown for clarity)
2
Install Mounting Plate & Adjust for level
1
2
3
Install Sideplate
3
11-22-19
