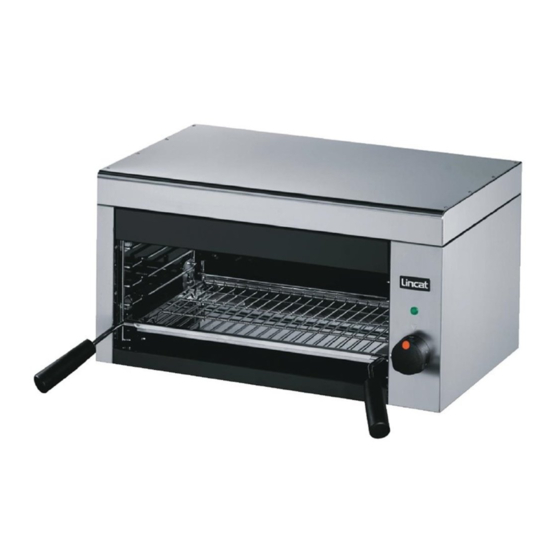

Silverlink 600 Gas Salamander Grills
GR3 and GR7
IS476 ECN4597
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Silverlink 600 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Lincat Silverlink 600 Series

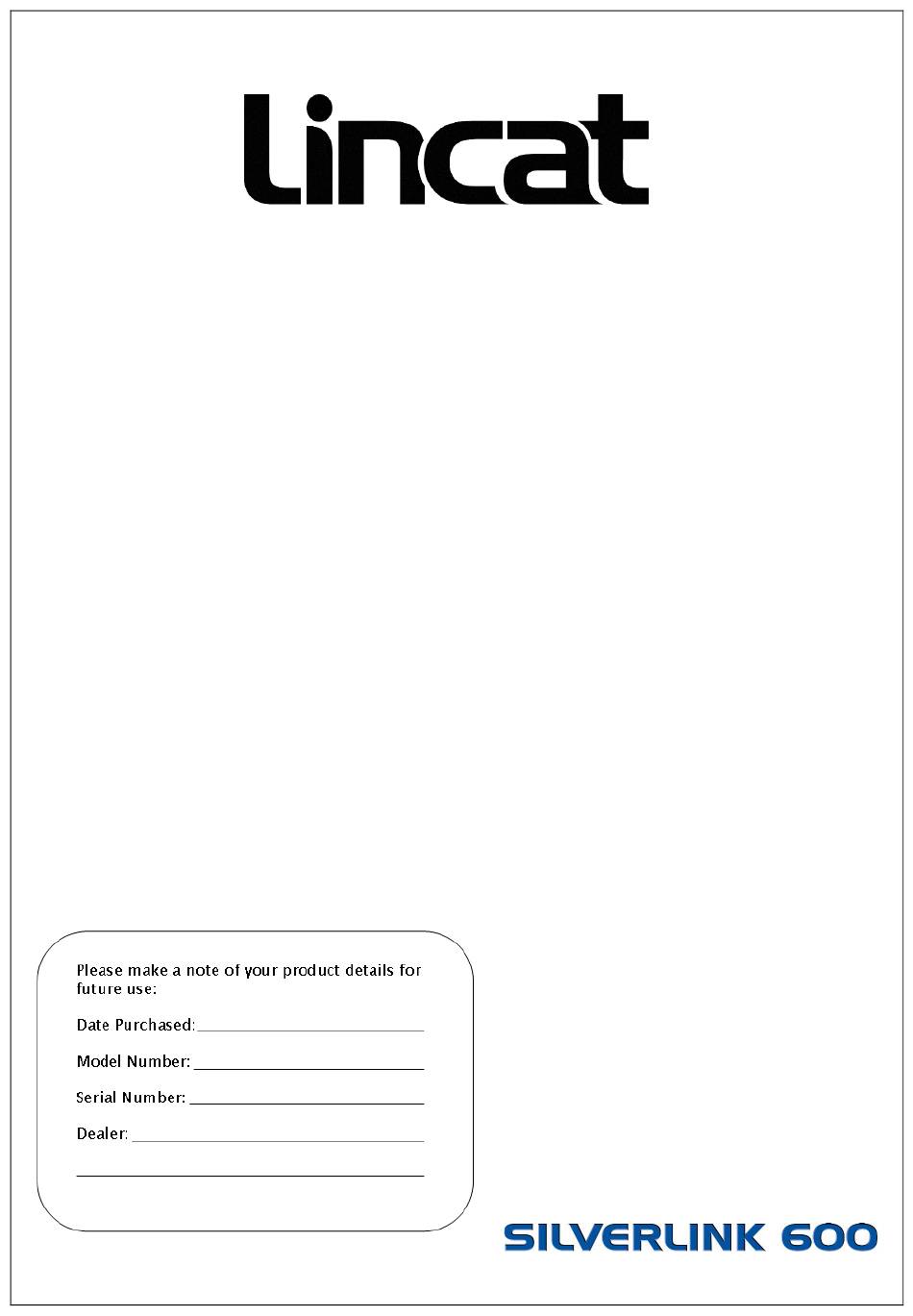

  • Page 1 User, Installation and Servicing Instructions Silverlink 600 Gas Salamander Grills GR3 and GR7 IS476 ECN4597...
  • Page 2: Customer Information

    Details are available from your local distributor or direct from us. Used for the purposes for which it is intended, and with careful maintenance as outlined in this User Guide, your Lincat product will give you years of trouble free service. IMPORTANT INFORMATION Please read all of the safety and operating instructions carefully before using this product.
  • Page 3: Table Of Contents

    CONTENTS Contents Page Customer Information………………………………………………………. Warnings and Precautions………………………………………………… Technical Data……………………………………………………………….. Commissioning………………………………………………………………. 5 Check List of Enclosures………………………………………………….. Installation…………………………………………………….……………… User…………………………………………………………………………….. 7 Servicing ……………………………………………………………………… Component Replacement ………………………………………….……… 10 Spare Parts List……………………………………………………………… 11 Fault Finding…………………………………………………………………. 11 Accessories…………………………………………………………………… 12 Service information………………………………………………………….. 13 Guarantee………………………………………………………….………….. 13 WARNINGS AND PRECAUTIONS It is mandatory that all appliances are installed, commissioned and serviced by a qualified and competent person as defined by the regulations in force in the country of installation.
  • Page 4: Technical Data

    TECHNICAL DATA Model Dimensions Overall height (mm) Width (mm) Depth, excl. handles (mm) Weight (kg) Cooking Surface – w x d (mm) 415 x 230 (grill shelf) 590 x 320 (branding plate) Heat Input - Gross Natural Gas 5.0kW 6.5kW Propane Gas 5.0kW 6.8kW...
  • Page 5: Commissioning

    Branding Plate Instruction Manual SERIAL NUMBER Each appliance manufactured at Lincat has a unique identifying number found in NOTE the top right hand corner of the data plate attached at the rear of the appliance. Please record that number in the space provided should it be required for future reference.
  • Page 6: Installation

    INSTALLATION SITING  The installer must ensure that all regulations are met and that there is an unobstructed minimum distance of 300mm from the top of the flue to the extraction canopy, which must be of non-combustible material.  A combustion check should be carried out along with a check of flame stability. If these are found to be compromised or unstable then the appliance must be positioned lower.
  • Page 7: User

    A branding plate and drip tray for the GR3 model are available as an accessory part number APB03. INSTRUCTION TO USER Ensure that the person responsible understands how to light, safely operate, clean and shutdown the appliance and is made aware of the position and operation of the gas isolating cock in the event of an emergency.
  • Page 8 For grilling, the best results are obtained with the branding plate in an angled position to allow for drainage of fats and juices to be collected in the debris tray. When grilling the product should be handled with suitable tongs. The use of branding plates requires pre-heating to obtain successful results.
  • Page 9: Servicing

    BRANDING GRID TRAY CRUMB/DEBRIS TRAY SERVICING Visual Inspection shall determine that:-  Branding plate is kept clean and excessive carbon build up has been removed.  Debris collection tray is in an acceptable clean condition.  Crumb tray is kept clean. ...
  • Page 10: Component Replacement

     From the front of the appliance carefully remove the two screws securing the niting cap on the valve body.  Withdraw the spindle from the valve and grease as necessary.  Reassemble parts in reverse order.  Perform soundness check for leaks. Thermocouple Servicing - Recommended every 6 months ...
  • Page 11: Spare Parts List

    Valve  Loosen the burner feed pipe nut T and the thermocouple lock nut N.  Remove the control knob R from the valve spindle.  Loosen the valve clamp screws from the manifold.  Free the valve from the pipe work and manifold. ...
  • Page 12: Accessories

    ACCESSORIES WALL SHELF GR3/WS GR7/WS FLOOR STAND GR3/FS GR7-FS IS476 ECN4597...
  • Page 13: Service Information

    Gas Appliance Regulations 2016/426. GUARANTEE This unit carries a comprehensive UK mainland warranty. The guarantee is in addition to, and does not diminish your statutory or legal rights. Contact Lincat for terms and conditions The guarantee does not cover:  Accidental damage, misuse or use not in accordance with the manufacturer’s...
  • Page 14  Consumable items (such as filters, glass, bulbs, slot toaster elements and door seals.)  Damage due to incorrect installation, modification, unauthorised service work or damage due to scale, food debris build-up, etc. The manufacturer disclaims any liability for incidental, or consequential damages. Attendance is based on reasonable access to the appliance to allow the authorised personnel to carry out the warranty work.

This manual is also suitable for:

Gr3Gr7
