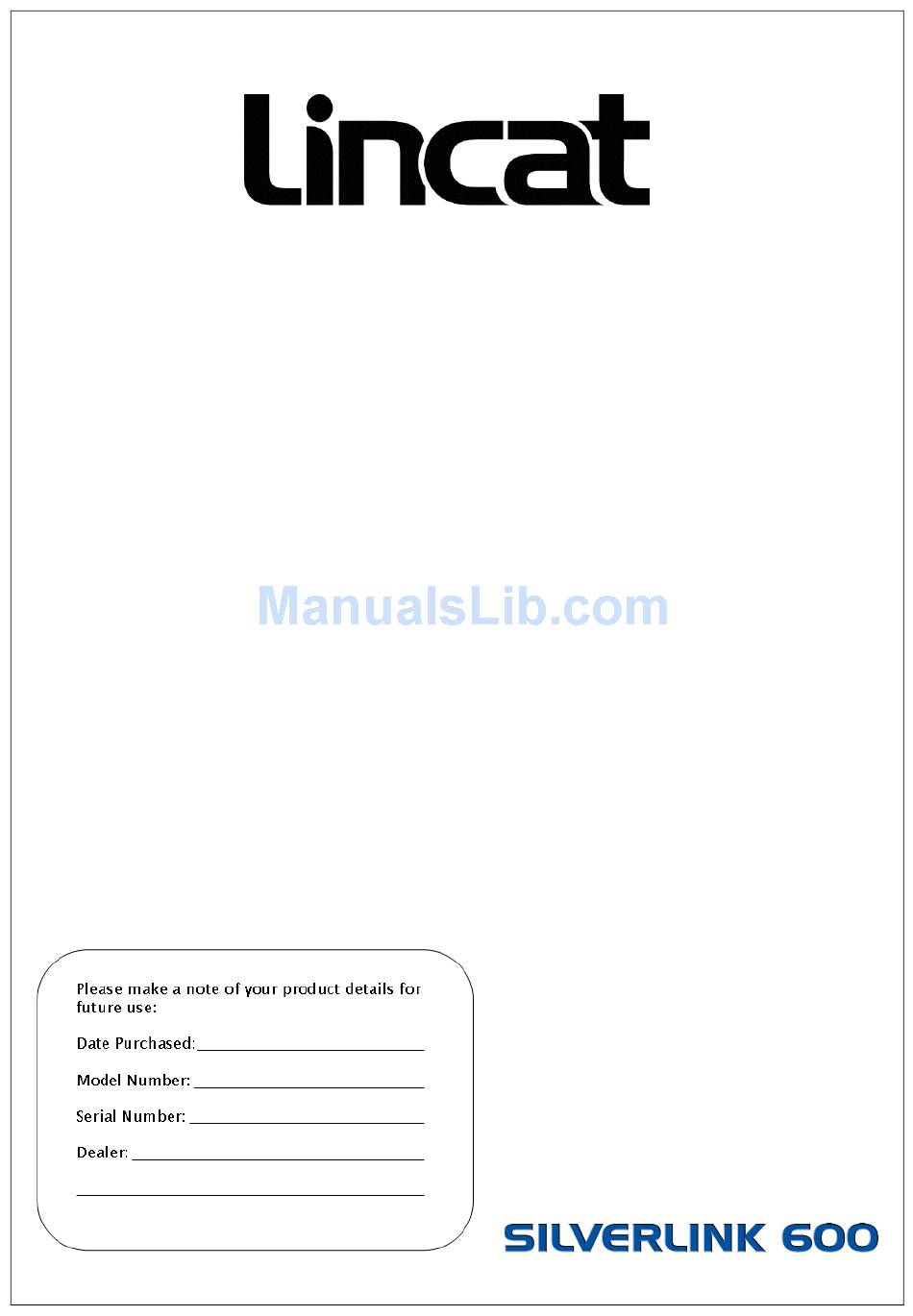

- Page 1 User, Installation and Servicing Instructions Silverlink 600 Gas Salamander Grills GR3 and GR7 IS330 ECN3592...
-
Page 2: Customer Information
Details are available from your local distributor or direct from us. Used for the purposes for which it is intended, and with careful maintenance as outlined in this User Guide, your Lincat product will give you years of trouble free service. IMPORTANT INFORMATION Please read all of the safety and operating instructions carefully before using this product. -
Page 3: Table Of Contents
CONTENTS Contents Page Customer Information………………………………………………………. 2 Warnings and Precautions………………………………………………… 3 Technical Data……………………………………………………………….. 4 Commissioning………………………………………………………………. 5 Check List of Enclosures………………………………………………….. 5 Installation…………………………………………………….……………… 6 User…………………………………………………………………………….. 7 Servicing ……………………………………………………………………… 8 Component Replacement ………………………………………….……… 9 Spare Parts List……………………………………………………………… 10 Fault Finding…………………………………………………………………. 10 Service information………………………………………………………….. 11 Guarantee………………………………………………………….………….. -
Page 4: Technical Data
TECHNICAL DATA Model Dimensions Overall height (mm) Width (mm) Depth, excl. handles (mm) Weight (Kg) Cooking Surface – w x d (mm) 415 x 230 (grill shelf) 590 x 320 (branding plate) Heat Input - Gross Natural Gas 5.0kW 6.5kW Propane Gas 5.0kW 6.8kW... -
Page 5: Commissioning
Branding Plate Manuals of Instruction SERIAL NUMBER Each appliance manufactured at Lincat has a unique identifying number found in NOTE the top right hand corner of the data plate attached at the rear of the appliance. Please record that number in the space provided should it be required for future reference. -
Page 6: Installation
(GR3/FS, GR7/FS) are optional accessories available for these units. Should an alternative to these accessories be used, please ensure that the mounting is stable and of a non- combustible material. A branding plate and drip tray for the GR3 model are available as an accessory part number APB03. INSTRUCTION TO USER... -
Page 7: User
USER INSTRUCTION APPLIANCE USE This appliance is only for professional use and should only be used by qualified personnel. Ensure that the person responsible understands how to light, safely operate, clean and shutdown the appliance and is made aware of the position and operation of the gas isolating cock in the event of an emergency. -
Page 8: Servicing
SERVICING SERVICE ACCESS General Access • Remove the two screws at the rear of the hood ‘A'. • Slide the hood farward to free the hood from the key-hole slots in the side panels. • Access to the test nipple can be made from the top of the appliance. -
Page 9: Component Replacement
COMPONENT REPLACEMENT Access to gas circuit components can be made when the hood and side panel are removed as described earlier. Burner • Remove the six burner retaining screws (not shown) and lift the burner Z from the support bracket. •... -
Page 10: Spare Parts List
VA11 Thermocouple Split Nut TC07 TC07 Thermocouple TC03 TC03 Grill Shelf SH86 SH85 Base Drip Tray (option on GR3) SA399 SA389 Control Knob KN188 KN188 Optional Piezo Ignitor Wand SI13 SI13 FAULT FINDING Burner will not light or stay lit •... -
Page 11: Service Information
Gas catering equipment should be routinely serviced to ensure a long trouble free life. It is recommended that this appliance is serviced every 6 months by a competent gas engineer. For help regarding the installation, maintenance and use of your LINCAT equipment, please call:-... - Page 12 IS330 ECN3592...
