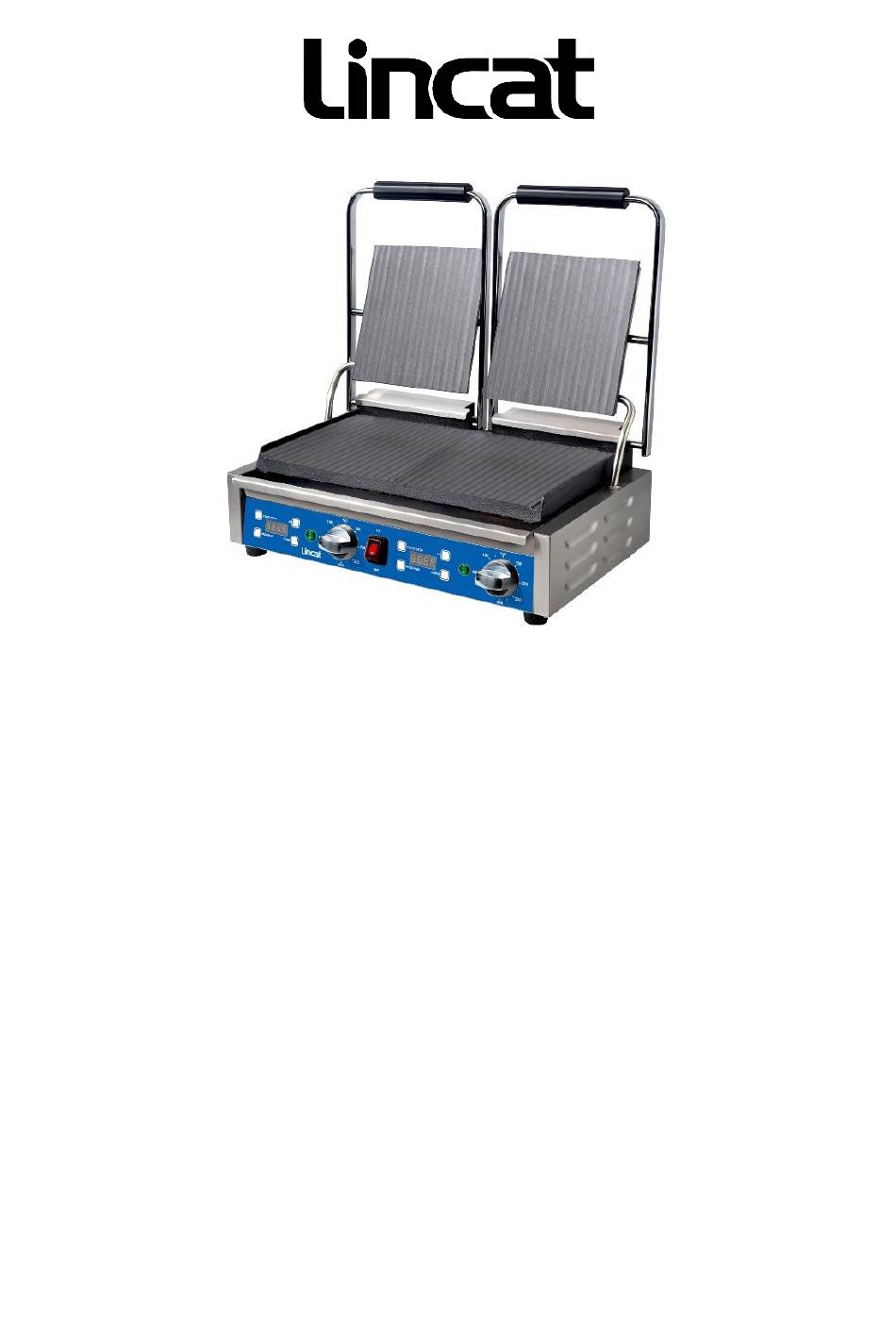

Electric Counter Top Contact Grill
Model: LPPGRRT LPCGFFT LPPG2RRT LPCG2FFT
LPPGRR LPCGFF LPPG2RR
Installation and Operation Instructions
NOTICE: This manual contains important safety instructions which
must be strictly followed when using this equipment.
CAUTION: These models are designed, built, and sold for commercial
use only. If these models are positioned so the general public can use the
equipment, make sure that cautions, warnings, and operating instructions
are clearly posted near each unit so that anyone using the equipment will
use it correctly and not injure themselves or harm the equipment.
.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lincat LPPGRRT
Summary of Contents for Lincat LPPGRRT
- Page 1 Electric Counter Top Contact Grill Model: LPPGRRT LPCGFFT LPPG2RRT LPCG2FFT LPPGRR LPCGFF LPPG2RR Installation and Operation Instructions NOTICE: This manual contains important safety instructions which must be strictly followed when using this equipment. CAUTION: These models are designed, built, and sold for commercial use only.
- Page 2 LINCAT. Congratulations on your purchase of LINCAT commercial cooking equipment. LINCAT takes pride in the design and quality of our products. When used as intended and with proper care and maintenance, you will experience years of reliable operation from this equipment.
-
Page 3: Table Of Contents
Installation and Operation Instructions Catalogue FOREWORD ……………………………………………………4 … SAFETY TIPS………………………………………………….… 5 INTRODUCTION …………………………………………………6 PACKAGING …………………………………………………… 6 … INSTALLATION ………………………………………………… 7 … OPERATION ………………………………………………………7 CLEANING AND MAINTENANCE………………………………9 USING THE TIMER…… ………………………………………10 … TROUBLE SHOOTING …………………………………………12 COMPLIANCE……………………………………………………13 ELECTRICAL DIAGRAM …………………………………… 14 … EXPLOSION VIEW ……………………………………………17 …... -
Page 4: Location Of Data Plate
Installation and should be performed by a qualified installer who thoroughly reads, understands and follows this instruction. If you have questions concerning the installation, operation, maintenance or service of this product, contact LINCAT. -
Page 5: Safety Tips
Do not remove any components or service panels on this product. *LINCAT takes every care to ensure that all products are safe. Steel cutting procedures used to manufacture these items result in sharp edges. These sharp edges are removed to the best of our ability however we insist the operator takes care when in contact with this piece of equipment. -
Page 6: Introduction
*The machine has not been handled and cleaned correctly. *There is any use damage to the unit. Packaging LINCAT prides itself on quality and service, ensuring that at the time of packing all of its products are supplied fully functional and free of damage. -
Page 7: Installation
Remove your LINCAT Contact Grill from its packaging and be certain that all protective plastics and residues are thoroughly cleaned from its surface. Locate your LINCAT Contact Grill on a firm level surface; the adjustable feet can assist in leveling. International standards and regulations should be consulted in order to abide by standards set in relation to positioning, spacing and ventilation. - Page 8 This will assist in reducing power consumption and also allow for quicker heat response when needed. LINCAT recommends that the cooking surface is lightly greased, before each use. Simply place the food products on the bottom grilling surface and lower the top plate down and cook to your needs.
-
Page 9: Cleaning And Maintenance
Installation and Operation Instructions Cleaning, Care and Maintenance Switch the power off and disconnect from mains. *The Contact Grill should be cleaned regularly throughout use, and thoroughly cleaned after each meal period, regular cleaning will result in easier cleaning, as the buildup will be less. Correct preparation of the cooking surface when first used will assist in keeping the plate clean, this will reduce the amount of food wastage sticking to the plate. -
Page 10: Using The Timer
Installation and Operation Instructions Using the Timer The digital timer with audible alarm can be set from 1 second to 15 minutes Note: The timer provides an audible alarm after the set time expires. It provides no electrical control over the unit START/STOP: Press START/STOP to start timer, press again to stop. - Page 11 Installation and Operation Instructions To change the length of a program, select the program you want to change by scrolling using the PROGRAM button. Adjust the program time by using the UP and DOWN buttons. Press START/STOP to commence the countdown. The new program time will be automatically stored.
-
Page 12: Trouble Shooting
Installation and Operation Instructions Trouble Shooting LPPGRRT LPCGFFT LPPG2RRT LPCG2FFT Contact Grills LPPGRR LPCGFF LPPG2RR Problem Cause Remedy 1.Check mains power 1.Mains power supply supply 2.Power switch has not 2.Check the unit is correctly been turned on plugged in and turned on 3.Call service agent or... -
Page 13: Compliance
LINCAT parts have undergone strict product testing in order to comply with regulatory standards and specifications set by international, independent, and federal authorities. -
Page 14: Electrical Diagram
Installation and Operation Instructions Electrical Diagram Model: LPPGRRT LPCGFFT... - Page 15 Installation and Operation Instructions Model: LPPG2RRT LPCG2FFT Model: LPPGRR LPCGFF...
- Page 16 Installation and Operation Instructions Model: LPPG2RR The above circuit diagram has been provided to assist qualified technicians, LINCAT agents or Recommended Qualified Technicians should carry out repairs if needed. Do not remove any components or service panels on this product.
-
Page 17: Explosion View
Installation and Operation Instructions Explosion View MODEL: LPPGRRT LPCGFFT... - Page 18 Installation and Operation Instructions MODEL: LPPG2RRT LPCG2FFT...
- Page 19 Installation and Operation Instructions MODEL: LPPGRR LPCGFF...
- Page 20 Installation and Operation Instructions MODEL: LPPG2RR...
-
Page 21: Spare Parts List
Installation and Operation Instructions Spare Parts List MODEL： LPPGRRT LPCGFFT SUPPLIER CODE DESCRIPTION QTY. 20711.6270 Top Cover 20711.6191 Hardware Assembly(top) 20711.6206 Element Fixing Plate(top) 10901.6036 Heating Element(top) 10502.6012 ADUSTABLE BRACKET 10502.6053 Handle Assembly for 10401.6052 Cast Plate(top/flat) 10401.6062 Cast Plate(top/rib) 20711.6117... - Page 22 Installation and Operation Instructions 10704.6268 Dial 10107.6033 Indicator Light(green) 20302.6111 Time Assy 10105.6017 Switch MODEL： LPPG2RRT LPCG2FFT SUPPLIER CODE DESCRIPTION QTY. 20711.6271 Top Cover 20711.6184 Hardware Assembly 20711.6207 Element Fixing Plate 10502.6025 ADUSTABLE BRACKET 10901.6037 Heating Element(top) 10502.6054 Handle Right 10401.6043 Cast Plate(top/Left/rib) 10401.6039...
- Page 23 Installation and Operation Instructions 20801.6030 Plug&Lead 10901.6038 Element(below) 20711.6176 Hardware Assembly 20711.6194 Base Board 10704.6162 Feet 10105.6017 Switch 10704.6268 Dial 10108.6006 Thermostat 10107.6033 Indicator Light(green) 20302.6111 Time Assy 20711.6113 Oil Tank 10502.6055 Handle Left MODEL：LPPGRR LPCGFF SUPPLIER CODE DESCRIPTION QTY. 20711.6271 Top Cover 20711.6185...
- Page 24 Installation and Operation Instructions 20711.6185 Hardware Assembly(below) 10106.6003 Breaker 10704.6056 Stick 20711.6235 The breaker fixed plate assembly 10704.6088 Plastic cover 20711.6237 Main Body Assy 20502.6019 Plug&Lead 10704.6162 Feet 20711.6195 Base Board 10108.6006 Thermostat 10704.6268 Dial 10107.6033 Indicator Light(green) 10105.6017 Switch 20711.6050 Oil Tank MODEL：...
- Page 25 Installation and Operation Instructions 10401.6070 Cast Plate(below/rib) 10401.6071 Cast Plate(below/flat) 10401.6069 Cast Plate(below/rib/flat) 10106.6003 Breaker 10704.6056 Stick The breaker fixed plate 20711.6235 assembly 10704.6088 Plastic cover 20711.6238 Main Body Assy 20801.6030 Plug&Lead 10901.6038 Element(below) 20711.6176 Hardware Assembly 20711.6194 Base Board 10704.6162 Feet 10105.6017...
-
Page 26: Specification
Installation and Operation Instructions Specifications DIMENSIONS(MM) GRILL TYPE POWER MODEL VOLTAGE WIDTH DEPTH HEIGHT TOP BOTTOM LPCGFFT 2200 flat flat LPPGRRT 2200 LPPG2RRT 2900 rib/rib rib/rib 220-240V~ LPPG2RR 50HZ LPCG2FFT 2900 flat/flat flat/flat LPPGRR 2200 LPCGFF 2200 flat flat... - Page 28 Lincat, if not, the warranty may be void. ATTENTION Any parts that aren’t made by Lincat may void warranty. ATTENTION Lincat and manufacturer of Lincat keep the right to modify the product. Lincat Limited Whisby Road Lincoln LN6 3QZ United Kingdom Version A...
