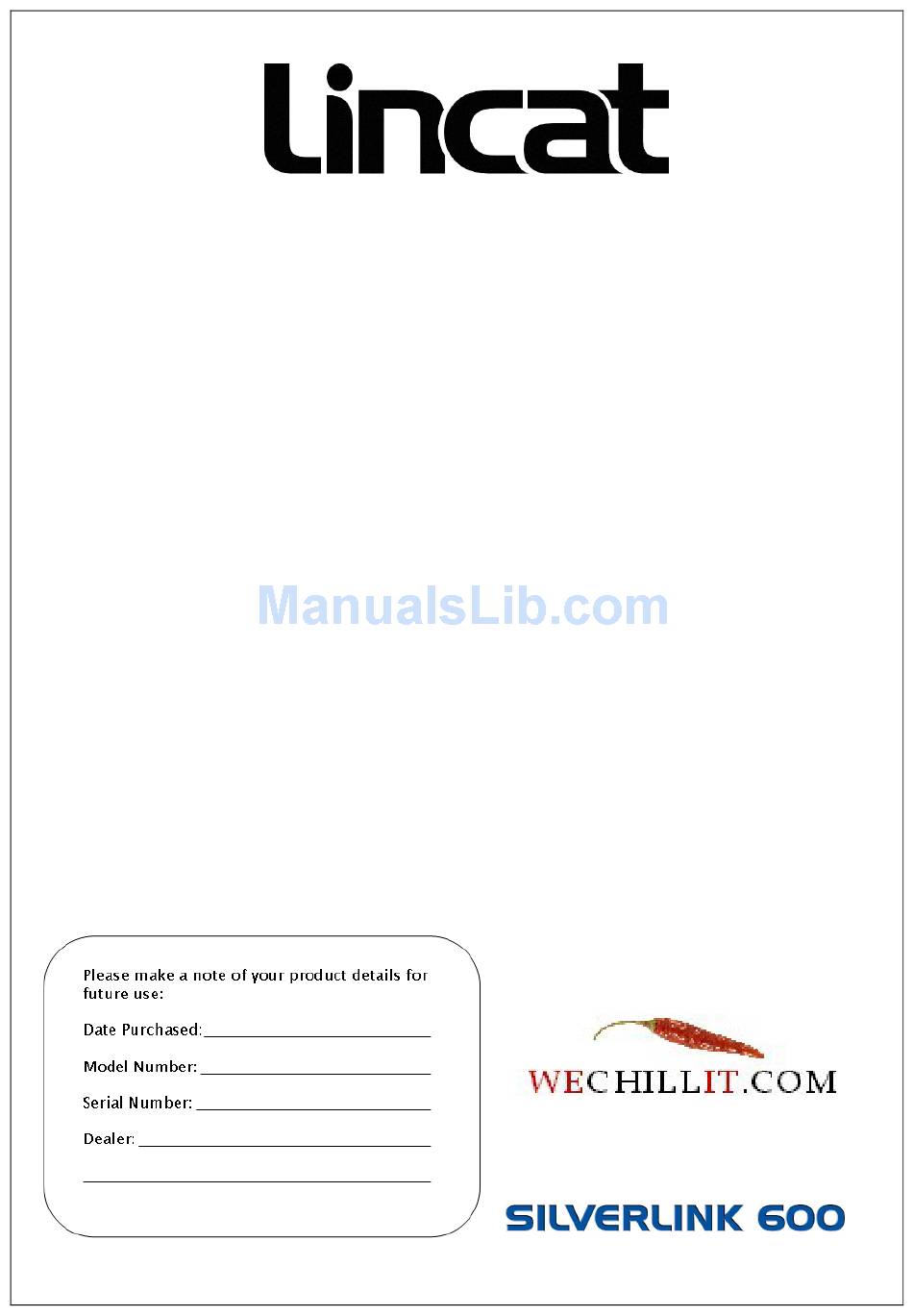

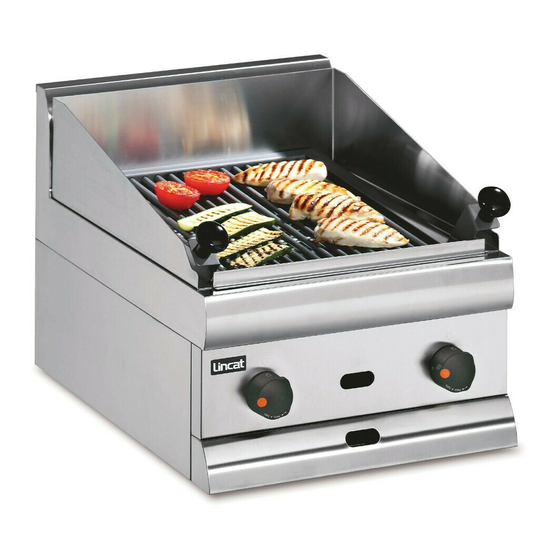

- Page 1 User, Installation and Servicing Instructions Silverlink 600 Gas Chargrills CG4 and CG6 IS205 ECN3592...
-
Page 2: Customer Information
Details are available from your local distributor or direct from us. Used for the purposes for which it is intended, and with careful maintenance as outlined in this User Guide, your Lincat product will give you years of trouble free service. IMPORTANT INFORMATION Please read all of the safety and operating instructions carefully before using this product. -
Page 3: Table Of Contents
CONTENTS Contents Page Customer Information………………………………………………………. 2 Warnings and Precautions………………………………………………… 3 Technical Data……………………………………………………………….. 4 Commissioning………………………………………………………………. 4 Check List of Enclosures………………………………………………….. 4 Serial Number…………………………………………………….………….. 5 Installation…………………………………………………….……………… 5 User…………………………………………………………………………….. 6 Servicing ……………………………………………………………………… 7 Component Replacement ………………………………………….……… 8 Spare Parts List……………………………………………………………… 9 Fault Finding…………………………………………………………………. 9 Service information………………………………………………………….. -
Page 4: Technical Data
TECHNICAL DATA Model Dimensions Overall height (mm) Width (mm) Depth (mm) Weight (kg) 27kg (Nett) 35kg (Nett) Hob cooking surface w x d (mm) 325 x 440 475 x 440 Heat Input Total heat input Natural(Gross) 14.3 kW 14.3 kW Total heat input Propane(Gross) 14.5 kW 14.5 kW... -
Page 5: Serial Number
SERIAL NUMBER Each appliance manufactured at Lincat has a unique identifying number found in the top right NOTE hand corner of the data plate attached at the rear of the appliance. Please record that number in the space provided should it be required for future reference. -
Page 6: User
USER INSTRUCTION APPLIANCE USE This appliance is only for professional use and should only be used by qualified personnel. Ensure that the person responsible understands how to light, safely operate, clean and shutdown the appliance and is made aware of the position and operation of the gas isolating cock in the event of an emergency. -
Page 7: Servicing
SERVICING SERVICE ACCESS To access and service the gas control valves Remove the control knobs and fascia panel to gain access to the valves. Remove the two screws securing the valve boss and carefully withdraw the spindle from the valve. ... -
Page 8: Component Replacement
COMPONENT REPLACEMENT Thermocouple Remove the control knobs and fascia panel. Loosen the the thermocouple nut (HH) at the rear of the valve (FF) Remove the lock nut (EE) at the bracket (NN). Remove the thermocouple. Fit the new thermocouple and re-assemble in the reverse order. Burner ... -
Page 9: Spare Parts List
Injector Remove the control knobs and fascia panel. Loosen the burner pipe nut (JJ) at the valve (FF) and at the elbow (LL). Remove the screws at the elbow retaining bracket (KK). Remove the injector (MM) with the copper and fibre washers. ... -
Page 10: Service Information
Gas catering equipment should be routinely serviced to ensure a long trouble free life. It is recommended that this appliances is serviced every 6 months by a competent gas engineer. For help regarding the installation, maintenance and use of your LINCAT equipment, please call:- LINCAT SERVICE HELP DESK ...
