Installation, Operating and Servicing
Instructions

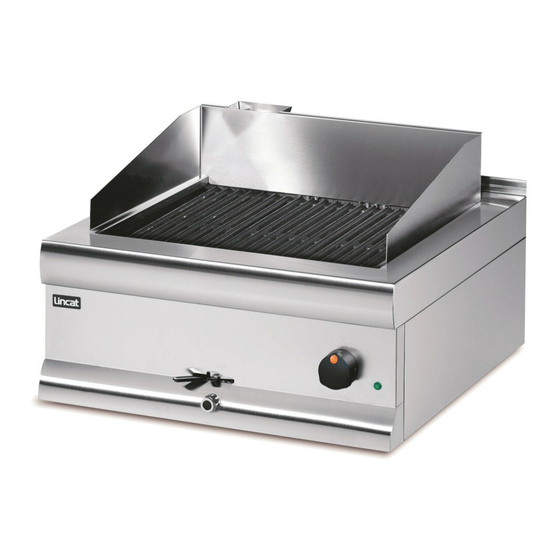

Silverlink 600 Electric Chargrills
ECG6, ECG9, ECG9/WT
Please make a note of your product details for
future use:
Date Purchased:_________________________
Model Number:__________________________
Serial Number:__________________________
Dealer:_________________________________
_______________________________________
IS 401 ECN 3607
Page 1 of 9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Silverlink 600 ECG6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Lincat Silverlink 600 ECG6

  • Page 1 Installation, Operating and Servicing Instructions Silverlink 600 Electric Chargrills ECG6, ECG9, ECG9/WT Please make a note of your product details for future use: Date Purchased:_________________________ Model Number:__________________________ Serial Number:__________________________ Dealer:_________________________________ _______________________________________ IS 401 ECN 3607 Page 1 of 9...
  • Page 2: Table Of Contents

    WARNING! This symbol is used whenever there is a risk of personal injury. CAUTION! This symbol is used whenever there is a risk of damaging your Lincat product. NOTE: This symbol is used to provide additional information, hints and tips.
  • Page 3: Warnings And Precautions

    WARNINGS AND PRECAUTIONS This appliance must be installed, commissioned and serviced by a qualified person in accordance with national and local regulations in force in the country of installation. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person.
  • Page 4 If replacing the plug connect the terminals as follows: Green and Yellow wire Earth Blue wire Neutral N Brown wire Live Means of isolation with at least 3mm contact separation in all poles must be incorporated into the fixed wiring of this appliance. The fixed wiring insulation must be protected by insulated sleeving having a temperature rating of 60 Deg C.
  • Page 5: Operating Instructions

    Position this appliance under a fume extraction unit. Power Ratings Model Current (A) ECG6 1N~+E 36.0 3N~+E L1 12 L2 12 L3 12 ECG9 13.3 L1 23.2 L2 23.2 L3 11.6 ECG9WT 13.3 L1 23.2 L2 23.2 L3 11.6 Connection to an appropriate electrical supply is via the cable inlet in the rear panel, and must be made by a suitably qualified person.
  • Page 6 Fig 2 Place the octagonal water level indicator onto one of the element cross supports in a visible position. Ensure the drain valve is closed and add water either by the funnel at the rear left hand corner or via the mains supply control valve on the control panel (ECG9WT). Switch on the power supply - the green neon illuminates to indicate power to the appliance.
  • Page 7: Cleaning

    Do not allow the water level to fall below minimum, as this will result in the inconvenience of the safety thermostat operating, cutting off the power supply to the appliance. The thermostat may only be reset when the appliance has cooled by pressing the red button located in the rear panel.
  • Page 8: Spare Parts List

    SPARE PARTS LIST Part Number Description Used on BP22 Branding plate CO148 Connecting block ECG9, ECG9/WT CO215 Contactor EL270 Element 8kW EL276 Element 5.3kW ECG9, ECG9/WT EN10 Energy regulator FE37 Foot GA57 Element gasket KN263 Control knob LI42 Branding plate lifter ECG9, ECG9/WT NE42 Amber neon...
  • Page 9: Service Information And Guarantee

    Type number All available on serial plate  Serial number Lincat reserve the right to carry out any work under warranty, given reasonable access to the appliance, during normal working hours, Monday to Friday, 08:30 to 17:00. GUARANTEE This unit carries a comprehensive UK mainland 2 year warranty. The guarantee is in addition to, and does not diminish your statutory or legal rights.
