Installation, Operating and Servicing
Instructions

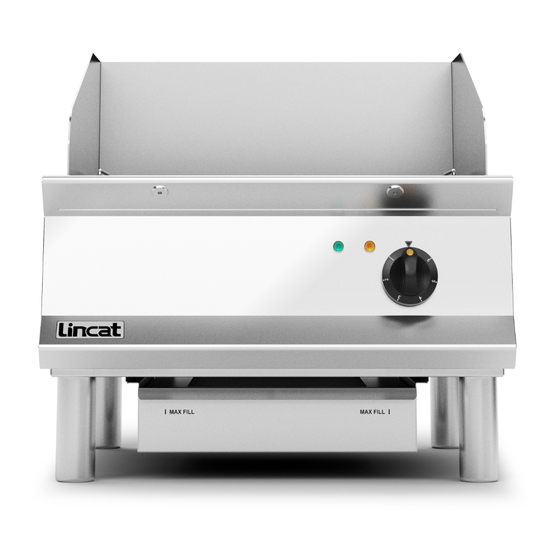

Opus 800 Electric Direct Cook Chargrills
OE8413, OE8414.
Please make a note of your product details for
future use:
Date Purchased:_________________________
Model Number:__________________________
Serial Number:__________________________
Dealer:_________________________________
_______________________________________
IS 728 ECN 4470
Page 1 of 10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Opus 800 OE8413 and is the answer not in the manual?

Questions and answers

Related Manuals for Lincat Opus 800 OE8413

Summary of Contents for Lincat Opus 800 OE8413

  • Page 1 Installation, Operating and Servicing Instructions Opus 800 Electric Direct Cook Chargrills OE8413, OE8414. Please make a note of your product details for future use: Date Purchased:_________________________ Model Number:__________________________ Serial Number:__________________________ Dealer:_________________________________ _______________________________________ IS 728 ECN 4470 Page 1 of 10...

  • Page 2: Table Of Contents

    WARNING! This symbol is used whenever there is a risk of personal injury. CAUTION! This symbol is used whenever there is a risk of damaging your Lincat product. NOTE: This symbol is used to provide additional information, hints and tips.

  • Page 3: Warnings And Precautions

    WARNINGS AND PRECAUTIONS This appliance must be installed, commissioned and serviced by a qualified person in accordance with national and local regulations in force in the country of installation. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person.

  • Page 4: Installation And Commissioning

    INSTALLATION AND COMMISSIONING This appliance must be earthed. An equipotential bonding terminal is provided to allow cross bonding with other equipment. If replacing the plug connect the terminals as follows: Green and Yellow wire Earth Blue wire Neutral N Brown wire Live Fig 1 IS 728 ECN 4470...

  • Page 5: Operating Instructions

    Means of isolation with at least 3mm contact separation in all poles must be incorporated into the fixed wiring of this appliance. The fixed wiring insulation must be protected by insulated sleeving having a temperature rating of at least 60 Deg C. Supply cords shall be oil resistant, sheathed flexible cable not lighter than ordinary polychloroprene or equivalent elastomer sheathed cord (code 60245 IEC 57) Install this appliance on a level surface ensuring all vents are unobstructed.
  • Page 6 Operating and controls Switch on the power supply at the isolating switch – the green neon will illuminate. OE8413 – The branding plates create one large cooking zone. OE8414 – The branding plates create one large cooking zone, divided into two equal areas, each independently controlled.

  • Page 7: Cleaning

    Your Lincat product has a manufacturer’s warranty. This requires you to maintain and care for your product and follow maintenance instructions. If you fail to maintain your unit or damage components Lincat may charge you for a warranty repair. Please check the website for terms and conditions.
  • Page 8 Routine Service Carry out a general check of the installation paying particular attention to the following: The suitability of the supply cable. The installation of isolation points for electricity and water. The correct operation of all components. Non leakage of the tank Component replacement Element Remove the screws securing the element to the lifting box.

  • Page 9: Fault Finding

    Contactor Remove the rear access panel to gain access to the contactor. Unclip the contactor from the bracket. Transfer the cables one at a time to the new contactor using a thin screwdriver to release the wiring clamps. Refitting is the reversal of removal. FAULT FINDING Please refer to the Service Help Desk number on the final page of this manual.

  • Page 10: Service Information And Guarantee

    Type number All available on serial plate  Serial number Lincat reserve the right to carry out any work under warranty, given reasonable access to the appliance, during normal working hours, Monday to Friday, 08:30 to 17:00. GUARANTEE This unit carries a comprehensive UK mainland 2 year warranty. The guarantee is in addition to, and does not diminish your statutory or legal rights.
