Electrical installation

The panel is fitted with a two- conductor cable for 1/N 230 V / 50 Hz with a plug for connection into a socket.
If the supply cord of the appliance is harmed, it must be replaced by producer or its service engineer or by similar qualified
person to prevent creation of a danger situation.

Panel control

With the help of the BPT- SP unit and SP2 receiver, for setting see the instruction manuals for the products. The BPT- SP unit and
the SP2 receiver are joined during manufacture.
The panel is also equipped with brake thermostat, which ensures that maximum temperature does not exceed 80°C.

Panel dismounting

Before loosening of mounting consoles, we disconnect the panel from the mains by means of double pole switch. With use of
tools, please, loosen mounting screws and lift the panel vertically upwards in such a way to loosen consoles out of screws.
Next, it is necessary to disconnect the feeder cable from the box on the wall.

Notice

Any intervention in the panel can be performed only by a qualified person. Before beginning such a work, the panel must be
disconnected from the current source. Because it is a fragile material, it is necessary to take care during transfer, handling and
mounting.
6
B1 C1 D1
(mm) (mm) (mm)
220 430 220
220 530 220
220 530 250
220 730 300

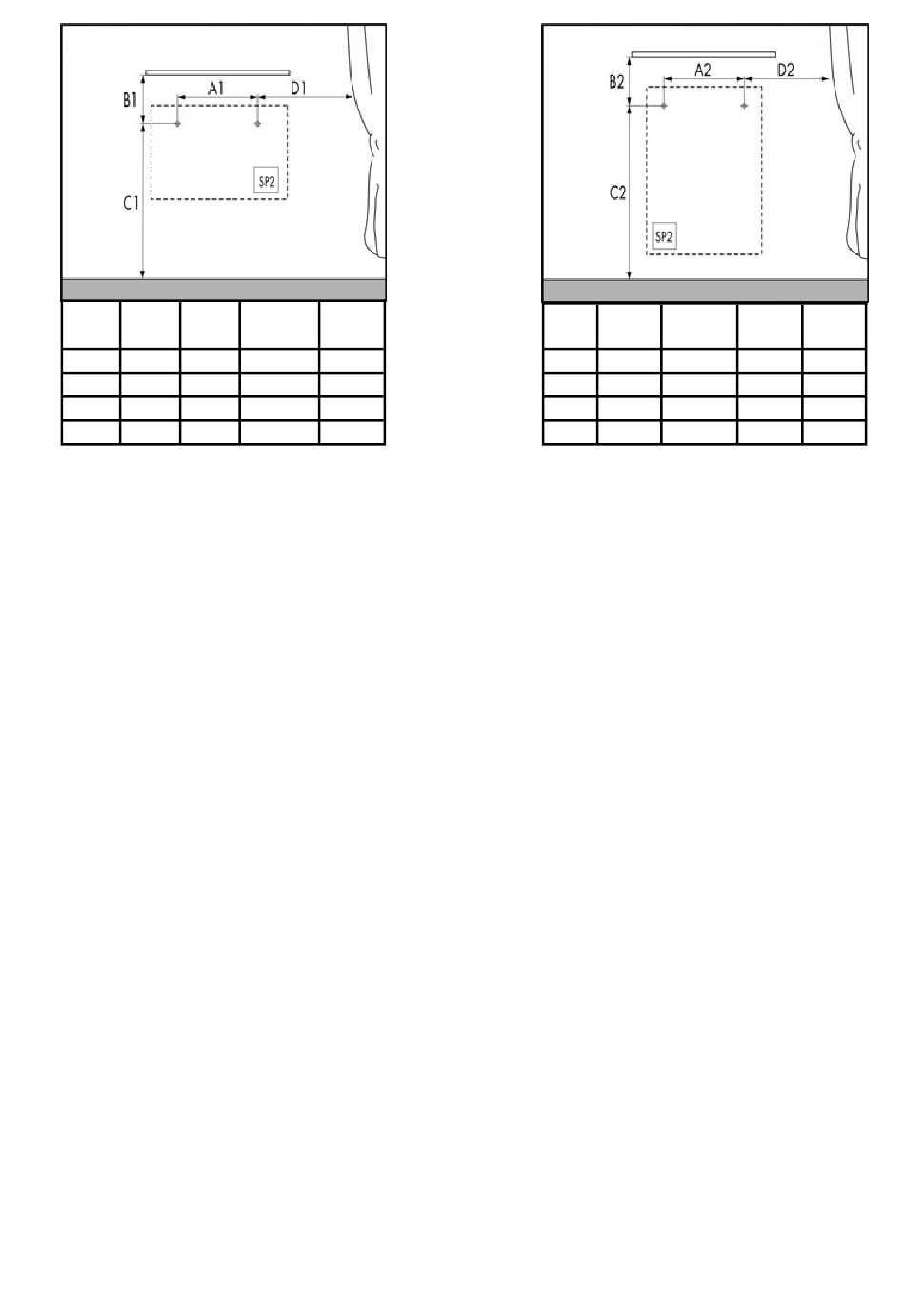

Pict.6
W A2 B2
(mm) (mm)
300 260 220
500 360 220
700 360 250
900 560 300
C2 D2
(mm) (mm)
630 220
830 220
1000 220
1050 220
