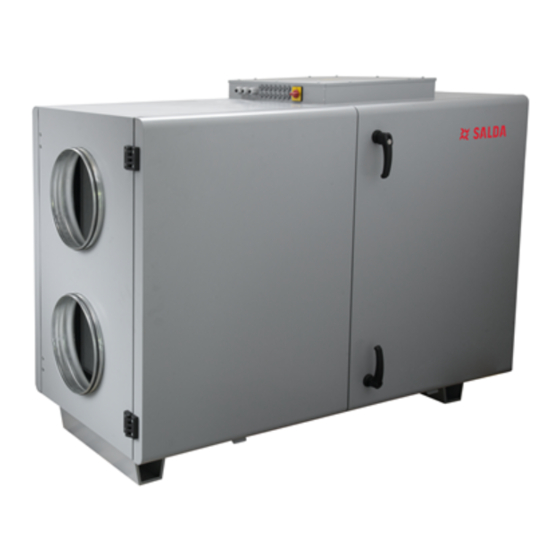

RIRS 1200-5500 H EKO 3.0
EN
MOUNTING AND INSTALLATION INSTRUCTION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RIRS EKO 3.0 1900 HE and is the answer not in the manual?

Questions and answers

Summary of Contents for Salda RIRS EKO 3.0 1900 HE

  • Page 1 RIRS 1200-5500 H EKO 3.0 MOUNTING AND INSTALLATION INSTRUCTION...
  • Page 2: Table Of Contents

    CONTENT 2. SYMBOLS AND MARKING 3. SAFETY INSTRUCTIONS AND PRECAUTIONS 4. DIMENSIONS AND WEIGHT 5. ELECTRICAL DATA 6. CONSTRUCTION 7. OPERATING CONDITIONS PACKAGE 9. TRANSPORTATION 10. UNPACKING 11. STANDART PACKAGE OF COMPONENTS 12. PLACE REQUIREMENTS 13. MOUNTING 14. CONNECTION OF THE AIR DUCT 15.
  • Page 3: Symbols And Marking

    2. SYMBOLS AND MARKING LN: XX000000 2019.01.01 AHU000000 XXX GAMINIO PAVADINIMAS Nominal voltage frequency xxx/xx VAC/Hz Max.current x.xx A Max.power consumption x.xx kW Protection class IP xx Weight xx kg BN:xxxxxx Made in Šiauliai, Lithuania 2019/01/01 SERIAL 2514523357 AHU000000 XXX GAMINIO PAVADINIMAS Nominal voltage frequency xxx/xx VAC/Hz Max.current...
  • Page 4: Dimensions And Weight

    In exceptional cases harmful gases could be drawn out of the chimney or extraction ducting back into the room. In this case we strictly recommend to turn off Salda Antifrost and use an external preheater for heat exchanger anti-frost protection (see Salda Antifrost function on the Remote controller manual).
  • Page 5 - phase/voltage [50 Hz/VAC] ~1, 230 ~1, 230 ~1, 230 ~1, 230 - power/current [kW/A] 0,435 / 2,8 0,435 / 2,8 0,5 / 3,25 0,5 / 3,25 exhaust - speed [min 3400 3400 2540 2540 Fans - power/current [kW/A] 0,444 / 2,9 0,444 / 2,9 0,49 / 3,2 0,49 / 3,2...
  • Page 6: Construction

    6. CONSTRUCTION +40 C +5 C +40 C +40 C Figure. 6.1. RIRS 1200-2900 H EKO 3.0 Figure. 6.2. RIRS 2500-5500 H EKO 3.0 -23 C +15 C 1 - Plate heat exchanger; 2 - Supply fan; 3 - Exhaust fan; 5 - Electrical/water heater/pre-heater; 6 - Control board; 7 - Extract air filters (panel/ pocket);...
  • Page 7: Transportation

    9. TRANSPORTATION Figure. 9.1. Lifting with forklift. Only a product placed on a pallet may be lifted in order to prevent damage to the casing. Figure. 9.2. Lifting 10. UNPACKING Accessories may be packed together with the product. Prior to transporting the unit, first unpack the accessories. •...
  • Page 8: Standart Package Of Components

    11. STANDART PACKAGE OF COMPONENTS HANDLES SET SUPPORT LEG WITH EXTENDABLE RIRS EKO 3.0 RODS 1200 HE 1200 HW 1900 HE 1900 HW 2500 HE 2500 HW 3500 HE 3500 HW 5500 HE 5500 HW 12. PLACE REQUIREMENTS 1,5xL 1,5xL α...
  • Page 9: Connection Of The Air Duct

    Figure. 13.2. Floor mounting 14. CONNECTION OF THE AIR DUCT Figure. 14.1. Circular air duct conection Figure. 14.2. Rectangular air duct conection 15. CONNECTION DIAGRAM Figure. 15.1. RIRS 1200-1900 HE EKO 3.0 (* Placement of the component depends on model) Figure.
  • Page 10: Connection Of The Unit To Electric Network

    Figure. 15.3. RIRS 2500-5500 HE EKO 3.0 Figure. 15.4. RIRS 2500-5500 HW EKO 3.0 Figure. 15.5. Indication for duct connection. Figure. 15.6. Ventilated premises ODA - outdoor air; SUP - supply air; ETA - extract air; EHA - exhaust air. LIST OF COMPONENTS Plate heat exchanger Fire alarm damper actuator I...
  • Page 11: Start-Up Recommendations

    • Supply voltage to the unit must be connected by a qualified specialist following the manufacturer’s instructions and effective safety instructions. • The unit’s power network voltage must correspond to electrotechnical parameters of the unit indicated in the technical decal. •...
  • Page 12: Heat Exchanger

    - The motor is of heavy duty ball bearing construction. The motor is completely sealed and requires no lubrication for the life of the motor. - Detach fan from the unit. - Impeller should be specially checked for buil-up material or dirt which may cause an imbalance. Excessive imbalance can lead to accelerated wear on motor bearings and vibration.
  • Page 13: Electrical Heater

    18.4. ELECTRICAL HEATER Electrical heater does not need to be serviced additionally. It is compulsory to change filters as described above. Heaters have 2 thermal protections: automatically self-resetting, which activates at +50°C and the manually restored, which activates at +100°C. After the activation of the manually restored protection, the unit must be disconnected from the power supply.
  • Page 14: System Protection

    minimum and the maximum set temperatures (see sections II.6.3.2. and II.6.3.3. of the FLEX description) based on the algorithm of the PI regu- lator. When operation is automatic (ByOutdoor), both mentioned cooling types are used (supply and extracted air): cooling based on the supply air is used when ambient air temperature is less than the set temperature (see section II.6.3.3.
  • Page 15: Modbus Adresses

    Resistance Ω Switch 1 Switch 2 Figure 19.2.2. Microswitches 1 and 2 19.3. MODBUS ADRESSES Data Quan- Name ModBus func. tity of Description Values dress data 1 - a c t i v e , Antifrost 01h_Read_Coils Plate heat exchanger frost protection function o-passive 1 - a c t i v e , Fire...
  • Page 16: Electrical Connection Of The Hvac Unit

    Motor2 04h_Read_Input Motor2 fan speed value Temperature sensor value real format (-3.3E38 - 3.3E38) example: 0h->0C, 7FFFh->3276.7C, 8000h->3276.8, FFFFh->-0.1C Tlimit 04h_Read_Input Supply air temperature value Hex: E0 Texhaust 04h_Read_Input DTJ(100) temperature sensor value Hex: E0 Textract 04h_Read_Input Exhaust air temperature sensor value Hex: E0 ToutDoor 04h_Read_Input...
  • Page 17 2 3 4 5 6 7 8 9 10 34 35 PE N L1 11 12 13 14 15 17 18 19 20 21 22 23 24 34 35 X16.5 26 27 X16.7 X16.4 9 10 X16.4 X16.10 X16.7 29 35 36 X16.1 X16.2...
  • Page 18: Control Board Rg1

    20. CONTROL BOARD RG1 LED indications of the controller Pic. 3a LED2 Air damper close LED9 Medium fans speed LED2 + LED3 Air damper open LED10 Minimal fans speed LED4 Water valve open LED11 Supply air fan speed reducing LED5 Water valve close LED12 Preheater...
  • Page 19: Labeling, Characteristics Of The Controller And The System Components

    20.1. LABELING, CHARACTERISTICS OF THE CONTROLLER AND THE SYSTEM COMPONENTS Contact Labeling Description Max. load Min. load type [ A ] [ mA ] L(230V/50Hz power supply) N(230V/50Hz power supply) Electric heater RIRS 1200-5500 H EKO 3.0 v2019.06 EN |...
  • Page 20 Electric preheater/rotor ON/OFF 230V/50Hz Voltage of Normal speed for air fans Voltage of Min speed for air fans Extract room(s) air fan. Power to exaust air fan IV 4.2A Supply air fan. Power to supply air fan PV 4.2A PUMP Pump motor ON/OFF 230V/50Hz Water heater...
  • Page 21: Regular System Check-Up

    Fans guard Extract air temperature sensor Temp. and humidity sensor for extract air. Extract air humidyti sensor Supply air temperature sensor Supply air temperature sen- sor. Exhaust air temperature sensor Exhaust air temperature sen- Supply air fan 0-10V Supply air fan. Extract air fan 0-10V Extract room(s) air fan.
  • Page 22: Electrical Connection Diagram

    21. ELECTRICAL CONNECTION DIAGRAM 21.1. RIRS 1200 HE EKO 3.0 WH(BK) Lout GN(BU) X29.3 10 11 12 X21.1 0-10V in X32.1 COM X32.4 X35.2 AC.N PUMP X35.1 B.0.10 X33.13 X33.14 MIDL X32.2 BOOST HIGH X32.3 X2.2 TIMER X33.1 X2.1 START-NC STOP-NO X33.2 X37.2...
  • Page 23: Rirs 1900 He Eko

    21.2. RIRS 1900 HE EKO 3.0 WH(BK) Lout GN(BU) WH(BK) Lout GN(BU) X29.3 X21.1 0-10V in X32.1 COM X32.4 AC.N X35.2 X35.1 PUMP B.0.10 X33.13 X33.14 MIDL X32.2 BOOST HIGH X32.3 X2.2 TIMER X33.1 X2.1 START-NC STOP-NO X33.2 X37.2 CHIL X33.9 X37.1 COM X33.10...
  • Page 24: Rirs 1200-1900 Hw Eko

    21.3. RIRS 1200-1900 HW EKO 3.0 X21.1 0-10V in X32.1 X32.4 X35.2 AC.N PUMP X35.1 B.0.10 X33.13 X33.14 MIDL X32.2 BOOST HIGH X32.3 X2.2 TIMER X33.1 X2.1 START-NC STOP-NO X33.2 X37.2 CHIL X33.9 X37.1 X33.10 X37.4 Fan fall ALARM X33.11 X37.3 1.2W max 24VDC...
  • Page 25: Rirs 2500 He Eko

    21.4. RIRS 2500 HE EKO 3.0 WH(BK) Lout GN(BU) WH(BK) Lout GN(BU) X21.3 X29.3 X22.2 X21.1 0-10V in X32.1 X32.4 X35.2 AC.N PUMP X35.1 B.0.10 X33.13 X33.14 MIDL X32.2 BOOST HIGH X32.3 TIMER X33.1 START-NC STOP-NO X33.2 X37.2 CHIL X33.9 X37.1 X33.10 X37.4...
  • Page 26: Rirs 2500 Hw Eko

    21.5. RIRS 2500 HW EKO 3.0 X21.3 X21.1 0-10V in X32.1 X32.4 X35.2 AC.N PUMP X35.1 B.0.10 X33.13 X33.14 MIDL X32.2 BOOST BOOST HIGH X32.3 TIMER X33.1 START-NC STOP-NO X33.2 X37.2 CHIL X33.9 X37.1 X33.10 X37.4 Fan fall ALARM X33.11 X37.3 1.2W max 24VDC...
  • Page 27: Rirs 3500 He Eko

    21.6. RIRS 3500 HE EKO 3.0 W5\Red W5\Red W5\White -KE2 87, 127 12, 127 7, 9, 88 Blue Brown Green-yellow 2-01-6 01-2 Blue 2-01-6 Brown Brown 2-01-6 White -Q2* 2-01-6 03-7 White 2-01-7 White 2-01-7 White 2-01-7 A.0.10 RIRS 1200-5500 H EKO 3.0 v2019.06 EN |...
  • Page 28: Rirs 3500 Hw Eko

    21.7. RIRS 3500 HW EKO 3.0 | EN RIRS 1200-5500 H EKO 3.0 v2019.06...
  • Page 29 M. Jasaitis 15-01-15 White - balta, Lapas Lapų Tikrino K. Grikšas 15-01-15 Yellow/Orange - geltonas/oranžinis, Blue/Black/Grey - mėlynas/juodas/pilkas, UAB "SALDA" Gray - pilkas, Red - raudonas 221.1558.0.1.1-PS Raidė Svoris Mąstelis "Pynė l. RIRS3500HW-V2.4-RHX-0k" principinė schema Lapas Lapų UAB "SALDA"...
  • Page 30 Parengė D. Aleksandravičius 15-01-15 principinė schema Tikrino M. Jasaitis 15-01-15 Lapas Lapų Tikrino K. Grikšas 15-01-15 UAB "SALDA" 221.1558.0.1.2-PS Lipdukas LC60Y Žymėjimas Raidė Svoris Mąstelis Feston "Pynė l. RIRS3500HW-V2.4-RHX-0k" Spalvinis žymėjimas: principinė schema | EN RIRS 1200-5500 H EKO 3.0 v2019.06 Yellow/Green - geltona/žalia,...
  • Page 31 Lipdukas LC60Y Žymėjimas Feston Spalvinis žymėjimas: Yellow/Green - geltona/žalia, Brown - rudas, Black - juodas, Blue - mėlynas, MTA2 Green - žalias, White - balta, Kabelis, su dviejų sluoksnių izoliacija Pak. Lapas Dok.Nr. Parašas Yellow/Orange - geltonas/oranžinis, Parengė Jungties kištukas D.
  • Page 32: Rirs 5500 He Eko

    2 4 6 Suderinta: 1.1264 Keit. Lapas Dok .Nr. Parašas Data Parengė Lapų skč. Lapas Raidė 17-08-16 D. Aleksandravičius Rekuperatoriaus Tikrino A. Šklenikas 17-08-16 Tikrino RIRS 5500HE EKO 3.0 RHXO principinė schema SALDA UAB | EN RIRS 1200-5500 H EKO 3.0 v2019.06...
  • Page 33: Rirs 5500 Hw Eko

    21.9. RIRS 5500 HW EKO 3.0 X21.3 X21.1 0-10V in X32.1 7 6 5 4 3 COM X32.4 AC.N X35.2 X35.1 PUMP B.0.10 X33.13 X33.14 MIDL X32.2 230VAC BOOST BOOST HIGH X32.3 TIMER X33.1 START-NC STOP-NO X33.2 X37.2 CHIL X33.9 X37.1 COM X33.10 X37.4...
  • Page 34: Ecodesign Data Table

    Pressure contro Casing sound power level (Lwa) [ dB(A) ] ErP Compliance 2018 2018 2018 2018 Internet address for disassembly instructions www.salda.lt 2500 HE 2500 HW 3500 HE 3500 HW 5500 HE 5500 HW RIRS EKO 3.0 Declared typology bidirectional bidirectional bidirectional bidirectional bidirectional bidirectional...
  • Page 35: Declaration Of Confimity

    Should any alterations be made in the products, this declaration will no longer apply. Notified body: VšĮ Technikos priežiūros tarnyba, Naugarduko g. 41, LT – 03227 Vilnius, Lithuania, identification number 1399. Quality: Salda UAB activities are in line with the international quality management system standard ISO 9001:2015. Date...
  • Page 36: Warranty

    3.4. when the unit was used not for its original purpose. 3.5. Company SALDA UAB is not responsible for potential loss of property or personal injury in cases where AHU is manufactured without a control system and the control system will be installed by the client or third parties. The manufacturer’s warranty does not cover devices that will be damaged by installing the control system.
  • Page 37 RIRS 1200-5500 H EKO 3.0 v2019.06...
  • Page 38 RIRS 1200-5500 H EKO 3.0 v2019.06...
  • Page 39 RIRS 1200-5500 H EKO 3.0 v2019.06...
  • Page 40 Heat exchanger cleaning Every 3-4 Filter replacement months** Look at the product label. ** - At least. NOTE. The purchaser is required to fill in the “Product maintenance table”. MAN000133 MAN000133 Ragainės g. 100 +370 41 540 415 Šiauliai LT-78109, LITHUANIA office@salda.lt...
