6. ADVANCED OPTIONS

The handheld allows the user to view, edit and set some operating parameters by simply combining the keys
provided. Follow the steps outlined below to access:

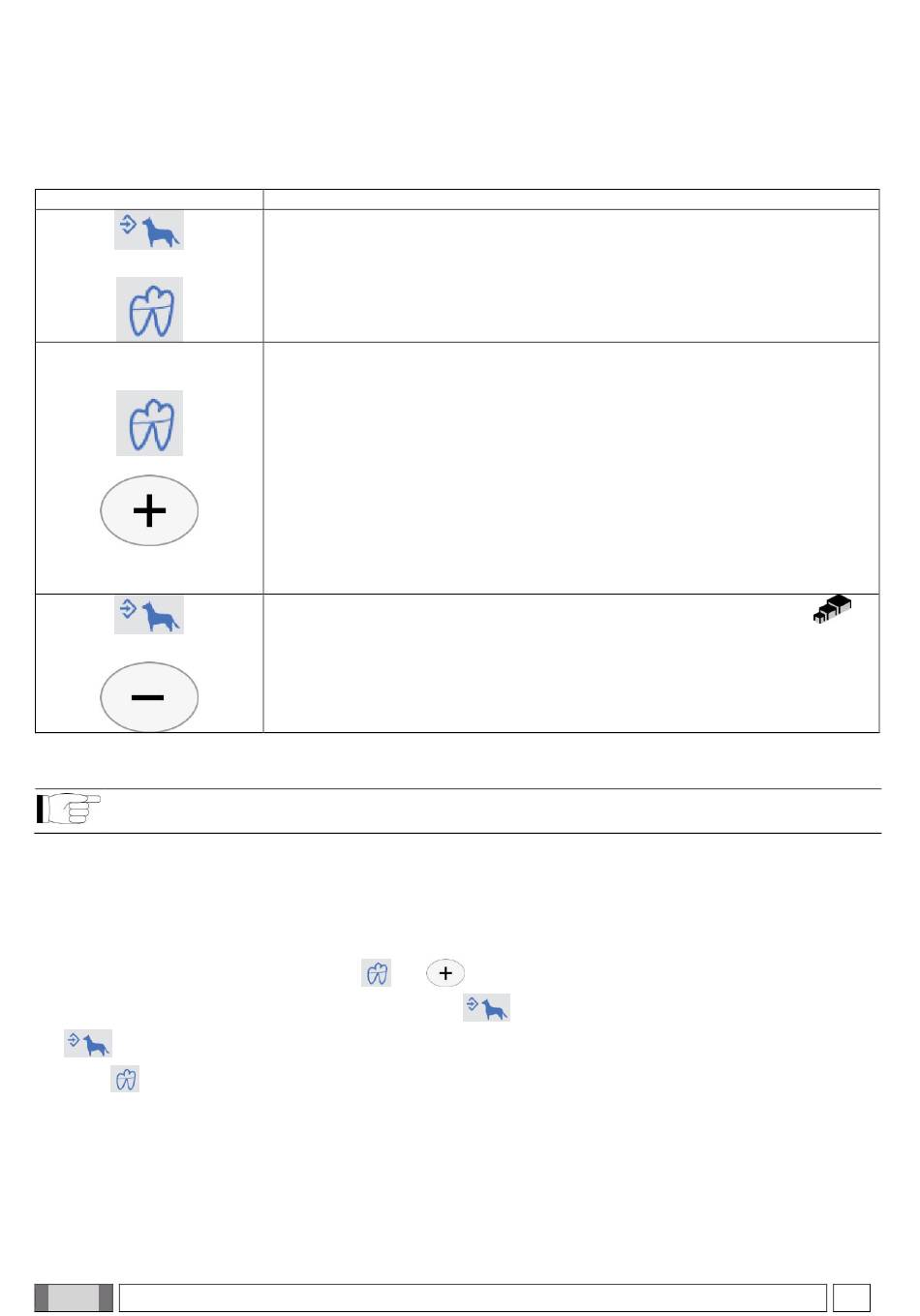

KEY COMBINATION
+
+
+
SETTING THE SAFETY UNLOCKING MODE
NOTE: This section applies only to models RX DC REF: I3PV*****
(Character * can be any alphanumeric value)
X-ray unit has a safety unlocking mode for the ball joint.
The default setting allows the ball joint to be disengaged by simply touching one of the buttons present on the front of
the head. To prevent accidental contact with the buttons unexpectedly disengaging the ball joint (and therefore
causing undesired movement of the head), the safety unlocking mode can be activated. In this mode, the ball joint is
disengaged only if both buttons are activated at the same time.
To set the safety unlocking mode, press keys
Scroll the parameters up to parameter P05 and press key
key .
Press key to quit the setup menu.
24
Press these two keys to adjust the sensitivity levels (determined based on the table
given below and type of sensor/receiver used), modifying the current value from
the minimum to the maximum allowable one (on a scale from 3 to 25), with keys "+"
and "-". Press key "size" to confirm the desired level and go back to the main
screen.
This menu is not available in USER mode.
Hold down these two keys to go to the set-up menu (from P 01 to P 07).
Press key "size" to make the selection. Once within the individual configurations,
they can be scrolled with keys "+" and "-" and selected by pressing key "size"
again. Key "tooth" quits the configuration without saving the setting.
The configurations are outlined in detail below:
- P 01: Sets the stand-by time (from a minimum of 5 to a maximum of 30
minutes).
- P 02: Assigns an identification tag to the x-ray unit base (from 1 to 5 or none).
- P 03: Shows the list of software versions.
- P 04: Handheld unique code display.
P 05: Activates/deactivates the safety unlock mode (see paragraph 5.1).
- P 06: Selects the operating mode (En60, En63, En65 e AUTO).
- P 07: Sets the type of removable collimator used.
Enabling/Disabling USER mode. When USER mode is activated, icon
displayed.
and
