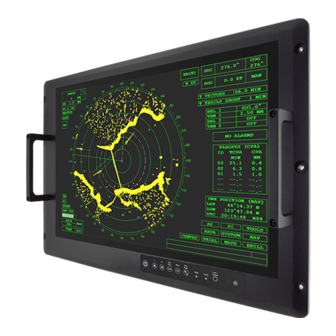

27/32" 4K UHD Rack Mount
User Manual
For more information on this and
other Winmate products, please
visit our website at:
www.winmate.com
Document Part Number: 9152111I109A
Please read this instructions before operating the device and retain them for future reference.
Military Display
Model No.
W27L100-MLA1FP-4K
W27L100-MLA1FG-4K
W32L100-MLA1FP-4K
W32L100-MLA1FG-4K
V1.0
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Winmate W27L100-MLA1FP-4K
Summary of Contents for Winmate W27L100-MLA1FP-4K
-
Page 1: User Manual
Model No. W27L100-MLA1FG-4K W32L100-MLA1FP-4K W32L100-MLA1FG-4K User Manual V1.0 For more information on this and other Winmate products, please visit our website at: www.winmate.com Document Part Number: 9152111I109A Please read this instructions before operating the device and retain them for future reference. -
Page 2: Table Of Contents
User Manual Contents CONTENTS PREFACE - 4 - ABOUT THIS USER MANUAL - 9 - CHAPTER 1: INTRODUCTION - 11 - 1.1 Product Features - 11 - 1.2 Package Contents - 12 - 1.3 Rear Components - 13 - 1.4 Panel Controls - 14 - 1.5 Dimensions - 16 -... - Page 3 User Manual Contents 3.2.6 Advanced - 38 - 3.3 Frequency Table - 40 - APPENDIX A: TECHNICAL SPECIFICATIONS - 42 - APPENDIX B: MILITARY GRADE COMPLIANCE - 45 - APPENDIX C: MAINTENANCE - 47 - - 3 -...
-
Page 4: Preface
User Manual Preface PREFACE Copyright Notice No part of this document may be reproduced, copied, translated, or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the prior written permission of the original manufacturer. Trademark Acknowledgement Brand and product names are trademarks or registered trademarks of their respective owners. -
Page 5: Customer Service
User Manual Preface Customer Service We provide a service guide for any problem by the following steps: First, visit the website of our distributor to find the update information about the product. Second, contact with your distributor, sales representative, or our customer service center for technical support if you need additional assistance. - Page 6 User Manual Preface European Union This equipment is in conformity with the requirement of following legislations harmonized standards. Product also complies with the Council directions. Electromagnetic Compatibility Directive (2014/30/EU) EN55024: 2010/ A1: 2015 o IEC61000-4-2: 2009 o IEC61000-4-3: 2006+A1: 2007+A2: 2010 o IEC61000-4-4: 2012 o IEC61000-4-5: 2014 o IEC61000-4-6: 2014...
- Page 7 User Manual Preface Advisory Conventions Four types of advisories are used throughout the user manual to provide helpful information or to alert you to the potential for hardware damage or personal injury. These are Notes, Important, Cautions, and Warnings. The following is an example of each type of advisory.
-
Page 8: Safety Information
User Manual Preface Safety Information WARNING! This monitor is equipped with Mini USB port, signals and power is obtained from standard USB 2.0 or USB 3.0 port. Do not expose this unit in the rain or moisture environment to damage the monitor. -
Page 9: About This User Manual
User Manual About This User Manual ABOUT THIS USER MANUAL This User Manual provides information about using the 27/32” 4K UHD Rack Mount Display. The documentation set provides information for specific user needs, and includes: 27/ 32” 4K UHD Rack Mount Display User Manual – contains detailed description on how to use the display, its components and features. -
Page 10: Chapter 1: Introduction
User Manual Chapter 1 Introduction INTRODUCTION This chapter gives you product overview, describes features and hardware specification. You will find all accessories that come with the display device in the packing list. Mechanical dimensions and drawings included in this chapter. - 10 -... -
Page 11: Product Features
Chapter 1 Introduction CHAPTER 1: INTRODUCTION Congratulations on purchasing Winmate® 27/32” 4K UHD Rack Mount Military Display. Military Grade Display features anti-corrosive coating with aluminum alloy housing withstands the harshest military environments. Armored power connector MIL-DTL-38999 Type I initially developed for aerospace industry perfectly fit in our Military grade product line. -
Page 12: Package Contents
User Manual Chapter 1 Introduction 1.2 Package Contents Carefully remove the box and unpack your display. Please check if all the items listed below are inside your package. If any of these items are missing or damaged contact us immediately. Standard package includes: User Manual Power Cord... -
Page 13: Rear Components
User Manual Chapter 1 Introduction 1.3 Rear Components Display connectors are located on the bottom rear side of the display. *Notice that this is a picture for reference. I/O position varies by display size. Refer to the section 1.5 Dimensions of this user manual to check mechanical drawing and I/O position. -
Page 14: Panel Controls
User Manual Chapter 1 Introduction 1.4 Panel Controls Panel controls are located on the front side of the display. Option 1 (AR Protection Glass, No Touch) Control Function Power Press to turn on or turn off the display. Down Press this key to decrease screen brightness. Use to navigate items of a single OSD menu. - Page 15 User Manual Chapter 1 Introduction Option 2 (Projected Capacitive Multi Touch) Control Function IR Receiver IR receiver for infrared remote control. Light Sensor Detect light density. Power LED Lights up when the display turns on; signalizes that display functions normally. Menu Displaying: Tap to close OSD menu.
-
Page 16: Dimensions
User Manual Chapter 1 Introduction 1.5 Dimensions 27-inch Display, W27L100-MLA1FP-4K, P-Cap Unit: mm Dimensions: 697.2 x 442 x 73.8 27-inch Display, W27L100-MLA1FG-4K, Protection Glass Unit: mm Dimensions: 697.2 x 442 x 73.8 - 16 -... - Page 17 User Manual Chapter 1 Introduction 32-inch Display, W32L100-MLA1FP-4K, P-Cap Unit: mm Dimensions: 825 x 486 x 88.5 32-inch Display, W32L100-MLA1FG-4K, Protection Glass Unit: mm Dimensions: 825 x 486 x 88.5 - 17 -...
-
Page 18: Chapter 2: Installation
User Manual Chapter 2 Installation INSTALLATION This chapter provides hardware installation instructions and mounting guide for all available mounting options. Pay attention to cautions and warning to avoid any damages. - 18 -... -
Page 19: Wiring Requirements
User Manual Chapter 2 Installation CHAPTER 2: INSTALLATION This chapter provides hardware installation instructions and mounting guide for all available mounting options. Pay attention to cautions and warning to avoid any damages. CAUTION/ ATTENTION Follow mounting instructions and use recommended mounting hardware to avoid the risk of injury. -
Page 20: Mounting The Display
User Manual Chapter 2 Installation 2.2 Mounting the Display The Military Display supports different mounting options. Refer to sub-sections below for more details. 2.2.1 Panel Mount The main mounting approach for military applications is panel mount - very user- friendly in terms of installation. Installation Instruction: 1. -
Page 21: Vesa Mount
3. Place the device on VESA bracket. 4. Follow instructions supplied with your mounting kit. 5. Connect cables, power on the display. VESA Mount Installation *Notice that VESA stand and mounting kit are not provided by Winmate. Size VESA Plate Screw Size 27”... -
Page 22: Powering On
User Manual Chapter 2 Installation 2.2 Powering On Follow the recommendations below when powering on the equipment. Plug-in the power cord to easy accessible AC outlet. Plug-in the AC adapter to a grounded outlet. ALTERNATING CURRENT / MISE À LE TERRE! This product must be grounded. -
Page 23: Connecting To Ac Input Power Source (Default)
User Manual Chapter 2 Installation 2.2.1 Connecting to AC Input Power Source (Default) AC Power Input Requirements: AC 100~240V, Universal, ±10% Connect one end of the Military Grade power connector MIL-DTL-38999/1 to the Display (CN2), and plug the other end of the power connector (CN1) in to a working AC outlet. -
Page 24: Connecting To Dc Input Power Source (Optional)
User Manual Chapter 2 Installation 2.2.2 Connecting to DC Input Power Source (Optional) DC Power Input Requirements: 9~36V DC. 1. Insert the exposed wires of the DC Power Cable to the appropriate connectors on the terminal block plug. 2. Plug the terminal block plug firmly to the DC IN Jack. 3. -
Page 25: Connecting Other Devices
User Manual Chapter 2 Installation 2.3 Connecting Other Devices Use VGA, HDMI, DVI-D or Display Port cable to connect your display to external device. Connect USB cable for touch capabilities. Connect RS232 cable for remote control. CAUTION/ ATTENTION! Observe all local installation requirements for connection cable type and protection level. -
Page 26: Hdmi Connector
User Manual Chapter 2 Installation 2.3.2 HDMI Connector Plug HDMI signal cable to the HDMI connector on the rear side of PC system, and plug the other end to the monitor. HDMI1.4 Connector Pin Assignment and Signal Names Pin № Pin №... -
Page 27: Dvi-D Connector
User Manual Chapter 2 Installation 2.2.3 DVI-D Connector Plug one end of the DVI signal cable to the video signal connector (DVI-D digital only) at the rear of the PC system and the other end to the Display. DVI-D Connector Pin Assignment and Signal Names Pin №... -
Page 28: Audio Connector
User Manual Chapter 2 Installation 2.2.5 Audio Connector Audio Connector Pin Assignment and Signal Names Pin No. Signal name Pin No. Signal name AGND AUDIO_IN AUDIO_IN 2.2.6 Optional RS-232 Connector for Remote Control Use RS-232 D-Sub 9pin terminal for remote control. RS-232 D-Sub 9pin Connector Pin Assignment and Signal Names Pin №... -
Page 29: Chapter 3: Operating The Device
User Manual Chapter 3 Operating the Device OPERATING THE DEVICE This chapter provides detailed information on how to operate the display. - 29 -... -
Page 30: Osd Control Panel
For more information about OSD control buttons and its functions, please refer to Ch.1: Panel Controls section of this user manual. Option 1 (AR Protection Glass, No Touch) W27L100-MLA1FG-4K W32L100-MLA1FG-4K Option 2 (Projected Capacitive Multi Touch) W27L100-MLA1FP-4K W32L100-MLA1FP-4K - 30 -... -
Page 31: Navigating The Osd Menu
User Manual Chapter 3 Operating the Device 3.2 Navigating the OSD Menu This section describes how to navigate the OSD Menu. 3.2.1 Display The OSD offers a variety of monitor adjustment capabilities. Below is a description of a few common functions used. Under SCHEME ADJUST, the HUE and Saturation of each primary and secondary color can be changed. - Page 32 User Manual Chapter 3 Operating the Device Adjusts the overall image and background brightness Brightness Value: 0-100 Adjusts the image contrast in relationship to the background Contrast Value: 0-100 Adjusts the crispness of the image Sharpness Value: 0 to 4 Adjusts the Auto Display Control (ADC) brightness Brightness Value: 0-100...
-
Page 33: Adjust
User Manual Chapter 3 Operating the Device 3.2.2 Adjust The ADJUST feature will automatically adjust an analog image. When an analog image is initially detected, the monitor will attempt to automatically adjust the image positioning. This automatic adjustment feature can be turned On/Off here. Adjust the white balance automatically here by selecting PRESS ENTER - 33 -... - Page 34 User Manual Chapter 3 Operating the Device Automatically adjusts screen size, H position, V AUTO Adjust position, Clock, Clock Phase when video source is changed Controls the horizontal position of the image within the H Position display area of the LCD. Value: 0-100 Controls the vertical position of the image within the V Position...
-
Page 35: Audio
User Manual Chapter 3 Operating the Device 3.2.3 Audio The speaker volume for all audio inputs is controlled here. AUDIO SOURCE allows the user to select which from the available inputs. Example, there are 3 regions within the Quad display with audio. Adjusts the level of volume Volume - Decrease... -
Page 36: Multi-Display
User Manual Chapter 3 Operating the Device 3.2.4 Multi-Display Display mode offer the user up to five different layouts to view input images Under the PIP layout position and size of the inner image can be adjusted Choose the Display Mode Display Mode Full, 2PLR, 2PTB, PIP or QUAD Choose the channel of display source... -
Page 37: Osd
User Manual Chapter 3 Operating the Device 3.2.5 OSD Selecting MONITOR INFO will display the current state of the monitor. PCB version, firmware version, serial number, and inputs. Set the time of auto close OSD menu OSD Turn Off Value: 0-60 sec Adjust the horizontal and vertical location where the OSD Position OSD appears on the screen... -
Page 38: Advanced
User Manual Chapter 3 Operating the Device 3.2.6 Advanced By selecting SCALING, the user can choose the perspective the image is displayed in. The ability to control the monitor’s functions by way of an infrared remote can be enabled/disabled here. - 38 -... - Page 39 User Manual Chapter 3 Operating the Device Adjust the image scaling setting Scaling Full/16:10/16:9/4:3/5:4/1:1 Set the flip image mode Flip Rotate 0 / Rotate 90 / Rotate 180 / Rotate 270 / LEFT/RIGHT /UP/DOWN Perform over scan function Overscan Under scan Over Scan RGB/YUV RGB/YUV...
-
Page 40: Frequency Table
User Manual Chapter 3 Operating the Device 3.3 Frequency Table Vertical Signal name DP1.2 HDMI 1.4 HDMI 2.0 Frequency (Hz) ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ 640 x 480 ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔... -
Page 41: Appendix A: Technical Specifications
User Manual Appendix A Technical Specifications TECHNICAL SPECIFICATIONS This section includes product technical specifications. Appendix - 41 -... - Page 42 User Manual Appendix A Technical Specifications APPENDIX A: TECHNICAL SPECIFICATIONS This section includes product technical specifications. W27L100-MLA1FG- W27L100-MLA1FP- W32L100-MLA1FG- W32L100-MLA1FP- Display: Size 27” 27” 32” 32” Resolution 3840 x 2160 3840 x 2160 3840 x 2160 3840 x 2160 Active Display 596.16”(H) x 596.16”(H) x 708.48”(H ) x...
- Page 43 User Manual Appendix A Technical Specifications Input/ Output: HDMI 1.4 HDMI 2.0 Signal Display Port 1.2 Connectors Audio Line In RS232 for Optional Remote Control USB for Optional Touch Environmental Considerations: Operating -20°C to 55°C Temperature Storage -25°C to 65°C Temperature Operating 95%RH ±3%...
-
Page 44: Appendix B: Military Grade Compliance
User Manual Appendix B Military Grade Compliance MILITARY GRADE COMPLIANCE This section includes description of military grade compliance. Appendix - 44 -... - Page 45 User Manual Appendix B Military Grade Compliance APPENDIX B: MILITARY GRADE COMPLIANCE This section includes description of military grade compliance. Military Grade EMC Compliance EMC (MIL-STD 461E/F Compliance) EMC Test Spec Type of Test Frequency Range Requirement 30Hz ~ 1kHz :110 dB 1k- CE101 Conducted Emissions 30Hz ~10kHz...
-
Page 46: Appendix C: Maintenance
User Manual Appendix C Maintenance MAINTENANCE This section includes supported frequency range of available video inputs. Appendix - 46 -... - Page 47 User Manual Appendix C Maintenance APPENDIX C: MAINTENANCE This equipment is extremely rugged and does not require a lot of maintenance. Remember that electrical equipment should be handled with care and used accordingly to its specifications. Cleaning the Display Screen ...
- Page 48 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 24158, Taiwan, R.O.C Tel: 886-2-8511-0288 Fax: 886-2-8511-0211 Email: sales@winmate.com.tw www.winmate.com...
