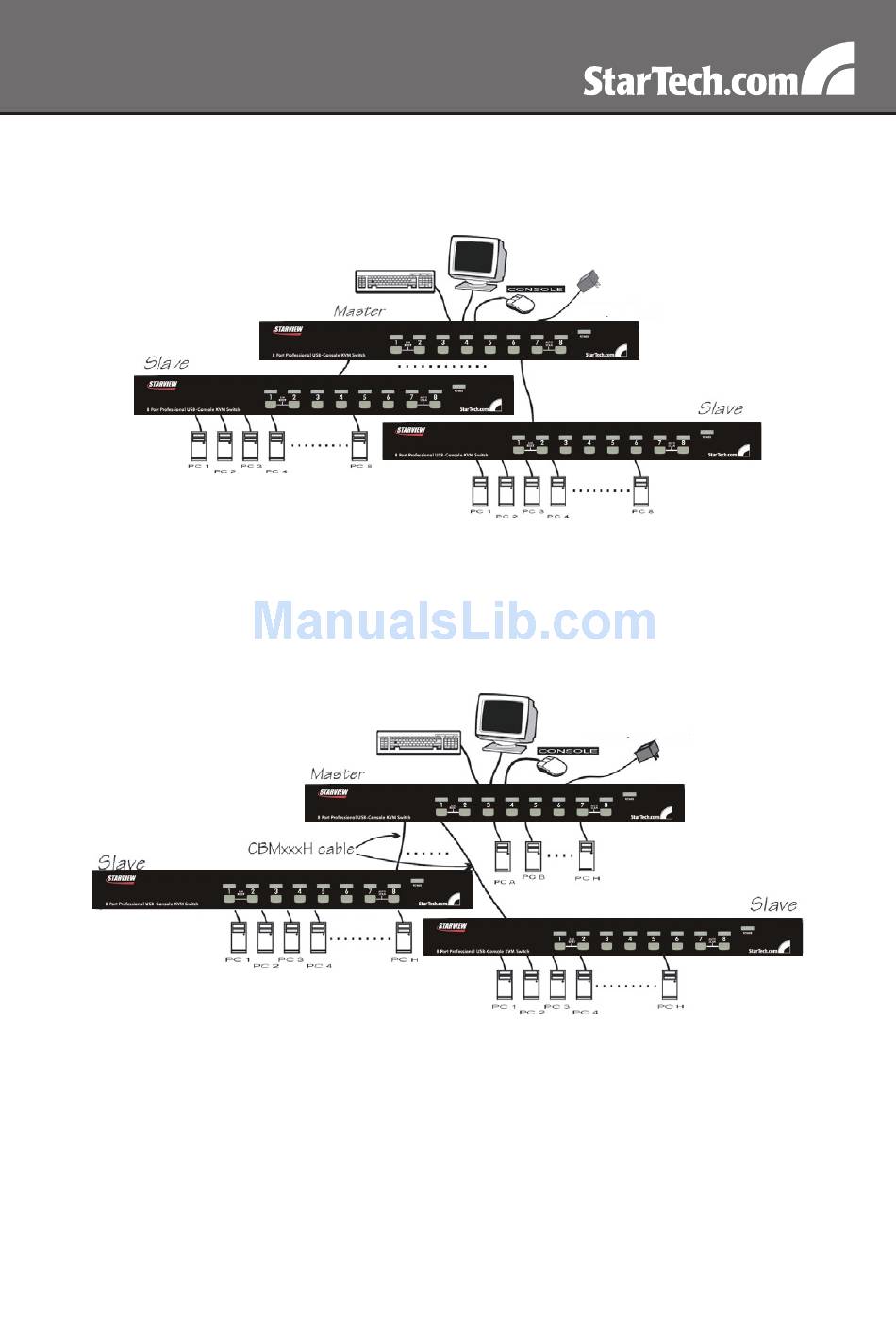

The maximum number of computers controlled by a Master/Slave
configuration with all 8-port units is 64, with 8 Slaves and each Slave
connecting to 8 computers:
The maximum number of computers controlled in a Master/Slave
configuration with all 16-port units is 136, with 8 units of 16-port Slaves
(to PC 1 - PC 8) and each Slave connected to 16 computers, plus 8
more computers connected directly to the Master (to ports PC A - PC
H):
After the connection has been completed, please re-activate the OSD
menu to verify that the Master recognizes the Slaves. A triangle mark
( ► ) is placed next to the right of the channel name indicating that the
port is connected to a Slave, not a computer. A number to the left of the
triangle mark indicates the Slave model, i.e. '8' for an 8-port switch.
NOTE: A device (computer or KVM switch) at any 'PC x' port can be
changed at any time after initial power-up. If you change any one of the
5
