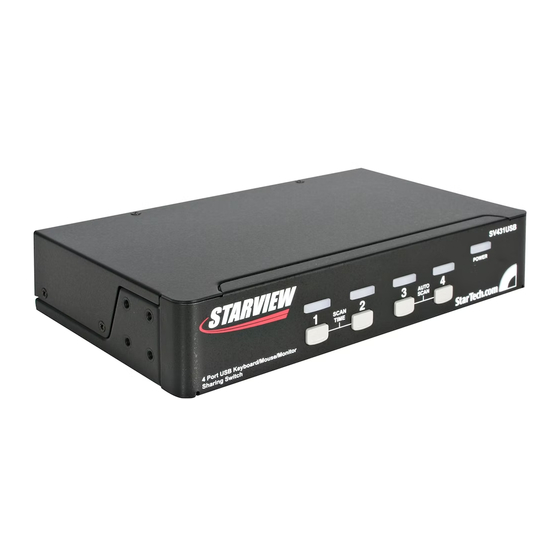

Introduction Overview One-Console StarView Switches The StarView allows you to access multiple computers from one keyboard, mouse and monitor. There is no interface card or software to configure. Installation is as easy as connecting cables between the StarView and your computers. Operation is as simple as pressing push button, entering hot-key command and navigating through the user-friendly on-screen menu (available on models with OSD support).
High Video Quality StarView supports VGA resolution up to 1600x1200 @85Hz without any degradation. Advanced VGA circuit design guarantees smooth and flicker-free switching from one computer to the other with distance up to 100ft (30M)* at both Console and PC sides. NOTE: This User's Manual is written for the following models.
Extra features for On-Screen Display model nAssign computers with unique and meaningful names nIdentify and select computers by the names nProgrammable scan filters unused computers nStore system settings and name entries to non-volatile memory nPassword security locks computer from unauthorized access nGain complete control with easy-to-use OSD interface More features for multi-access models nManage multiple computers from two locations...
Page 6
Figure 1: A single StarView configuration Cascade (Master/Slave) Configuration You can connect a second level of one or more StarViews to “PC 1”~”PC 4” (SV431) or "PC 1"~”PC 8” ports (SV831 & SV1631) of a Master unit. Cascade configuration expands system ability allowing you to select computers connected to the Master or Slaves.
Page 7
Figure 2: A cascade StarView configuration Throughout this manual, Master is the StarView that has a physical keyboard, mouse and monitor connected to its CONSOLE port. Slave is a StarView that has its CONSOLE port connected to a Master's “PC x” port. Slave only exists in cascade configuration.
Installation Device Connection The monitor connected to the HD-DB-15 VGA port of a Master CONSOLE must be capable of synchronizing with the computer's video signal. If you are uncertain about the monitor type, please consult the monitor user's manual. Connect a PS/2 mouse and a keyboard to the CONSOLE port marked with a mouse and a keyboard respectively as shown in figure 3.
Page 9
Determine the channel address of each computer. For computers using PS/2 mouse, connect the computer's mouse and keyboard cables to the StarView’s connectors marked with a mouse and keyboard respectively, as shown in figure 4. Figure 4: Master computer connection For computers using serial mouse, connect the DB-9 to mini-DIN-6 adapter (supplied with the StarView) to the computer mouse port, then use PS/2 cables to connect the mouse to StarView, see figure 5.
Initial Power-Up Make sure all computers and StarViews are powered down during installation. You must power up the Master StarView before turning on any other devices. 4 For single StarView: 1) Apply a power adapter to the Master. 2) Turn on computers. 4 For cascade: 1) Apply a power adapter to the Master.
Optional Rack Mount Accessories Figure 6 shows how to attach optional mounting brackets to the StarView unit for standard 19-inch rack cabinet. Figure 6: Attaching rack mount bracket Figure 7 shows how to assemble rack cable support then screw it to the back and inside the rack cabinet vertical post.
Then, keyboard/mouse/monitor cables can be routed over the cable support. You can use plastic cable ties to bundle and label the cables through the rack cable support holes for easy identification. Operation Front Panel Push Buttons You may select a computer by pressing the front panel push button directly, by issuing hot-key commands or by activating the OSD window (for models with OSD support).
OSD (On-Screen-Display) Operation SV431D, SV831D, SV1631D, SV832DS, SV1632DS Figure 9: OSD screen illustration By hitting the left <CTRL> key twice within two seconds, you may see the 'Hotkey Menu' if it is enabled (an OSD option). Or, by hitting the left <CTRL>...
Page 14
ready for selection (its corresponding front panel indicator is green), or the color is white as it has no power. OSD menu updates the color when it is activated. Use the <UP> and <DOWN> arrow keys to highlight a computer and the <ENTER> key to select it. Or, you may press <ESCAPE>...
Page 15
Function key <F3>: To lock a device (a computer or a Slave) from unauthorized access, use Security. Security is effective for only one device (a computer or a Slave). To lock a device, use the <UP> and <DOWN> arrow keys to highlight it, then press <F3>. Now, enter up to 4 characters (‘A’~’Z’, ‘0’~’9, ‘-‘) followed by <ENTER>...
Page 16
Scan mode, the OSD displays the name of the selected computer. When Auto Scan detects any keyboard or mouse activity, it suspends the scanning till activity stops; it then resumes with the next computer in sequence. To abort the Auto Scan mode, press the left <CTRL> twice, or, press any front button.
StarView offers keyboard typematic setting that overrides the similar settings in BIOS and in Windows. Available speed options are Low, Middle, Fast and Faster as 10, 15, 20 and 30 characters/sec respectively. The non-volatile memory stores the Keyboard Speed setting. <...
Page 18
keystrokes for hot-keys all the time. A hot-key sequence starts with two left <CTRL> keystrokes followed by one or two more keystrokes. A built-in buzzer generates a high-pitch beep for correct hot-key command; otherwise, one low-pitch beep for error and the bad key sequence will not be forwarded to the selected computer.
g Manual Scan enables you to manually switch back and forth between power-on computers. left Ctrl + left Ctrl + F2 Press áor âto select the previous or the next computer in sequence. And, press any other key to abort the Manual Scan. Note: For OSD models, Scan Type determines whether eye mark is necessary during Manual Scan.
Page 20
equal or more 'PC x' ports than that of the Slave, i.e., if SV831 is the master, SV831 and SV431 can be Slaves, but SV1631 can not. The ports labeled "PC 1"~”PC 8” can be connected to either a computer or a Slave's CONSOLE port, as shown in figure 10. The ports “PC A"~”PC H”...
Figure 11: Cascaded 4-port StarViews Figure 12: Cascaded 8-port StarViews For OSD model: After connection completes, you should re-activate the OSD menu to check if the Master recognizes the Slaves. A triangle mark (4) is placed to the right of the channel name indicating the port is connected to a Slave not a computer.
two different locations, local and remote. Thanks to the high-drive circuit design, you may connect high quality cables at Console and PC sides for up to 100ft (30m), a definite plus for server room applications. Now you can access all computers either in the server room when you have to physically access the computers such as software upgrade, or away from the server room for everyday use.
Timeout setting. The User Timeout is available in the OSD menu by pressing the Function key <F4>, under the sub-menu More. Note: Keyboard Speed option is not available for multi-access models. Configuration To expand the number of computers under control, you may connect CONSOLE port of another StarView to “PC1”~”PC8”...
Appendices Specifications: Specifications SV431 SV831 SV1631D SV832DS SV1632DS SV431D SV831D User port number Computer port number Cascade control PC number Up to 16* Up to 64* Up to 136* Up to 64* On-screen display (OSD) SV431D SV831 Front panel button control Hot plug-and-play Hot-key control Rack-mount kit...
Troubleshooting: Ensure that all cables are well seated. Check that keyboard/mouse cables are not swapped. Label and bundle the cables for each computer to avoid confusion when connected to the StarView. Symptom Possible causes Recommended solutions No OSD screen sNo power to StarView sEstablish power by turning on computers, wait, press left CTRL sLoose monitor...
Page 26
Double OSD sImproper slave sPress push buttons 1 and 2 images at connection procedure. down for 2 seconds to activate cascade K/M RESET. configuration sRemove any possible power supply to the Slave (unplug all cables), before connecting it to the Master. OSD menu is sOSD menu has fixed sUse <F4>: More\Position to...
