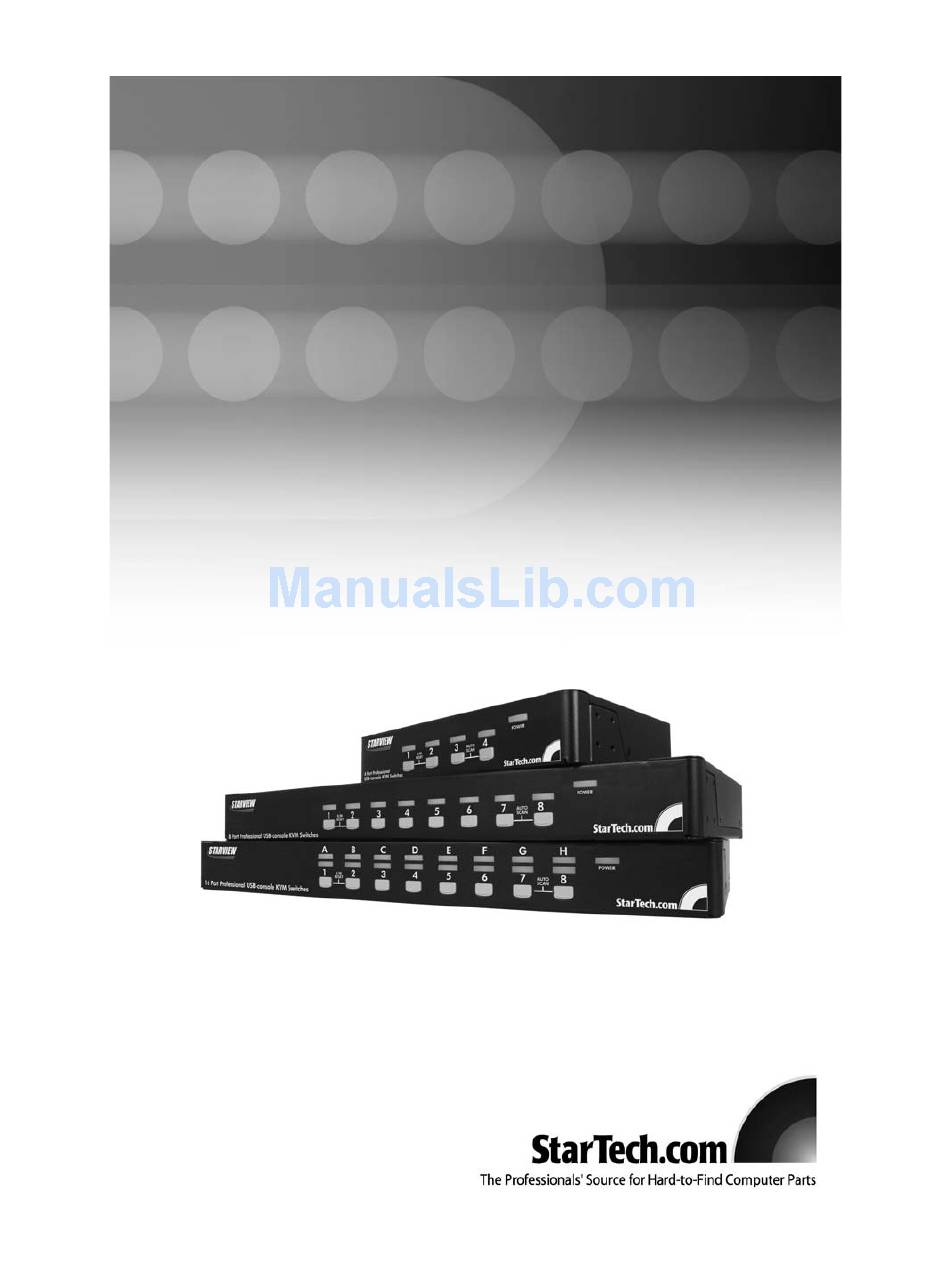

- Page 1 USB Console KVM Switch Professional USB Console KVM Switch SV431DUSB SV831DUSB Instruction Manual SV1631DUSB Actual product may vary from photo...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. -
Page 3: Table Of Contents
Instruction Manual T T a a b b l l e e o o f f C C o o n n t t e e n n t t s s Introduction ........... . .1 Features . -
Page 4: Introduction
B B e e f f o o r r e e Y Y o o u u B B e e g g i i n n System Requirements Please note: SV431DUSB is capable of using USB console devices only. SV831DUSB and SV1631DUSB are capable of using both USB and PS/2 console devices. -
Page 5: Installation
Instruction Manual I I n n s s t t a a l l l l a a t t i i o o n n Warning: Prior to installation, please ensure that all computers and KVM switch(es) are powered down. -
Page 6: Usb Keyboard And Usb Mouse
Please note: When configuring the switch as a Slave in a cascaded configuration, PS/2 Keyboard and Mouse is the only mode that can be used. As such, SV431DUSB cannot be configured as a slave in a cascaded setup, as it does not provide a slide switch selector. -
Page 7: Ps/2 Only
Instruction Manual PS/2 Only To connect a computer controlled by PS/2 peripherals, use a 1-to-3 cable (SVECONx) to connect from one of the PC ports to the PS/2 keyboard and mouse, as well as the video port of the computer. Cascaded configurations Please note: The master must have equal or more PC x ports than that of the slave. - Page 8 Instruction Manual The maximum number of computers controlled by a Master/Slave configuration with all 8- port units is 64, with 8 Slaves and each Slave connecting to 8 computers (as depicted in Figure 1-7: Master DC 9V, 500mA Slave Slave Figure 1-7 The maximum number of computers controlled in a Master/Slave configuration with all 16-port units is 136, with 8 units of 16-port Slaves (to PC 1 - PC 8) and each Slave...
-
Page 9: Operation

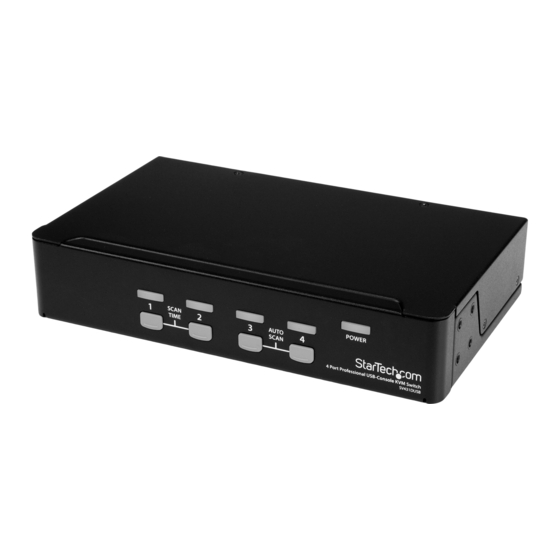

Auto Scan This KVM switch provides an easy to use feature to start Auto Scanning. To use this function, simultaneously press buttons 7 and 8 and hold for two seconds. (SV431DUSB uses buttons 3 and 4 to launch this function). -
Page 10: On Screen Display Operation
Instruction Manual OSD (On Screen Display) Operation Currently Port Channel selected address channel address To an 8-port Slave Highlighted by To a 16-port arrow keys Slave Eye mark enabled Security enabled port Press ENTER to enter the sub-directory for Slave FINANCIAL-1F Master port name... - Page 11 For SV831DUSB and SV1631DUSB, press and hold the 1 and 2 front panel buttons, then hold 7 and 8. Release 7 and 8, then release 1 and 2. For SV431DUSB, press 3 and 4. Function key <F4>: More functions are available by hitting <F4>. A new screen pops up displaying more functions as described below.
-
Page 12: Auto Scan
Instruction Manual view options then press <ENTER> to select it. You can press <ESCAPE> to exit at any time. Auto Scan In this mode, the KVM Switch automatically switches from one power-on computer to the next, sequentially, in a fixed interval. During AutoScan mode, the OSD displays the name of the selected computer. - Page 13 Instruction Manual Hotkey Menu: When you hit the left <CTRL> key twice within two seconds, the Hotkey Menu appears displaying a list of hot-key commands if the option is On. The Hotkey Menu can be turned Off if you prefer not to see it when the left <CTRL>...
-
Page 14: Hotkey Commands
Instruction Manual Function Key <F5> To switch the Sun mark of a port on or off indicating the computer is a Sun server as shown in Figure 12. Sun servers have more keys on the keyboard than a PC. When a Sun-marked port is selected, the KVM Switch starts to translate the keys from a PC keyboard to a Sun keyboard. - Page 15 Instruction Manual The short form hotkey menu can be turned on as an OSD function (<F4>:More\Hotkey Menu) every time the left <CTRL> is pressed twice. Note: Left <CTRL>: designates the Control key on the left side of the keyboard. 1~8/A~H: designate the number keys ‘1’~’8’ in the upper row of the keyboard and character keys ‘A’...
-
Page 16: Sun/Mac Keyboard Mapping
Instruction Manual To adjust Scan Rate, which sets the duration before switching to the next computer in Auto Scan: Left <CTRL>, Left <CTRL>, F3 The switch will beep one to four times indicating the scan interval of 3, 8, 15 and 30 seconds respectively. - Page 17 Weight 980g (34.6 oz) 2230g (78.7 oz) 2650g (93.5 oz) Operating temperature 5 - 40°C Storage temperature -20 - 60°C Humidity 0-80% RH Rear-mount brackets 1U-height; included (optional for SV431DUSB) Size Power supply (min) External power adapter 9V DC, 500mA...
-
Page 18: Specifications
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect,... -
Page 19: Technical Support
Visit www.startech.com for complete information about all our products and to access exclusive interactive tools such as the Parts Finder and the KVM Reference Guide. StarTech.com makes it easy to complete almost any IT solution. Find out for yourself why our products lead the industry in performance, support, and value.
