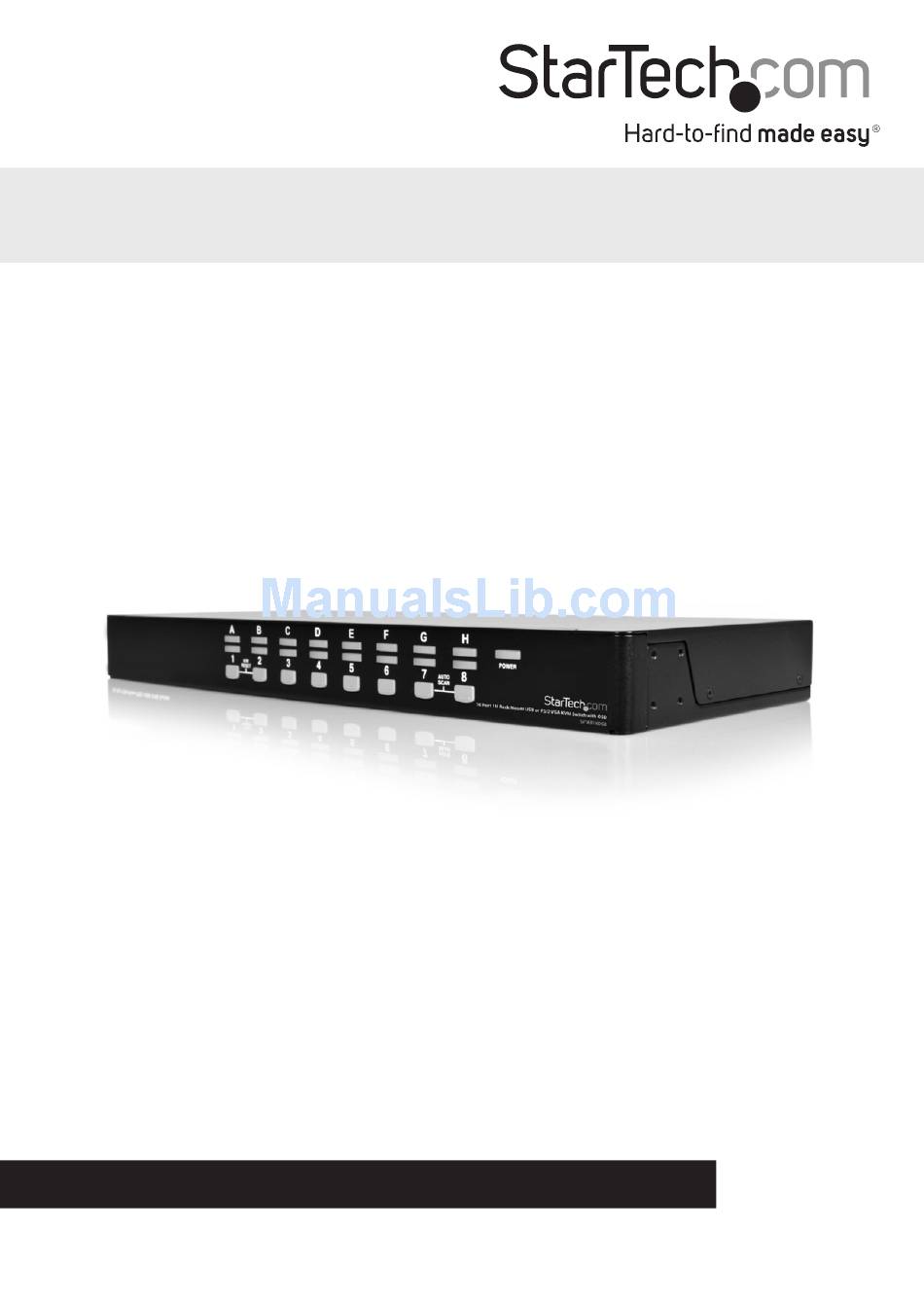

Instruction Manual

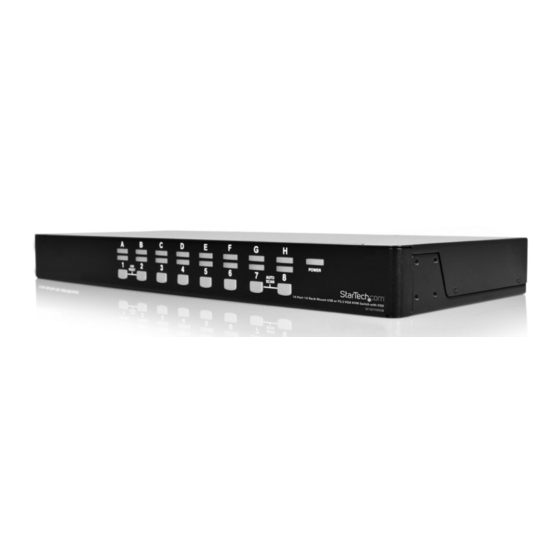

8 Port 1U Rack Mount USB PS2 KVM Switch
with OSD
SV831HD
SV1631HD
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 09/28/2011
*actual product may vary from photos
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com SV831HD
Summary of Contents for StarTech.com SV831HD
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 09/28/2011...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... -
Page 3: Table Of Contents
Operating Your KVM Switch ..............2 Push Buttons ............................... 2 OSD Operations ............................3 OSD Function Keys ........................... 4 Hot Key Commands ................7 Changing Your Configuration ..............9 (SV831HD, SV1631HD only) ...... 9 Keyboard Mapping Troubleshooting ..................11 Specifications ..................12 Technical Support ..................14 Warranty Information ................14... -
Page 4: Introduction
Thank you for purchasing a StarTech.com 1U KVM switch. Our universal KVM switches let you control either 8 (SV831HD) or 16 (SV1631HD) USB or PS/2 computers using only one PS/2 keyboard, mouse, and monitor. Our slim 16-port PS/2 switch (SV1631D1U) lets you connect 16 PS/2 computers using only one PS/2 keyboard, mouse, and monitor. -
Page 5: Cascade Configuration
Cascade Configuration You can connect a second level of KVMs to one or more of your Master KVM switch’s PC ports. The KVM switches connected to the Master switch are know as Slaves. Once connected, the KVM switches will automatically configure themselves as either Masters or Slaves. -
Page 6: Osd Operations
OSD Operations By hitting the left <CTRL> key twice within two seconds, you may see the ‘Hotkey Menu’ if it is enabled (an OSD option). Or, by hitting the left <CTRL> key three times within two seconds, you will see a ‘KVM MENU’ screen showing a list of the computers with corresponding channel addresses, names and status. -
Page 7: Osd Function Keys
Press <ESCAPE> to exit the OSD menu and remove the OSD menu from the screen. A triangle mark on the right side of the screen indicates the port is cascaded to a Slave KVM; the number at the left of the triangle mark shows the number of ports the Slave has. - Page 8 If you forget the password, the only way to permanently erase all passwords is to press and hold pushbuttons 1 and 2, then press and hold pushbuttons 7 and 8. Release 7 and 8 then release 1 and 2. Function key <F4> More functions are available by hitting <F4>.
- Page 9 Scan Type Ready PC + Eye: In Scan mode, scans through only power-on and eye-marked selected computers. Ready PC: In Scan mode, scans through all power-on computers. Eye only: In Scan mode, scans through any Eye-selected computer regardless of power status.
-
Page 10: Hot Key Commands
Country Code for Sun (SV831HD, SV1631HD only) Sun keyboards of different languages have different layouts. This KVM switch can emulate a Sun keyboard for a specific language type (or country). Select the proper country code that matches all your Sun computers. - Page 11 Auto Scan Auto Scan automatically scans through power-on computers at a fixed interval: left Ctrl + left Ctrl + F1 When Auto Scan detects any keyboard or mouse activity, it suspends the scanning until activity stops; it then resumes with the next computer in sequence. The length of the Auto Scan interval (Scan Rate) is adjustable (see Scan Rate on the following page).
-
Page 12: Changing Your Configuration
Keyboard Mapping (SV831HD, SV1631HD only) These KVMs are able to emulate a Sun keyboard and mouse when a computer is marked with a Sun in OSD menu by Function key <F5>. A Sun keyboard has more keys than a standard PS/2 keyboard. - Page 13 Standard Keyboard Map to Sun Keyboard Map to Mac Keyboard right<CTRL>, <1> right<CTRL>, <2> right<CTRL>, <3> right<CTRL>, <4> Power right<CTRL>, <F1> Stop right<CTRL>, <F2> Again right<CTRL>, <F3> Props right<CTRL>, <F4> Undo right<CTRL>, <F5> Front right<CTRL>, <F6> Copy right<CTRL>, <F7> Open right<CTRL>, <F8>...
-
Page 14: Troubleshooting
Troubleshooting If you are experiencing trouble with your devices, first make sure that all cables are connected to their proper ports and are firmly seated. You may also want to try resetting the devices by pressing and holdingthe front-panel 1 and 2 pushbuttons. Mouse does not work. -
Page 15: Specifications
Only ports PC1 to PC8 can be connected to Slaves, even if the Master KVM has 16 PC ports. Only one level of Slave KVMs is allowed. Keyboard strokes are shifted. Press both Shift keys. Specifications SV831HD SV1631HD User Ports Computer Ports Cascade control... - Page 16 SV831HD SV1631HD 4 characters per 4 characters per Security control computer computer 100 ft (30m) at 100 ft (30m) at Console Console cable length PS/2: 100 ft (30m) PS/2: 100 ft (30m) (max) at PC at PC USB: 16 ft (5m)
-
Page 17: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 18 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
