Summary of Contents for Durr Dental Hygosonic

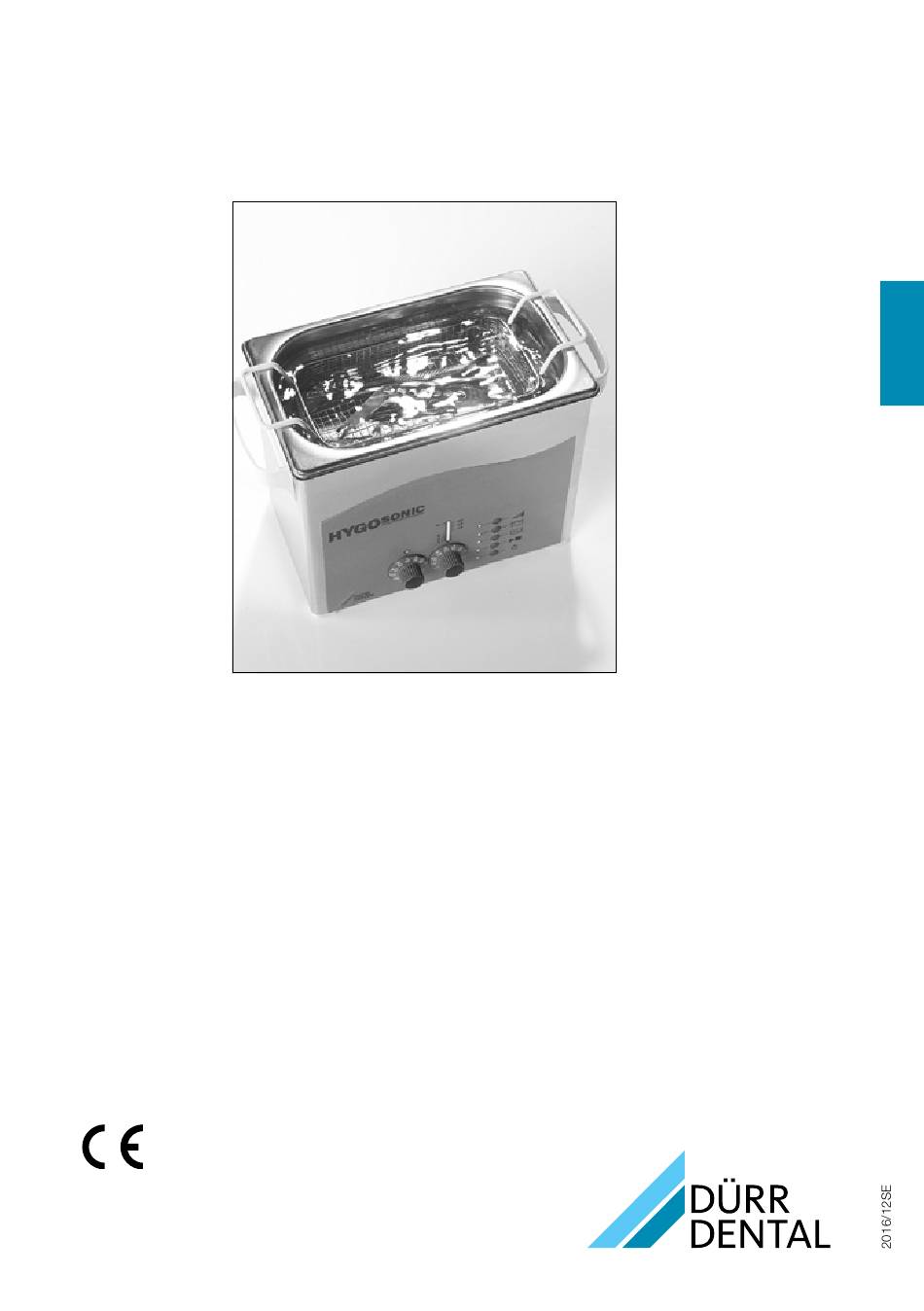

- Page 1 Hygosonic Installation and Operating Instructions 9000-616-14/30 *9000-616-14/30*...
-
Page 3: Table Of Contents
Contents Important Information Installation 1. General 4 7. Set up 9 11 Note on Conformity 4 71 Room for set-up 9 12 General Notes 4... -
Page 4: Important Information
1.5 Intended purpose conform to the relevant version of the equip- ment and the underlying safety standards va- The Hygosonic ultrasonic bath from Dürr Dental lid at the time of going to press All switches, is used for the intensive decontamination of... -
Page 5: 16 Correct Usage
1.6 Correct Usage • The product is not designed to be used in medical treatment areas where there exists The Dürr Dental Hygosonic may only be used in the danger of explosion Areas where explosi- connection with a suitable insert container or... -
Page 6: Warning And Symbols
3. Warning and Symbols The Installation and Operating Instructions ma- kes use of the following expressions and sym- bols to refer to especially important instructions: Information and/or mandatory re- gulations or prohibitions for the prevention of personal injury or substantial property damage Special information regarding the eco- nomical use of the equipment and other information... -
Page 7: Delivery Contents
Voltage (V) 220 - 240 cific requirements and/or import regulations): Frequency (Hz) 50 - 60 Ultrasonic-frequency (kHz) 37 Hygosonic 6035-50 Power consumption, est (W) 280 - Installation and Operating Instructions Effective ultrasound output (W) 80 Hygosonic 6035-51... -
Page 8: Functional Description
The exact length of time for preparation in the Hygosonic (1) will depend greatly on the particu- lar materials, amounts and level of dirt When using disinfectants be sure to observe the reac-... -
Page 9: Installation
Installation 7. Set up 7.1 Room for set-up • The Hygosonic can be set up in the technical (preparation) rooms of any surgery • The room temperature in winter must not fall below + 10 °C and must not exceed + 40 °C in summer •... -
Page 10: Operation
Operation 10. Instructions for use • Only use this appliance with fluid and correctly fitted cover! • Do not fill the appliance excessively with parts and ensure that all parts are cove- red by the fluid. • Do not exceed the maximum level of fluids permitted in the bath! •... -
Page 11: 101 Performing Routine Checks Of The Unit Before Initial Commissioning
– Angle of the inserted aluminium foil – Quality and thickness of the aluminium foil • Perform the foil test at regular intervals The exact instructions for the foil test (routine inspection of the Hygosonic) are available in our download centre here: wwwduerrdentalcom 2016/12SE... -
Page 12: 102 Preparation
The weight of the full insert tray must not ex- ceed 1 kg, danger of filling too much! • Place the insert tray into the Hygosonic • Place cover on unit • Proceed to sections 103 / 104 10.1.2... -
Page 13: 103 Operation Pad
The keys (2) to (5) allow the individual functions to be switched on and off - where the appliance has already been switched on 10.3 Operation pad On / Off all other functions can only be operated once the appliance has been switched on! Start the ultrasound operation: 1 Set time on the rotating switch (7) 2 Press... -
Page 14: 104 Cleaning Process
10.4 Cleaning process Do not lay parts or containers in direct contact with the bath floor! Do not fill the appliance excessively with parts and ensure that all parts are cove- red by the fluid • Switch on the appliance •... -
Page 15: 106 Recommended Disinfection And Cleaning Agents
11. Maintenance 11.1 Routine check of the unit • Perform the foil test at regular intervals The exact instructions for the foil test (routine inspection of the Hygosonic) are available in our download centre here: wwwduerrdentalcom 11.2 Ultrasound bath care •... - Page 20 DÜRR DENTAL SE Höpfigheimer Str. 17 74321 Bietigheim-Bissingen Germany Fon: +49 7142 705-0 www.duerrdental.com info@duerrdental.com...
