- Page 1 Marine Panel Computer USERS MANUAL Version: 1.0 R15IV3S-MRXX 15.0 inch Marine Bridge Panel PC System R19IV3S-MRXX 19.0 inch Marine Bridge Panel PC System Users Manual Marine Bridge Panel PC System...
- Page 2 REVISION HISTORY EVISION UTHOR ESCRIPTION First version release 1.00 Marc Tsai June. 4, 2013 Copyright @2013 Winmate Communication INC. Users Manual Marine Bridge Panel PC System...
-
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Please read these instructions carefully before using the product and save for later reference. Follow all warnings and instructions marked on the product. Unplug this product from the wall outlet before cleaning. Clean the product with a damp soft cloth. Do not use liquid or aerosol cleaners as it may cause permanent damage to the screen. -
Page 4: Packaging List
Packaging List This product is shipped with the items list below. Please make sure that all are in your package. Item Description Note 1 pcs of Users Manual. 1 pcs of CD for Mainboard Driver Utility. 4 pcs of M6 x 30 black screw bolt with M6 nut. 10.4 inch above Notice: Only be used to screw the display display use. - Page 5 Optional Accessories Item Description Note 1 pcs of CD for Recovery CD for Operation Optional with System (Windows 7). Windows 7 pre-installed. 1 pcs of Windows 7 Recovery Users Guide. Optional with Windows 7 pre-installed. 1 pcs of Standard Power Cord. Optional AC version of Euro / U.S.
-
Page 6: Table Of Contents
Contents IMPORTANT SAFETY INSTRUCTIONS ............2 PACKAGING LIST ..................3 CHAPTER 1 GENERAL INFORMATION ............7 1.1 F .............. 7 EATURES ABOUT THE ARINE RIDGE YSTEM ISPLAY 1.2 B PC ................. 9 ASIC ONSTRUCTION OF ARINE ANEL 1.3 T ) ..................10 OUCH CREEN OLUTION... -
Page 7: General Information
CHAPTER 1 General Information Users Manual Marine Bridge Panel PC System... -
Page 8: Chapter 1 General Information

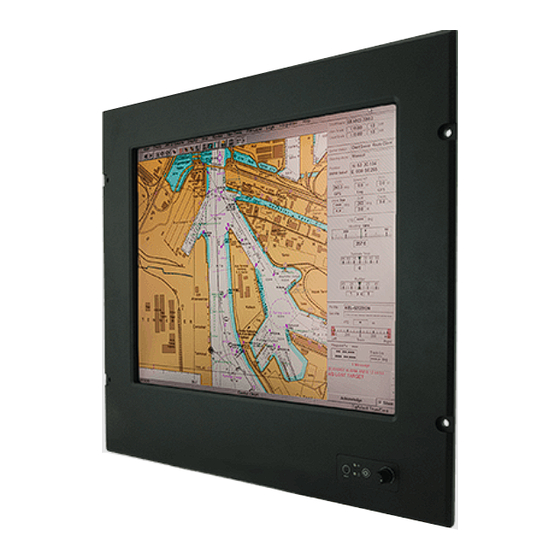

Chapter 1 General Information The Marine Grade Ivy Bridge Panel PC is high performance Panel PC with HM76 chipset combine with a TFT LCD Panel. Design with transflective panel, dimming brightness, ease of use OSD front panel control, IP65 proof, high quality touch-screen, wide voltage range power input acceptable, and anti-corrosion protection. - Page 9 Approved Marine Panel PC Winmate Marine Panel PC design is followed IEC-60945 Maritime Navigation and Radio-communication Equipment and Systems requirements. The Marine Panel PC series consists wide range sizes from 10.4 inches to 24 inches. By testing for usability in a ship’s wheelhouse during different ambient light conditions.
-
Page 10: Basic Construction Of Marine Panel Pc
1.2 Basic Construction of Marine Panel PC The state of the art modulized technology can integrate all marine display components flexibly. Figure 1.1 Basic Construction Users Manual Marine Bridge Panel PC System... -
Page 11: Touch Screen Solution (Optional)
1.3 Touch Screen Solution (Optional) 1.3.1 Five-Wire Resistive Touch screen (Optional 1) Introduction to Five-Wire Resistive Touch screen The five-wire resistive touchscreens use a glass panel with a uniform resistive coating. A thick polyester coversheet is tightly suspended over the top of the glass, separated by small, transparent insulating dots. -
Page 12: Secure Touch Surface Wave Touch Screen (Optional 2)
1.3.2 Secure Touch Surface Wave Touch screen (Optional 2) Introduction to SAW Touch screen The surface wave is the optical standard of touch. Its pure glass construction provides superior optical performance and makes it the most scratch-resistant technology available. It's nearly impossible to physically "wear out"... - Page 13 CHAPTER 2 Installation Users Manual Marine Bridge Panel PC System...
-
Page 14: Chapter 2 Installation
Chapter 2 Installation 2.1 General installation The Marine Panel PC can be applied for several different installation methods. Including panel (flush) mounting, bracket mounting, ceiling / wall mounting…etc. For panel (flush) mounting is normally for a ship’s wheelhouse use, it’s easy to follow few steps to fix the display product in customer’s fixture. - Page 15 Step1. Put the marine product on the fixture (console) from the front, and screw by four M6 x 30 mm black bolts with nuts. Step2. Use M4x 15mm bolts to drill through the fixture into the mounting holes on the rear side of IP65 front bezel.(The quantity of mounting screws based on drawing) Users Manual Marine Bridge Panel PC System...
- Page 16 Step3. Check the finished mounting concept. ** Please Note: VESA and wall mount with mounting kit by special request. Users Manual Marine Bridge Panel PC System...
-
Page 17: Installation Notice
2.2 Installation Notice 2.2.1 Brightness Control Knob Precaution The dimming brightness control knob may be damaged by wrong placement. Please make sure the right way to protect the knob. 2.2.2 Cable Connection Precaution Make sure to use qualified shielded signal cable to connect to Marine products. These cables including RS232, VGA, HDMI, LAN, USB cable should be connected inside the area as marked below. - Page 18 2.2.3 Isolation RS422/485 Jumper Settings 1.RS-485/RS-422 RS2T4-420 2.RS-232 RS2T4-420 Users Manual Marine Bridge Panel PC System...
- Page 19 SW1 (On Back side): COM3(J3) / COM4(J8) RS-422/485 Mode Switch D-Sub 9P RS-232/RS-422/RS-485 (J3,J8) Used connector: DB9 Female Related connector: DB9 Male Pin No. Symbol Description DCD/D-/TX-/RX- RXD/D+/TX+/RX+ TXD/RX+/TX+ DTR/RX-/TX- Ground DSR/NC RTS/NC CTS/NC RI/NC Pins definition of J3 and J8 of 3 types 1.
- Page 20 3. RS-422 Slave Pin No. Symbol Description Users Manual Marine Bridge Panel PC System...
- Page 21 CHAPTER 3 Operation the Panel PC Users Manual Marine Bridge Panel PC System...
-
Page 22: Chapter 3 Operation Of The Panel Pc
Chapter 3 Operation of the Panel PC 3.1 Input / Output Signals Overview The Marine Panel PCs design with versatile computing functions fulfilling the embedded applications. The default function include two COM ports (one for RS232 and one for RS232/422/485), one for VGA output, one for HDMI output, two for USB 3.0, two RJ45. Figure 3.1 Input / Output Signals Power input (DC Version / AC Version) Default DC terminal block power source input compact design meets the maritime application. -
Page 23: I Nfront User Controls
USB port connection Use standard USB type A cable to connect any device that use USB interface for expansion functions. 3.2 In Front User Controls The compact in front user control is a user-friendly interface both to control the system function and status. - Page 24 Appendix Users Manual Marine Bridge Panel PC System...
-
Page 25: Appendix A: Cleaning The Monitor
Appendix A: Cleaning the Monitor 1. Make sure the monitor is turned off. 2. Never spray or pour any liquid directly on the screen or case. 3. Wipe the screen with a clean, soft, lint-free cloth. This removes dust and other particles. 4. -
Page 26: Appendix B: Sunlight Readable (Transflective) Outdoor Readability (Optional)
Appendix B: Sunlight Readable (Transflective) Outdoor Readability (Optional) Transflective LCD technology can be applied to certain selected regular TFT LCD to introduce the LCD with a reflective function. With the imposed reflective function, the modified LCD can reflect the ambient light passing the LCD cell and utilize the reflected light beams as its illumination.
