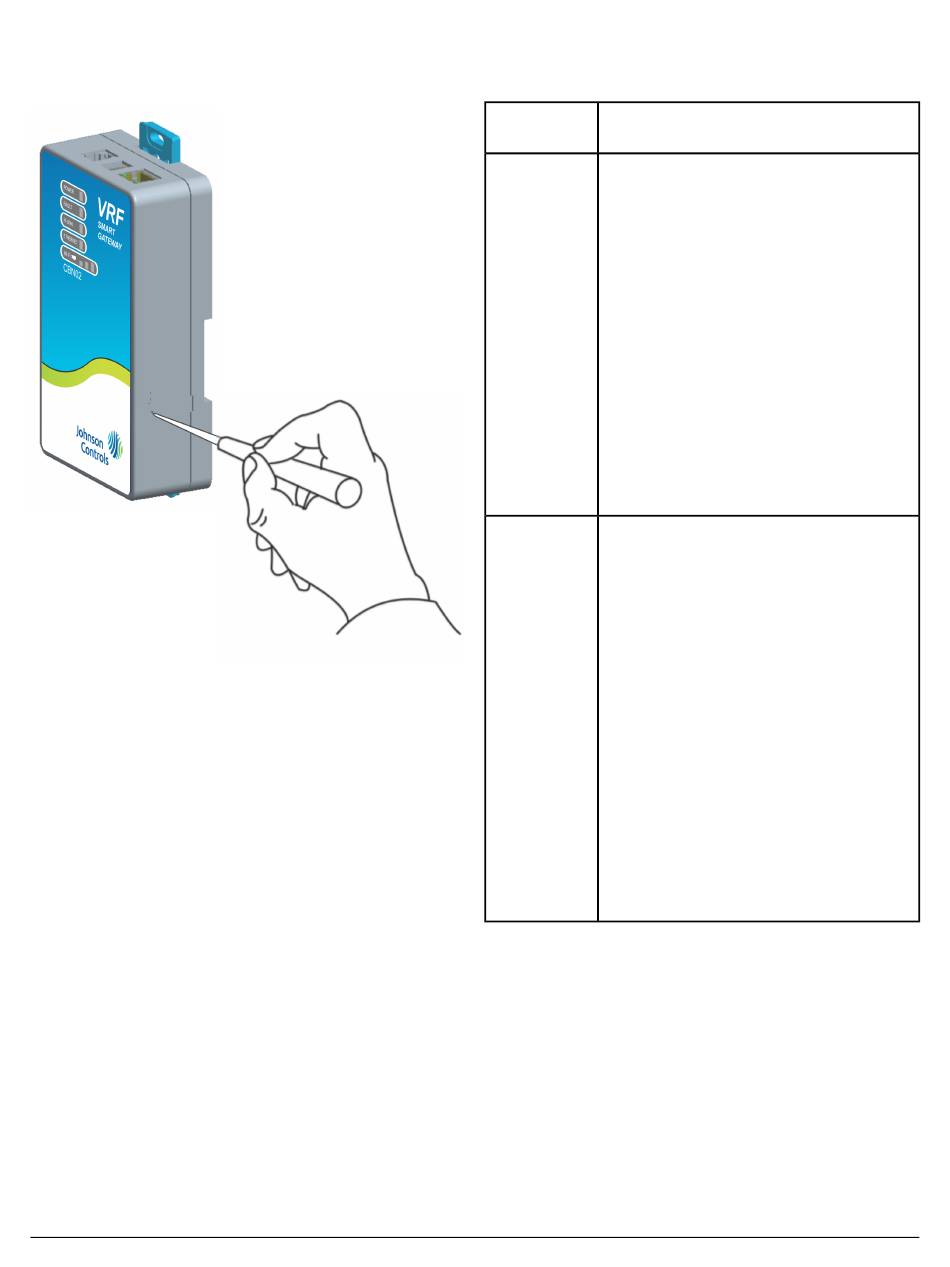

Figure 8: Using the Reset Button
VRF Smart Gateway Installation Instructions
Table 1: Reset Button Operation and Descriptions
Reset
Reset Operation
Function
Reset Wi-Fi 1. Press and hold the reset button for 2
and Ethernet seconds. The Fault LED displays Slow
Settings Flicker behavior.
2. Release the reset button within 3
seconds. The Fault LED continues Slow
Flicker behavior.
3. Within 5 seconds, press the reset button
again, and then immediately release it to
confirm that you wish to reset Wi-Fi and
Ethernet settings. (If you do not press the
reset button to confirm within 5 seconds,
the reset operation is cancelled.)
The Wi-Fi (SSID and passphrase) and
Ethernet settings are reset to factory
defaults. The LEDs stop flickering for 2
seconds, and then the LEDs return to
normal operation, based on the current
state of the device.
Reset to 1. Press and hold the reset button for 6
Factory seconds. After 2 seconds, the Fault LED
1 displays Slow Flicker behavior. This
Defaults
changes to Fast Flicker behavior after an
additional 4 seconds of holding the reset
button.
2. Release the reset button within 3 seconds
of seeing Fast Flicker behavior. The Fault
LED continues Fast Flicker behavior.
3. Within 5 seconds, press the reset button
again, and then immediately release it to
confirm that you wish to reset to factory
defaults. (If you do not press the reset
button to confirm within 5 seconds, the
reset operation is cancelled.)
4. All unit settings are reset to factory
defaults. The LEDs stop flashing for 2
seconds, and then the LEDs return to
normal operation, based on the current
state of the device.
1 Resets all unit settings, including user profiles.
2 For information on LED designations and flicker behavior,
see Table 2.
