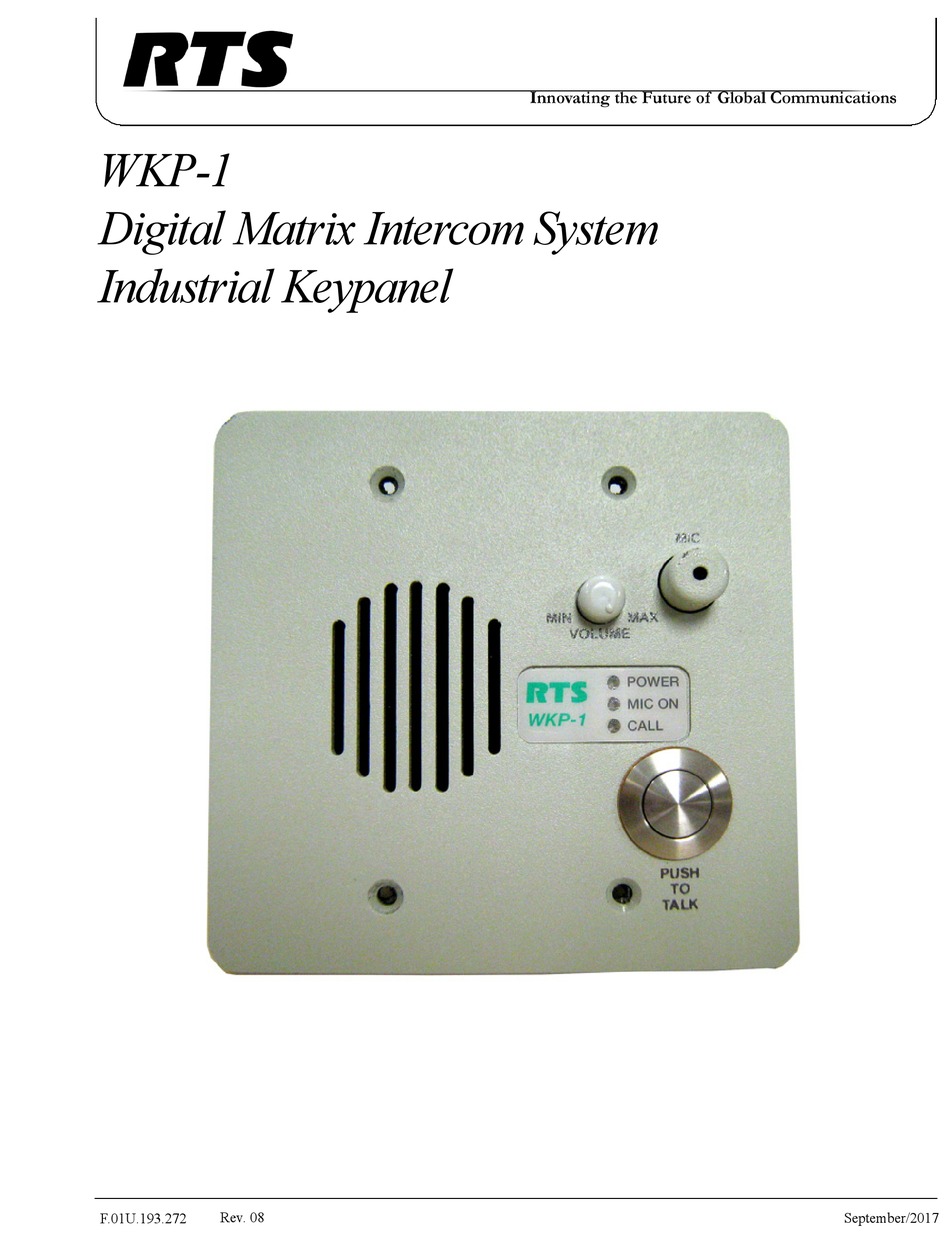

WKP-1 Digital Matrix Intercom System Industrial Keypanel Rev. 08 September/2017 F.01U.193.272...
Page 2
WARNING: APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR site below: SPLASHING AND NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS. RTS Intercoms ......www.rtsintercoms.com/warranty WARNING: THE MAIN POWER PLUG MUST REMAIN READILY OPERABLE. RTS Digital RTSTW...
Page 3
WKP-1 Important Safety Instructions Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
ADAM Intercom Systems ..........................14 Gain Control ............................15 Change Gain Settings with the Application Setup .................... 15 Run in Half-Duplex Mode ..........................16 Talk Latch Disabled ............................16 The Three (3) WKP-1 Boards ........................17 Contents ................................17 Connections ............................18 KEYPANEL SETUP ........................21 Intercom Key Operation ........................21...
Description and Specifications General Description Bosch has refined the look of multi-location security with the WKP-1 Industrial Keypanel. It offers simplified operation and integrates seamlessly with digital intercom systems (ADAM, Zeus, Zeus III and ADAM-M). The physical size and ...
8 Description and Specifications WKP-1 Front Panel Description WKP-1 Reference View (Numbered items refer to front panel descriptions) FIGURE 1. Speaker - The speaker is built-in and water-resistant to allow for dependable listening. An internal volume control allows the user to set a lower limit on the volume level, ideal for loud environments, such as loading docks and construction sites.
15VDC 400mA nominal (800mA maximum) for local power. 24VDC up to 800mA for remote power 300ft or more. Connections RJ-45 For use with Standard CAT-5 cabling RJ-12 For use with RTS Matrix Standard 3-pair cabling Terminal strip for use with unterminated cabling Size Width 4.562” (115.87mm) Length 4.5”...
1 - WKP-1 User Manual Installation and Mounting The WKP-1 mounts directly into a standard 2-gang electrical box. The electrical box must be at minimum three (3) inches deep to accommodate the stacked design of the PC boards (see Figure 2).
12 Installation WKP-1 Dip Switches Dip Switch 1 Open Latching turned on. (default) Closed Latching turned off. Description An intercom key can always be turned on for momentary conversation by pressing and holding the key during the conversation. There is also an electronic latching feature that lets you tap intercom keys to turn them on or off.
Each AIO card contains two groups of eight intercom ports. However, the individual intercom ports may be broken out using various types of breakout panels or punch blocks, and group may not be easily identified. It may be easier to set the WKP-1 address switch using the actual intercom port numbers.
When this occurs a continuous audio loop forms which creates a feedback or squeal. For example, in Figure 4, audio enters the mic in the WKP-1, goes to the Matrix, then out the speaker on the KP-32. If the mic on the KP-32 is on, the sound emitting from the speaker may be picked up by the mic and sent back to the Matrix and to the WKP-4, thus creating an audio loop.
When Talk Latch is disabled, the talk function only works when the button is pressed. The user can disable the talk latch button through AZedit or set dip switch 1 to close in the WKP-1 dip switch settings (see “Dip Switches”...
16 Installation WKP-1 The Three (3) WKP-1 Boards WKP-1 3-dimensional view of boards. FIGURE 6. Contents Front Board Reset Button - The reset button provides a hardware reset to the processor. Dip Switches - Set the dip switches to individual preferences (see “Dip Switches” on page 12).
Local or Remote Power Switch (SW100) Local Power 3-pin Terminal (J100) RJ-45/CAT-5 Connection (J300) RJ-12 Connection (J400) 8-pin Terminal (J200) NOTE: If you are providing your WKP-1 keypanel with remote power, use the WKP-1 BOP (see Figure 10 on page 25).
Page 18
18 Installation WKP-1 DE-9P Male to DE-9S Female FIGURE 8. CAT-5 (RJ-45 Intercom Cable Wiring Diagram FIGURE 9. GPI Relay Terminal Pin Assignments TABLE 2. Channel NOTE: By default the channels are always open.
CHAPTER 3 Keypanel Setup You can only make keypanel assignments using AZedit. REFERENCE: For more information on AZedit, see the AZedit user manual. Intercom Key Operation Volume Adjustment Adjust speaker volume with the volume control. Momentary vs. Latching Operation For momentary key activation, do the following: Press and hold the intercom key.
Intercom Key Operation for Different Key Assignments Talk or Listen Key Operation The PUSH-TO-TALK button activates talk (if assigned). Listen cannot be activated from the WKP-1. The user can only listen when a different keypanel is talking to it. Special Functions Talk+Auto-Follow (AF) Listen Key Assignment This key assignment works the same as the basic talk/listen key assignment.
The 45-second time-out does not mean that after 45 seconds the user cannot continue talking with the incoming caller if the PUSH-TO-TALK button is still pressed. It means that after 45 seconds, if either the incoming caller or the WKP-1 disconnects normal talk key assignments are restored.
