RTS WKP-1 Quick Start Manual

WKP-
Industrial Matrix
Intercom Keypanel
The WKP-1 keypanel is the industrial keypanel from
Telex. Telex has refined the look of multi-location security
with this keypanel. It offers simplified operation and
integrates seamlessly with RTS
(RTS ADAM
™
size and weather-resistant design provides a flexible and
robust intercom system. The GPI relay switch lets the user
set up door latching, unlatching and other related actions
by pressing a single button from any panel in the system.

Features:

• Environmental - The unit sustains exposure to rain, snow, and
direct sun, allowing it to work in all environments. It operates in
temperatures ranging from -30° F to 120° F. The mechanical
design of the anodized, aluminum front panel and non-removable
volume control knob provide a vandal resistant panel.
• GPI Relay - The WKP-1 has a local GPI relay four-pin terminal
contact closure to give the user the functionality of latching,
unlatching doors or other related functions, with the press of
a button.

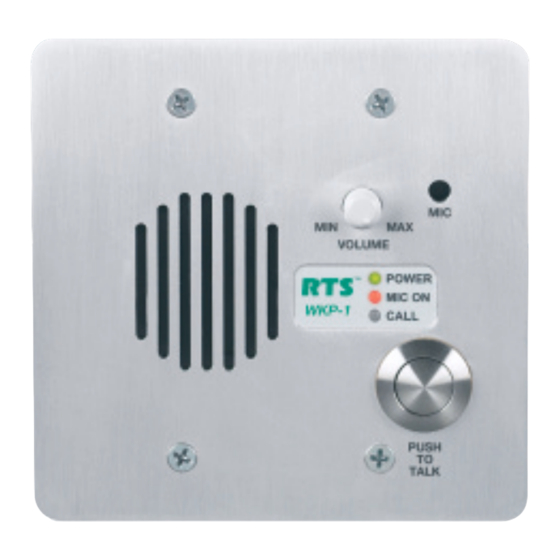

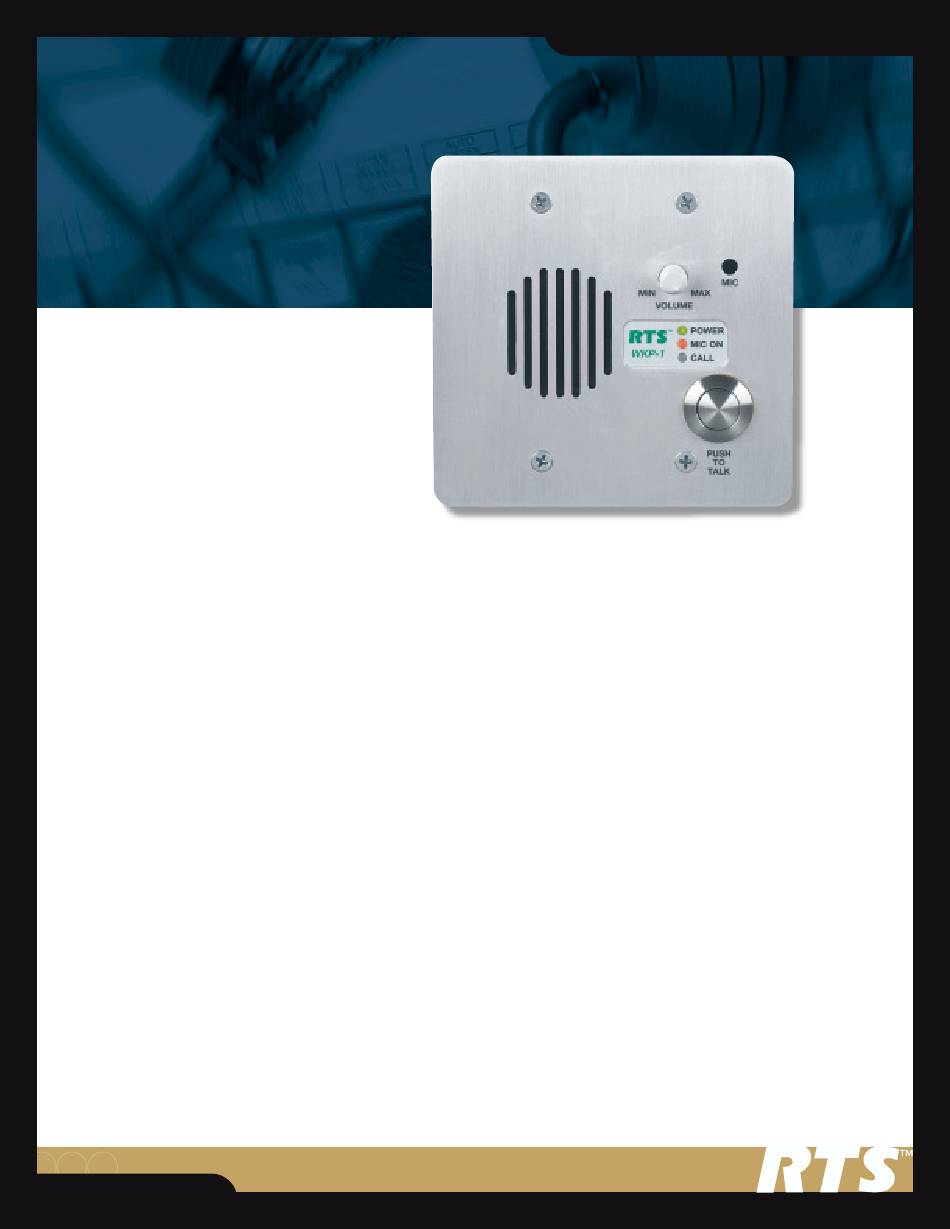

• Front Panel - Single button interface for push to talk operation.
There is a built-in waterproof speaker for listening capabilities. The
panel has three LEDs used to indicate power ON, microphone ON,
and Incoming Call Signaling.
