- Page 1 XCP-48-RJ45 Breakout Panel Technical Guide Jully 2006 Rev B 38110-509...

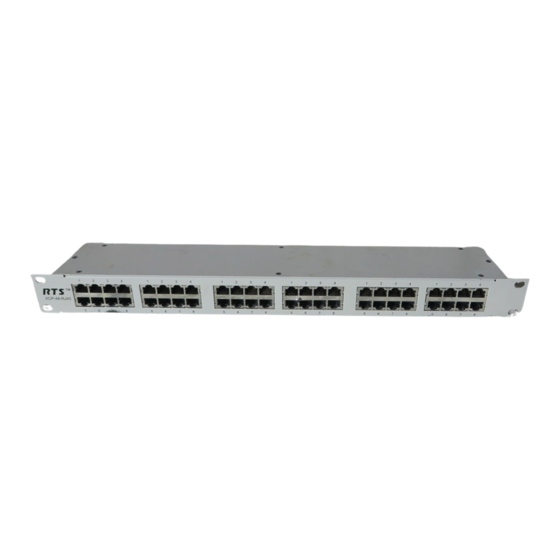

- Page 3 XCP-48-RJ45 The XCP-48-RJ45 is the newly created 48-port RJ-45 breakout panel with MDR connector for the AIO-16 and Cronus. It allow you to expand the number of RJ-45 ports on the Intercom system. NOTE: When using the 48-port RJ-45 breakout panel, you MUST use the MDR backcard for both the AIO-16 and Cronus.
- Page 4 XCP-48-RJ45 9000-7809-000 MDR Connector Number Port Audio To Matrix + Audio To Matrix - Audio From Matrix + Audio From Matrix - Data + Data + Audio To Matrix + Audio To Matrix - Audio From Matrix + Audio From Matrix -...
